INSTALLER
MANUAL
GDAŃSK
ca6i_en 05/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-6-P and is the answer not in the manual?

Questions and answers

Related Manuals for Satel CA-6-P

Summary of Contents for Satel CA-6-P

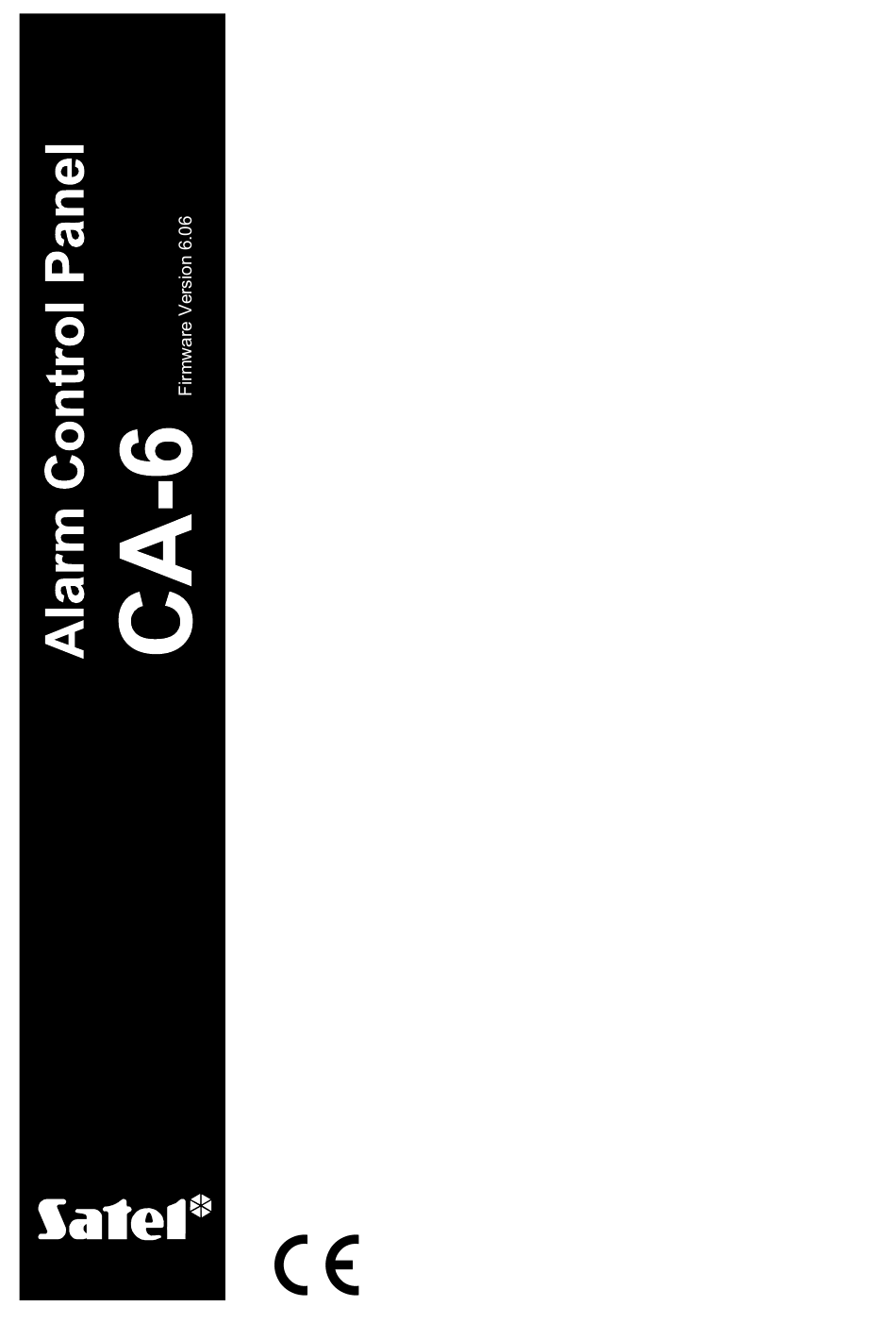

  • Page 1 INSTALLER MANUAL GDAŃSK ca6i_en 05/09...
  • Page 2 The batteries used in the alarm systems contain lead. When used-up, the batteries must not be thrown away, but disposed of as required by the existing regulations (European Directives 91/157/EEC and 83/86/EEC). DECLARATION OF CONFORMITY Products: Manufacturer: SATEL spółka z o.o. CA6P – mainboard of CA-6 control ul. Schuberta 79 panels. 80-172 Gdańsk, POLAND tel.

  • Page 3: Table Of Contents

    CONTENTS GENERAL DESCRIPTION OF THE CONTROL PANEL ............2 DESCRIPTION OF THE CONTROL PANEL ................2 Zones ........................... 2 Outputs ..........................4 Partitions ..........................7 Access codes and authority levels ..................8 Keypads ..........................8 Monitoring ..........................9 Dialer ..........................10 Remote Programming –...

  • Page 4: General Description Of The Control Panel

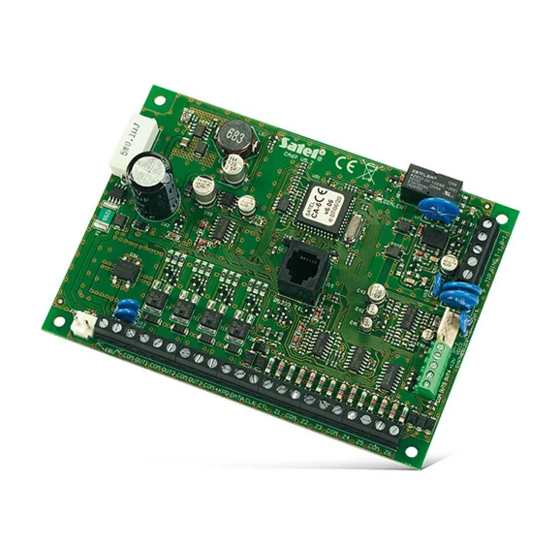

    GENERAL DESCRIPTION OF THE CONTROL PANEL The CA-6 alarm control panel is a microprocessor-based device, made with the use of automatic surface mount technology. Its comprehensive features and affordable price permit application of the CA-6 both in small and medium-size security alarm systems and in systems with special requirements. Basic functional features: •...
  • Page 5 CA-6 SATEL The zones (input lines) can perform the following functions in the system: 00 – exit/entry – the violation of which, when in the armed mode, will start countdown of the entry delay time and will enable the delay for INTERIOR DELAY type zones (violation of an INTERIOR DELAY zone without prior violation of the ENTRY/EXIT zone will trigger an alarm immediately).

  • Page 6: Outputs

    SATEL Installer Manual If one of the control panel outputs is programmed as the “fire detectors power supply”, violation of the zone will actuate the alarm verification mechanism and will signal alarm in the keypad. To perform the verification, control panel disconnects momentarily power supply to the fire detectors and checks, whether after reconnection of power supply the violation will be repeated within 90 seconds.
  • Page 7 CA-6 SATEL 00 – not used – remains inactive from the power-up, according to the setting of "polarity" option. 01 – burglary – the output starts on detecting a burglary alarm by the control panel. The alarm is triggered by armed zones, zones tamper circuits, keypads tamper contacts, and by the user (through the ALARM PANIC function).
  • Page 8 SATEL Installer Manual special "disarm under duress" alarm. Operation of the output can be restricted to alarms from particular partition. The output can remain active for a specified time (from 01 to 99 seconds or from 01 to 99 minutes) or until the alarm is cleared by the user. During operation, it can every second change its state (pulsate).

  • Page 9: Partitions

    CA-6 SATEL panel outputs, it activates the fire alarm verification function. The verification operates as follows: the first violation cuts the fire detectors power supply off for about 15 seconds. The power-down results in reset of the violated detectors. Then, the power supply is restored, but the panel will not control the “24H fire”...

  • Page 10: Access Codes And Authority Levels

    SATEL Installer Manual The partitions have individual identifiers and event codes for the monitoring purposes. Access codes and authority levels The CA-6 control panel can store in memory 13 access codes (4 to 6 digit long), with different authority levels. The codes are associated with the partitions they are assigned to.

  • Page 11: Monitoring

    CA-6 SATEL It is possible to signal the exit delay or entry delay time, trouble, violation of a CHIME option zone, violation of a DAY/NIGHT and COUNTING zone, alarm. You can also disable the signaling of key depression and confirmation of the function performed.

  • Page 12: Dialer

    The CA-6 is equipped with a telephone dialer, which enables an alarm voice message to be transmitted. The message is stored in an external synthesizer. The control panel directly interfaces with the SATEL SM-2 voice synthesizer. The dialer can also establish connections with paging systems. Two different alphanumeric messages can be programmed.

  • Page 13: Installation Of The Control Panel

    CA-6 SATEL In the ON LINE mode, the computer displays current information on the system state, including zone violations, active outputs, control panel clock, and selected partition state. It is possible to control the system in the same way as with a LED keypad. The keypad on the computer screen works in parallel with the real keypads in partitions, therefore commands for all partitions can be given from one place.
  • Page 14 SATEL. The cable includes a converter changing the signal into a standard corresponding to the RS-232 port in the computer (-12 V, +12 V). The data can be transmitted through the cable in both directions.
  • Page 15 (e.g. APS-15, APS-30 manufactured by SATEL). The Table 1 (at the end of this manual) shows an example of estimated balance of current consumption by the system, and an example of battery selection.

  • Page 16: Connection Of Keypad

    SATEL Installer Manual signals in the TTL (0 V, +5 V) standard, hence, a special cable of SATEL manufacture must be used to connect the panel and computer RS ports. The cable includes a converter changing this signal into a standard corresponding to the RS-232 interface in the computer (-12 V, +12 V).
  • Page 17 CA-6 SATEL COM +KPD DATA CLK Control panel mainboard CA-6 KLED D C B A keypad keypad Zone 7 Zone 8 backlight +KPD CLK DATA Fig. 4. Connection of keypad to control panel. The DCBA keypad jumpers determine the address which is an additional tamper protection.

  • Page 18: Connection Of Detectors

    SATEL Installer Manual The spring on the tamper contact must cling to the mounting surface so that the contact opens at any attempt to pull off the keypad from the wall. The keypad tamper contact has no connection with the system tamper circuit. Its state is defined by the control panel, based on the data received from the keypad.
  • Page 19 CA-6 SATEL CA-6 COM OUT3 CLK CTL COM 12V EOL/NO Fig. 7. Example of connecting NO type detector in EOL configuration to control panel. CA-6 COM OUT3 CLK CTL COM 12V EOL/NC Fig. 8. Example of connecting NC type detector in EOL configuration to control panel.

  • Page 20: Connection Of Sirens

    SATEL Installer Manual CA-6 COM OUT3 CLK CTL COM 12V 2EOL/NC Fig. 9. Example of connecting NC type detector in 2EOL configuration to control panel (NO type detector is to be connected in the same way). Connection of Sirens The CA-6 can control sirens of any kind. The control panel outputs have no functions permanently assigned to them.
  • Page 21 CA-6 SATEL Note: The OUT1, OUT2, and OUT3 outputs must be loaded with resistors installed in the sirens. It is necessary for correct operation of the system and for load presence check. We recommend using 2.2 k  Ω resistors. If the acoustic siren, connected to one of the outputs, produces some undesirable low sounds in deactivated state, the resistor should be decreased.

  • Page 22: Connections Of Telephone Line

    The CA-6 interfaces with the SM-2 synthesizer produced by SATEL. low-frequency signal The synthesizer socket (designated as: SM-2 triggering VOICE SYNTHESIZER) is located at the right...

  • Page 23: Starting The Control Panel

    CA-6 SATEL Before connecting the control panel to its power supply circuit, make sure that the supply circuit is not alive. Description of electric connections for CA-6 OBU housing. 1. Connect the 230 V alternating voltage leads to the transformer terminals marked "AC 230V".

  • Page 24: Entering Service Mode "From Pins

    SATEL Installer Manual Entering service mode "from pins" If the panel does not „see” the keypad when the power is on, and does not respond to the keystrokes (access code entry), or keeps on alarming, it is necessary to carry out the procedure of hardware access to the service mode.

  • Page 25: Guard Control Function

    CA-6 SATEL Guard control function The functioning of the guard control function consists in automatically checking that the, so- called, guard code is entered on the keypad with a preset frequency. The entry of the code is saved in the log event, and the lack of entering the guard code after a preset period of time can be signaled on an output which has the proper function.

  • Page 26: Reporting To Telephone Monitoring Station

    SATEL Installer Manual • control panel reports the alarm more times than the preprogrammed number of rounds – the control panel recognizes answering the call on the basis of a callback signal – if the user lifts the handset too quickly (during the first ring), the control panel may disregard the message and call again.

  • Page 27: Downloading - Communication With Computer

    7 and 8 in FS47, which makes the panel ignore the codes unacknowledged in 16 consecutive retries. Problems of this type do not occur in professional, multi-format monitoring stations (including the Satel STAM-1). Downloading – communication with computer Programming the control panel through RS TTL serial port The programming is possible with the use of a special cable (see: p.
  • Page 28 SATEL Installer Manual 1. enable operation in the transmission format UTI V.21 (CCITT V.21) or BELL 103 (operation at a rate of 300Bps on telephone line), 2. permit operation to be configured only in one of these formats (the function of automatic format negotiating disabled).
  • Page 29 CA-6 SATEL Remote communication: • connect the telephone line to the TIP and RING terminals, • program in the control panel: − FS2: panel communication password (identifier by which the program recognizes the alarm system), − FS3: computer communication password (identifier by which the control panel recognizes the computer authorized to connect to panel), −...

  • Page 30: Dload10 Program

    SATEL Installer Manual DLOAD10 program The DLOAD10 program, delivered with the control panel, is designed for programming the CA-5, CA-6, CA-10 control panels, as well as the RX-2K, RX-4K and RE-4K radio controllers, the GSM-4 module and the ACU-100 wireless system controller, from the computer.

  • Page 31: Default Settings

    CA-6 SATEL Fig.15. Dialogue windows in DLOAD10. DEFAULT SETTINGS Control panel configuration (restore with FS107 function): • service code: 12345, • master code: 1234, • control panel password (communication identifier) – 3175B9, • computer password (communication identifier) – 658709, • rings to answer – 2,...
  • Page 32 SATEL Installer Manual • exit delay – 60 seconds, • entry delay – 30 seconds, • alarm time – 60 seconds, • counting times of counters – 30 seconds; counter values – 1, • one partition including all the available zones (Z1 to Z8), •...

  • Page 33: Technical Data

    CA-6 SATEL Technical data Main board Main board supply voltage ..............AC 18 V ± 10% 50 Hz Nominal power supply output voltage ................DC 12 V Main board current consumption (min. / max.) ............50…100 mA OUT1 – OUT3 outputs load capacity ................. 2.2 A OUT4 and OUT5 outputs load capacity ................
  • Page 34 An efficient security system does not prevent burglary, assault or fire from happening, however it diminishes the risk that such a situation will cause no alarm or notification. Therefore, the SATEL Company recommends that operation of the whole security system be regularly tested.

  • Page 36: History Of Manual Updates

    The figure of connection of the detectors to the control panel has been changes to a new 6.06 2007 ones (p. 16). The figure of connection of the NR2-DSC transmitter, made by NOKTON, has been changed (p. 19). SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdansk POLAND tel. + 48 58 320 94 00 info@satel.pl...
