Satel CA-6 Quick User Manual
Alarm control panel
Hide thumbs
Also See for CA-6:
- Programming manual (40 pages) ,
- Installer manual (34 pages) ,
- User manual (18 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satel CA-6
Summary of Contents for Satel CA-6
- Page 1 QUICK USER GUIDE The full version of User Manual and other manuals are available on CD included in the control panel delivery set or on the website www.satel.eu SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl...
- Page 2 It contains all the information necessary for daily operation of the www.satel.eu panel. The other manuals are available in electronic form at SATEL is a manufacturer of a wide range of dedicated devices for use in security systems. Additional information on these products can be found on the website www.satel.eu or at points of sale offering our products.
-

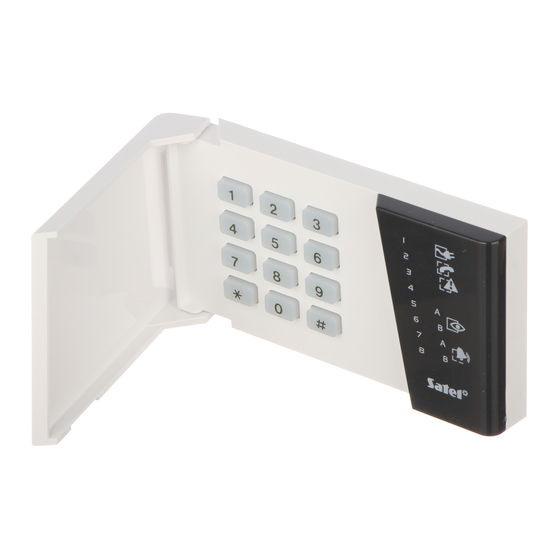

Page 3: Keypads Description
2 seconds – zone tampered flashing every 2 seconds – tamper memory Green [CA-6 KLED-S only] – illustrates the functioning of the buzzer in the keypad When using the features available in the control panel, the LEDs can also provide additional information. -
Page 4: Sound Signaling
CA-6 SATEL 9 - change the keypad backlight mode [only in CA-6 KLED-S] – the number of short beeps indicates which backlight mode is enabled (1 – no backlight; 2 – automatic backlight; 3 – permanent backlight); 0 - trigger the auxiliary alarm;... -
Page 5: Disarming And Alarm Clearing
SATEL CA-6 The master user (administrator) can add new users. For security reasons, each user should have their individual code. The master user defines an authority level for each user. The functions to which the user has access depend on the authority level. For description of the authority levels please refer to the full user manual. -
Page 6: Triggering The Alarm From Keypad
CA-6 SATEL 5. Triggering the alarm from keypad If your installer has enabled this feature, the alarms can be triggered from the keypad as follows: fire alarm – press and hold down the key for approx. 3 seconds; auxiliary alarm – press and hold down the 0 key for approx. 3 seconds;... -
Page 7: Using Selected User Functions
SATEL CA-6 2 – OUT2 trouble; 3 – OUT3 trouble; 4 – 230 V AC loss; 5 – battery trouble; 7 – time not set; 8 – monitoring trouble; – no voltage on telephone line; B – telephone line trouble – wrong dial tone;... - Page 8 CA-6 SATEL 10. Quick keypad operating instructions Arming Disarming illuminated – 230 V AC mains and battery power Alarm clearing [CODE]# blinking – low battery extinguished – 230 V AC power failure Quick arming 0# - both partitions 1# - partition A 2# - partition B illuminated –...
