INSTALLER
MANUAL
GDAŃSK
ca5i_en 06/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel CA-5

Summary of Contents for Satel CA-5

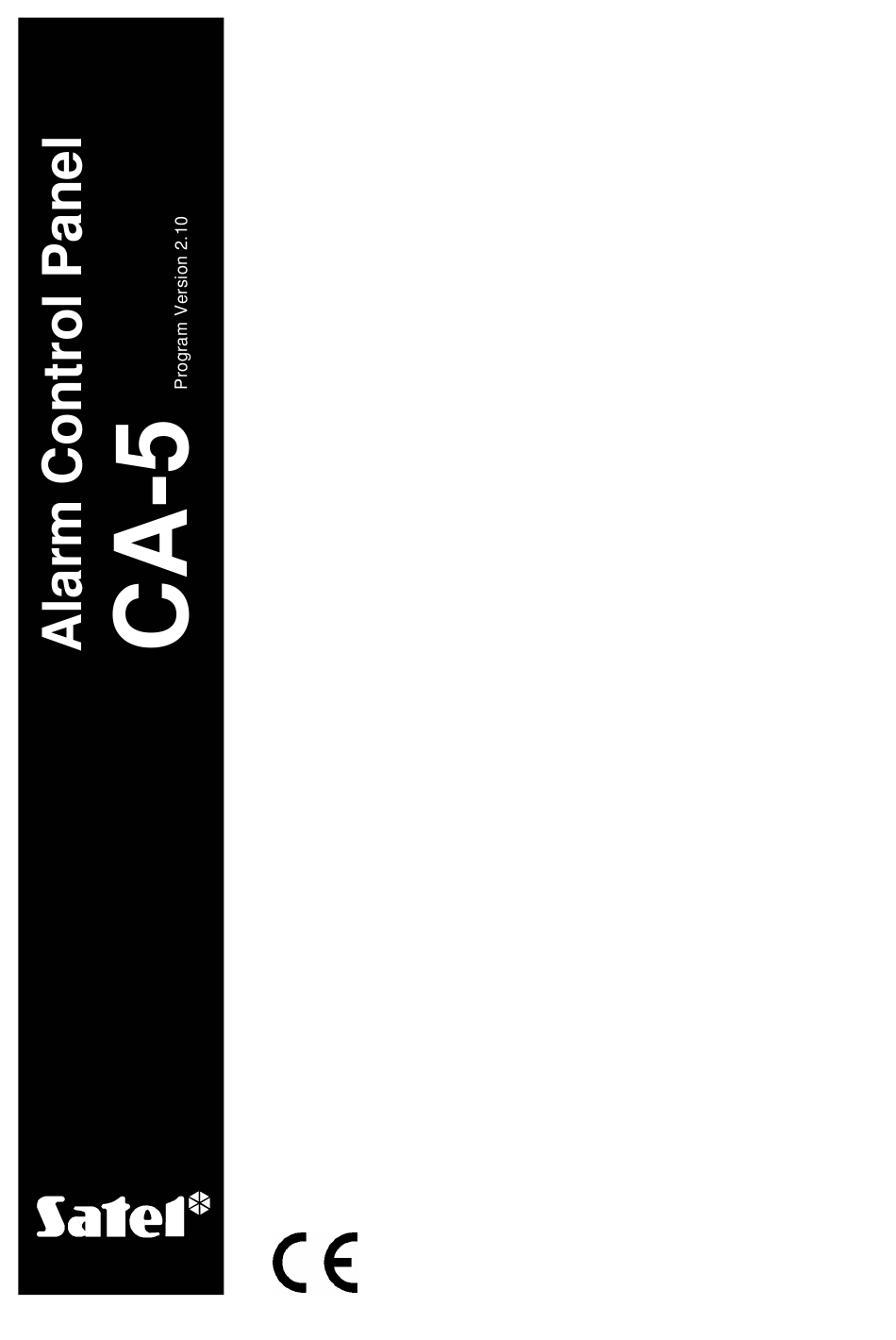

  • Page 1 INSTALLER MANUAL GDAŃSK ca5i_en 06/09...
  • Page 2 (+48 58) 320-94-00 fax. (+48 58) 320-94-01 Product description: Mainboard for CA-5 control panel intended for use in intruder alarm systems. This product meets the essential requirements and is in conformity with following EU Directives: LVD 73/23/EEC+93/68/EEC EMC 89/336/EWG + 91/263/EEC, 92/31EEC, 93/68/EEC R&TTE 1999/5/EC (network connection, TBR21)

  • Page 3: Table Of Contents

    CONTENTS 1. GENERAL ........................... 2 2. BASIC FUNCTIONAL CAPABILITIES................. 2 3. CONTROL PANEL CHARACTERISTICS................3 3.1 Z ..........................3 ONES 3.2 O ........................3 UTPUTS 3.3 LED ........................4 KEYPAD 3.4 LCD ......................... 5 KEYPADS 3.5 M ........................6 ONITORING 3.6 M –...

  • Page 4: General

    1. GENERAL The CA-5 alarm control panel is an advanced, microprocessor-based device designed for burglary and assault signaling systems. It is characterized by a high programming flexibility, which facilitates its use in systems which have to meet special requirements. The device is equipped with a reliable, pulse-type power supply of high efficiency, and with a telephone communicator (dialer).

  • Page 5: Control Panel Characteristics

    3.1 Z ONES The CA-5 control panel has 5 zones, all of them on the mainboard. The control panel accepts any detectors connected in the NC, NO, EOL, 2EOL/NC, and 2EOL/NO configuration. The 2EOL configuration allows the control panel to simultaneously control the detector and its tamper circuit while using one pair of wires.

  • Page 6: Led Keypad

    Installer Manual CA-5 1 – (with the operating time equal to zero, the output is active until BURGLARY ALARM clearing the alarm, e.g. visual indication) 2 – KEYPAD ALARM 3 – READY (active when none of the zones is violated) STATUS 4 –...

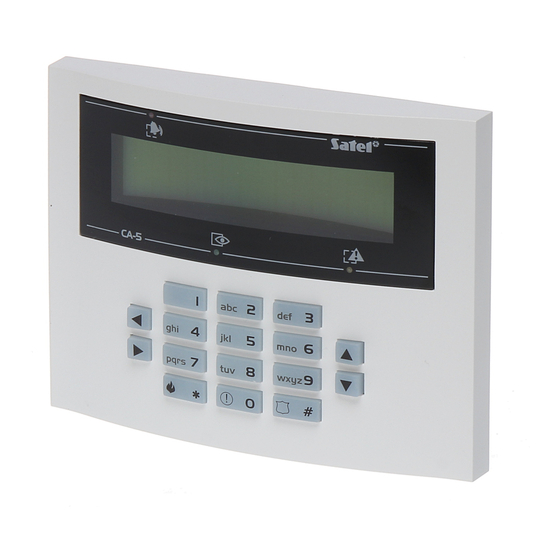

  • Page 7: Lcd Keypads

    (2x16 characters) facilitates the system communication with the user and the installer. The LCD keypad can be connected in parallel with the LED type keypads, or with other LCD keypads. There versions keypads available (CA-5 KLCD-L and CA-5 KLCD-S), which differ in dimensions and size of the display.

  • Page 8: Monitoring

    3.5 M ONITORING The CA-5 control panel can transmit information on the system status to a monitoring station to one or two telephone numbers in various transmission formats. The control panel will dial the second number of the station when the first number is busy or the station does not confirm reception of the code.

  • Page 9: Remote Programming - Downloading

    – DOWNLOADING EMOTE PROGRAMMING In order to facilitate its programming, the CA-5 control panel has been equipped with a DOWNLOADING feature, which enables a computer to be used for programming and control of the security system. The programming may be effected directly through the control panel RS-232 port (with TTL standard signals) or by means of a modem through the telephone line terminals TIP and RING.

  • Page 10: Rs-232 Port

    Installer Manual CA-5 1. The computer calls the alarm control panel, which, having answered the call, exchanges communication passwords with the computer. If they are correct, the control panel confirms reception of the remote programming order, hangs up and calls the computer back to the number pre-programmed in the control panel. Before calling back, the control panel notifies the monitoring station on starting the programming process.

  • Page 11: Installation Of The Control Panel

    RS port of the panel and the COM port of computer must be connected with a special cable manufactured by SATEL. The cable includes a converter changing the signal into a standard corresponding to the RS-232 port in the computer (-12 V, +12 V). The data can be transmitted through the cable in both directions.
  • Page 12 In case of a higher electric power demand, an additional power supply can be used for some of the security system consumers (e.g.: APS-15, APS-30 manufactured by SATEL). Table 1 (at the end of this manual) shows...

  • Page 13: Connection Of Power Supply

    This may result in a damage to the system in case of a high-voltage punch- through from the telephone line. The CA-5 control panel should be installed in enclosed spaces with a normal humidity of air. It can be mounted in the CA-6 OBU housing with a transformer designed for operation with the control panel power supply, which permits installation of a battery with 7 Ah capacity.

  • Page 14: Connection Of Keypad

    4.3 C ONNECTION OF KEYPAD The CA-5 control panel interfaces with SATEL made LED and LCD type keypads. Note: The control panel in version 2.10 supports LCD keypads in program version 1.08 or later, and CA-5 KLED-S keypads in version 1.1 or later.

  • Page 15: Connection Of Detectors

    CA-5 SATEL CA-5 + OUT1- OUT2 OUT3 AUX KPD DTA CLK COM Z1 Z2 COM Z3 Z4 COM Z5 TIP RING T-1 R-1 ∼18V KLCD-S KEYPAD TMP TMP TO TAMPER COM CLK DTA KPD CIRCUIT TO TAMPER CIRCUIT TMPTMPCOM KPD CLK DTA LED-S KEYPAD Figure 6.
  • Page 16 Installer Manual CA-5 • For figures 7, 8 and 9 it is assumed that the zone no. 5 is a tamper line (default setting: , EOL line), enclosure tamper switch: NC type. H TAMPER CA-5 AUX KPD DTA CLK COM Z1 Z2...
  • Page 17 CA-5 SATEL CA-5 AUX KPD DTA CLK COM Z1 Z2 Z4 COM Z5 COM 12V EOL/NC Fig. 9. Example of connecting NC type detector in EOL configuration to control panel. CA-5 AUX KPD DTA CLK COM Z1 Z2 Z4 COM Z5...

  • Page 18: Connection Of Sirens

    TO TAMPER CIRCUIT + SO - + SA - SPL-2010 Siren Figure 11. Example of connecting the SATEL SPL-2010 siren (OUT1 – audible signaling; OUT2 – relay controlled optical signaling). OUT2 – programmed as B URGLARY ALARM CA-5 CONTROL PANEL...

  • Page 19: Connection Of Telephone Line

    TIP and RING terminals. The output gets activated if problems occur with sending the code to both telephone numbers of the monitoring station. CA-5 CONTROL PANEL OUT2 – programmed as T ELEPHONE LINE RELAY...

  • Page 20: Starting The Control Panel

    Installer Manual CA-5 The function works in the following way: • The control panel dials the first number of the monitoring station in order to send the event code. If it fails to send the code, the other number of the station is dialed.

  • Page 21: Dload10 Program

    PROGRAM Delivered together with the control panel, the DLOAD10 program is designed for programming the control panels: CA-5, CA-6 and CA-10, as well as the remote control sets RX2K and RX4K, RE-4K, GSM-4 and GSM LT-1 communication modules and ACU-100 wireless system controller from a computer.
  • Page 22 Installer Manual CA-5 In order to start communication through the RS port or modem, you should follow the procedures set forth in the section “Remote programming – downloading”. Figure 14. Dialog windows of the DLOAD10 program. To start the modem communication you can click on the icon (or select the “Modem”...

  • Page 23: Default Settings

    CA-5 SATEL 6. DEFAULT SETTINGS The control panel is preprogrammed for work in the following configuration: • service code: 12345, • master user code: 1234, • panel communication code – 3736353433323130, • computer communication code – 3031323334353637, • number of rings before answer – 2, •...

  • Page 24: Technical Data

    Operating temperature range.................. -10…+55ºC Mainboard dimensions .................... 147x70 mm Mainboard weight......................150 g Keypads CA-5 KLED-S Nominal supply voltage ..................12 V DC ±15% Average current consumption ..................15 mA Housing dimensions (width x height x thickness)..........80x95x20 mm Keypad weight ........................76 g CA-5 KLCD-S Nominal supply voltage ..................
  • Page 25 CA-5 SATEL Table 1. Example of panel power supply load estimation/battery selection. No. Loads Max current Mean current consumption Mainboard CA-5 80 mA 80 mA Keypad + output AUX and 5 detectors* 350 mA 200 mA Output OUT1 1.1 A** 0.5 A...

  • Page 26: History Of Manual Updates

    Installer Manual CA-5 8. HISTORY OF MANUAL UPDATES The changes described refer to the manual drawn up for the CA-5 v1.09 control panel. ERSION ESCRIPTION OF CHANGES New designations (pictograms) have been introduced for the keypad LEDs. RS port socket has been changed; it requires a new cable now (p. 9).
  • Page 27 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdansk POLAND tel. +48 58 320 94 00 info@satel.pl www.satel.eu...
