Satel CA-10 Quick User Manual
Alarm control panel; firmware version 6.11
Hide thumbs
Also See for CA-10:
- Programming manual (60 pages) ,
- Installer manual (43 pages) ,
- User manual (26 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satel CA-10
Summary of Contents for Satel CA-10

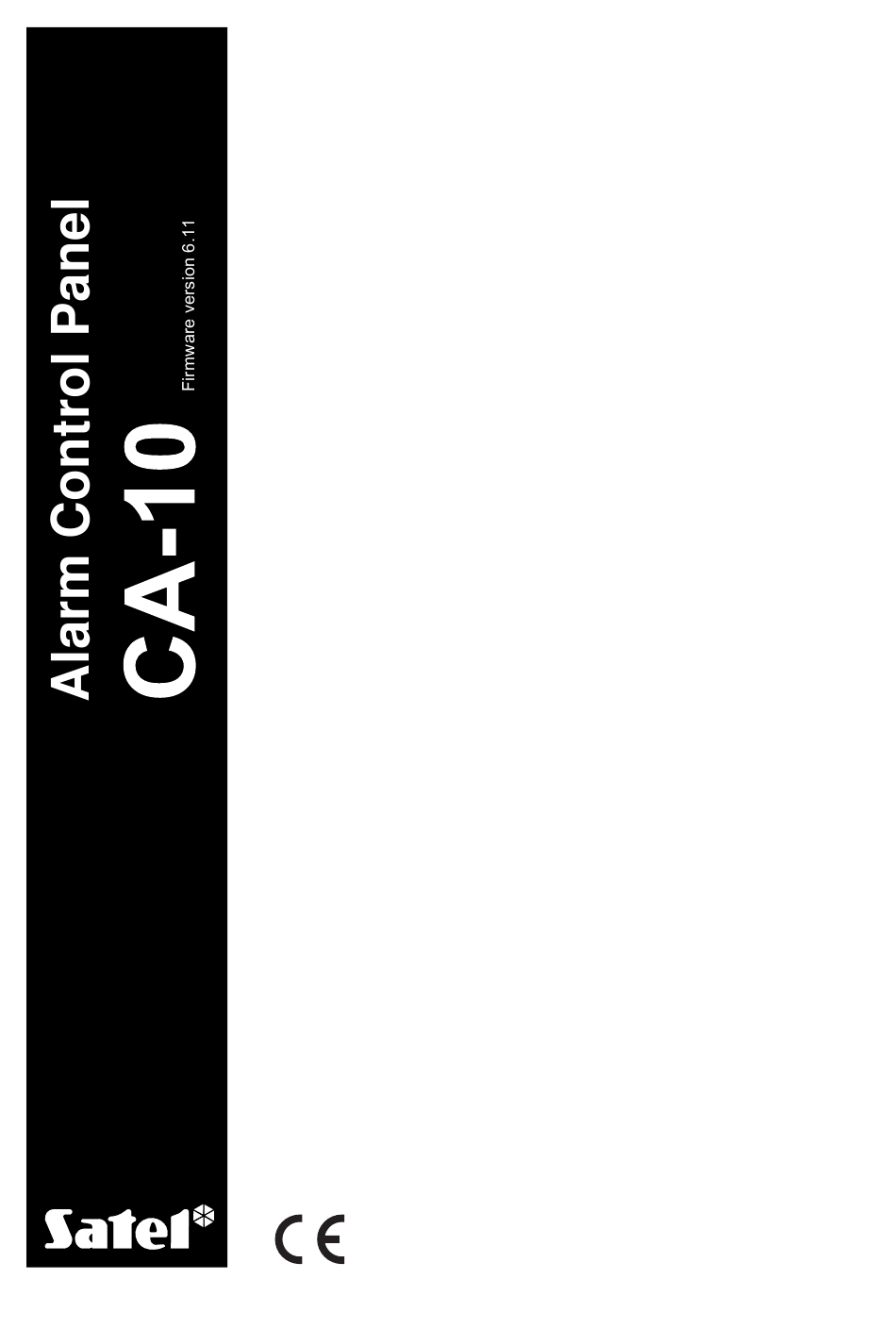

- Page 1 QUICK USER GUIDE The full version of User Manual and other manuals are available on CD included in the control panel delivery set or on the website www.satel.eu SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl...
- Page 2 It contains all the information necessary for daily operation of the www.satel.eu panel. The other manuals are available in electronic form at SATEL is a manufacturer of a wide range of dedicated devices for use in security systems. Additional information on these products can be found on the website www.satel.eu or at points of sale offering our products.
-
Page 3: Keypads Description
When using the features available in the control panel, the LEDs can also provide additional information. 1.2 LEDs indicating zone state [LED keypads] Numbered LEDs indicate the status of zones (CA-10 KLED – 12 LEDs; CA-10 KLED-S – 16 LEDs): − LED extinguished – normal zone status, −... -
Page 4: Sound Signaling
8 - enable/disable the CHIME signal in the keypad (signaling violation of selected zones with 5 short beeps); 9 - change the keypad backlight mode [only in CA-10 KLED-S] – the number of short beeps indicates which backlight mode is enabled (1 – no backlight; 2 – automatic backlight; 3 –... -
Page 5: Codes And Users
• Alarms will be signaled as long as programmed by the installer. 2. Codes and users To perform many of the CA-10 control panel functions you must enter a code. By default, the following codes are preprogrammed in the control panel:... -
Page 6: Partition Arming
CA-10 SATEL bypass zones, etc.). The installer may allow several partitions being operated with a single keypad. To switch the keypad over to handle another partition, press and hold down the key corresponding to the number of that partition (1, 2, 3 or 4). For the LCD keypad which has been switched over to handle another partition, it is possible to switch it over again to handle still another one. -
Page 7: Triggering The Alarm From Keypad
SATEL CA-10 6. Triggering the alarm from keypad If your installer has enabled this feature, the alarms can be triggered from the keypad as follows: fire alarm – press and hold down the key for approx. 3 seconds; auxiliary alarm – press and hold down the 0 key for approx. 3 seconds;... -
Page 8: Viewing Current Troubles
CA-10 SATEL 8.2 LED keypad Information on troubles is presented on the numbered LEDs. Steady light of individual LEDs has the following meanings: 1 – OUT1 trouble; 2 – OUT2 trouble; 3 – OUT3 trouble; 4 – 230 V AC loss;... -
Page 9: Zone Bypassing
SATEL CA-10 10.1 Changing your own code 1. Enter the code and confirm using key. 2. Press the 1 key (to start the C user function). HANGE OWN CODE 3. Enter the new code (4 to 6 characters) and confirm with # key. - Page 10 – partition armed Quick partition arming blinking – exit delay countdown rapidly blinking [only CA-10 KLED-S] – partition is currently being handled by keypad (information Keypad switchover to handle another partition displayed after the keypad is switched over to...
