- Page 1 QUICK USER GUIDE The full version of User Manual and other manuals are available on CD included in the control panel delivery set or on the website www.satel.eu SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl...
- Page 2 It contains all the information necessary for daily operation of the www.satel.eu panel. The other manuals are available in electronic form at SATEL is a manufacturer of a wide range of dedicated devices for use in security systems. Additional information on these products can be found on the website www.satel.eu or at points of sale offering our products.
-
Page 3: Table Of Contents
Contents Keypad description ......................2 Display [LCD keypads] ....................3 LEDs indicating system state ..................3 LEDs indicating zone state [CA-5 KLED-S] ...............3 Keys ..........................4 Sound signaling ......................4 Beeps generated during operation ...................4 Events signaled by sounds ....................5 Codes and users ......................5 Arming ..........................5 Full arming.........................6... -
Page 4: Keypad Description

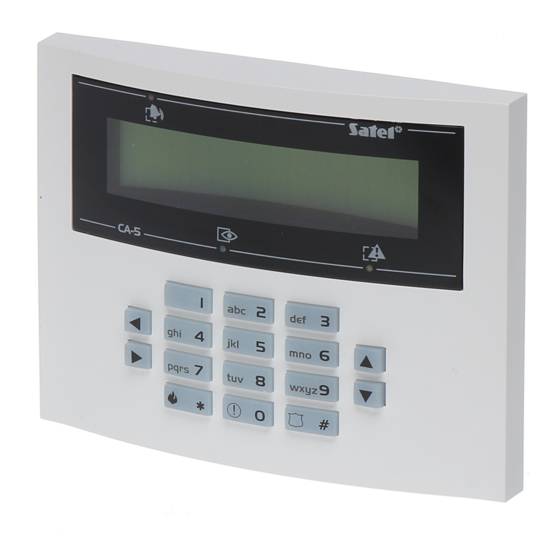

CA-5 SATEL 1. Keypad description Fig. 1. CA-5 KLCD-S keypad (CA-5 KLCD-L keypad differs in size). Fig. 2. CA-5 KLED-S keypad. -
Page 5: Display [Lcd Keypads]
Yellow LED. Blinking – indicates trouble. To check the cause of trouble, press and hold down the key. Green LED [CA-5 KLED-S only]. It indicates the control panel supply status: − illuminated – 230 V AC mains and battery power OK, − blinking – low battery, −... -
Page 6: Keys
CA-5 SATEL − LED flashing every 2 seconds – tamper memory (double EOL zone wiring). When using the features available in the control panel, the LEDs can also provide additional information. 1.4 Keys The keys designated with digits and letters enable entering the code and data when using the keypad. -
Page 7: Events Signaled By Sounds
SATEL CA-5 − finishing the function and exiting the user menu, after confirming the entered data. 6 short beeps – arming, with some zones bypassed. 1 long beep – refusal to arm (some zones are violated) or function unavailable. 2 long beeps – an unknown code, unavailable function, or exiting the function without confirmation of the data entered (e.g. -
Page 8: Full Arming
CA-5 SATEL 3.1 Full arming Enter the code and confirm using key. 3.2 Quick arming If your installer has enabled the Quick Arm feature, you will be able to arm the system without using the code. To quickly arm the system, press in turn the keys. -
Page 9: Viewing Trouble Log
SATEL CA-5 − four of the five numbered LEDs are illuminated – alarm from the keypad. The extinguished LED indicates the cause of alarm: 1 – fire alarm triggered from keypad; 2 – panic alarm triggered from keypad; 3 – auxiliary alarm triggered from keypad;... -
Page 10: Lcd Keypad
CA-5 SATEL 8.1 LCD keypad Information on troubles is presented on the display. Use the keys to scroll through the list. 8.2 LED keypad Information on troubles is presented on the numbered LEDs. The troubles are divided into two sets. When the function is started, information on the troubles of the first set is initially displayed. -
Page 11: Viewing The Event Log
SATEL CA-5 5. Having selected the zones to be bypassed / unbypassed, press the key. Notes: • Bypassing the zones reduces the level of security. Prior to arming, make sure that there are no accidentally bypassed zones, which can allow an intruder to gain access to the protected area, despite the system being armed. -
Page 12: Quick Keypad Operating Instructions
CA-5 SATEL 10. Quick keypad operating instructions blinking slowly – on entering the user function illuminated – alarm menu blinking – alarm memory illuminated – on entering the service function menu blinking rapidly – on entering a function illuminated – system armed illuminated –...
