Multipurpose Tray/Lower Deflector Assembly

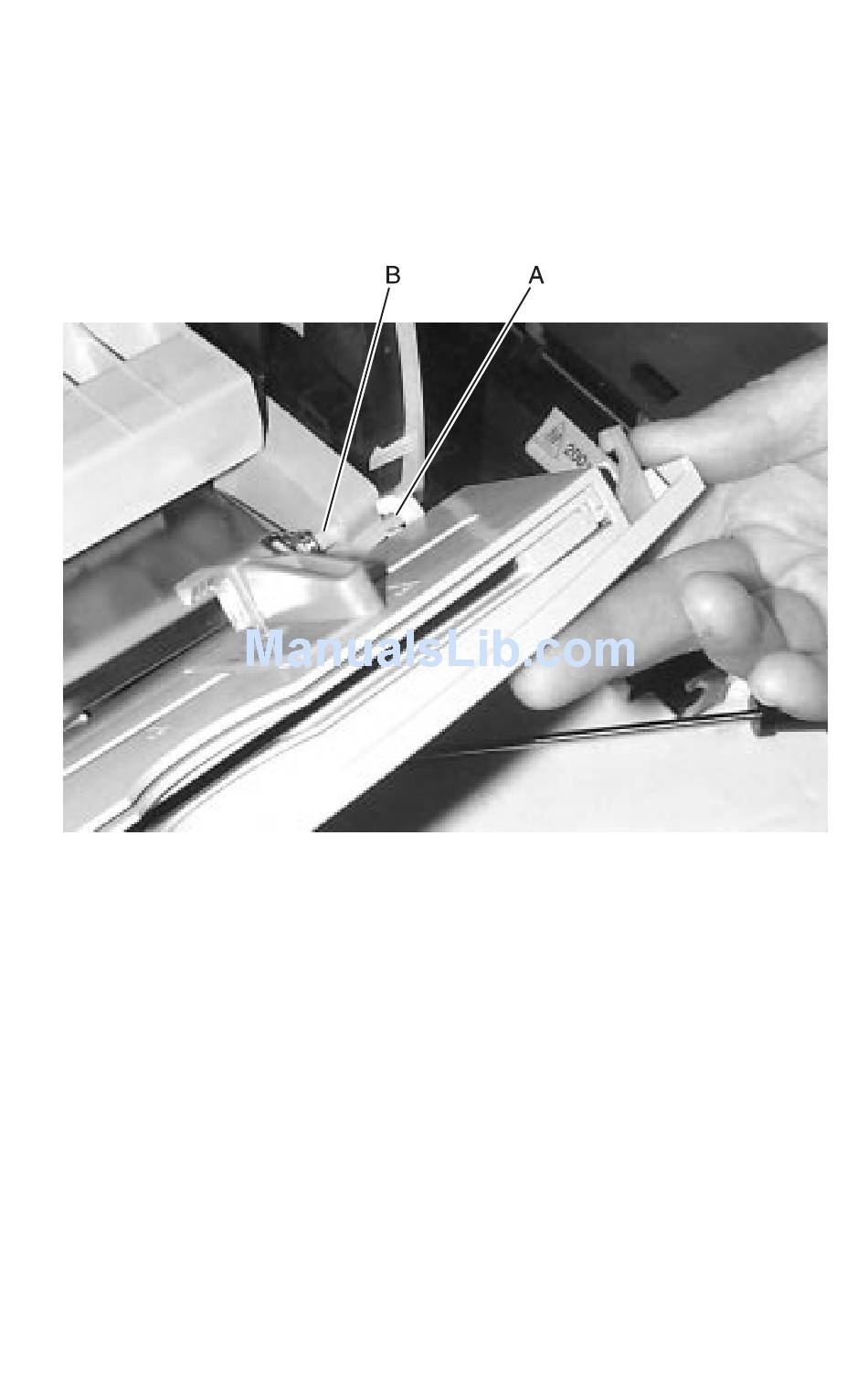

1. Open the multipurpose tray to a position that allows the left and
right tray hinge slots (A) to align with the rectangular mounting
posts (B). Pull upward on each tray hinge to remove the tray
from the two mounting posts. Be careful not to break the hinges.
4-45
Repair Information
