Description & Function

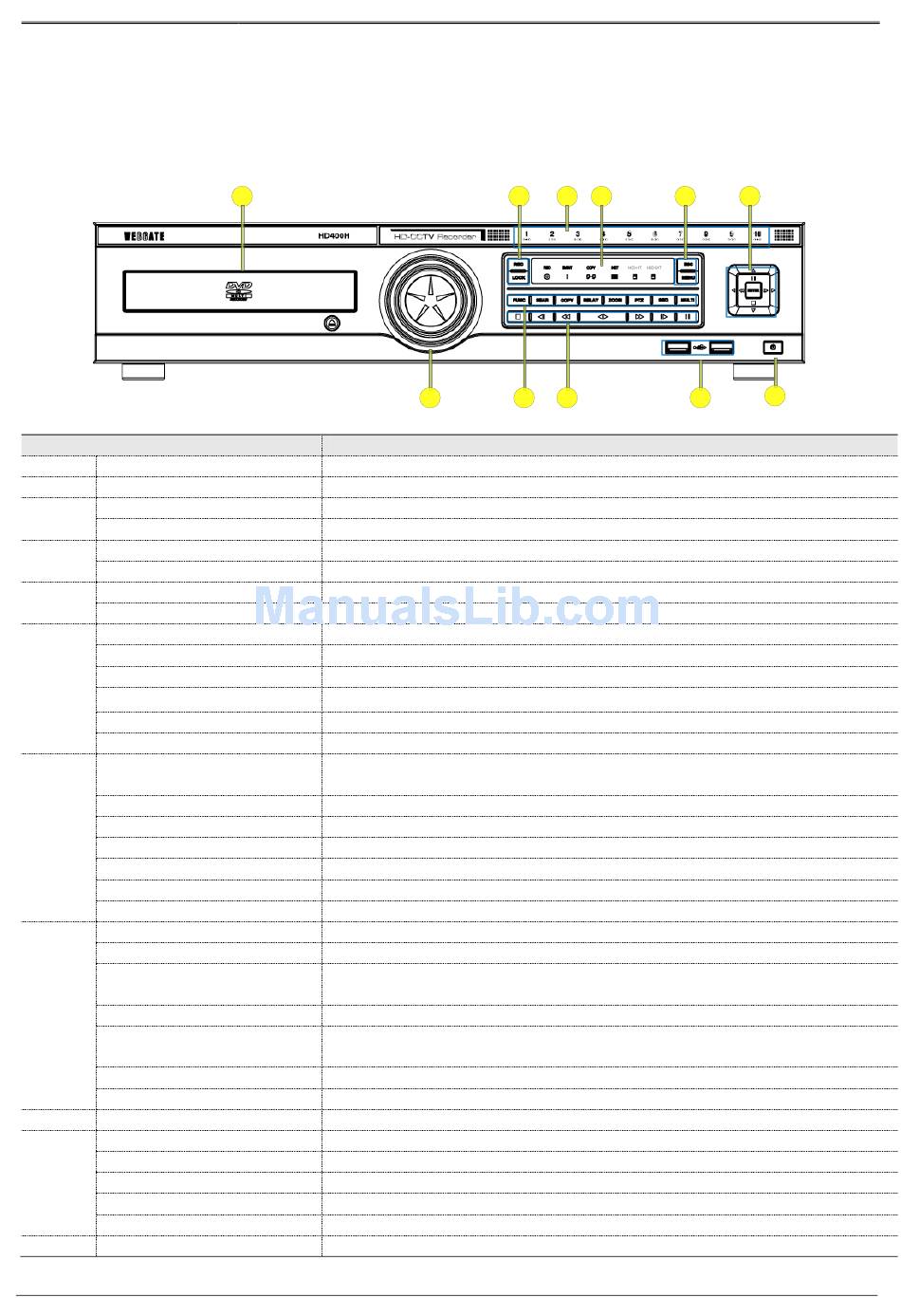

Front
Category
1 DVD-Multi for backup
2 Jog / shuttle
Touch channel button
3
Channel LED
REC
4
LOCK
ESC
5
MENU
Record LED
Event LED
Copy LED
6
Network LED
Internal HDD LED
ExternalHDD LED
FUNC button
SEAR button
COPY button
7
RELAY button
ZOOM button
SEQ button
MULTI button
■(STOP)
◀l(SREW)
◀◀(REW)
8 ◀▶(PLAY)
▶▶(FWD)
l▶(SFWD)
ll(PAUSE)
9 USB port
◀(Left move)
▶(Right move)
10 ▲(Upper move)
▼(Down move)
Enter(select)
11 Power
1
Back up use for recorded data by DVD/CD media
Playback direction change and speed control.
Select channel by touch during live and playback.
Shows image input status and event working status.
To start and stop Manual record
To lock the buttons on the front panel/remote controller in monitoring status
To exit menu or close pop-up window
To enter Menu
Display recording status
Display event status when event is triggered.
Display copy status once copy is under process by flickering
Display network connection status by flickering
It flickers while internal HDD is recording
It flickers while eSATA HDD is recording
Runs FUNC menu where user can use main menu, screen division, auto sequence, copy,
search, playback, keylock, logout, poweroff
Runs menu for search by time, calendar, event, thumbnail
Runs menu for copy AVI, EXE thru DDVD, USB
Runs Relay On/Off manually
Max 16 times zoon in live/playback screen and get into digital zoom mode
Runs Max 16 scenario of auto sequence in live mode
Changes division mode in live and playback mode
Stop playback
To move to reverse direction by one frame
To move or select in menu and change replay speed to reverse direction in playback
mode.
To select playback mode and change playback direction.
To move or select in menu and change replay speed to forward direction in playback
mode.
To move to forward direction by one frame
Pause playback
USB Memory, USB connection port
To move to left in menu
To move to right in menu.
To move to upper in menu
To move to lower in menu.
To select menu or enter the selected menu
To turn On/Off power
4 3
2 7 8
Function
6 5
10
11
9
8
