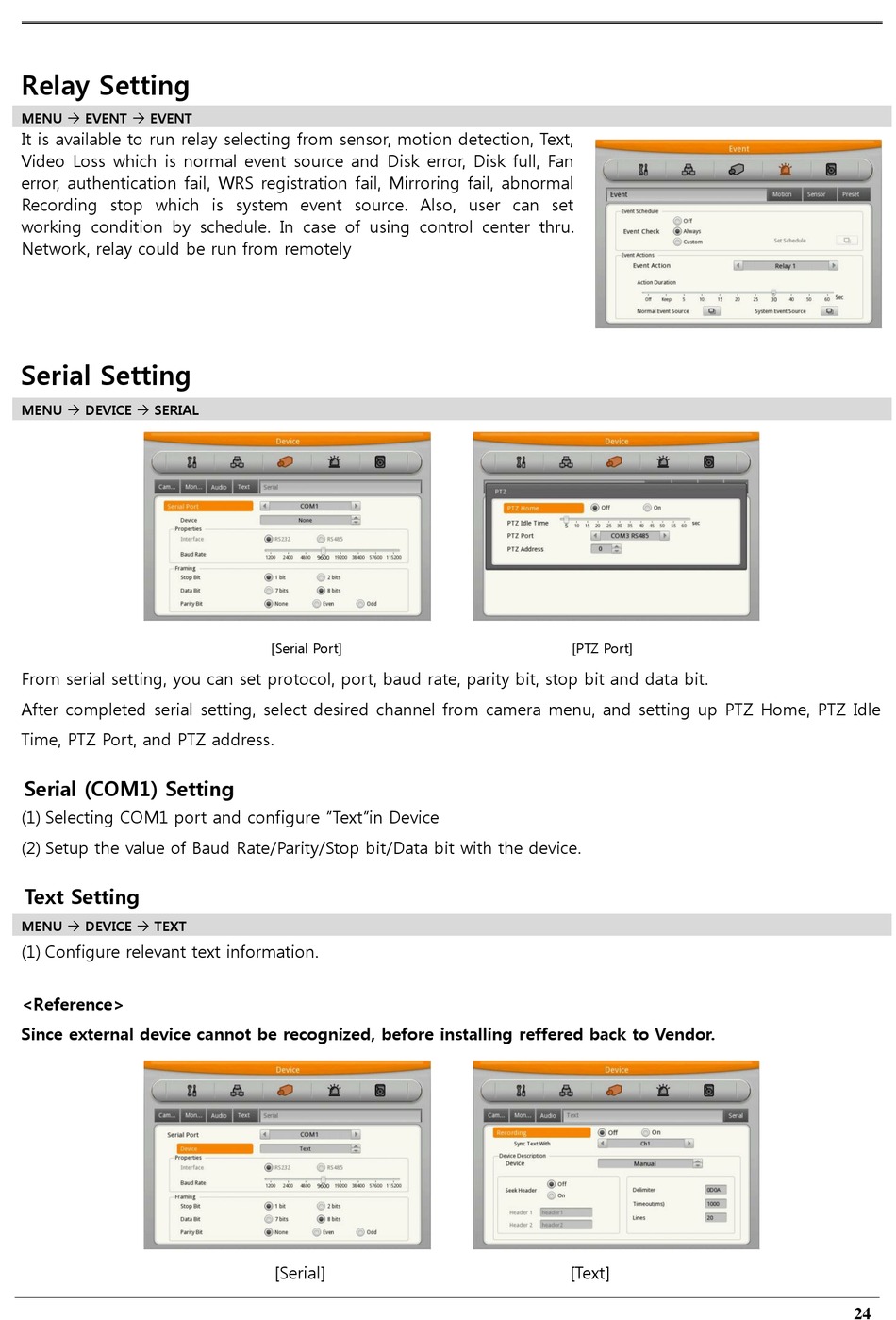

Relay Setting

MENU  EVENT  EVENT
It is available to run relay selecting from sensor, motion detection, Text,
Video Loss which is normal event source and Disk error, Disk full, Fan
error, authentication fail, WRS registration fail, Mirroring fail, abnormal
Recording stop which is system event source. Also, user can set
working condition by schedule. In case of using control center thru.
Network, relay could be run from remotely

Serial Setting

MENU  DEVICE  SERIAL
From serial setting, you can set protocol, port, baud rate, parity bit, stop bit and data bit.
After completed serial setting, select desired channel from camera menu, and setting up PTZ Home, PTZ Idle
Time, PTZ Port, and PTZ address.
Serial (COM1) Setting
(1) Selecting COM1 port and configure "Text"in Device
(2) Setup the value of Baud Rate/Parity/Stop bit/Data bit with the device.

Text Setting

MENU  DEVICE  TEXT
(1) Configure relevant text information.
<Reference>
Since external device cannot be recognized, before installing reffered back to Vendor.
[Serial Port]
[Serial]
[PTZ Port]
[Text]
24
