Related Manuals for ORiNG TAR-120-M12
Summary of Contents for ORiNG TAR-120-M12
- Page 1 ’ ’...
-
Page 2: Copyright Notice
ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor. -
Page 3: Table Of Contents
Table of Contents Getting to Know your Wireless AP Router ..........1 Overview ..........................1 Software Features ......................1 Hardware Features ......................2 Hardware Installation ..................3 Wall Mounting Installation ....................3 Hardware Overview ..................5 Front Panel .......................... 5 Front Panel LEDs ....................... - Page 4 Save/Restore Configurations ....................51 Miscellaneous (Ping) ........................ 52 5.3.4 System Status ........................53 System Info ..........................53 System Log ..........................53 Traffic Statistics........................54 Wired/Wireless Clients ......................54 Technical Specifications ................55 ORing Industrial Networking Corp.
-
Page 6: Getting To Know Your Wireless Ap Router

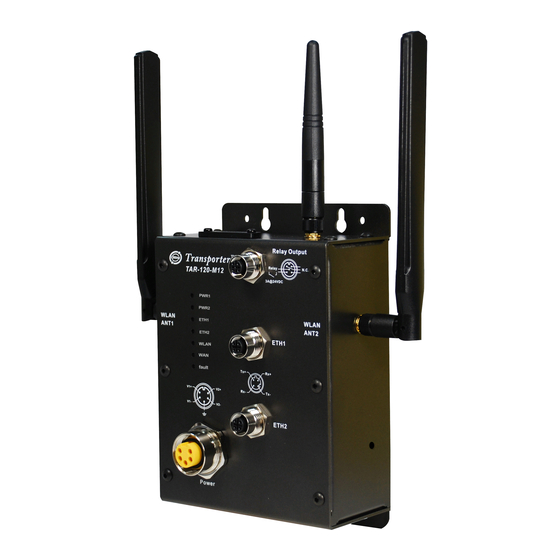

WAN connections are provided for easily access to the internet. The ORing TAR-120-M12 / TAR-3120-M12 wireless AP router comes with IEEE 802.11a/b/g or IEEE 802.11b/g high-performance wireless technologies. It is capable of data transfer rates up to 54Mbps. It is easy for you to extend the network reach and increase the number of computers connected to your wireless network. -
Page 7: Hardware Features
TAR-120-M12 / TAR-3120-M12 User’s Manual Switch Mode Supported: Daisy Chain support to reduce usage of switch ports Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper Hardware Features Built-in HSUPA Cellular Modem with SIM card slot included for WAN connection ... -
Page 8: Hardware Installation
TAR-120-M12 / TAR-3120-M12 User’s Manual Hardware Installation Wall Mounting Installation Each AP router can be fixed on the wall. Use screws to mount the AP router on the wall: ORing Industrial Networking Corp. -
Page 9: Sim Card Installation
TAR-120-M12 / TAR-3120-M12 User’s Manual SIM Card Installation Important Notice: POWER DOWN THE TAR-120-M12 / TAR-3120-M12 BEFORE INSTALLING THE SIM CARD. ORing Industrial Networking Corp. -
Page 10: Hardware Overview
TAR-120-M12 / TAR-3120-M12 User’s Manual ardware Overview Front Panel The following table describes the labels that stick on the TAR-120-M12 / TAR-3120-M12. Port Description 2 10/100Base-T(X) fast Ethernet ports support auto-negotiation. 10/100 Base-T(X) fast Ethernet ports on Default Setting :... - Page 11 TAR-120-M12 / TAR-3120-M12 User’s Manual TAR-120-M12 / TAR-3120-M12 ORing Industrial Networking Corp.
-
Page 12: Front Panel Leds
TAR-120-M12 / TAR-3120-M12 User’s Manual 1. 2.4/5.8GHz antenna with typical 3.0 dBi antenna for IEEE 802.11a mode and 2 dBi for IEEE 802.11b/g mode 2. LED for PWR1 and system status. When PWR1 links, the green LED will light On. - Page 13 TAR-120-M12 / TAR-3120-M12 User’s Manual Blinking Data transmitted. WLAN1 activated. Green Blinking WLAN1 Data transmitted. WLAN Red(TAR-3120-M12 WLAN2 activated. only) Blinking WLAN2 Data transmitted. Modem Ready Green Blinking Checking Modem status Fault relay. Power failure or Fault Port down/fail. ORing Industrial Networking Corp.
-
Page 14: Cables And Antenna
M12(4-pin, D-coding) Pin Assignments Pin Number Assignment The TAR-120-M12 / TAR-3120-M12 supports auto MDI/MDI-X operation. You can use a straight-through cable to connect PC and AP. The following table below shows the 10Base-T/ 100Base-T(X) MDI and MDI-X port pin outs. -
Page 15: Wireless Antenna
TAR-120-M12 / TAR-3120-M12 User’s Manual MDI/MDI-X pins assignment Pin Number MDI port MDI-X port RD+(receive) TD+(transmit) TD+(transmit) RD+(receive) RD-(receive) TD-(transmit) TD-(transmit) RD-(receive) Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. Wireless Antenna 2.4GHz/5.8GHz antenna is used for the WLAN interface of TAR120-M12 / TAR-3120-M12... -
Page 16: Management Interface
Use an appropriate Ethernet cable (e.g. RJ-45 to M12) to connect the ETH2 port of TAR-120-M12 / TAR-3120-M12 AP router to the LAN port of a computer. If the LED of the LAN port lights up, it indicates that the connection is established. After that, the computer will initiate a DHCP request to get an IP address from the AP router. - Page 17 TAR-120-M12 / TAR-3120-M12 User’s Manual Step 3: Use the web-based manager to configure TAR-120-M12 / TAR-3120-M12 The default gateway IP of TAR-120-M12 / TAR-3120-M12 AP router is 192.168.10.1. Start the web browser of your computer and type http://192.168.10.1 in the address box to access the webpage.
- Page 18 TAR-120-M12 / TAR-3120-M12 User’s Manual Wireless security option Step 6: Review the router settings and check router status Click the System Status in the top of the menu, the system info page will be shown. You can check all the configuration and status of the router.
-
Page 19: Configure The Wireless Router
TAR-120-M12 / TAR-3120-M12 User’s Manual Configure the Wireless Router In this section, the web management page will be explained in detail. With default setting, you can type http://192.168.10.1 in the address box of web browser to login the web management interface. A login window will be prompted, enter username admin &... -
Page 20: Basic Setting
TAR-120-M12 / TAR-3120-M12 User’s Manual 5.3.1 Basic Setting The TAR-120-M12 / TAR-3120-M12 AP router provides three types of WAN connection. 1. WAN Connection Type: Dynamic/Static IP Dynamic/Static IP The following table describes the labels in this screen. Label Description Select this option if you would like to have an IP address assigned... - Page 21 TAR-120-M12 / TAR-3120-M12 User’s Manual Enable this option if you want to use built-in HSUPA modem as Use Modem/3G as backup connection backup connection when normal connection is lost. Phone Number, User Name and Password: Use these settings to dial up the built-in HSUPA modem connection.
- Page 22 TAR-120-M12 / TAR-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description User Name / Enter the username & password provided by your Internet Password Service Provider (ISP). Service Name Enter the service name provided by your ISP.
- Page 23 TAR-120-M12 / TAR-3120-M12 User’s Manual Modem/3G Screen The following table describes the labels in this screen. Label Description Phone Number Telephone number provided by your ISP. Enter the APN value it is optional User Name User name provided by your ISP.
- Page 24 TAR-120-M12 / TAR-3120-M12 User’s Manual 4. WAN Connection Type: Wireless client Wireless Client on WAN The following table describes the labels in this screen. Label Description Obtain an IP Select this option if you would like to have an IP address assigned address automatically from the WAN port by DHCP server in your network.
-
Page 25: Lan
Ping Test Site: Use this site address to check if the connection is alive or lost. Take www.google.com as an example. These are the IP settings of the LAN interface for the TAR-120-M12 / TAR-3120-M12 WLAN AP router. The LAN IP address is privately for your internal network and can not be exposed on the Internet. -
Page 26: Dhcp
TAR-120-M12 / TAR-3120-M12 User’s Manual DHCP DHCP stands for Dynamic Host Control Protocol. The TAR-120-M12 / TAR-3120-M12 AP router was built-in DHCP server. The internal DHCP server will assign an IP address to the computers (DHCP client) on the LAN automatically. - Page 27 When a computer with the MAC address requests an IP address from the TAR-120-M12 / TAR-3120-M12 AP router, it will be assigned with the IP address according to the mapping. You can choose one from the client lists and add it to the mapping relationship.
-
Page 28: Wireless
TAR-120-M12 / TAR-3120-M12 User’s Manual The IP address to be related to the MAC address. IP Address The list shows the MAC address and IP address one-to-one Static DHCP Client List relationship. Wireless (WLAN 1 and WLAN 2) There are two wireless interfaces for TAR-3120-M12: WLAN 1 (5 GHz band) and WLAN 2 (2.4 GHz band). - Page 29 TAR-120-M12 / TAR-3120-M12 User’s Manual pre-shared key, each authorized computer is given the same pass phrase. WPA/WPA2: Wi-Fi Protected Access (WPA) authentication in conjunction with a RADIUS server. 802.1x: Authentication through RADIUS server Security Type – None No security protection for WLAN.
- Page 30 TAR-120-M12 / TAR-3120-M12 User’s Manual Security Type – WPA-PSK/WPA2-PSK Wireless Security Type-WPA-PSK/WPA2-PSK Screen Security Type: Select WPA-PSK/WPA2-PSK. Choose one of three Auth Modes: WPAPSK, WPA2PSK, WPAPSK/WPA2PSK Encryption Type: Select TKIP or AES or TKIP/AES mix. Share Key: Enter your pass phase. The pass phase should be between 8 and 64 characters.
- Page 31 TAR-120-M12 / TAR-3120-M12 User’s Manual Auth Mode: Choose one of three Auth Modes: WPA, WPA2, WPA/WPA2 mix. Encryption Type: Choose one of three Encryption Types: TKIP, AES, TKIP/AES mix. Radius Server IP: Enter the IP address of the RADIUS Server.
- Page 32 TAR-120-M12 / TAR-3120-M12 User’s Manual RADIUS, or Remote Authentication Dial-In User Service, is a widely-deployed protocol that enables companies to authenticate, authorize and account for remote users who want access to a system or service from a central network server.
-
Page 33: Advanced Setting
TAR-120-M12 / TAR-3120-M12 User’s Manual 5.3.2 Advanced Setting Wireless (WLAN 1 and WLAN 2) 1. Parameters Parameters Screen The following table describes the labels in this screen. Label Description The default value is 100. The Beacon Interval value indicates the frequency interval of the beacon. - Page 34 TAR-120-M12 / TAR-3120-M12 User’s Manual too low may result in poor network performance. Only minor modifications of this value are recommended. This value should remain at its default setting of 2347. The range is 0-2347 bytes. Should you encounter inconsistent data flow, only minor modifications are recommended.
-
Page 35: Nat Setting
TAR-120-M12 / TAR-3120-M12 User’s Manual 2. MAC Filter Use MAC Filter to allow or deny wireless clients to associate with TAR-120-M12 / TAR-3120-M12 AP router. You can manually add a MAC address or select the MAC address from Associated Clients that are currently associated with TAR-120-M12 / TAR-3120-M12. - Page 36 TAR-120-M12 / TAR-3120-M12 User’s Manual Email. Virtual Server is defined as a Local Port to the LAN servers, and all requests from Internet to this Local port will be redirected to the computer specified by the Local IP. Any PC that was used for a virtual server must have static or reserved IP Address because its IP address may change when requesting IP by DHCP.
- Page 37 TAR-120-M12 / TAR-3120-M12 User’s Manual Trigger is used for some of the applications that can work with an NAT router. Port Trigger Screen The following table describes the labels in this screen. Label Description Port Trigger Enable or disable Port Trigger.
- Page 38 TAR-120-M12 / TAR-3120-M12 User’s Manual DMZ Screen The following table describes the labels in this screen. Label Description Enable or disable the DMZ. Description Description for the DMZ host entry. DMZ Host IP Enter the IP address of the computer to be in the DMZ.
-
Page 39: Security Setting
TAR-120-M12 / TAR-3120-M12 User’s Manual forwarding. Check the box to enable NAT-PMP. This table lists the current auto port forwarding information. UPnP List Application: The application that generates this port forwarding. Ext Port: The port opened on WAN side. Protocol: The protocol type. -
Page 40: Vpn Setting
TAR-120-M12 / TAR-3120-M12 User’s Manual Enter the IP address of the source and destination computer. IP Address Choose which protocol to be filtered. Protocol Enable Now Enable the entry after adding it. IP filter list Click edit for editing the entry, click Del to delete the entry. - Page 41 TAR-120-M12 / TAR-3120-M12 User’s Manual 1. Open VPN Open VPN is a full-functioned SSL VPN solution which can accommodates a wide range of configurations including remote access, site-to-site VPNs, WiFi security, and enterprise-scale remote access solutions with load balancing, failover, and fine-grained access-controls.
- Page 42 TAR-120-M12 / TAR-3120-M12 User’s Manual Before connecting to the Openvpn server of TAR-120-M12 / TAR-3120-M12 AP router, please install Openvpn client software for your windows PC. It can be downloading from http://Openvpn.net/download.html#stablel. The current version of Openvpn used in TAR-120-M12 / TAR-3120-M12 is version 2.0.9. The corresponding software for client should be installed.
- Page 43 TAR-120-M12 / TAR-3120-M12 User’s Manual 3: Open VPN Server VS Client The chart above displays the connection of Open VPN Server and Client. The Server IP and Client IP address should configure with the same network domain. 2. PPTP VPN The PPTP (Point to Point Tunneling Protocol) VPN feature allows PC connected to the router from WAN port, just like connecting in the LAN.
- Page 44 TAR-120-M12 / TAR-3120-M12 User’s Manual PPTP VPN Screen The following topology shows the common use of PPTP connection from the internet. Connection to PPTP VPN Server ORing Industrial Networking Corp.
- Page 45 TAR-120-M12 / TAR-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description PPTP Server Enable or disable PPTP VPN Server. Server IP Enter the server side IP address, default is the LAN port IP. Client IP Enter the IP address range, format is as 192.168.10.xx-xx,...
- Page 46 TAR-120-M12 / TAR-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description PPTP Client Enable or disable PPTP Client. Enter the server IP address or hostname. Server IP/Hostname Username/Pass Enter the username and password which is signed by PPTP server.
-
Page 47: Routing Protocol (Routing Setting)
TAR-120-M12 / TAR-3120-M12 User’s Manual Routing Protocol (Routing Setting) This page shows the information of routing table. The initial state of the router connect to the WAN, it will be based on the outside networks to access the routing table automatically. You can refer the shows about the bellow page. - Page 48 TAR-120-M12 / TAR-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description Current Routing Show the current the routing information. Table Static Router Not RIP and enter the right value in the textbox will be showing.
-
Page 49: Notification
TAR-120-M12 / TAR-3120-M12 User’s Manual Use the dynamic routing; it will have many ways such as RIP, OSPF.BGP. In this router, we use the RIP Protocol to finish the dynamic routing table. The Routing Topography RIP, Routing Information Protocol, is a dynamic routing protocol used in local and wide area networks. - Page 50 TAR-120-M12 / TAR-3120-M12 User’s Manual Email Settings Screen The following table describes the labels in this screen. Label Description SMTP Server Simple Message Transfer Protocol, enter the backup host to use if primary host is not available while sending mail by SMTP server.
- Page 51 TAR-120-M12 / TAR-3120-M12 User’s Manual Community is essentially password to establish trust between Community managers and agents. Normally "public" is used for read-write community. SysLocation Specify sysLocation string. SysContact Specify sysContact string. Syslog Server Settings Syslog Server Screen The following table describes the labels in this screen.
-
Page 52: Miscellaneous (Ddns)
TAR-120-M12 / TAR-3120-M12 User’s Manual System Event Screen System events record the activities of the Wireless Router system. When the setting changes or action performs, the event will be sent to administrator by email. A trap will also be sent to SNMP trap server. The Syslog will record the event locally and may send the Syslog remotely to a Syslog server. -
Page 53: System Tools
TAR-120-M12 / TAR-3120-M12 User’s Manual For example, Choose DDNS Service: www.3322.org and configure the following instructions: The following table describes the labels in this screen. Label Description Enter the user name for your DDNS account. User Name Enter the password for your DDNS account. -
Page 54: Login Setting
TAR-120-M12 / TAR-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description Local Date Set local date manually. Local Time Set local time manually. Time Zone Select the time zone manually Get Current Date & Click this button; you can set the time from your browser. -
Page 55: Router Restart
TAR-120-M12 / TAR-3120-M12 User’s Manual contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. An empty password is also acceptable. New Name Enter a new login name. Acceptable characters of this field contains '0-9', 'a-z', 'A-Z' and must be between 1 to 15 characters in length. -
Page 56: Firmware Upgrade
TAR-120-M12 / TAR-3120-M12 User’s Manual Firmware Upgrade Firmware Upgrade Screen Newer firmware may provide better performance or function extensions. upgrade the new firmware, you need a firmware file which matches the model of this AP router. It will take several minutes to upload and update the firmware. After the upgrade is done successfully, reboot the router to utilized new firmware. -
Page 57: Miscellaneous (Ping)
TAR-120-M12 / TAR-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description Download The current system settings can be saved as a file into your PC. configuration Upload configuration The configuration can be restored to the router. To reload a system settings file, click on Browse to browse your local hard drive and locate the system settings file previously saved. -
Page 58: System Status
TAR-120-M12 / TAR-3120-M12 User’s Manual 5.3.4 System Status System Info System Info Screen This page displays the details information for the AP router including model name, model description, firmware version, WAN, LAN and wireless settings. System Log System Log Screen... -
Page 59: Traffic Statistics
TAR-120-M12 / TAR-3120-M12 User’s Manual The router keeps a running log of events and activities occurring on the router, several filters are provided for displaying related log entries. Click the button 'Refresh' to refresh the page. Click the button 'Clear Logs' to clear the log entries. -
Page 60: Technical Specifications
TAR-120-M12 / TAR-3120-M12 User’s Manual echnical Specifications ORing EN50155 WLAN Access TAR-120-M12 TAR-3120-M12 Point Router Model LAN Interface Ethernet Ports in 2 x 10/100Base-T(X), Auto MDI/MDI-X M12 connector (4-pin, D-coding) Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II,... - Page 61 TAR-120-M12 / TAR-3120-M12 User’s Manual Wireless Security SSID broadcast disable LED Indicators PWR 1(2) / Ready: PWR 1(2) / Ready: 1) Red On: Power is on and 1) Red On: Power is on and booting up. booting up. 2) Green On: Power is on and 2) Green On: Power is on and functioning normally.
- Page 62 TAR-120-M12 / TAR-3120-M12 User’s Manual Mechanical Dimensions 125(W)mm x 65(D)mm x 196(H)mm (W x D x H) Casing IP-40 protection Regulatory Approvals FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2) EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6...
