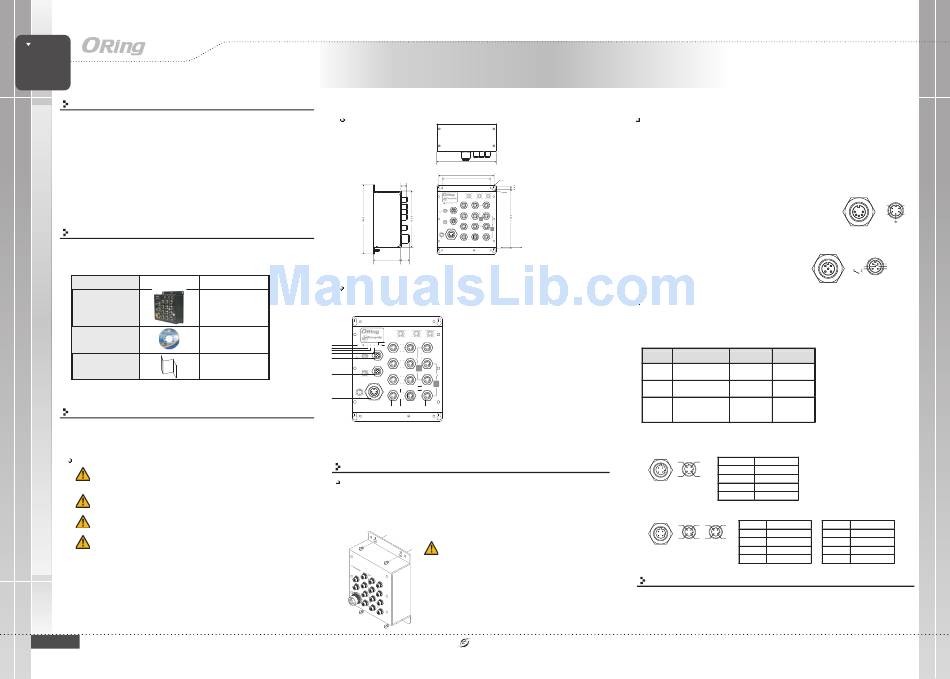

ORiNG TES-3082GT-M12-BP1 Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation
Introduction
The TES-3082GT-M12-BP1 is a managed Ethernet switch designed for
industrial applications, such as rolling stock, vehicle, and railway
applications. The switch boasts EN50155 compliance and M12 connectors
to ensure tight and robust connections, and guarantee reliable operation
against environmental disturbances, such as vibration and shock. Besides
eight 10/100Base-T(X) ports, the switch also provides one set of bypass
ports that ensure constant network connectivity if power outage or node
failure occurs. In such situations, the device will bypass the inactive
switch and continue to transfer network traffic to the next switch in the relay.
Package Contents
The TES-3082GT-M12-BP1 series is shipped with the following items. If any
of these items is missing or damaged, please contact your customer service
representative for assistance.
Contents Pictures
TES-3082GT-M12-BP1
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
TES-3082GT-M12-BP1
TES-3082GT-M12-BP1
G
uide
Dimension
Number
Panel Layouts
Front View
1
1
TES-3082GT-M12-BP1
1
Reset
PWR1 PWR2 R.M. Ring Fault
2
3
4
Relay N.C.
7
3A@24VDC
Relay Output
1
RXD TXD
N.C.
8
N.C. GND
RS-232, 9600bps, 8, N, 1 Console
V1+ V2+
V1- V2-
9
Power
Installation
Wall-mount
The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screw to the wall with a screwdriver.
Step 3: Slide the
1907-2-29-TES3082GTM12-1.0
170.1
151.6
132.1
R2.5
15.0
R4.00
Tx+ Rx+ DA+ DB+ DC+ DD+
Rx- Tx- DB- DA- DD- DC-
TES-3082GT-M12-BP1 P1~P8 GxA GxB
Reset
PWR1 PWR2 R.M. Ring Fault LNK/ACT
DPX/COL
P4 P8 G2A
Relay N.C. LNK/ACT
3A@24VDC
100M
Relay Output LNK/ACT
Power
Failure
RXD TXD DPX/COL Bypass G2B
P3 P7
N.C.
N.C. GND
LNK/ACT
RS-232, 9600bps, 8, N, 1 Console
Power
Failure
DPX/COL Bypass
P2 P6 G1A
LNK/ACT
V1+ V2+
100M
V1- V2- LNK/ACT
P1 DPX/COL P5
Power G1B
65.0
75.0 21.3
1. Reset button
Tx+ Rx+ DA+ DB+ DC+ DD+ 2. Power1 status LED
3. Power2 status LED
Rx- Tx- DB- DA- DD- DC-
P1~P8 GxA GxB
5
4. R.M. status LED
6
LNK/ACT
5. Ring status LED
DPX/COL
G2A
P4 P8
LNK/ACT 6. Fault LED
100M
LNK/ACT
7. Relay output port
Power
Failure
DPX/COL 8. Console port
Bypass G2B
P3 P7
9. Power connector
LNK/ACT
Power 10. Ethernet ports
Failure
DPX/COL 13 Bypass
P2 P6 G1A
11
LNK/ACT
14 11. LNK/ACT indicator for Ethernet port
100M
LNK/ACT
12. Duplex/collision indicator for Ethernet port
DPX/COL
P1 P5 G1B 13. LNK/ACT indicator for Gigabit Ethernet port
10 12 15
14. Speed indicator for Gigabit Ethernet port
15. Gigabit Ethernet ports
d evice upright against the wall
d evice downwards and tighten the four screws for added stability.
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the
switch between the wall and the screws.
PRINTED ON RECYCLED PAPER
EN50155 10-port managed

Ethernet switch

Wiring
For pin assignments of power, console and relay output ports, please refer to the following tables.
Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.
Power port pinouts
The device supports two sets of power supplies and uses the M23 5-pin
female connector on the front panel for the dual power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.
Relay output port pinouts
The switch uses the M12 A-coded 5-pin male connector on
the front panel for relay output. Use a power cord with an
M12 A-coded 5-pin female connector to connect the relay.
The relay contacts will detect user-configured events and
form an open circuit when an event is triggered.
Network Connection
The switch has eight 10/100Base-T(X) and two 10/100/1000Base-T(X) Ethernet ports in the form of
M12 connector. Depending on the link type, the switch uses CAT 3, 4, 5,5e UTP cables to connect
to network devices (PCs, servers, switches, routers, or hubs). Please refer to the following table
for cable specifications.
Cable Type Max. Length Connector
4-pin female M12
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
D-coding connector
4-pin female M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
D-coding connector
4-pin female M12
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft) D-coding connector
*2 (GxA & GxB)
4-Pin Fast Ethernet Port Definition
For pin assignments of the LAN ports, please refer to the following tables.
2 1
Tx+ Rx+ Pin No. Description
#1 RD+
#2 TD+
Rx- Tx-
3 4
#3 RD-
#4 TD-
4-Pin Gigabit Port Definition
2 1 2 1
DA+ DB+ DC+ DD+ Pin No. GxA Description
#1 DB+
DB- DA- DD- DC-
#2 DA+
3 4 3 4
GxA GxB
#3 DB-
#4 DA-
Configurations
After installing the router and connecting cables, start the
power. The green power LED should turn on. Please refer to the following tablet
for LED indication.
Quick Installation Guide
Version 1.0
V1+ V2+
V1- V2-
Relay
N.C.
1A@24VDC
Pin No. GxB Description
#1 DD+
#2 DC+
#3 DD-
#4 DC-
d evice by turning on
