ORiNG IES-3162GC User Manual

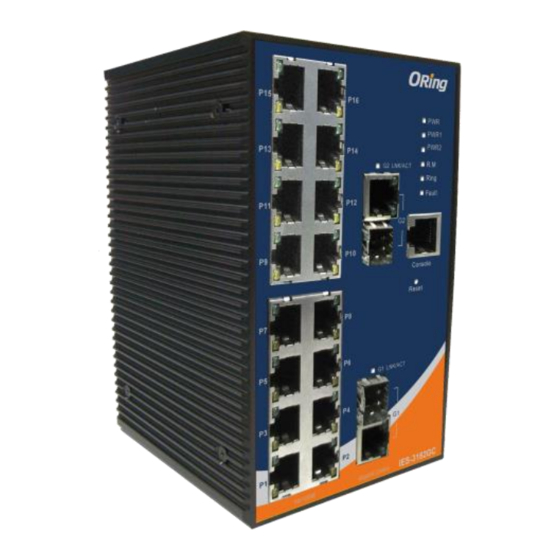

Industrial management ethernet switch
Hide thumbs Also See for IES-3162GC:
Table of Contents

Advertisement

Quick Links

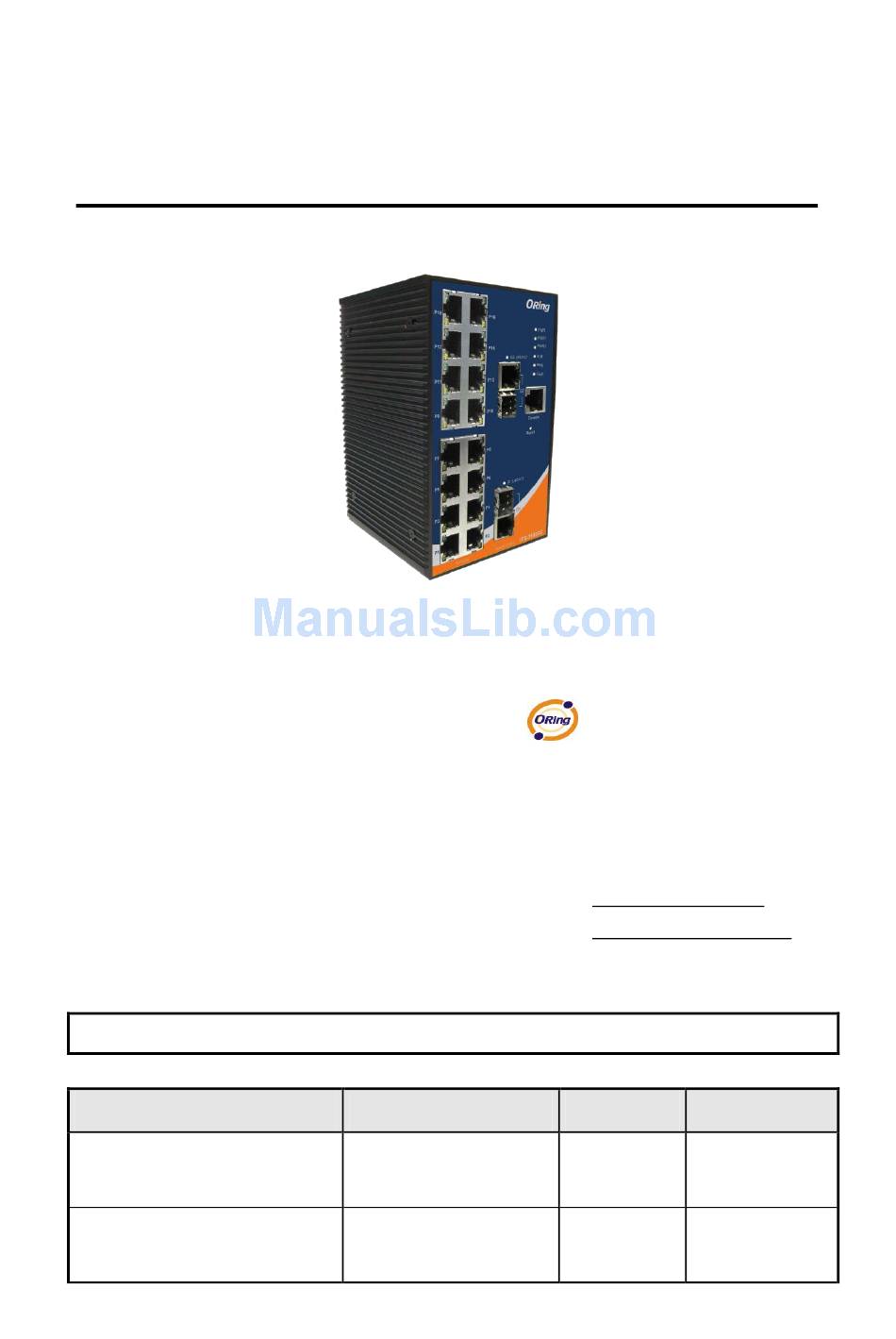

Management Ethernet Switch
IES-3162GC User's Manual
Manufacturer's Documents
Title:
IES-3162GC user manual
IES-A3162GC user manual IES-A3162GC user's
Industrial
Version 1.4
Drawing No.:
IES-3162GC
manual
manual
Aug, 2015.
ORing Industrial Networking Corp.
3F., NO.542-2, Zhongzheng Road, Xindian
District, New Taipei City, 231 Taiwan
Tel: + 886 2 2218 1066
Fax: + 886 2 2218 1014
Website: www.oring-networking.com
E-mail:
support@oring-networking.com
Rev. Level:
user's
V1.4
V1.4
Date:
2015.08.14
2015.08.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES-3162GC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IES-3162GC

Summary of Contents for ORiNG IES-3162GC

  • Page 1 Industrial Management Ethernet Switch IES-3162GC User’s Manual Version 1.4 Aug, 2015. ORing Industrial Networking Corp. 3F., NO.542-2, Zhongzheng Road, Xindian District, New Taipei City, 231 Taiwan Tel: + 886 2 2218 1066 Fax: + 886 2 2218 1014 Website: www.oring-networking.com E-mail: support@oring-networking.com...

  • Page 2: Table Of Contents

    IES-3162GC User’s Manual Table of Content Getting to Know Your Switch ................ 4 About the IES-3162GC Managed Industrial Switch ............4 Software Features ......................4 Hardware Features ......................5 Hardware Installation ..................6 Installing Switch on DIN-Rail ..................... 6 2.1.1 Mount IES-3162GC on DIN-Rail ..................
  • Page 3 IES-3162GC User’s Manual 5.1.4.4 SNTP (Time) ......................21 5.1.4.5 LLDP ........................24 5.1.4.6 Auto Provision ...................... 24 5.1.4.7 Backup & Restore ....................25 5.1.4.8 Upgrade Firmware ....................26 5.1.5 DHCP Server ........................26 DHCP Server – Setting..................26 5.1.5.1 DHCP Server – Client List ..................27 5.1.5.2...
  • Page 4 IES-3162GC User’s Manual 5.1.13 Warning ........................64 5.1.13.1 Fault Alarm ......................65 5.1.13.2 System Alarm ......................65 5.1.14 Monitor and Diag ....................... 69 5.1.14.1 MAC Address Table ....................69 5.1.14.2 MAC Address Aging ..................... 70 5.1.14.3 Port Statistics ......................71 5.1.14.4...

  • Page 5: Getting To Know Your Switch

    1.1 About the IES-3162GC Managed Industrial Switch The IES-3162GC Ethernet switch is powerful managed industrial switch with many features. The switch can work under wide temperature, dusty environment and humid condition. They can be managed by WEB, TELNET, Consol or other third-party SNMP software as well.

  • Page 6: Hardware Features

    IES-3162GC User’s Manual 1.3 Hardware Features  Redundant two DC power inputs  Wide Operating Temperature: -40 to 60  Storage Temperature: -40 to 85  Operating Humidity: 5% to 95%, non-condensing  Casing: IP-30  10/100/1000Base-T(X) Gigabit Ethernet port (combo port) ...

  • Page 7: Hardware Installation

    Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-Rail. It is easy to install the switch on the DIN-Rail: 2.1.1 Mount IES-3162GC on DIN-Rail Step 1: Slant the switch and mount the metal spring to DIN-Rail.

  • Page 8: Wall Mounting Installation

    The following steps show how to mount the switch on the wall. 2.2.1 Mount IES-3162GC on the wall Step 1: Remove DIN-Rail kit. Step 2: Use 6 screws that can be found in the package to combine the wall mount panel. Just...
  • Page 9 IES-3162GC User’s Manual The screws specification shows in the following two pictures. In order to prevent switch from any damage, the screws should not larger than the size that used in IES-3162GC switch. Pozidrive ORing Industrial Networking Corp...

  • Page 10: Hardware Overview

    IES-3162GC User’s Manual ardware Overview 3.1 Front Panel The following table describes the labels that stick on the IES-3162GC. Port Description 10/100 RJ-45 fast 8 10/100Base-T(X) RJ-45 fast Ethernet ports support Ethernet ports auto-negotiation. Default Setting : Speed: auto Duplex: auto...
  • Page 11 IES-3162GC User’s Manual IES-3162GC 1. LED for PWR. When the PWR UP, the green led will be light on 2. LED for PWR1. When the PWR2 links, the green led will be light on. 3. LED for PWR2. When the PWR2 links, the green led will be light on.

  • Page 12: Front Panel Leds

    IES-3162GC User’s Manual 3.2 Front Panel LEDs Color Status Description Green DC power ready Green DC power module 1 activated. Green DC power module 2 activated. Green O-Ring Master. Ring enabled. Ring has only One link. (lack Ring Green Slowly blinking of one link to build the ring.)

  • Page 13: Top View Panel

    2. Ground wire The minimum cross-sectional area of Earthing conductor shall equal to input wiring cable. 3.4 Rear Panel The components in the rare of IES-3162GC are shown as below: 1. Screw holes for wall mount kit. 2. DIN-Rail kit...

  • Page 14: Cables

    4.1 Ethernet Cables The IES-3162GC switch have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.

  • Page 15: Sfp

    BI_DD- BI_DC- Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. 4.2 SFP The IES-3162GC has fiber optical ports with SFP connectors. The fiber optical ports are in ORing Industrial Networking Corp...

  • Page 16: Console Cable

    Fiber cord 4.3 Console Cable IES-3162GC switch can be management by console port. The DB-9 to RJ-45 cable can be found in the package. You can connect them to PC via a RS-232 cable with DB-9 female connector and the other end (RJ-45 connector) connects to console port of switch.

  • Page 17: Web Management

    IES-3162GC User’s Manual EB Management 5.1 Configuration by Web Browser This section introduces the configuration by Web browser. 5.1.1 About Web-based Management An embedded HTML web site resides in flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.
  • Page 18 IES-3162GC User’s Manual The login screen appears. Key in the username and password. The default username and password is “admin”. Click “Enter” or ”OK” button, then the main interface of the Web-based management appears. Login screen Main Interface Main interface...

  • Page 19: System Information

    , PWR1, PWR2 and PWR3 LEDs of the switch will start to flash together, and click , the LEDs will stop flashing. 5.1.3 Front Panel Show the panel of IES-3162GC. Click “Close” to close panel on web. ORing Industrial Networking Corp...

  • Page 20: Basic Setting

    IES-3162GC User’s Manual 5.1.4 Basic setting 5.1.4.1 Switch Setting Switch setting interface The following table describes the labels in this screen. Label Description System Name Assign the name of switch. The maximum length is 64 bytes System Description Display the description of switch.

  • Page 21: Admin Password

    IES-3162GC User’s Manual 5.1.4.2 Admin Password Change web management login username and password for the management security issue Admin Password interface The following table describes the labels in this screen. Label Description Key in the new username (The default is “admin”) User name Key in the new password (The default is “admin”)

  • Page 22: Sntp (Time)

    IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description To enable or disable the DHCP client function. When DHCP DHCP Client client function is enabling, the switch will be assigned the IP address from the network DHCP server. The default IP address will be replaced by the IP address which the DHCP server has assigned.
  • Page 23 IES-3162GC User’s Manual SNTP Configuration interface The following table describes the labels in this screen. Label Description SNTP Client Enable or disable SNTP function to get the time from the SNTP server. Enable or disable daylight saving time function. When daylight...
  • Page 24 IES-3162GC User’s Manual CET - Central European FWT - French Winter MET - Middle European +1 hour 1 pm MEWT - Middle European Winter SWT - Swedish Winter EET - Eastern European, +2 hours 2 pm USSR Zone 1 BT - Baghdad, USSR Zone...

  • Page 25: Lldp

    IES-3162GC User’s Manual Period ending time. Both will be different each year. Daylight Saving Set up the offset time. Offset Switch Timer Display the switch current time. Click “Apply” to activate the configurations. Apply 5.1.4.5 LLDP LLDP (Link Layer Discovery Protocol) function allows the switch to advertise its information to other nodes on the network and store the information it discovers.

  • Page 26: Backup & Restore

    IES-3162GC User’s Manual 5.1.4.7 Backup & Restore You can save current configuration from the switch to TFTP server, or restore the configuration from TFTP server in this page. Backup & Restore interface The following table describes the labels in this screen.

  • Page 27: Upgrade Firmware

    IES-3162GC User’s Manual 5.1.4.8 Upgrade Firmware Upgrade Firmware allows you to update the firmware of switch. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server. Update Firmware interface 5.1.5 DHCP Server DHCP Server –...

  • Page 28: Dhcp Server - Client List

    IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description Enable or Disable the DHCP Server function. Enable – the DHCP Server switch will be the DHCP server on your local network Start IP Address The dynamic IP assign range. Low IP address is the beginning of the dynamic IP assigns range.
  • Page 29 IES-3162GC User’s Manual DHCP Server Port and IP Binding interface ORing Industrial Networking Corp...

  • Page 30: Port Setting

    IES-3162GC User’s Manual 5.1.6 Port Setting 5.1.6.1 Port Control By this function, you can set the state, speed/duplex, flow control, and security of the port. Port Control interface The following table describes the labels in this screen. Label Description Port NO.

  • Page 31: Port Status

    IES-3162GC User’s Manual 5.1.6.2 Port Status The following information provides the current port status information Port Status interface 5.1.6.3 Port Alias The user can define the name of every Port. Can let user, convenient management every Port. ORing Industrial Networking Corp...

  • Page 32: Rate Limit

    IES-3162GC User’s Manual 5.1.6.4 Rate Limit By this function, you can limit traffic of all ports, including broadcast, multicast and flooded Unicast. You can also set “Ingress” or “Egress” to limit traffic received or transmitted bandwidth. Rate Limit interface The following table describes the labels in this screen.

  • Page 33: Port Trunk

    IES-3162GC User’s Manual 5.1.6.5 Port Trunk Port Trunk – Setting You can select static trunk or 802.3ad LACP to combine several physical links with a logical link to increase the bandwidth. Port Trunk - Setting interface The following table describes the labels in this screen.
  • Page 34 IES-3162GC User’s Manual Port Trunk – Status You can check the configuration of port trunk. Port Trunk - Status interface ORing Industrial Networking Corp...

  • Page 35: Redundancy

    IES-3162GC User’s Manual 5.1.7 Redundancy 5.1.7.1 O-Ring O-Ring is one of the most powerful Redundant Ring technologies in the world. recovery time of O-Ring is less than 10 ms over 250 units of connections. It can reduce unexpected malfunction caused by network topology change. O-Ring technology supports three Ring topologies for network redundancy: O-Ring, Coupling Ring and Dual Homing.

  • Page 36: Open-Ring

    Open-Ring Open-Ring technology can be applied for other vendor’s proprietary ring. Thus, you can add switches of ORing into the network constructed by other ring technology and enable Open-Ring to co-operate with other vendor’s managed switch. Click ”Connect to other vendor’s ring…..” to join the ring constructed by other vendor.
  • Page 37 IES-3162GC User’s Manual Label Description Enable Enabling the Open-Ring function Vender Choosing the venders that you want to join to their ring Ring Port Choosing the port which connect to the ring Ring Port Choosing the port which connect to the ring The application of Open-Ring is shown as below.

  • Page 38: O-Rstp

    IES-3162GC User’s Manual 5.1.7.3 O-RSTP O-RSTP is proprietary redundant ring technology invented by ORing. Different from standard STP/RSTP, the recovery time of O-RSTP is less than 10mS and support more nodes of connection in a ring topology. O-RSTP interface The application of O-RSTP is shown as below.

  • Page 39: Rstp

    IES-3162GC User’s Manual 5.1.7.4 RSTP The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol (STP). It provides faster convergence of spanning tree after a topology change. The system also supports STP and the system will detect the connected device that is running STP or RSTP protocol automatically.
  • Page 40 IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description RSTP mode You must enable or disable RSTP function before configuring the related parameters. Priority (0-61440) A value used to identify the root bridge. The bridge with the lowest value with the highest priority and is selected as the root.
  • Page 41 IES-3162GC User’s Manual Click “Apply” to activate the configurations. Apply NOTE: Follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time: 2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1) RSTP Information Show RSTP algorithm result at this table.

  • Page 42: Mstp

    IES-3162GC User’s Manual 5.1.7.5 MSTP Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The function is that several VLANs can be mapping to a reduced number of spanning tree instances because most networks do not need more than a few logical topologies. It supports load balancing scheme and the CPU is sparer than PVST (Cisco proprietary technology).
  • Page 43 IES-3162GC User’s Manual must be multiple of 4096 according to the protocol standard rule. Max Age Time(6-40) The number of seconds a bridge waits without receiving Spanning-tree Protocol configuration messages before attempting a reconfiguration. Enter a value between 6 through 40.
  • Page 44 IES-3162GC User’s Manual Label Description Port No. Selecting the port that you want to configure. Priority (0-240) Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. The value of priority must be the multiple...
  • Page 45 IES-3162GC User’s Manual VLANs Set which VLAN will belong which instance Proprietary (0-61440) A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root. If the value changes, You must reboot the switch. The value must be multiple of 4096 according to the protocol standard rule.

  • Page 46: Vlan

    IES-3162GC User’s Manual 5.1.8 VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Only the members of the same VLAN will receive the traffic from the other members.
  • Page 47 IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description VLAN Operation Configure VLAN Operation Mode: disable, Port Base,802.1Q Mode GVRP Mode Enable/Disable GVRP function. Management VLAN provide network administrator a secured Management VLAN VLAN to management Switch. Only the devices in the management VLAN can access the switch.

  • Page 48: Vlan Setting - Port Based

    IES-3162GC User’s Manual VLAN Setting – Port Based 5.1.8.2 Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.
  • Page 49 IES-3162GC User’s Manual VLAN Configuration – Port Base interface-2 The following table describes the labels in this screen. Label Description VLAN name. Group Name Specify the VLAN ID VLAN ID Select port to join the VLAN group. Remove Remove port of the VLAN group Click “Apply”...

  • Page 50: Snmp

    IES-3162GC User’s Manual 5.1.9 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 51: Snmp - Trap Setting

    IES-3162GC User’s Manual servers access objects with read-only or read/write permissions with the community default string public/private. SNMP V3 requires an authentication level of MD5 or DES to encrypt data to enhance data security. SNMP Community should be set for SNMP V1/V2c. Four sets of...

  • Page 52: Traffic Prioritization

    Traffic Prioritization Traffic Prioritization includes 3 modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, you can classify the traffic into four classes for differential network application. IES-3162GC support 4 priority queues. Polocy Setting interface ORing Industrial Networking Corp...
  • Page 53 IES-3162GC User’s Manual Label Description  QoS Mode Port-base: the output priority is determined by ingress port.  COS only: the output priority is determined by COS only.  TOS only: the output priority is determined by TOS only. ...
  • Page 54 IES-3162GC User’s Manual Port-based Priority interface Label Description Port base Priority Assign Port with a priority queue. 4 priority queues can be assigned: High, Middle, Low, and Lowest. Show help file. Help Click “Apply” to activate the configurations. Apply ORing Industrial Networking Corp...
  • Page 55 IES-3162GC User’s Manual COS/802.1p interface ORing Industrial Networking Corp...
  • Page 56 IES-3162GC User’s Manual Label Description COS/802.1p COS (Class Of Service) is well known as 802.1p. It describes that the output priority of a packet is determined by user priority field in 802.1Q VLAN tag. The priority value is supported 0to7.COS value map to 4 priority queues: High, Middle, Low, and Lowest.

  • Page 57: Multicast

    IES-3162GC User’s Manual 5.1.11 Multicast 5.1.11.1 IGMP Snooping Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2 and v3. Please refer to RFC 1112, 2236 and 3376. IGMP Snooping improves the performance of networks that carry multicast traffic.

  • Page 58: Mvr

    IES-3162GC User’s Manual 5.1.11.2 MVR MVR interface 5.1.11.3 Multicast Filter Multicast filtering is the system by which end stations only receive multicast traffic if they register to join specific multicast groups. With multicast filtering, network devices only forward multicast traffic to the ports that are connected to registered end stations.

  • Page 59: Security

    IES-3162GC User’s Manual Multicast Filtering interface The following table describes the labels in this screen. Label Description IP Address Assign a multicast group IP address in the range of 224.0.0.0 ~ 239.255.255.255 Member Ports Tick the check box beside the port number to include them as the member ports in the specific multicast group IP address.

  • Page 60: Ip Security

    IES-3162GC User’s Manual 5.1.12.1 IP Security IP security can enable/disable remote management from WEB or Telnet or SNMP. Additionally, IP security can restrict remote management to some specific IP addresses. Only these secure IP addresses can manage this switch remotely.

  • Page 61: Port Security

    IES-3162GC User’s Manual Click “Apply” to activate the configurations. Apply Help Show help file. 5.1.12.2 Port Security Port security is to add static MAC addresses to hardware forwarding database. If port security is enabled at Port Control page, only the frames with MAC addresses in this list will be forwarded, otherwise will be discarded.
  • Page 62 IES-3162GC User’s Manual MAC Blacklist interface The following table describes the labels in this screen. Label Description MAC Address Input MAC Address to add to MAC Blacklist. Port NO. Select port of switch. Add an entry to Blacklist table. Delete Delete the entry.
  • Page 63 IES-3162GC User’s Manual 802.1x Radius Server interface The following table describes the labels in this screen. Label Description Radius Server Setting Radius Server IP The IP address of the authentication server. Server port Set the UDP port number used by the authentication server to authenticate.
  • Page 64 IES-3162GC User’s Manual Supplicant Timeout Set the period of time the switch waits for a supplicant response to an EAP request. Server Timeout Set the period of time the switch waits for a Radius server response to an authentication request.

  • Page 65: Warning

    IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description  Port Authorized Reject: force this port to be unauthorized.  Mode Accept: force this port to be authorized.  Authorize: the state of this port was determined by the outcome of the 802.1x authentication.

  • Page 66: Fault Alarm

    IES-3162GC User’s Manual 5.1.13.1 Fault Alarm When any selected fault event is happened, the Fault LED in switch panel will light up and the electric relay will signal at the same time. Fault Alarm interface The following table describes the labels in this screen.
  • Page 67 IES-3162GC User’s Manual System Warning – SYSLOG Setting interface The following table describes the labels in this screen. Label Description  SYSLOG Mode Disable: disable SYSLOG.  Client Only: log to local system.  Server Only: log to a remote SYSLOG server.
  • Page 68 IES-3162GC User’s Manual System Warning – SMTP Setting interface The following table describes the labels in this screen. Label Description Enable/Disable transmission system warning events by e-mail. E-mail Alarm The SMTP server IP address Sender E-mail Address Mail Subject The Subject of the mail ...
  • Page 69 IES-3162GC User’s Manual System Warning – Event Selection SYSLOG and SMTP are the two warning methods that supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox can not be checked when SYSLOG or SMTP is disabled.

  • Page 70: Monitor And Diag

    IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description System Event System Cold Start Alert when system restart Power Status Alert when a power up or down Alert when SNMP authentication failure. SNMP Authentication Failure O-Ring Topology Alert when O-Ring topology changes.

  • Page 71: Mac Address Aging

    Help 5.1.14.2 MAC Address Aging You can set MAC Address aging timer, as time expired, the unused MAC will be cleared from MAC table. IES-3162GC also support Auto Flush MAC Address Table When ports Link Down. MAC Address Aging interface...

  • Page 72: Port Statistics

    IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description MAC Address Table Set the aging time for MAC table. The value is between 0 and Aging Time 3825. Default setting is 300 seconds. Auto Flush MAC...

  • Page 73: Port Monitoring

    IES-3162GC User’s Manual TX GOOD Packet The number of good packets sent by this port. TX Bad Packet The number of bad packets sent by this port. RX GOOD Packet The number of good packets received by this port. RX Bad Packet The number of bad packets received by this port.
  • Page 74 IES-3162GC User’s Manual Port monitoring interface The following table describes the labels in this screen. Label Description The port will receive a copied frame from source port for Destination Port monitoring purpose. Source Port The port will be monitored. Mark the blank of TX or RX to be monitored.

  • Page 75: System Event Log

    IES-3162GC User’s Manual 5.1.14.5 System Event Log If system log client is enabled, the system event logs will be shown in this table. System event log interface The following table describes the labels in this screen. Label Description Select LOG page.

  • Page 76: Save Configuration

    IES-3162GC User’s Manual Ping interface The following table describes the labels in this screen. Label Description IP Address Enter the IP address that you want to detect. Click “Active” to send ICMP packets Active 5.1.15 Save Configuration If any configuration changed, “Save Configuration” should be clicked to save current configuration data to the permanent flash memory.

  • Page 77: Factory Default

    IES-3162GC User’s Manual The following table describes the labels in this screen. Label Description Save Save all configurations. Help Show help file. 5.1.16 Factory Default Factory Default interface Reset switch to default configuration. Click Reset to reset all configurations to the default value.

  • Page 78: Command Line Interface Management

    IES-3162GC User’s Manual ommand Line Interface Management About CLI Management Besides WEB-base management, IES-3162GC also supports CLI management. You can use console or telnet to management switch by CLI. CLI Management by RS-232 Serial Console (9600, 8, none, 1, none) Before Configuring by RS-232 serial console, use an RJ45 to DB9-F cable to connect the Switches’...
  • Page 79 IES-3162GC User’s Manual Step 2. Input a name for new connection Step 3. Select to use COM port number ORing Industrial Networking Corp...
  • Page 80 IES-3162GC User’s Manual Step 4. The COM port properties setting, 9600 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. Step 5. The Console login screen will appear. Use the keyboard to enter the Username and Password (The same with the password for Web Browser), then press “Enter”.
  • Page 81 IES-3162GC User’s Manual CLI Management by Telnet Users can use “TELNET” to configure the switch. The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access the console via Telnet.
  • Page 82 IES-3162GC User’s Manual Commands Level Modes Access Method Prompt Exit Method About This Model User EXEC Begin a session switch> Enter logout The user command with your switch. available at the level of or quit. user is the subset of those available at the privileged level.

  • Page 83: Commands Set List-System Commands Set

    Symbol of Command Level. Mode Symbol of Command Level User EXEC Privileged EXEC Global configuration VLAN database Interface configuration Commands Set List—System Commands Set IES-3162GC Commands Level Description Example show config Show switch switch>show config configuration show terminal Show console switch#show terminal information...
  • Page 84 IES-3162GC User’s Manual show ip Show IP information of switch#show ip switch no ip dhcp Disable DHCP client switch(config)#no ip dhcp function of switch reload Halt and perform a switch(config)#reload cold restart default Restore to default Switch(config)#default admin username Changes a login...

  • Page 85: Commands Set List-Port Commands Set

    Disable IP security of switch(config)#no security http HTTP server Disable IP security of switch(config)#no security telnet no security telnet telnet server Commands Set List—Port Commands Set IES-3162GC Commands Level Description Example interface fastEthernet Choose the port for switch(config)#interface [Portid] modification. fastEthernet 2...
  • Page 86 IES-3162GC User’s Manual Ethernet., the speed can’t be set to 1000 if the port isn’t a giga port.. Use the flowcontrol switch(config)#interface flowcontrol mode [Symmetric|Asymmetric] configuration fastEthernet 2 command on Ethernet switch(config-if)#flowcontrol mode ports to control traffic Asymmetric rates during congestion.
  • Page 87 IES-3162GC User’s Manual kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit. bandwidth out Set interface output switch(config)#interface [Value] bandwidth. Rate fastEthernet 2 Range is from 100 switch(config-if)#bandwidth out 100 kbps to 102400 kbps...

  • Page 88: Commands Set List-Trunk Command Set

    IES-3162GC User’s Manual accounting no accounting Clear interface switch(config)#interface accounting fastEthernet 2 information switch(config-if)#no accounting Commands Set List—Trunk command set IES-3162GC Commands Level Description Example Set port group system switch(config)#aggregator priority 22 aggregator priority [1to65535] priority aggregator activityport Set activity port switch(config)#aggregator...

  • Page 89: Commands Set List-Vlan Command Set

    1 [GroupID] function of trunk group no aggregator group Remove a trunk group switch(config)#no aggreator group 2 [GroupID] Commands Set List—VLAN command set IES-3162GC Commands Level Description Example Enter VLAN configure switch#vlan database vlan database mode vlan To set switch VLAN switch(vlan)# vlanmode 802.1q...

  • Page 90: Commands Set List-Spanning Tree Command Set

    [TaggedVID List] show vlan [VID] Show VLAN switch(vlan)#show vlan 23 information show vlan Commands Set List—Spanning Tree command set IES-3162GC Commands Level Description Example Enable spanning tree switch(config)#spanning-tree enable spanning-tree enable spanning-tree priority Configure spanning switch(config)#spanning-tree priority [0to61440] tree priority parameter...
  • Page 91 IES-3162GC User’s Manual from the root switch within this interval, it recomputed the Spanning Tree Protocol (STP) topology. spanning-tree Use the spanning-tree switch(config)#spanning-tree hello-time [seconds] hello-time global hello-time 3 configuration command to specify the interval between hello bridge protocol data units (BPDUs).

  • Page 92: Commands Set List-Qos Command Set

    False Show spanning-tree Display a summary of switch>show spanning-tree the spanning-tree states. no spanning-tree Disable spanning-tree. switch(config)#no spanning-tree Commands Set List—QoS command set IES-3162GC Commands Level Description Example qos policy Select QOS policy switch(config)#qos policy ORing Industrial Networking Corp...

  • Page 93: Commands Set List-Igmp Command Set

    Display the switch>show qos information of QoS configuration no qos Disable QoS function switch(config)#no qos Commands Set List—IGMP command set IES-3162GC Commands Level Description Example igmp enable Enable IGMP switch(config)#igmp enable snooping function Igmp-query auto Set IGMP query to...

  • Page 94: Commands Set List-Mac/Filter Table Command Set

    IES-3162GC User’s Manual Commands Set List—MAC/Filter Table command set IES-3162GC Commands Level Description Example mac-address-table static Configure MAC switch(config)#interface fastEthernet address table of hwaddr [MAC] interface (static). switch(config-if)#mac-address-table static hwaddr 000012345678 mac-address-table filter Configure MAC switch(config)#mac-address-table hwaddr address table(filter) filter hwaddr 000012348678...

  • Page 95: Commands Set List-Port Mirroring Command Set

    Password] no snmp-server host Remove the SNMP switch(config)#no snmp-server server host. 192.168.10.50 [Host-address] 6.11 Commands Set List—Port Mirroring command set IES-3162GC Commands Level Description Example Set RX destination switch(config)#monitor rx monitor rx port of monitor ORing Industrial Networking Corp...

  • Page 96: Commands Set List-802.1X Command Set

    Disable source port of switch(config)#interface fastEthernet no monitor monitor function switch(config-if)#no monitor 6.12 Commands Set List—802.1x command set IES-3162GC Commands Level Description Example Use the 802.1x global switch(config)# 8021x enable 8021x enable configuration command to enable 802.1x protocols.
  • Page 97 IES-3162GC User’s Manual the accounting port 8021x system sharekey Use the 802.1x switch(config)# 8021x system [ID] system share key sharekey 123456 global configuration command to change the shared key value. 8021x system nasid Use the 802.1x switch(config)# 8021x system nasid...

  • Page 98: Commands Set List-Tftp Command Set

    IES-3162GC User’s Manual MAX requests. 8021x misc Use the 802.1x misc switch(config)# 8021x misc reauthperiod [sec.] reauth period global reauthperiod 3000 configuration command to set the reauth period. 8021x portstate Use the 802.1x port switch(config)#interface fastethernet state interface [disable | reject | accept |...

  • Page 99: Commands Set List-Syslog, Smtp, Event Command Set

    TFTP and need to lash:upgrade_fw specify the IP of TFTP server and the file name of image. 6.14 Commands Set List—SYSLOG, SMTP, EVENT command IES-3162GC Commands Level Description Example Set System log server switch(config)# systemlog ip systemlog ip [IP address] IP address.
  • Page 100 IES-3162GC User’s Manual function event device-cold-start Set cold start event switch(config)#event [Systemlog|SMTP|Both] type device-cold-start both event Set Authentication switch(config)#event authentication-failure failure event type authentication-failure both [Systemlog|SMTP|Both] event Set s ring topology switch(config)#event O-Ring-topology-change changed event type ring-topology-change both [Systemlog|SMTP|Both] event systemlog...

  • Page 101: Commands Set List-Sntp Command Set

    IES-3162GC User’s Manual 6.15 Commands Set List—SNTP command set IES-3162GC Commands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable sntp daylight Enable daylight saving switch(config)#sntp daylight time, if SNTP function is inactive, this command can’t be applied. sntp daylight-period...

  • Page 102: Commands Set List-O-Ring Command Set

    IES-3162GC User’s Manual function no sntp daylight Disable daylight switch(config)#no sntp daylight saving time 6.16 Commands Set List—O-Ring command set IES-3162GC Commands Level Description Example Ring enable Enable O-Ring switch(config)# ring enable Ring master Enable ring master switch(config)# ring master...

  • Page 103: Technical Specifications

    IES-3162GC User’s Manual echnical Specifications Technology Ethernet Standards 802.3 - 10Base-T, 802.3u - 100Base-TX, 100Base-FX, 802.3z - 1000Base-LX 802.3ab - 1000Base-TX, 802.3ad - Link Aggregation Control Protocol 802.3x - Flow Control 802.1D - Spanning Tree Protocol 802.1p - Class of Service, 802.1Q - VLAN Tagging...
  • Page 104 IES-3162GC User’s Manual Operating Temperature -40 to 60 Storage Temperature -40 to 85 Operating Humidity 5% to 95%, non-condensing Mechanical Dimensions(W x D x H) 96.4(W)x108.5(D)x154(H) mm (3.8 x 4.27 x 6.06 inch) Casing IP-30 protection Regulatory Approvals Regulatory Approvals...
