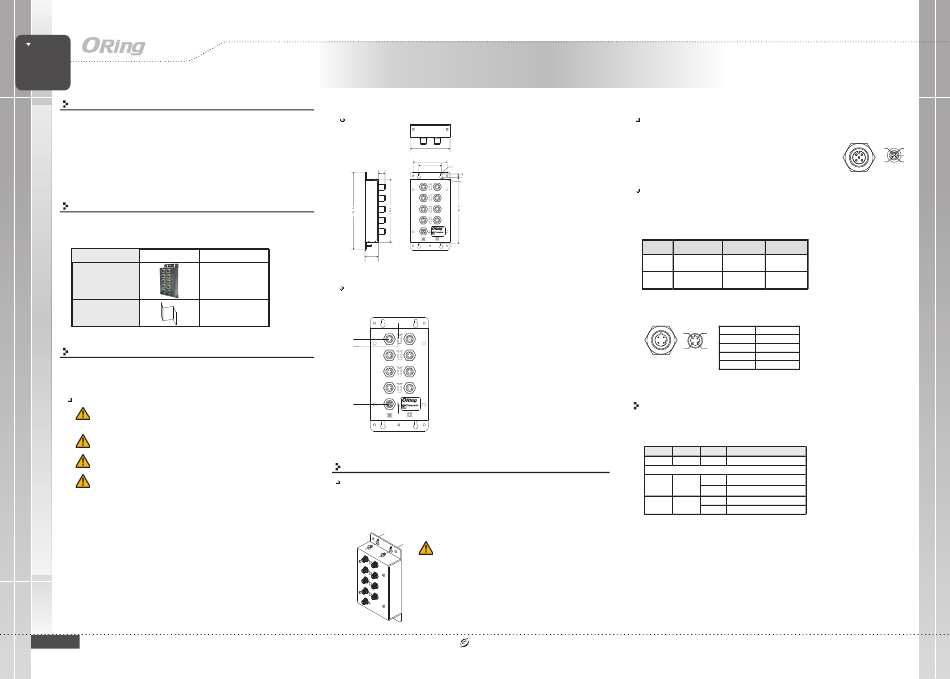

ORiNG TES-180-M12 Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation

Introduction

The TES-180-M12 unmanaged Ethernet switche is designed for industrial
applications, such as rolling stock, vehicle, and railway applications. The
switch boasts EN50155 compliance and M12 connectors to ensure tight
and robust connections, and guarantee reliable operation against
environmental disturbances, such as vibration and shock. With eight
10/100Base-T(X) ports, the switch provides a wide operating temperature
o o
range from -40 C to 70 C.
Package Contents
The device is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for
assistance.
Contents Pictures
TES-180-M12
QIG

Preparation

Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
TES-180-M12
TES-180-M12
G
uide

Dimension

15.0
Number
40.0
1

Panel Layouts

Front View
1
P1
1
4
P3
P5
P7
PWR
2
12-48 VDC
N.C. V+
N.C.
V- N.C.

Installation

Wall-mount

The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the d evice upright against the wall
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screw to the wall with a screwdriver.
Step 3: Slide the d
1907-2-29-TES180M12-1.0
88.9
73.9
44.4
R2.5
R4.00
P1 P2
FDX
P3 P4
FDX
P5 P6
FDX
P7 P8
FDX
PWR
TES-180-M12
12-48 VDC Tx+ Rx+
N.C. V+
N.C.
V- N.C. Rx- Tx-
3
1. Ethernet port
P2
2. Power port
3. LNK/ACT LED for LAN ports
FDX
4. Duplex/Collision LED for LAN ports
P4
5. Power status LED
FDX
P6
FDX
P8
FDX
TES-180-M12
Tx+ Rx+
5
Rx- Tx-
evice downwards and tighten the four screws for added stability.
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the switch
between the wall and the screws.
PRINTED ON RECYCLED PAPER
EN50155 8-port unmanaged

Ethernet switch

Wiring

Power port pinouts

The device supports power supply in M12 5-pin female connector on
the front panel for the dual power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.

Network Connection

The switch has eight 10/100Base-T(X) Ethernet ports in the form of M12 connector. Depending on
the link type, the switch uses CAT 3, 4, 5, 5e UTP cables to connect to network devices (PCs,
servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
Cable Type Max. Length Connector
4-pin female M12
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
D-coding connector
4-pin female M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
D-coding connector

M12/4P Pin Definition

For pin assignments of the LAN ports, please refer to the following tables.
Pin No. Description
Tx+ Rx+
#1 RD+
#2 TD+
Rx- Tx-
#3 RD-
#4 TD-

Configurations

After installing the switch and connecting cables, start the
power. The green power LED should turn on. Please refer to the following tablet
for LED indication.
LED Color Status Description
PWR Green On DC power module is activated
10/100Base-T(X)
On Port is Linked
LNK/ACT Green
Blinking Transmitting data
Duplex / On Port is in duplex mode
Amber
Collision Blinking Collision occurs
Quick Installation Guide
Version 1.0
N.C. V+
N.C.
V- N.C.
d evice by turning on
