ORiNG EN50155 Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation

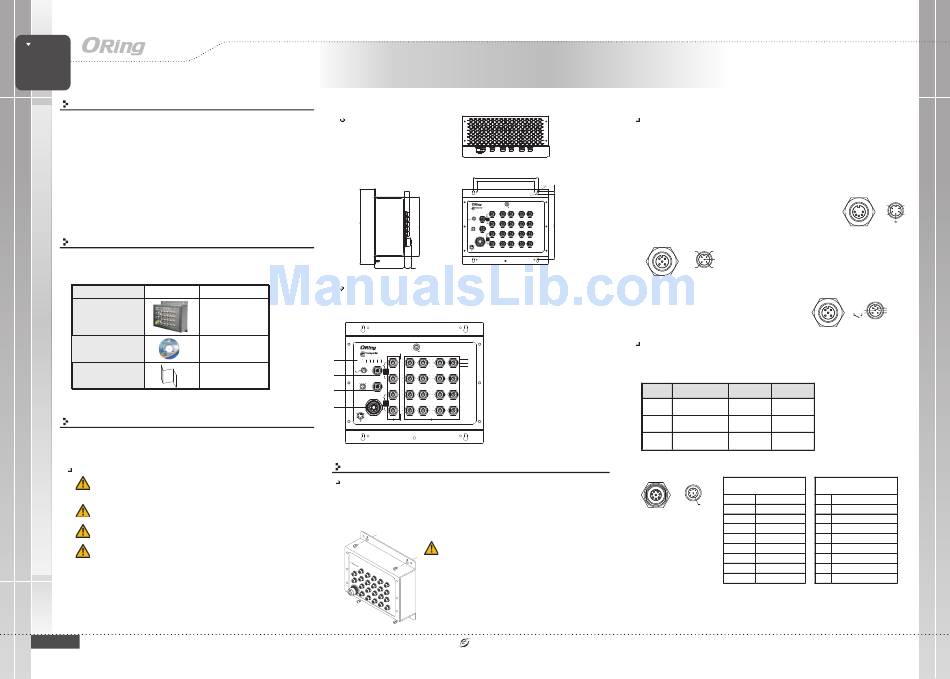

Introduction

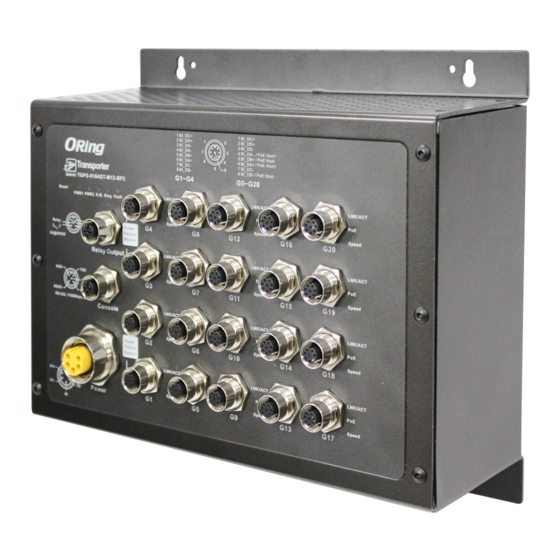

The TGPS-9164GT-M12 series is a managed Gigabit Ethernet switch with 16
Gigabit PoE-enabled ports and 4 Gigabit non-PoE ports in M12 connector.
The series consists of -BP2 models (TGPS-9164GT-M12-BP2) and non-BP2
models (TGPS-9164GT-M12). The non-PoE ports of
BP2 provide bypass functions to ensure constant network connectivity
when power outage or node failure occurs. The switch supports various
Ethernet redundancy protocols such as O-Ring (recovery time < 30ms over
250 units of connection), Open-Ring, O-Chain, MRP and MSTP (RSTP/STP
compatible) to protect your mission-critical applications from network
interruptions or temporary malfunctions. With EN50155 compliance and M12
connectors, the device is a perfect choice for rolling stock applications.

Package Contents

The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
TGPS-9164GT-M12/
TGPS-9164GT-M12-24V/
TGPS-9164GT-M12-BP2/
TGPS-9164GT-M12-BP2-24V
CD
QIG

Preparation

Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
TGPS-9164GT-M12 Series
TGPS-9164GT-M12 Series
G
uide

Dimension

TGPS-9164GT-M12-

Panel Layouts

Number
Front View
1
1
TGPS-9164GT-M12
1
Reset
PWR1 PWR2 R.M. Ring Fault
2 3 4 5 6
Relay N.C.
1 16 3A@24VDC
Relay Output
RXD TXD
N.C.
15 RSVD GND
RS-232, 115200bps, 8, N, 1
Console
7
V1+ V2+
Power
V1- V2-

Installation

Wall-mount

The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screws to the wall with a screwdriver.
Step 3: Slide the
1907-2-29-TGPS9164GTM12-1.0
260
193.9
174.4
15.3
1 BI_DC+ 1 BI_DC+
2 BI_DD+ 3 BI_DD- 1 2 3 BI_DD- 2 BI_DD+
4 BI_DA- 7 3 4 BI_DA- / PoE Vout+
5 BI_DB+ 5 BI_DB+ / PoE Vout-
6 BI_DA+ 6 4 6 BI_DA+ / PoE Vout+
7 BI_DC- 5 8 7 BI_DC-
8 BI_DB- 8 BI_DB- / PoE Vout-
G1~G4 G5~G20
TGPS-9164GT-M12-BP2
Reset
PWR1 PWR2 R.M. Ring Fault LNK/ACT LNK/ACT LNK/ACT
PoE PoE PoE
Speed Speed Speed
Power G4 G8 G12 G16 G20
Relay N.C. Failure
Bypass
3A@24VDC
Relay Output LNK/ACT LNK/ACT LNK/ACT
PoE PoE PoE
RXD TXD Speed Speed Speed
G3 G7 G11 G15 G19
N.C.
RSVD GND
RS-232, 115200bps, 8, N, 1
Console LNK/ACT LNK/ACT LNK/ACT
PoE PoE PoE
Speed Speed Speed
G2 G6 G10 G14 G18
Power
Failure
Bypass
LNK/ACT LNK/ACT LNK/ACT
PoE PoE PoE
V1+ V2+
Speed Speed Speed
Power G1 G5 G9 G13 G17
V1- V2-
91.6 19.7
1. Reset button
2. Power1 status LED
3. Power2 status LED
4. R.M. status LED
1 BI_DC+ 1 BI_DC+
2 BI_DD+ 1 2 2 BI_DD+
3 BI_DD- 3 BI_DD-
4 BI_DA- 7 3 4 BI_DA- / PoE Vout+
5 BI_DB+ 5 BI_DB+ / PoE Vout- 5. Ring status LED
6 BI_DA+ 6 4 6 BI_DA+ / PoE Vout+
10 7 BI_DC- 7 BI_DC-
8 BI_DB- 5 8 8 BI_DB- / PoE Vout-
G1~G4 G5~G20 6. Fault LED
12
LNK/ACT LNK/ACT LNK/ACT 7. Power connector
13
PoE PoE PoE
14
Speed Speed Speed 8. Non-PoE Gigabit Ethernet ports (with
G4 G8 G12 G16 G20
Power
Failure
Bypass
bypass -BP2 model)
LNK/ACT LNK/ACT LNK/ACT
PoE PoE PoE
9. PoE-enabled Gigabit Ethernet ports
Speed Speed Speed
G3 G7 G11 G15 G19
10. Link/ACT LED for non-PoE Gigabit ports
LNK/ACT LNK/ACT LNK/ACT
11. Speed LED for non-PoE Gigabit ports
PoE PoE PoE
Speed Speed Speed
G2 G6 G10 G14 G18 12. Link/ACT LED for PoE-enabled Gigabit
Power
Failure
Bypass
LNK/ACT LNK/ACT LNK/ACT ports
PoE PoE PoE
Speed Speed Speed 13. PoE indicator for PoE-enabled Gigabit
G1 G5 G9 G13 G17
ports
8 11 9
14. Speed LED for PoE-enabled Gigabit ports
15. Console port
16. Relay output port
d evice upright against the wall
d evice downwards and tighten the four screws for added stability.
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the
switch between the wall and the screws.
PRINTED ON RECYCLED PAPER
EN50155 20-port managed
Gigabit PoE Ethernet switch
Wiring
For pin assignments of power, console and relay output ports, please refer to the following tables.
Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.

Power port pinouts

The device supports two sets of power supplies and uses the M23 5-pin
female connector on the front panel for dual power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.

Console port pinouts

RXD TXD
N.C.
N.C. GND
RS-232, 9600bps, 8, N, 1

Relay output port pinouts

The switch uses the M12 A-coded 5-pin female connector
on the front panel for relay output. Use a cable with an M12
A-coded 5-pin male connector to connect the relay. The
relay contacts will detect user-configured events and form
an close circuit when an event is triggered.

Network Connection

The switch has sixteen 10/100/1000Base-T(X) PoE and four 10/100/1000Base-T(X) non-PoE
Ethernet ports in the form of M12 connector. Depending on the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to network devices (PCs, servers, switches, routers, or hubs). Please
refer to the following table for cable specifications.
Cable Type Max. Length Connector
8-pin female M12
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
A-coding connector
8-pin female M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
A-coding connector
8-pin female M12
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
A-coding connector
For pin assignments of the Ethernet ports, please refer to the following tables.
8-Pin Gigabit Non-PoE Port
1 2 Definition
7 3
PIN Definition PIN
6 4
5 8
1 BI_DC+
2 BI_DD+
3 BI_DD-
4 BI_DA-
5 BI_DB+
6 BI_DA+
7 BI_DC-
8 BI_DB-
Quick Installation Guide
Version 1.0
V1+ V2+
V1- V2-
Relay
N.C.
3A@24VDC
8-Pin Gigabit PoE Port
Definition
Definition
1 BI_DC+
2 BI_DD+
3 BI_DD-
4 BI_DA- with PoE Vout+
5 BI_DB+ with PoE Vout-
6 BI_DA+ with PoE Vout+
7 BI_DC-
8 BI_DB- with PoE Vout-
