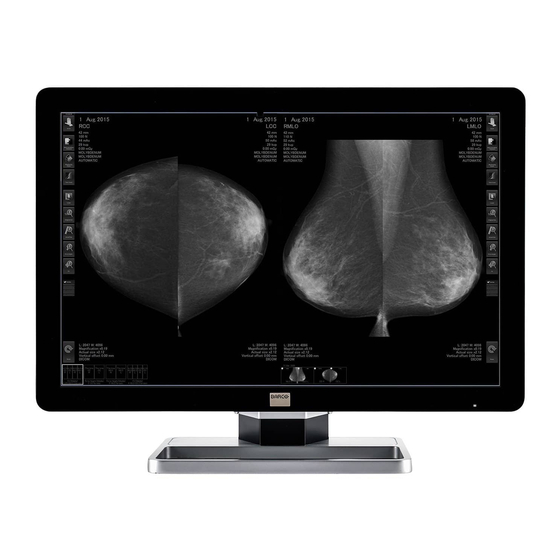

Barco MDCG-10130 User Manual

Coronis fusion 10mp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Coronis Fusion 10MP
User Guide
MDCG-10130

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDCG-10130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco MDCG-10130

Summary of Contents for Barco MDCG-10130

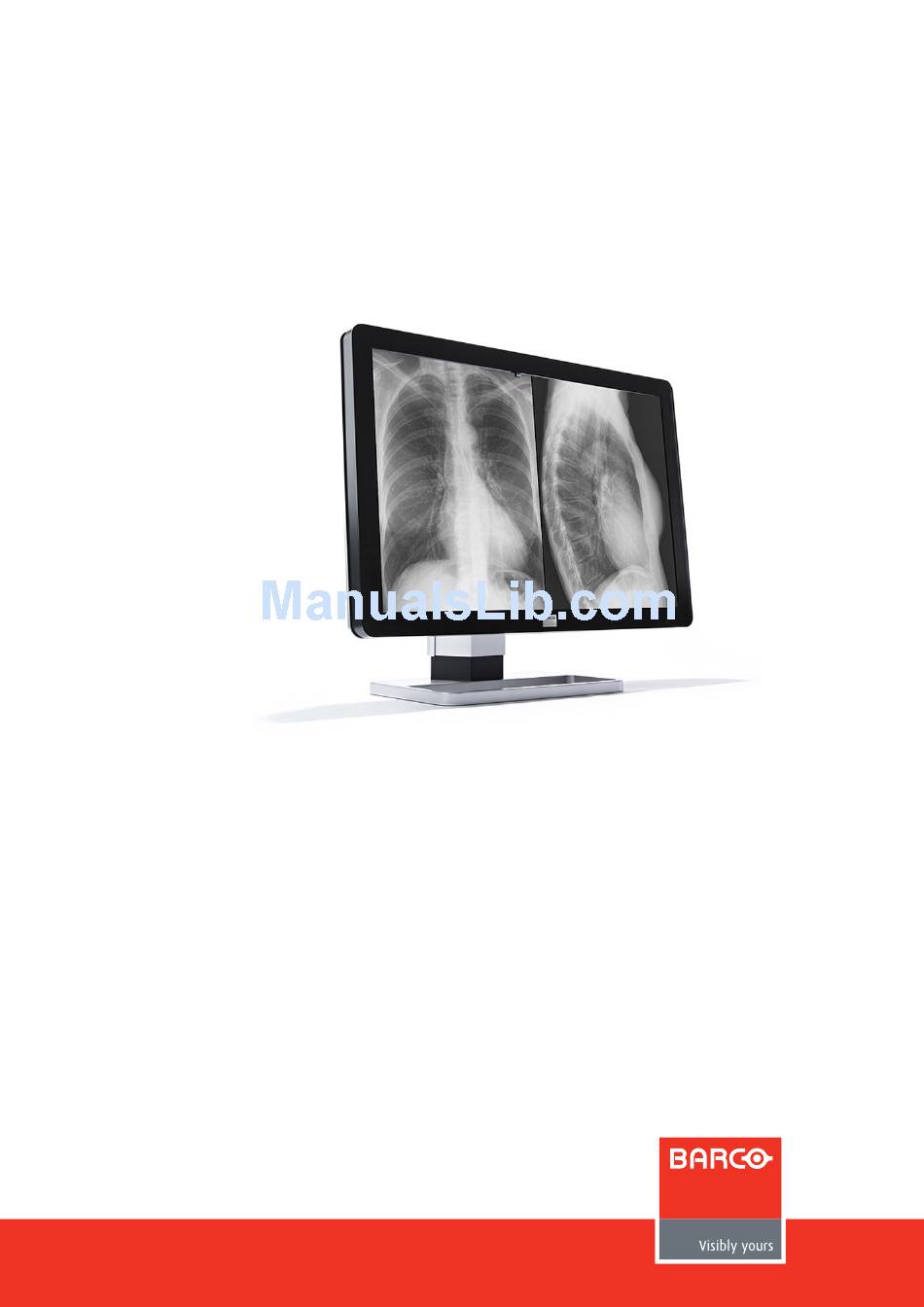

  • Page 1 Coronis Fusion 10MP User Guide MDCG-10130...
  • Page 3 Coronis Fusion 10MP User Guide MDCG-10130 K5902031/03 28/08/2013...
  • Page 4 Barco nv President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Welcome! ..................3 About the product ................... . 3 What’s in the box.
  • Page 6 Table of contents 8. Important information ................37 Safety information.................... . 37 Environmental information ..

  • Page 7: Welcome

    • an external power supply If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated user guide is available on the system CD. Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage.
  • Page 8 1. Welcome! K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 9: Parts, Controls And Connectors

    2. Parts, controls and connectors 2. PARTS, CONTROLS AND CONNECTORS Display front view Overview 2 3 4 Image 2-1 USB downstream connectors Left / Up key Right / Down key Menu / Enter key Stand-by / Cancel key Ambient light sensor Power status indicator light Control wheel K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 10: Display Rear View

    2. Parts, controls and connectors Display rear view Overview 11 12 Image 2-2 USB upstream connector USB downstream connector Ethernet connector (see note below) DVI 1 video input DisplayPort 1 video input Connector compartment cover Neck cover Display stand cover DisplayPort 2 video input DVI 2 video input +5 Vdc, 0.5 A power output...

  • Page 11: Display Installation

    Prior to installing your Coronis Fusion 10MP and connecting all necessary cables, make sure to have a suitable display controller physically installed in your computer. If you are using a Barco display controller, please consult the user guide delivered with it to do this.

  • Page 12: Unlocking The Height Mechanism

    3. Display installation 2. Slide the cover upwards while holding the clips pressed. Unlocking the height mechanism In the factory, the height-positioning system in the display stand is locked with a red hook to prevent damage during transportation. You’ll have to remove this hook before adjusting your display height position.

  • Page 13: Adjusting The Display Position

    3. Display installation 3. Keep the clip in the dedicated hole in case the display needs to be shipped later. To retain the hook for possible future transportation, insert the short, red end of the hook back into the stand of your display. Adjusting the display position Now that the height-positioning system of your display is unlocked, you can adjust the display position.

  • Page 14: Connecting The Signal Cables

    3. Display installation Do not try to pivot your display when attached to the stand. Trying to do so AUTION could cause serious damage to your display and its stand. Connecting the signal cables To get access to the connectors, remove the connector compartment cover. See "Re- moving the covers", page 7 .

  • Page 15: Connecting The Power Cable

    3. Display installation Connecting the power cable To connect the power cable to the display: 1. Connect the supplied external DC power supply to the +24 VDC power input of your Coronis Fusion 10MP display. 2. Plug the other end of the external DC power supply into a grounded power outlet by means of the proper power cord delivered in the packaging.

  • Page 16: Vesa-Mount Installation

    3. Display installation To re-attach the connector compartment cover 1. Slide the cover’s top in position and then push the cover’s bottom. You’ll hear a “click” sound of the cover’s clips when the connector compartment cover is in position. VESA-mount installation Never move a display attached to an arm by pulling or pushing the display ARNING itself.
  • Page 17 3. Display installation Overview The panel, standard attached to a stand, is compatible with the VESA 100 mm standard. Thus, it can be used with an arm that is approved by VESA. This chapter shows you how to release the panel from the stand and how to attach it to an arm.

  • Page 18: First Time Starting Up

    Your Coronis Fusion 10MP will be running in a basic video mode at a default refresh rate when first time starting up. If you are using a Barco display controller, please consult the user guide delivered with it to install the drivers, software and documentation. When this is done, your display will automatically detect the connected video input signal(s) and apply the correct video mode and refresh rate.

  • Page 19: Daily Operation

    LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels.

  • Page 20: Key Indicator Lights

    The ’MediCal QAWeb’ system offers online service for high-grade Quality Assurance, providing maximum diagnostic confidence and uptime. Barco recommends to install MediCal QAWeb Agent and apply the default QAWeb policy at least. This policy includes calibration on regular intervals. Connecting to MediCal QAWeb Server offers even more possibilities.

  • Page 21: Bringing Up The Osd Menus

    4. Daily operation Switching on the display while it is in stand-by mode or vice versa can both be done by using the keys or by using the control wheel. To switch your display on using the keys: 1. Light up the keys indicator lights as previously described. 2.

  • Page 22: Navigating Through The Osd Menus

    4. Daily operation How to bring up the OSD menus using the control wheel 1. If not already done so, switch on the display as previously described. 2. Shortly turn the control wheel. As a result, the OSD main menu comes up in the bottom right corner of the screen. If no further actions are taken within the following 90 seconds however, the OSD menu will disappear again.

  • Page 23: Advanced Operation

    5. Advanced operation 5. ADVANCED OPERATION OSD menu position About the OSD menu position By default, the OSD menu comes up in the bottom center position of the screen. This position can be modified however. There’s choice from a number of predefined positions. To change the position of the OSD menu: 1.

  • Page 24: Power Status Indicator Light

    5. Advanced operation Power status indicator light About the power status indicator light By default, when the display is switched on, the power status indicator light is dimmed. This behavior can be changed so that the power status indicator light will be blue when the display is switched on. When the display is in stand-by mode, the power status indicator light will always turn orange, even when the power status indicator light is disabled.

  • Page 25: Keys Sound

    By enabling the Ethernet over USB, you allow the internal Coronis Fusion 10MP processor to communi- cate directly over USB with the connected PC. Enabling the Ethernet over USB is only recommended when you are using a non-Barco display controller. If you are using a Barco display controller, this communication will automatically be done over the connected video cable(s).

  • Page 26: Dpms Mode

    5. Advanced operation Enabling the USB endpoint is only recommended when you are using a non-Barco dis- play controller. If you are using a Barco display controller, this communication will au- tomatically be done over the connected video cable(s). To enable/disable USB: 1.

  • Page 27: Viewing Modes

    In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 28: Ambient Light Compensation (Alc)

    5. Advanced operation User This display function will be automatically selected when display functions are defined by MediCal QAWeb. Gamma 1.8 Select one of these display functions in case the display is to replace a CRT display with a gamma Gamma 2.2 of 1.8 or 2.2 respectively.

  • Page 29: Continuous Alc

    5. Advanced operation The available reading rooms for your Coronis Fusion 10MP are: CR/DR/ MAMMO Corresponds to light conditions in diagnostic reading rooms for computed radiology, digital radiology or mammography. This setting has the lowest maximum ambient light. CT/MR/NM Corresponds to light conditions in diagnostic reading rooms for computed tomography, magnetic resonance or nuclear medicine scans.

  • Page 30: Image Source Selection Modes

    5. Advanced operation Image scaling is only possible when the resolution of your display’s video input signal is less than or equal to half the maximum resolution of the display. To enable/disable image scaling: 1. Bring up the OSD main menu. 2.

  • Page 31: Video Input Signals

    5. Advanced operation 5.19 Video input signals Your Coronis Fusion 10MP display automatically detects the connected video input sig- nals. Manually selecting image source video input signals is possible, but then your display’s image source selection mode should be set to allow this. Please refer to "Im- age source selection modes", page 26 to do this.

  • Page 32: Grayscale Conversion Modes

    HDR1). This mode is usually used on color displays. Dual 10 (only with Barco display controller) Dual 10 is a Barco specific 10-bit video encoding mode which is usually used on grayscale displays and which allows full refresh rate.

  • Page 33: Edid Timings

    5. Advanced operation 5.22 EDID timings Your Coronis Fusion 10MP display automatically detects the connected video input sig- nals and applies the correct timings. Manually configuring the EDID timings is possible, but then your display’s image source selection mode should be set to allow this. Please refer to "Image source selection modes", page 26 to do this.
  • Page 34 5. Advanced operation 3. Enter the Display, Image Sources, Calibration or Connectivity submenu as desired. K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 35: Repackaging Instructions

    6. Repackaging instructions 6. REPACKAGING INSTRUCTIONS Before repacking the display, follow the instruction to replace the protection ARNING buffer to prevent damage to the display. K5902031 CORONIS FUSION 10MP 28/08/2013...
  • Page 36 6. Repackaging instructions Overview of the packaging Image 6-1 Coronis Fusion 10MP display System CD + User guide Top buffer Bottom buffer Display controller box Power supply Cables (video, USB, power) K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 37: Repacking Your Display

    6. Repackaging instructions Repacking your display How to repack your display 1. Place the empty box on a stable surface. 2. Slide the system CD and user guide in the dedicated bag attached at the inside of the box. 3. Place the bottom buffer in the box. 4.
  • Page 38 6. Repackaging instructions K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 39: Cleaning Your Display

    7. Cleaning your display 7. CLEANING YOUR DISPLAY Cleaning instructions To clean the display Clean the display using a sponge, cleaning cloth or soft tissue, lightly moistened with a recognized clean- ing product for medical equipment. Read and follow all label instructions on the cleaning product. In case of doubt about a certain cleaning product, use plain water.
  • Page 40 7. Cleaning your display K5902031 CORONIS FUSION 10MP 28/08/2013...

  • Page 41: Important Information

    8. Important information 8. IMPORTANT INFORMATION Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use.

  • Page 42: Power Cords

    8. Important information Transient over-voltage If the device is not used for a long time, disconnect it from the AC inlet to avoid damage by transient over-voltage. To fully disengage the power to the device, please disconnect the power cord from the AC inlet. Power cords: •...

  • Page 43: Environmental Information

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 44 “Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period”...

  • Page 45: Regulatory Compliance Information

    8. Important information Regulatory compliance information Indications for use The Coronis Fusion 10MP is intended to be used as a tool in displaying and viewing digital images includ- ing digital mammography, for review and analysis by trained medical practitioners. Caution (USA): Federal law restricts this device to sale by or on the order of a physician. (Details & exemptions are in the Code of Federal Regulations Title 21, 801 Part D).
  • Page 46 8. Important information Emissions test Electromagnetic environment – Compliance Guidance RF emissions Class B The Coronis Fusion 10MP is suitable for use in all CISPR 11 establishments, including Harmonic emissions Class D domestic establishments and IEC 61000-3-2 those directly connected to the Voltage fluctuations/ flicker Complies public low-voltage power supply...
  • Page 47 8. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance Voltage dips, short Mains power quality < 5% U (> 95% dip in < 5% U (> 95% dip in interruptions and voltage ) for 0.5 cycle ) for 0.5 cycle should by that of a typical variations on power...
  • Page 48 8. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with symbol: At 80 MHz and 800 MHz, the higher frequency range applies. These guidelines may not apply in all situations.

  • Page 49: Explanation Of Symbols

    8. Important information These guidelines may not apply in all situations. Electromagnetic propagation is af- fected by absorption and reflection form structures, object and people. Explanation of symbols Symbols on the device On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates compliance with the Directive 93/42/EEC as Class I device Indicates compliance with the Directive 93/42/EEC as Class II device Indicates compliance with Part 15 of the FCC rules (Class A or Class B)

  • Page 50: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.

  • Page 51: Technical Specifications

    8. Important information European Patent 1 274 066. Technical specifications Overview Product acronym MDCG-10130 Screen technology TFT AM LCD Dual Domain IPS Active screen size (diagonal) 761 mm (29.6”) Active screen size (H x V) 645 mm x 403 mm (25.4” x 15.9”)
  • Page 52 8. Important information Portrait: NA Dimensions with stand (W x H x D) Landscape: 731 x 580~670 x 270 mm Dimensions w/o stand (W x H Portrait: NA x D) Landscape: 731 x 485 x 125 mm Dimensions packaged (W x H 869 x 764 x 400 mm x D) Net weight with stand...

  • Page 53: Open Source License Information

    Open source license usage This product contains software components released under an Open Source license. A copy of the source code is available on request by contacting your Barco customer support representative. EACH SEPARATE OPEN SOURCE SOFTWARE COMPONENT AND ANY RELATED DOCUMENTA- TION ARE PROVIDED "AS IS"...
  • Page 56 K5902031-03 August 2013 Barco n.v. President Kennedypark 35 8500 Kortrijk Belgium 0120 www.barco.com...
