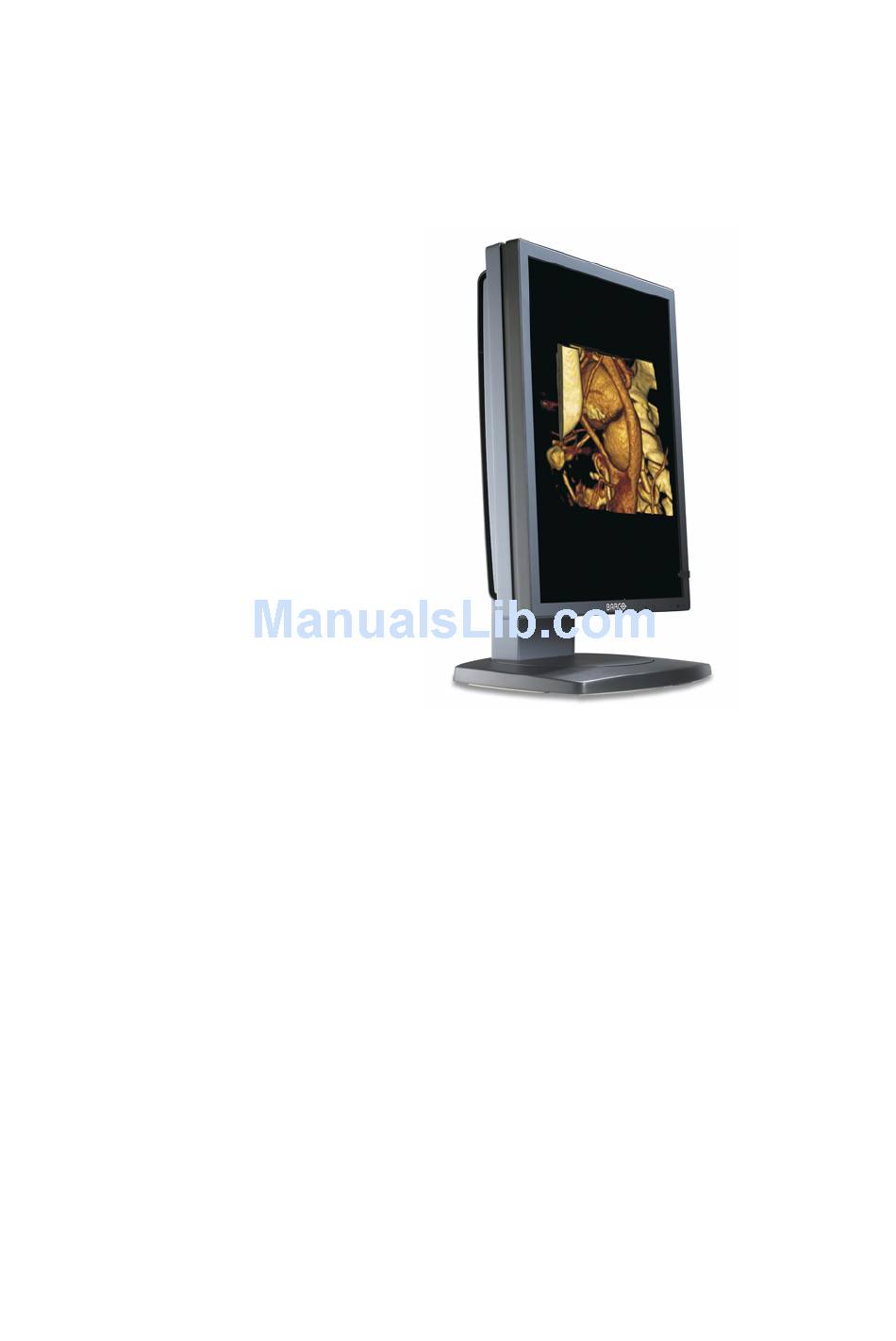

Getting started guide
MDCC 2121, MDCC 3120
MDCG 2121, MDCG 3120, MDCG 3121, MDCG 5121

Advertisement

Table of Contents
loading

Related Manuals for Barco MDCC 2121

Summary of Contents for Barco MDCC 2121

  • Page 1 Getting started guide MDCC 2121, MDCC 3120 MDCG 2121, MDCG 3120, MDCG 3121, MDCG 5121...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 3: Copyright Notice

    - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco. © 2007 Barco N.V. All rights reserved.
  • Page 4 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 5: Table Of Contents

    Rear..................... 20 Connectors .................. 20 Side ..................... 21 Foot ..................... 21 Display controller installation ..............25 Installing your Barco display controller ..........26 Quick installation................ 28 Detailed installation ..............29 Display installation .................. 33 Installation precautions..............34 Single-head installation ..............35 Dual-head installation ...............
  • Page 6 Table of Contents Display controller software installation ..........49 Installing drivers and software ............50 Where to get more information ............. 61 Troubleshooting ..................65 General tips..................66 Warranty Statement ................71...

  • Page 7: Preface

    Preface...
  • Page 8 Barco software products are the property of Barco n.v.. They are distributed under copyright by Barco N.V. or BarcoView, LLC., for use only under the specific terms of a software license agreement between Barco N.V.
  • Page 9 Cet appareil ISM est conforme à la norme NMB-001 du Canada. FCC Compliance Information (display controller) CLASS B: This Barco Graphics Controller complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
  • Page 10 The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FCC regula- tions. Changes or modifications to this unit not expressly approved by Barco could void the user’s authority to operate this equipment.

  • Page 11: Environmental Information

    Environmental information Environmental information Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash. Dispose of it as required by local ordinances or regulations. This equipment has required the extraction and use of natural resources for its production.

  • Page 12: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Display with internal power supply: Class I equipment...
  • Page 13 Safety Instructions Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application. • Do not overload wall outlets and extension cords as this may result in fire or electric shock.
  • Page 14 Safety Instructions Operating precautions Continuous operation of the display with the same image may result in some image sticking on the LCD panel. Over 10 hours operation with the same image content is not recommended. Switching on DPMS on display and PC and activating a good screen saver may decrease the risk of image sticking (image retention).

  • Page 15: Explanation Of Symbols

    Explanation of symbols Explanation of symbols Symbols on the display and / or power supply On the display or power supply, you may find the following symbols: Indicates compliance to the essential require- ments of the Directive 93/42/EEC Indicates the display is approved according to the UL regulations Indicates the display is approved according to the c-UL regulations...
  • Page 16 Explanation of symbols Consult the operating instructions Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Symbols used throughout the manual: Warning: Risk of Caution: Risk of injury to human damage to the...

  • Page 17: Introduction

    Introduction...

  • Page 18: Display Parts, Controls And Connectors

    Display parts, controls and connectors Display parts, controls and connectors Front The front controls are soft touch keys. When you touch any of them while no on-screen display (OSD) is on the screen, the front illumination is switched on for a few seconds. When you touch a key again while the illumination is on, the function of the key is executed.
  • Page 19 Display parts, controls and connectors To display the OSD (on-screen display). In the OSD, this button acts as Enter button to make selections. Standby To put the display in standby mode. Ambient light sensor Senses the ambient light around the display. The ambient light measurement is taken into account in the DICOM display function calibration.

  • Page 20: Rear

    Display parts, controls and connectors Rear Figure 2: Rear view Connector compartment cover. Detach to get access to the signal connectors. Slot for security cable (e.g., Kensington lock). Push-button to release the panel unit from the tilt & swivel foot in landscape orientation.

  • Page 21: Side

    Display parts, controls and connectors +5 Vdc, 0.25 A power output for accessories. DVI (digital) video input. USB upstream port (to PC). USB downstream port (to peripheral USB devices). Power output for asset management. Side Figure 4: Side view Display panel unit USB downstream ports.
  • Page 22 Display parts, controls and connectors Single-head stand Figure 5: Single-head stand (rear view) Tilt & swivel neck cover. Detach before connecting the signal cables. Cable duct covers. Push down and turn to open before connecting the signal cables. Dual-head stand Figure 6: Dual-head stand (rear view) Arm covers.
  • Page 23 Display parts, controls and connectors The covers are packaged separately from the stand. You have to click them to the arms after connecting the signal cables. Cable duct covers. Push down and turn to open before connecting the signal cables.
  • Page 24 Display parts, controls and connectors (This page intentionally left blank.)

  • Page 25: Display Controller Installation

    Display controller installation...

  • Page 26: Installing Your Barco Display Controller

    Installing your Barco display controller Installing your Barco display controller This chapter will guide you through the physical installation of the display controller(s) for your B Display System. ARCO ORONIS CAUTION – Wear a grounded, protective ESD strap when handling or during installation of the display controller.
  • Page 27 Installing your Barco display controller Figure 7: B PCIe display controller VGA Jumper, VGA enabled ARCO ORONIS Note: To use multiple B PCIe display controllers ARCO ORONIS in a single host, you need to enable VGA on only ONE of the...

  • Page 28: Quick Installation

    Installing your Barco display controller Quick installation Experienced users and system administrators can follow these brief instructions for installing the display controller(s) for your B ARCO ORONIS Display System in the shortest possible time. To perform a quick installation CAUTION – Wear a grounded, protective ESD strap when handling or during installation of the display controller.

  • Page 29: Detailed Installation

    Installing your Barco display controller Detailed installation The following instructions will take you step by step through the installation of the display controller(s) for your B Display ARCO ORONIS System. CAUTION – Wear a grounded, protective ESD strap when handling or during installation of the display controller.
  • Page 30 Installing your Barco display controller Align the display controller(s) for your B Display ARCO ORONIS System with the slot(s) and press it(them) in firmly until the card(s) is(are) fully seated. Note: This step applies only to the MXRT 5100 and MXRT 7100.
  • Page 31 Installing your Barco display controller Connecting your Barco displays Figure 10: MXRT 2100 & B PCIe display controller Base- ARCO ORONIS plate Head 1 – DVI-I Connection Head 2 – DVI-I Connection Figure 11: MXRT 5100 and MXRT 7100 Baseplate Head 1 –...
  • Page 32 If you have properly installed your graphics card, the Windows start-up messages will appear once the boot procedure is finished. Your Barco display(s) will be running in a basic video mode at a default refresh rate. Higher resolutions and refresh rates, such as 1536x2048@60Hz, are not avail- able at this stage of the installation.

  • Page 33: Display Installation

    Display installation...

  • Page 34: Installation Precautions

    Installation precautions Installation precautions Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. • Avoid reflections in the flat panel to reduce eye strain. • Place the display on a strong and stable table or desk. •...

  • Page 35: Single-Head Installation

    Single-head installation Single-head installation To attach the panel unit to the display stand: Take the display stand from the packaging and put it on a solid flat surface. Take the panel unit from the packaging and hold it in portrait position.

  • Page 36: Dual-Head Installation

    Dual-head installation Dual-head installation To attach the panel units to the dual-head stand: Take the stand from the packaging and put it on a solid flat surface. Figure 13: Dual-head stand Unpack the panels. Slide the display brackets on the stand arms in the correct position. The correct position is indicated on a label on the rear of the panels.
  • Page 37 Dual-head installation Display bracket position (multi-head): Portrait orientation: 46mm Landscape orientation: 100mm Figure 14: Example of label with position for brackets 130 120 110 100 90 Figure 15: Shift brackets according to label indication Take one of the panels and hold it in the desired position (portrait or landscape).
  • Page 38 Dual-head installation Hook the top gaps in the rear of the panel over the top anchors of the bracket (figure 16 below). Push the bottom of the panel firmly towards the stand so that the bottom anchors clip in the bottom gaps (figure 16 below). Figure 16: Repeat steps 4.

  • Page 39: Vesa-Mount Installation

    Vesa-mount installation Vesa-mount installation Important: • Use an arm that is approved by VESA (according to the VESA 100 mm standard). • Use an arm that can support a weight of at least 10 kg (22.05 lbs). To attach the panel unit to an arm stand: Unscrew the 4 screws (M4 x 8 mm) from the rear of the display panel.

  • Page 40: Adjust Panel Orientation

    Adjust panel orientation Adjust panel orientation To adjust the panel orientation: Before turning the display panel, lift it in its heighest position. If not, the corner of the panel might hit the foot during the rotation. To change from portrait to landscape, turn the panel counterclockwise.

  • Page 41: Connecting The Signal Cables

    Connecting the signal cables Connecting the signal cables To connect the signal cables to the display: Make sure the computer is turned off. To get access to the connectors, remove the connector compartment cover (1). To remove the cover, gently pull the bottom side of the cover upward or firmly press down the 2 clips at the top side (positions marked in the plastic).
  • Page 42 Connecting the signal cables Connect signal cables: Figure 21: Signal cable connections • Connect one end of the DVI cable to the DVI input of the display (4). Connect the other end of the DVI cable to the DVI connector of the display controller board.
  • Page 43 Connecting the signal cables Figure 22: External DC power supply...

  • Page 44: Cable Routing

    Cable routing Cable routing To route the cables: Figure 23: Display rear view Bind the cables in the connector compartment together with the cable tie inside the connector compartment. Route the cables alongside the neck and in the cable ducts in the tilt &...
  • Page 45 Cable routing To attach the arm covers, first slide the covers horizontally over the arms and then push them firmly against the arms so that the covers’ plastic clips hook in the grooves in the metal arms. Figure 24: Attach arm covers Close the cable duct covers.
  • Page 46 Cable routing Figure 25: Installation complete...

  • Page 47: Cleaning Instructions

    Cleaning instructions Cleaning instructions Precautions Precautions • Take care not to damage or scratch the glass or LCD panel. Be careful with rings or other jewellery that can touch the glass. • Do not apply pressure on the glass or LCD panel. •...

  • Page 48: Cabinet

    Cleaning instructions • Detergents with abrasives • Steel wool • Sponge with abrasives • Steel blades • Cloth with steel thread Cabinet Proceed as follows: • Clean the cabinet using a soft cotton cloth, lightly moistened with a recognized cleaning product for medical equipment. •...

  • Page 49: Display Controller Software Installation

    Display controller software installation...

  • Page 50: Installing Drivers And Software

    Installing drivers and software Installing drivers and software This chapter will guide you through the installation of the drivers, software and documentation associated with your B Display ARCO ORONIS System or B Display(s). ARCO ORONIS Driver and software installation prerequisites Note: To install or remove the drivers, software, or documentation you must be logged on as a user with administrator privileges.
  • Page 51 System Installation CD-ROM and double click on the file, Setup.exe. Click Next. Click Yes to accept the terms of the Barco and ATI license agreements. The Barco setup wizard will continue with the installation only if you accept the terms of both license...
  • Page 52 Coronis color displays. For more information about Color, Palette and Drawing modes please refer to the Barco Control Panel section of the Barco on-line User Manual. If you choose the Express option, you can modify the above driver settings through the Barco tab of the advanced options of the Windows Display Control Panel.

  • Page 53: Reinstalling Drivers

    Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to attach them to the desktop correctly please refer to the section, Setting...
  • Page 54 Insert the B Display System Installation CD-ROM into ARCO ORONIS your CD/DVD drive. When the Barco Product Installation Wizard starts click “Cancel”. Click the Start button in the task bar. Click Run. Click Browse and browse to the root directory of the B...
  • Page 55 Installing drivers and software browse to the root directory of the location where you saved the contents of your B Display System ARCO ORONIS Installation CD-ROM. Click on the file, Setup.exe, and click Open. In the Open address window, place your cursor at the end of the line of text that appears and add the following text after Setup.exe, a space and -silent.
  • Page 56 ORONIS into your CD drive after the operating system has started. If your CD drive’s auto-run is not enabled or the Barco Product Installation Wizard does not start automatically, you can run the Barco Product Installation Wizard manually by following these steps: Click the Start button in the task bar.
  • Page 57 Barco Monitor Plug and Play Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to...
  • Page 58 55 of this manual. Uninstalling the drivers and software To uninstall the Barco drivers, software or documentation for your Barco Coronis Display Systems, please use the Windows Add/Remove Programs utility. This can be found in the Windows Control Panel.
  • Page 59 Installing drivers and software Click Run. Click Browse and browse to the root directory of the B Display ARCO ORONIS System Installation CD-ROM. Click on the file, Setup.exe, and click Open. Browse to the root directory of the location where you saved the contents of your B Display System ARCO...
  • Page 60 Installing drivers and software (This page intentionally left blank.)

  • Page 61: Where To Get More Information

    Where to get more information...
  • Page 62 The online user guide is installed on the system PC during the system driver installation. To open the online user guide, select Start>Program Files>Barco>Documentation>Nio online user guide from the Windows Start menu. The online user guide uses Java scripts to create the html pages. In Windows XP, SP2, it is possible that Internet Explorer blocks them for security reasons.
  • Page 63 Where to get more information...
  • Page 64 Where to get more information (This page intentionally left blank.)

  • Page 65: Troubleshooting

    Troubleshooting...

  • Page 66: General Tips

    Display System you must be logged in using an account ORONIS with administrator privileges. If you are using a color display in conjunction with your Barco grayscale display(s) or you have you should configure your desktop before setting the resolution of the your Barco grayscale display(s).
  • Page 67 True Color (32 bits per pixel). Even though this palette mode supports 32 bit True Color, Barco recommends that when using a using a color display in conjunction with your high-resolution grayscale display(s) that you still set the color display as the primary monitor of the Windows desktop.
  • Page 68 General tips If you installed your B Display System drivers in ARCO ORONIS SingleView mode (default for Windows 2000) there will be one rectangle for the virtual display representing the two heads controlled by each Coronis display controller. If you installed your B Display System drivers in ARCO ORONIS...
  • Page 69 General tips To set the resolution of the second display attached to the BarcoMed display controller you are working with, go back to the “Settings” tab of the “Display Properties Control Panel”. If necessary attach the second display you detached in step 2 above, by right clicking on the rectangle that represents it and selecting Attached.
  • Page 70 General tips (This page intentionally left blank.)

  • Page 71: Warranty Statement

    Warranty Statement...

  • Page 72: Warranty Statement

    Customer on how to proceed. Customer Support may ask to return the faulty equipment or faulty subassemblies to the Barco n.v. Customer Support Center (or an authorized service center) for repair activities. The Customer shall ask for a RMA or RAN number to a Barco n.v. Customer Support Center (or an authorized service center).
  • Page 73 If there is an indication that the equipment was used - even temporary - outside its specifications, Barco n.v. is entitled not to perform warranty repairs and terminate the warranty agreement. Any actions that have been taken by Barco n.v. in this respect, may be invoiced to the Customer at normal pricing.
  • Page 74 Warranty Statement...
  • Page 75 B410578-00 January 2007...

This manual is also suitable for:

Mdcg 3120Mdcg 3121Mdcg 5121
