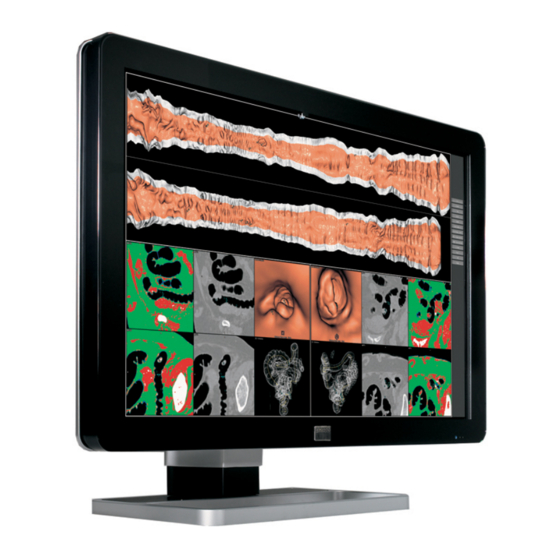

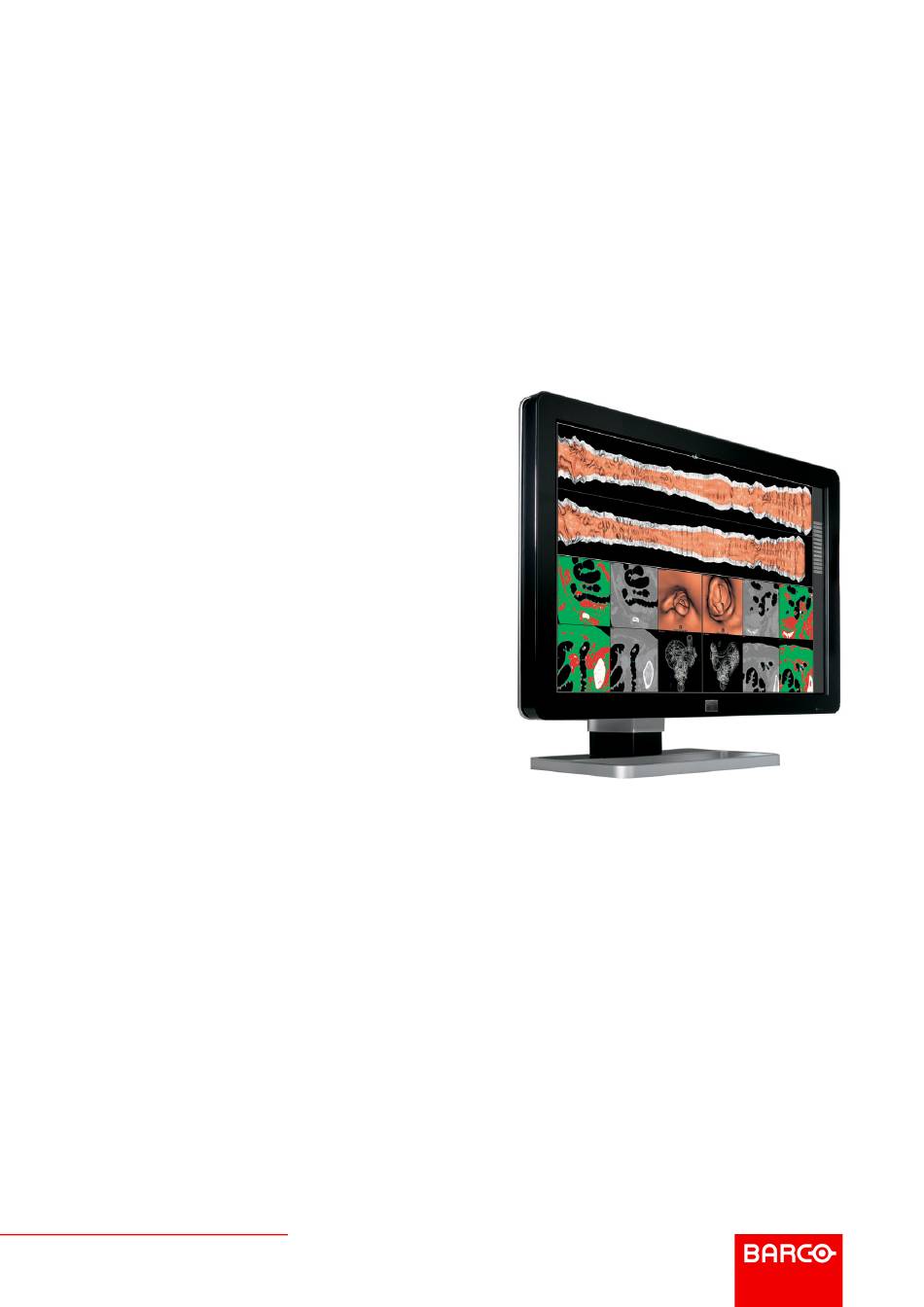

- Page 1 Coronis Fusion 4MP / 6MP User Guide MDCC-4330, MDCC-6430 ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
Table of contents 1 Welcome! ..........................................5 What's in the box....................................6 Product overview....................................6 1.2.1 Front ......................................6 1.2.2 Back......................................7 2 Display installation ......................................9 Removing the covers ..................................10 Unlocking the height mechanism............................. 11 Adjusting the display position..............................11 Connecting the signal cables ..............................12 Connecting the power cable ...............................13 Routing the cables....................................13 Re-attaching the covers ................................14... - Page 4 4.17 Embedded QA ....................................30 4.17.1 About Embedded QA..............................30 4.17.2 DICOM status report ..............................31 4.17.3 DICOM compliance check ............................31 4.17.4 DICOM calibration .................................31 4.17.5 Reset DICOM calibration............................32 4.17.6 DICOM error threshold ...............................32 4.18 Image scaling ......................................32 4.19 Image source selection modes ..............................33 4.20 Video input signals ...................................33 4.21 Grayscale conversion modes..............................34 4.22 EDID format ......................................34...
-
Page 5: Welcome
Welcome! K5902108-04 Coronis Fusion 4MP / 6MP... -
Page 6: What's In The Box
• an external power supply If you ordered a Barco display controller, it's also in the box together with its accessories. A dedicated user guide is available on the documentation CD. Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage. -
Page 7: Back
Welcome! Menu key Standby key Power LEDs Ambient light sensor The key icons are displayed above the keys, adapted to the function that it is used for (menu dependent). See “Navigating through the OSD menus”, page 21. 1.2.2 Back Overview Image 1-2 Connector compartment cover +24 VDC power input... - Page 8 Welcome! K5902108-04 Coronis Fusion 4MP / 6MP...
-
Page 9: Display Installation
Prior to installing your Coronis Fusion 4MP / 6MP and connecting all necessary cables, make sure to have a suitable display controller physically installed in your computer. If you are using a Barco display controller, please consult the user guide delivered with it to do this. -
Page 10: Removing The Covers
Display installation 2.1 Removing the covers To remove the connector compartment cover Gently lift the clips at one of the handles of the connector compartment cover to release that side of the cover. Do the same at the other side of the cover. Remove the cover. -
Page 11: Unlocking The Height Mechanism
Display installation 2.2 Unlocking the height mechanism About In the factory, the height-positioning system in the display stand is locked with a red hook to prevent damage during transportation. You’ll have to remove this hook before adjusting your display height position. To remove the hook: Position the display with its rear side facing you. -
Page 12: Connecting The Signal Cables
Please connect all your displays to their workstation with a USB cable to ensure undisturbed communication and to make optimal use of MediCal QAWeb and the Barco intuitive workflow tools. To connect the signal cables to the display: Connect one head of the display controller to the DVI 1 or DisplayPort 1 connector with one of the supplied DVI or DisplayPort cables. -
Page 13: Connecting The Power Cable
Display installation Connect a PC USB downstream connector to the display’s USB upstream connector by means of the supplied USB 2.0 cable. 2.5 Connecting the power cable To connect the power cable to the display: Connect the supplied external DC power supply to the +24 VDC power input of your Coronis Fusion 4MP / 6MP display. -
Page 14: Re-Attaching The Covers
Display installation For better strain-relief and shielding of the cables, fix the cables with the cable straps at the inside of the connector compartment. 2.7 Re-attaching the covers To re-attach the display stand cover Slide the display stand cover downward. You’ll hear a “click” sound of the cover’s clips when the display stand cover is in position. -
Page 15: Vesa-Mount Installation
Display installation 2.8 VESA-mount installation WARNING: Use an arm that is approved by VESA (according to the VESA 100 mm standard). Use an arm that can support the weight of the display. Refer to the technical specifications of this display for the applicable weight. CAUTION: You should mount the panel in landscape position. -
Page 16: First Time Starting Up
Display installation Lift the plastic frame to uncover the fixation screws. Unscrew the four fixation screws fixing the panel to the stand. Attach the panel firmly to the arm using 4 screws M4 x 10 mm. WARNING: Never move a display attached to an arm by pulling or pushing the display itself. Instead, make sure that the arm is equipped with a VESA approved handle and use this to move the display. - Page 17 Your Coronis Fusion 4MP / 6MP display will be running in a basic video mode at a default refresh rate when first time starting up. If you are using a Barco display controller, please consult the dedicated user guide available on the system CD to install the drivers, software and documentation.
- Page 18 Display installation K5902108-04 Coronis Fusion 4MP / 6MP...
-
Page 19: Daily Operation
Daily operation K5902108-04 Coronis Fusion 4MP / 6MP... -
Page 20: Recommendations For Daily Operation
LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. -
Page 21: Standby Switching
Daily operation illuminated and are now available for further actions. However, if no further actions are taken within the following 5 seconds, the keys will dim again. The key auto-dim function can be disabled in the OSD menus. Please refer to “Key indicator lights”, page 25 for detailed instructions on how to do this. - Page 22 Daily operation • Exit all OSD menus at once by touching the standby key for approximately 2 seconds. The key icons are displayed above the keys, adapted to the function that it is used for (menu dependent). Overview key icons Left, Right Menu Enter...
-
Page 23: Advanced Operation
Advanced operation K5902108-04 Coronis Fusion 4MP / 6MP... -
Page 24: Osd Menu Language
Advanced operation 4.1 OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages available for the OSD menu of your Coronis Fusion 4MP / 6MP. To change the language of the OSD menu: Bring up the OSD main menu. -
Page 25: Key Indicator Lights
By default, DPMS mode is enabled on your display, but it also needs to be activated on your workstation. To do this, go to the “Power options properties” window of your workstation. Barco recommends setting DPMS activation after 20 minutes of non-usage. When DPMS mode is enabled on your display, an additional OSD power saving function becomes available: hibernate. -
Page 26: Hibernate
Advanced operation 4.7 Hibernate About hibernate When hibernate is enabled, not only the backlight will be switched off, but also other functionalities will be disabled to further reduce power consumption to a minimum. This happens after a specific period of time which can be manually adjusted. -
Page 27: Color Temperature
Advanced operation • User: When selecting the User color temperature setting, you will be able to manually define the X and Y coordinates or the display color temperature in separate submenus. • Native White: The native, unmodified color temperature of the LCD panel. To select a color preset: Bring up the OSD main menu. -
Page 28: Viewing Modes
DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. -
Page 29: Ambient Light Compensation (Alc)
Advanced operation Enter the Display Function submenu. Select one of the available display functions and confirm. 4.14 Ambient Light Compensation (ALC) About ALC Ambient Light Compensation (ALC) can only be enabled on your display when the DICOM display function is selected. Therefore, please refer to “Display functions”, page 28 to correctly set the display function. -
Page 30: Continuous Alc
Embedded QA is not a replacement for the Barco MediCal QAWeb solution. Although Embedded QA is a reliable option to perform a simple calibration or compliance test, Barco still highly recommends MediCal QAWeb as the solution of choice for calibration and QA. Medical QAWeb brings... -
Page 31: Dicom Status Report
Advanced operation 4.17.2 DICOM status report About DICOM status report Following information is available: DICOM Compliance Status (status since last compliance check): • Compliance status: Shows if the current DICOM curve is compliant or not. • Maximum error: Shows the maximum error of the current DICOM curve. This is the deviation compared to a perfect DICOM. -
Page 32: Reset Dicom Calibration
Advanced operation To start DICOM calibration: Bring up the OSD main menu. Navigate to the Configuration > Calibration > Embedded QA menu. Select DICOM calibration to start the calibration. Warning: Pressing a key during calibration will abort the calibration, previous values will be restored. Note: After calibration, the compliance check will start automatically. -
Page 33: Image Source Selection Modes
Advanced operation 4.19 Image source selection modes About image source selection modes Your Coronis Fusion 4MP / 6MP automatically detects the number of video input signals connected, attaches them to the correct display side and applies the correct video settings to it (resolution, video encoding mode, refresh rate,...). -
Page 34: Grayscale Conversion Modes
Advanced operation In expert mode, Left and Right can only be configured when the Auto input selection feature is disabled. To manually configure the video input signal(s): Bring up the OSD main menu. Navigate to the Configuration > Image Sources menu. Enter one of the available submenus as desired. -
Page 35: Edid Timings
Advanced operation 4.23 EDID timings About EDID timings Following EDID timings are available for your Coronis Fusion 4MP / 6MP: • Resolution: Allows to manually modify the resolution of the image source video input signal. • Refresh rate: Allows to manually select the refresh rate of the image source video input signal depending on the maximum refresh rate of the display controller connected to your display. - Page 36 Advanced operation K5902108-04 Coronis Fusion 4MP / 6MP...
-
Page 37: Cleaning Your Display
Cleaning your display K5902108-04 Coronis Fusion 4MP / 6MP... -
Page 38: Cleaning Instructions
Cleaning your display 5.1 Cleaning instructions To clean the display Clean the display using a sponge, cleaning cloth or soft tissue, lightly moistened with a recognized cleaning product for medical equipment. Read and follow all label instructions on the cleaning product. In case of doubt about a certain cleaning product, use plain water. -
Page 39: Repackaging Instructions
Repackaging instructions K5902108-04 Coronis Fusion 4MP / 6MP... -
Page 40: Repacking Your Display
Repackaging instructions 6.1 Repacking your display Overview of the packaging Image 6-1 User guide, system disc and documentation disc Bottom buffer Power supply Coronis Fusion 4MP / 6MP display Top buffer Cables (video, USB, power) K5902108-04 Coronis Fusion 4MP / 6MP... - Page 41 Repackaging instructions Display controller box (optional) Touch pad box (optional) How to repack your display Place the empty box on a stable surface. Slide the system disc, documentation disc and user guide in the dedicated bag attached at the inside of the box.
- Page 42 Repackaging instructions K5902108-04 Coronis Fusion 4MP / 6MP...
-
Page 43: Important Information
Important information K5902108-04 Coronis Fusion 4MP / 6MP... -
Page 44: Safety Information
Important information 7.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover. -
Page 45: Environmental Information
Important information • Mains lead protection (U.S.: Power cord): Power cords should be routed so that they are not likely to be walked upon or pinched by items placed upon or against them, paying particular attention to cords at plugs and receptacles. - Page 46 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
-
Page 47: Regulatory Compliance Information
The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules. -
Page 48: Emc Notice
Important information turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the device and receiver. •... - Page 49 Important information Interference can be determined by turning the equipment off and on. If this equipment does cause harmful interference to, or suffer from harmful interference of, surrounding equipment, the user is encouraged to try to correct the interference by one or more of the following measures: •...
- Page 50 Important information Electromagnetic Immunity test Compliance level IEC 60601 test levels environment – guidance Conducted RF 3 Vrms (6 Vrms in ISM 3 Vrms (6 Vrms in ISM Portable and mobile RF bands) bands) communications IEC 61000-4-6 equipment should be used 150 kHz to 80 MHz no closer to any part of the Radiated RF...
-
Page 51: Explanation Of Symbols
Important information Recommended separation distance The Coronis Fusion 4MP / 6MP is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer of the user of the Coronis Fusion 4MP / 6MP can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Coronis Fusion 4MP / 6MP as recommended below, according to the maximum output power of the communications equipment. - Page 52 Important information Indicates the device is approved according to the KC regulations Indicates the device is approved according to the BSMI regulations Indicates the device is approved according to the PSE regulations Indicates the device is approved according to the EAC regulations Caution: Federal law (United Stated of America) restricts this device to sale by or on the order of a licensed healthcare practitioner.
-
Page 53: Legal Disclaimer
Important information Indicates Direct Current (DC) Indicates Alternating Current (AC) Stand-by Equipotentiality Protective earth (ground) Symbols on the box On the box of the device, you may find the following symbols (nonrestrictive list): Indicates a medical device that can be broken or damaged if not handled carefully when being stored. -
Page 54: Technical Specifications
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. - Page 55 Important information Contrast ratio (panel typical) 1500:1 Response time (Tr + Tf) 18 ms (typical) Housing color Black/Silver Video input signals DVI-D Dual Link (2x), DisplayPort (2x) USB ports 1x USB 2.0 upstream (endpoint) 3x USB 2.0 downstream Power requirements External power supply (100-240 Vac, 50-60 Hz) Power consumption 100 W (nominal) @ calibrated luminance of 600 cd/m²...
- Page 56 8% to 80% (non-condensing) Storage humidity 5% to 85% (non-condensing) Operating pressure 70 kPa minimum Storage pressure 50 to 106 kPa MDCC-6430 Screen technology IPS-TFT color LCD Active screen size 772 mm (30.4") (diagonal) Active screen size (H x V) 654 x 409 mm (25.8 x 16.1")
- Page 57 Important information Ambient Light Yes, reading room selection Compensation (ALC) Ambient light sensor Backlight Output Yes (2x) Stabilization (BLOS) Front sensor I-Guard Maximum luminance (panel 1050 cd/m² typical) DICOM calibrated luminance 600 cd/m² Contrast ratio (panel typical) 1500:1 Response time (Tr + Tf) 18 ms (typical) Housing color...
-
Page 58: Open Source License Information
Open Source Software license. A list of the Open Source Software components used is available in the applicable EULA, through the “My Barco” section of the Barco website or through other (online) means. K5902108-04... - Page 59 Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever.
- Page 60 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5902108-04 | 06/09/2018 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered address: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
