rBOX111-FL Quick Installation Guide
V.

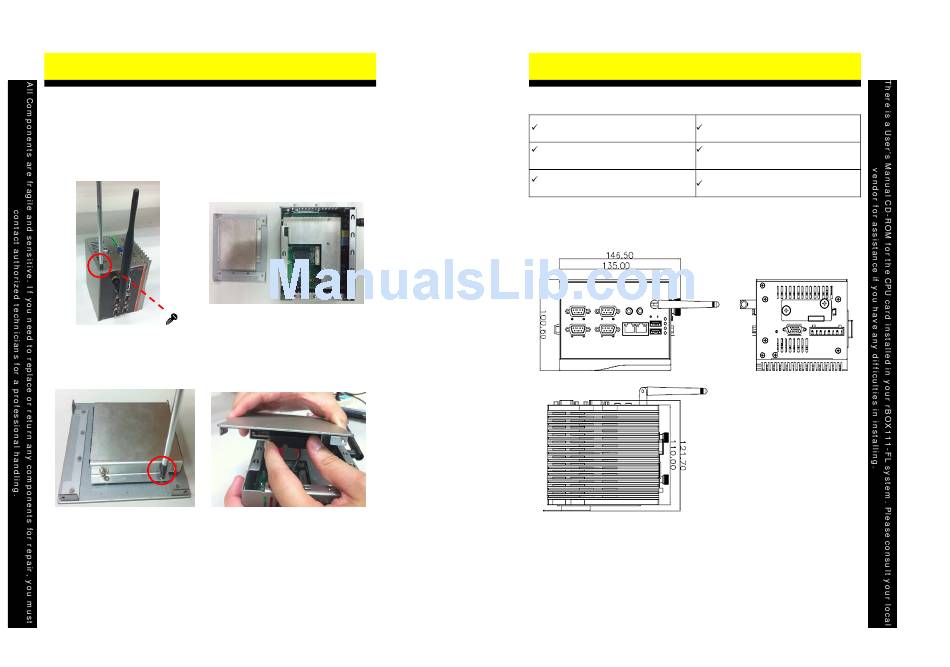

Installing the Hard Disk Drive
Step 1 Turn off the system.
Step 2 Loosen these screws, and remove the cover from the system.
Step 3 Loosen these screws and remove the Hard Disk Drive fixing
bracket.
Step 4 Insert the Hard Disk Drive into the socket until it is firmly seated.
Put the Hard Disk Drive fixing bracket back to the system, and
fasten screws tight close the Hard Disk Drive fixing bracket.
Step 5 Put the cover back to the system, and fasten screws tight close the
chassis.
4
©
Copyright 2012 Axiomtek Co., Ltd.
Version A1 November 2012
Printed in Taiwan
9416M111010E
rBOX111-FL Quick Installation Guide
I.
Packing List
rBOX111-FL System Unit x 1
rBOX111-FL Quick Installation
Guide x 1
Screws
II.
Dimensions
©
Copyright 2012 Axiomtek Co., Ltd.
Version A1 November 2012
Printed in Taiwan
9416M111010E
Power terminal block
CD x 1 (for Driver and
User's Manual)
Din-rail Kit x1
1
