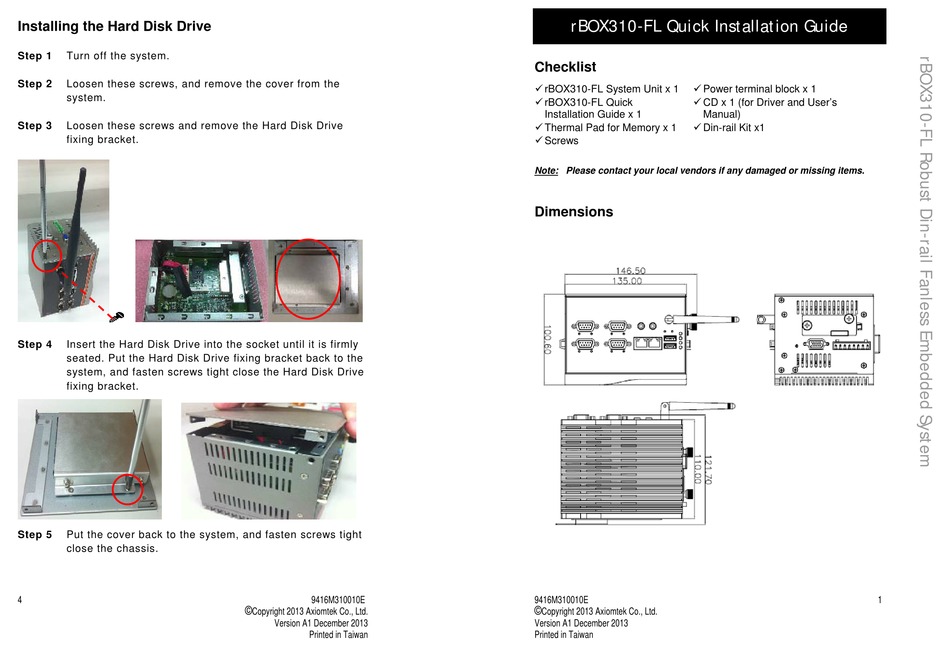

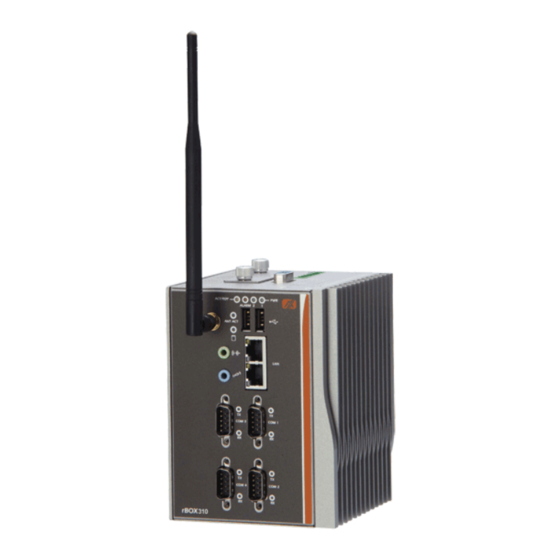

AXIOMTEK rBOX310-FL Quick Installation Manual

Installing the Hard Disk Drive

Step 1 Turn off the system.
Step 2 Loosen these screws, and remove the cover from the
system.
Step 3 Loosen these screws and remove the Hard Disk Drive
fixing bracket.
Step 4 Insert the Hard Disk Drive into the socket until it is firmly
seated. Put the Hard Disk Drive fixing bracket back to the
system, and fasten screws tight close the Hard Disk Drive
fixing bracket.
Step 5 Put the cover back to the system, and fasten screws tight
close the chassis.
4 9416M310010E
©
Copyright 2013 Axiomtek Co., Ltd.
Version A1 December 2013
Printed in Taiwan
rBOX310-FL Quick Installation Guide

Checklist

 rBOX310-FL System Unit x 1  Power terminal block x 1
 rBOX310-FL Quick  CD x 1 (for Driver and User's
Installation Guide x 1 Manual)
 Thermal Pad for Memory x 1  Din-rail Kit x1
 Screws
Note: Please contact your local vendors if any damaged or missing items.

Dimensions

9416M310010E
©
Copyright 2013 Axiomtek Co., Ltd.
Version A1 December 2013
Printed in Taiwan
1
