AXIOMTEK rBOX204-FL Quick Installation Manual

rBOX204-FL Quick Installation Guide

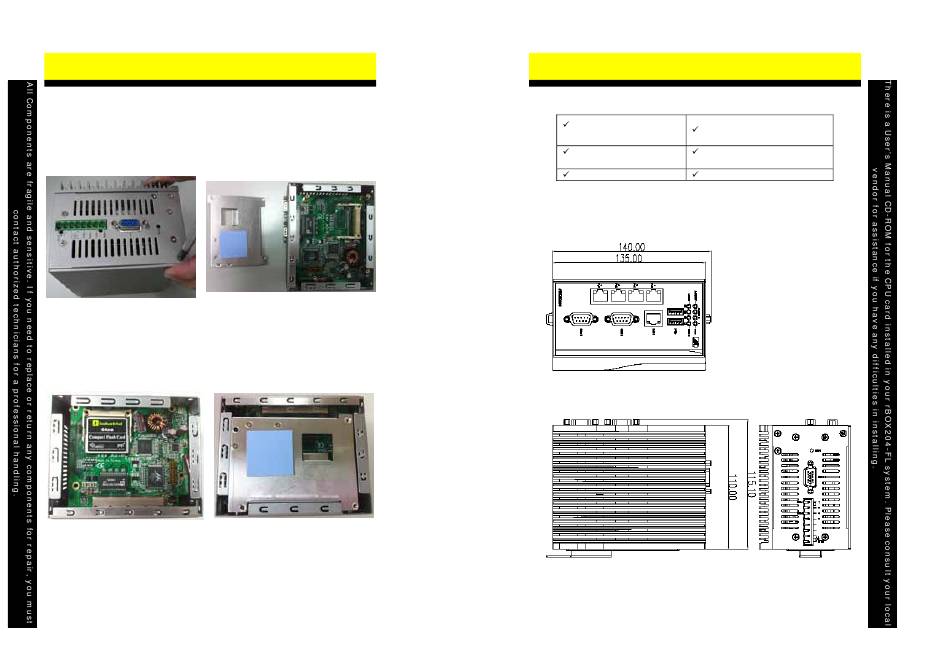

V. Installing the CompactFlash™ Card
Step 1 Turn off the system.
Step 2 Loosen these screws, and remove the cover from the system.
Step 3 Loosen these screws and remove the Thermal & CompactFlash
fixing bracket from the system.
TM
Step 4 Insert the CompactFlash card into the socket until it is firmly
seated. Put the Thermal & CompactFlash
the system, and fasten screws tight close the Thermal &
TM
CompactFlash fixing bracket.
Step 5 Put the cover back to the system, and fasten screws tight close the
chassis.
4
TM
TM
fixing bracket back to
©
Copyright 2011 AXIOMTEK Co., Ltd.
Version A1 March 2011
Printed in Taiwan
9416M204010E
rBOX204-FL Quick Installation Guide
I. Packing List
rBOX204-FL System
Power terminal block
Unit x 1
rBOX204-FL Quick CD x 1 (for Driver and User's
Installation Guide x 1 Manual)
Screws Din-rail Kit x1
II. Dimensions
©
Copyright 2011 AXIOMTEK Co., Ltd.
Version A1 July 2011
Printed in Taiwan
9416M204010E
1
