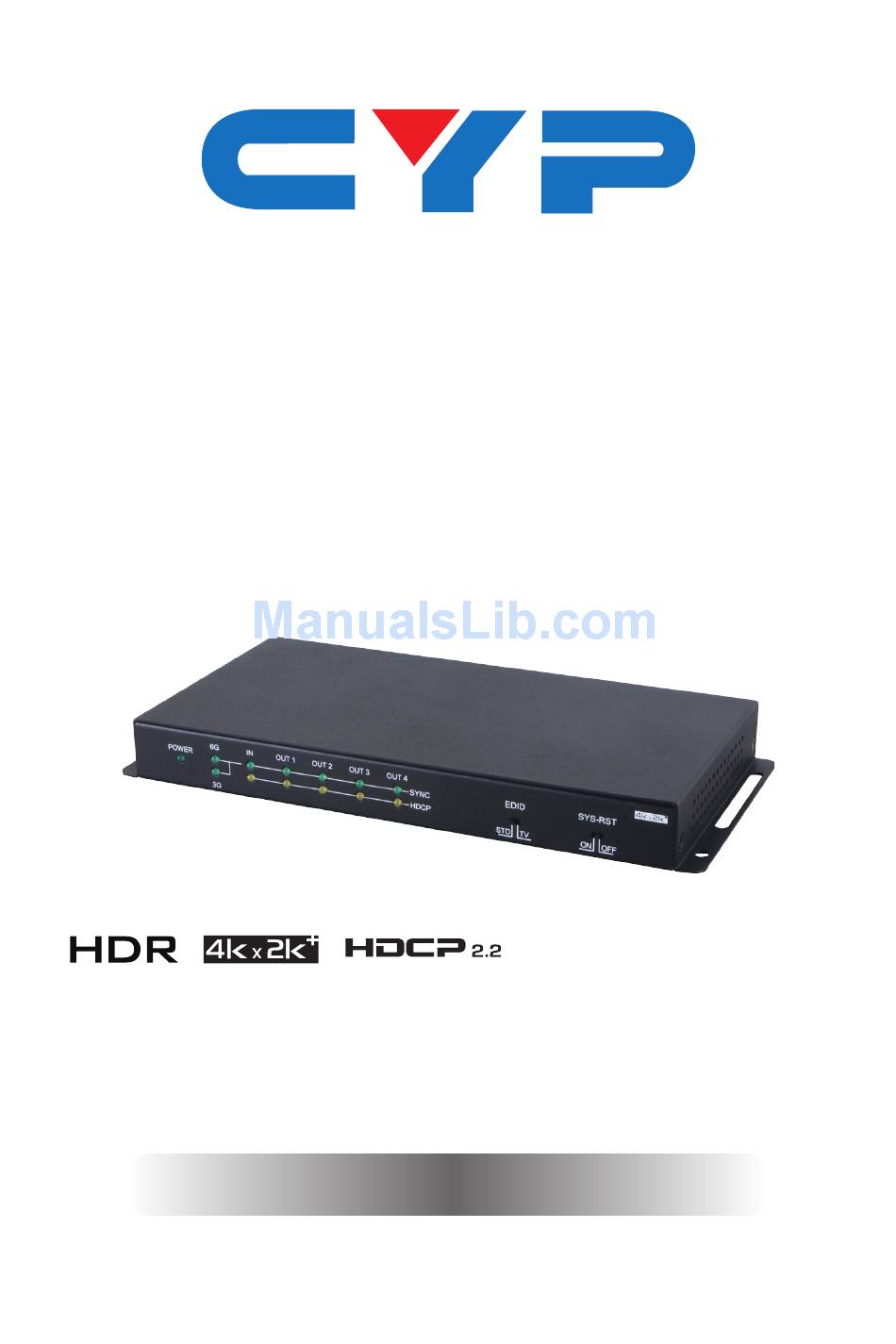

- Page 1 CPLUS-V4E 1 by 4 6G HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION The 1 by 4 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to 4 HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV444) resolution and is capable of provide high end of audio and video performance. -
Page 7: Features
5. FEATURES • 4Kx2K 6G supported, HDCP 2.2, HDMI2.0 and DVI 1.0 compliant. • System Reset function supported (CEC active source command) • Displays any of 1 Ultra High-Definition sources on 4 UHDTV displays simultaneously • 3D pass-Through • Supports UHDTV resolutions up to 4Kx2K (3840x2160@24/25/30/50/60 &... -
Page 8: Operation Controls And Functions

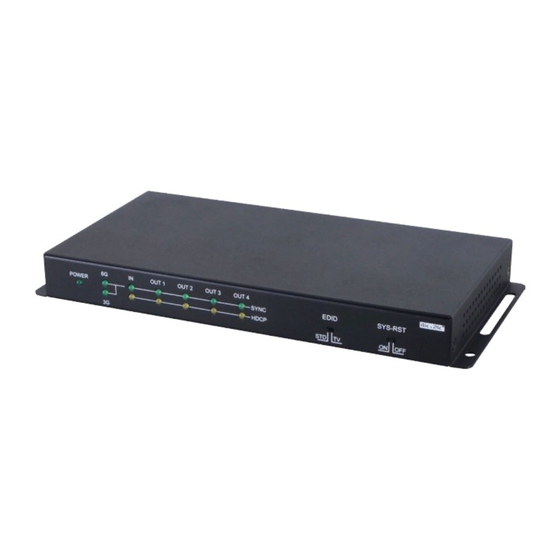

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUT 1 OUT 2 OUT 3 OUT 4 POWER EDID SYS-RST SYNC HDCP POWER: This LED will illuminate when the device is connected to an active power supply. 6G/3G: When input source bandwidth is 6G, the 6G LED will illuminate, when input source detect as 3G, the 3G LED will illuminate. -
Page 9: Rear Panel
guarantee output display the corresponding image, for example, at the display user use may switch to different HDMI input or other sources connected to display and this reset function will force the display to switch back to the HDMI input1 which TV shall support CEC.) 6.2 Rear Panel OUTPUT... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply OUTPUT INPUT SERVICE DC 5V Simultaneous HDMI Outputs Projector UHDTV UHDTV Projector... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600 MHz/18 Gbps Input Ports 1×HDMI, 1×USB (Service only) Output Ports 4×HDMI HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV444) HDMI Cable I/O 15 m@1080p/8-bit, 10 m@1080p/12-bit, Distance 3 m@4K2K/60_YUV444 5m@4K2K/30 Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection... -
Page 12: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60/72/75/85 √ √ 720×400@85 √ √ 800×600@56/60/72/75/85 √ √ 1024×768@60/70/75/85 √ √ 1152×864@75 √ √ 1280×720@60 √ √ 1280×768@60/75/85 √ √ 1280×800@60 √ √ 1280×960@60 √ √ 1280×1024@60 √ √ 1360×768@60 √ √ 1366×768@60 √... -
Page 13: Acronyms
Resolution Input Output 1920×1080p@23.97/24/25/29.97/30/50/59.94/60 √ √ 3840×2160@24/25/30/50/60 √ √ 4096×2160@24/25/30/50/60 √ √ 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPLUSV4E...
