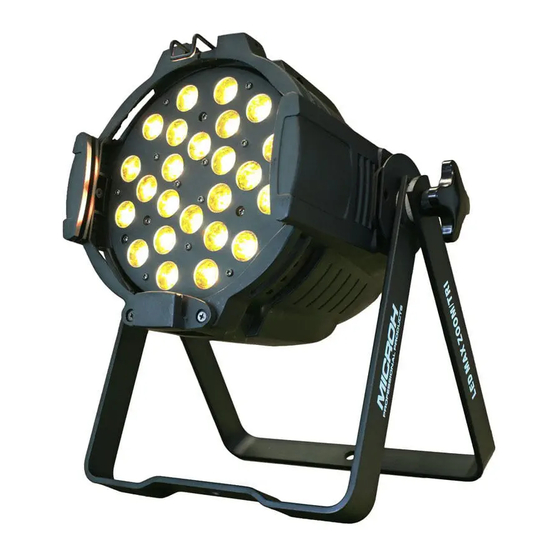

Please install and operate the fixture according to instructions. Meanwhile, please keep this manual for future reference. The MICROH LED MAX ZOOM TRI wash fixture is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. -
Page 3: Operation Instructions
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. - Page 4 - This unit has a total of 7 operating modes: Master/Slave, Auto, DMX, Sound Active, Colour Fade, Colour Chase and Static Colour. MASTER/SLAVE MODE - By connecting the 3 pin DMX, you can daisy chain up to 30 units on master/ slave mode. Daisy chain the fixtures together by plugging from the DMX output of the first fixture into the DMX input of the second fixture, and so on…...
-
Page 5: Mounting And Installation
Floor Mounting: Set the 2 brackets at your desired angle and aim your fixture accordingly. Please see diagram below. Clamp Mounting: The MICROH LED MAX ZOOM TRI provides a unique mounting bracket assembly that integrates 2 brackets to be used to mount on a truss or the floor. When mounting this fixture to truss, be sure to secure an appropriately rated clamp to the included bracket fitted through the center hole. -
Page 6: Dmx-512 Control Connections
3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LED MAX ZOOM TRI. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below. -
Page 7: Photometric Data
6. PHOTOMETRIC DATA 6 ... - Page 8 7 ...
-
Page 9: Dmx Channels
- Gel Frame Included - Built-in microphone - 4-Button LED Digital Display (MODE, SETUP, UP, DOWN) 9. TECHNICAL SPECIFICATIONS MODEL: LED MAX ZOOM TRI LAMP: 24 x 3W Tri LEDs OPERATING TEMPERATURE: -25°C to 45°C VOLTAGE: 120VAC 60Hz 80W FUSE: 2A 250V GMA MAX: 80W DIMENSIONS: 10.63”... -
Page 10: Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this manual can be improved please contact info@microhpro.com.
