Summary of Contents for Microh Monsoon FX GB

  • Page 3: Introduction And Unpacking

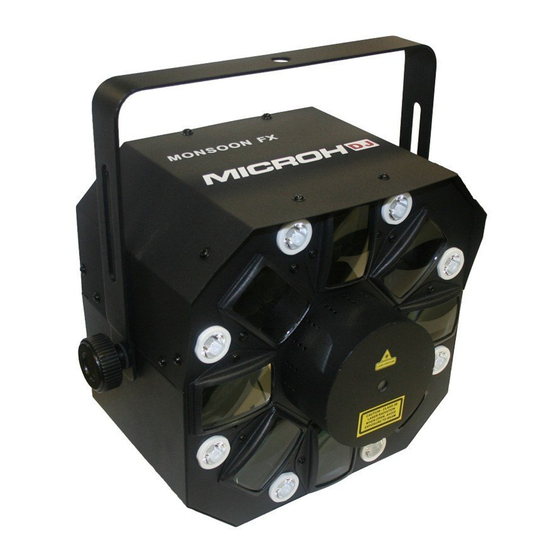

    The MICROH MONSOON FX GB 3 in 1 effect fixture features a two colour laser, strobe and a moonflower effect. Please carefully unpack it when you receive the fixture and check if it was damaged during the transportation.
  • Page 4: Mounting And Installation

    During initial start-up, some smoke or smell may arise. This is a normal process, and does not necessarily mean that the device is defective. It should decrease gradually. Please do not project the beam onto combustible substances. Fixtures cannot be installed on or near combustible substances. Keep more than 50cm distance from wall for proper ventilation and air flow.
  • Page 5 As an added safety measure, be sure to attach at least one properly rated safety cable to the fixture. Regardless of the rigging option you choose for your MICROH MONSOON FX GB, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
  • Page 6 5 pin DMX connector. Plug in the provided 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH MONSOON GB. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below.
  • Page 7 5. SETUP MENU AUT 0 LASER+RGBWA+8 WHT AUT 1 LASER+RGBWA AUT 2 LASER+8 WHT SPEED S 1 - S100 AUTO AUT 3 RGBWA+8 WHT SLOW/FAST S 0 ENTER AUT 4 RGBWA DEFAULT AUT 5 LASER AUT 6 8 WHT SOU 0 LASER+RGBWA+8 WHT SOU 1 LASER+RGBWA...
  • Page 8 000·009 Blackout 010-014 015·019 Green 020-024 Blue 025-029 Amber 030·034 White 035·039 White+red 040-044 Red+green 045·049 Green+blue 050·054 Blue+amber 055·059 Amber+white 060-064 White+green 065-069 Green+amber 070·074 Amber+red 075·079 Red+blue 080-084 Blue+white LED OPERATION 085-089 Red+green+blue 090-094 Red+green+amber 095-099 Red+green+white 100-104 Red+amber+blue 105-109 Red+white+blue...
  • Page 9: Key Features

    000-009 Black out 010-049 Blue on LASER 050-089 Green on 090-129 Blue & Green on 130-169 Green on & Blue strobe 000 - 004 NO FUNCTION LASER STROBE 005 - 254 Strobe(slow->fast)(max 30HZ) 255 - 255 Sound-activated strobe mode 000 - 004 STOP 005 - 127 ROTATE CLOCKWISE (SLOW-FAST)
  • Page 10 8. LAYOUT NAME LASER MOONFLOWER LEN STROBE LED HANGING BRACKET POWER INPUT POWER OUTPUT DMX INPUT DMX OUTPUT SAFTEY RING LED DISPLAY DMX INDICATOR SLAVE INDICATOR AUTO INDICATOR SOUND INDICATOR...
  • Page 11: Technical Specifications

    9. TECHNICAL SPECIFICATIONS DIMENSIONS and WEIGHT DIMENSION 9.34" x 12.25" x 12.2" / 237 x 311 x 310mm WEIGHT 9.8Lbs / 4.5Kgs POWER INPUT SWITCHED RANGE 120V 60Hz RATE FUSE LIGHT SOURCE TYPE CLASS 3B LASER DIODE / LED DIODE QTY. / COLOUR 1 BLUE - 1 GRN POWER RATING 130mW - 50Mw...
  • Page 12: Maintenance And Cleaning

    We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or solvents. There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine MICROH parts from your local dealer.
  • Page 13 DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this manual can be improved...
  • Page 14 Notes:...
  • Page 15 Notes:...
