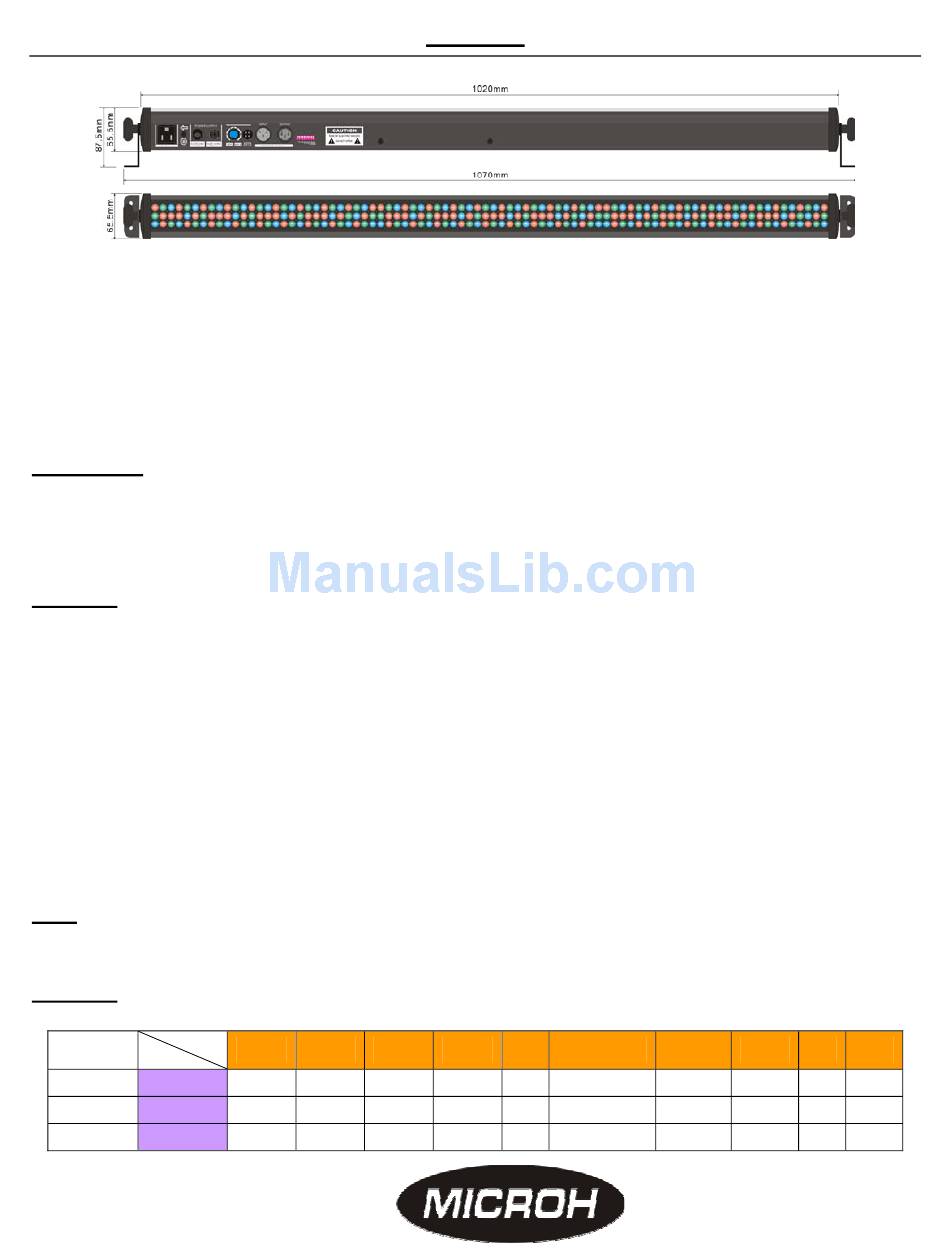

Thank you for purchasing the LEDBAR RGB colour mixing LED Par. This unit has great output and has been
designed for use in Nights Clubs, Stage Lighting and Up Lighting and much more. This unit is controlled via
DMX 512 allowing the user to control it with other existing DMX lights.

Connection

This unit is connected using standard XLR 3 pin cable. To connect the signal cable(XLR), plug one side into
" IN" socket in the back of light and other side into " OUT" signal connector in the DMX512 board, (signal input:
1=>Ground, 2=>data-, 3=>data+ ). Power supply for this unit is 120V – 220V switch able. This unit requires
50W (.42amp) power which allows the user to connect up to 30 units on one 15amp circuit.

Function

This unit has several operation modes, Stand Alone, Master Slave and DMX.
Stand Alone Mode: 7 colour change/7 colour strobe/7 colour Automatic changing /7 colour automatic fade in
and fade out / sound colour changing.
Master Slave Mode – All units will perform the same function. One unit is set as the master and others are
set as the slave and will perform all the functions of the master unit giving the units a pre programmed look.
The units must be connected to each other via XLR cables.
DMX 512 Mode: In this mode each unit will be set to a DMX value and controlled by using a DMX controller.

Note

This unit has been designed for Indoor use. Operating temperature: -20—45℃, humidity:0%-90%
Function
Stand Alone(Dip switch as below) ● means "on" status。◎ means "OFF"status
function
1
red
2
green
3
blue
LEDBAR
Operating Manual
№1
№2
№3
№4
№5
№6
№7
№8
№9 №10
