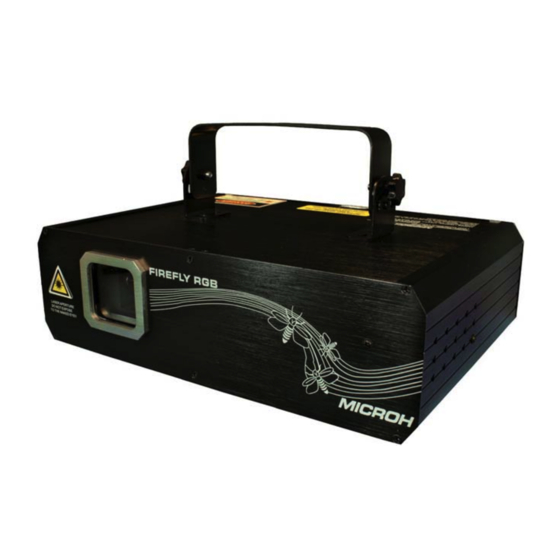

Meanwhile, please keep this manual for future reference. The MICROH FIREFLY RGB laser is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos. -
Page 3: Operation Instructions
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power cord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. -
Page 4: Mounting And Installation
ILDA (PC CONTROL) MODE To run the FIREFLY RGB in IDLA mode or (PC CONTROL MODE) simply connect your ILDA signal cable to the DB25 jack located on the rear of the unit, and the unit will automatically recognize. NOTE: when ILDA is connected, it supersedes all modes. - Page 5 Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. Regardless of the rigging option you choose for your MICROH FIREFLY RGB laser fixture, always be sure to secure your fixture with a safety cable.
-
Page 6: Dmx-512 Control Connections
3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH FIREFLY RGB. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below. -
Page 7: Dmx Channels
7. DMX CHANNELS Channel No DMX Address Content 0 - 49 Sound Active Control 50 - 99 Auto (Beam) Control mode Channel 1 100-149 Auto (Animation) 150 - 255 Manual No Function Channel 2 Color select 1 - 255 Color Change Pattern select 0 - 255 Patterns... -
Page 8: Key Features
(R300mw + G100mw + B300mw) - DMX, ILDA, Sound Active, Auto, Master/Slave Run Modes -12 DMX Channels 9. TECHNICAL SPECIFICATIONS MODEL: FIREFLY RGB LASER DIODE: DPSS, Red650nm, Green 532nm, Blue450nm 20-25 Kpps SCANNER: SCANNING ANGLE: ± 30° COOLING SYSTEM: Fan MAX RUN TIME: Approximately 4 Hours WARM-UP TIME: <... -
Page 9: Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this ...
