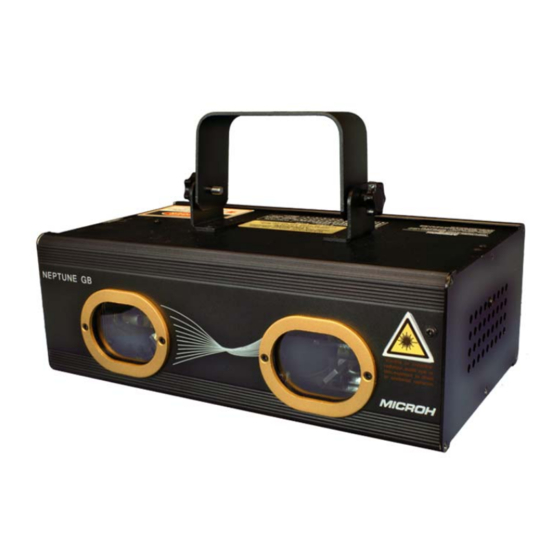

Meanwhile, please keep this manual for future reference. The MICROH NEPTUNE GB laser is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos. -
Page 3: Operation Instructions
During initial start-up, some smoke or smell may arise. This is a normal process, and does not necessarily mean that the device is defective. It should decrease gradually. Please do not project the beam onto combustible substances. Fixtures cannot be installed on or near combustible substances. Keep more than 50cm distance from wall for proper ventilation and air flow. -
Page 4: Mounting And Installation
ILDA (PC CONTROL) MODE To run the NEPTUNE GB in IDLA mode or (PC CONTROL MODE) simply connect your ILDA signal cable to the DB25 jack located on the rear of the unit, and the unit will automatically recognize. NOTE: when ILDA is connected, it supersedes all modes. -
Page 5: Dmx-512 Control Connections
3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH NEPTUNE GB. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below. -
Page 6: Dmx Channels
6. DMX CHANNELS Channel No DMX Address Content 0 - 69 No Function 70 - 139 Sound Active Control Control mode Channel 1 140 - 209 Auto 210 - 255 Manual 0 - 32 Static Pattern 33 - 48 Dynamic Geometric pattern Pattern Selection Channel 2 49 - 255... -
Page 7: Key Features
(Green 2 x 50mW [100mW total]+ Blue 400mw) - DMX, Sound Active, Auto, Master/Slave Run Modes -12 DMX Channels 8. TECHNICAL SPECIFICATIONS MODEL: NEPTUNE GB LASER DIODE: DPSS, Green 532nm, Blue450nm 1.8 High Precision Stepper Motor SCANNER: SCANNING ANGLE: ± 30°... -
Page 8: Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this ...
