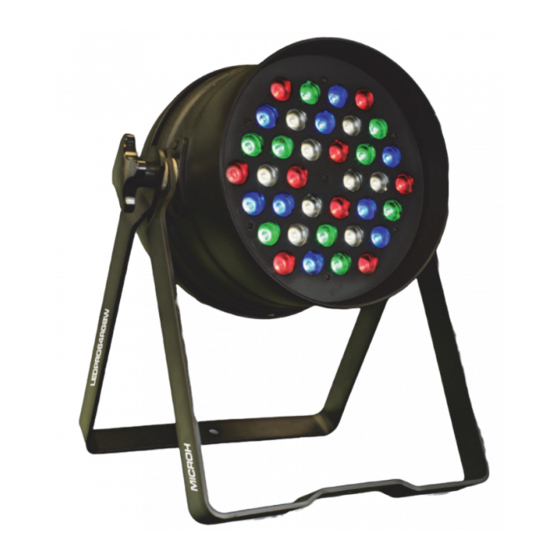

The MICROH LEDPRO64RGBW wash fixture uses 36 powerful 3W (9 Red, 9 Green, 9 Blue, 9 White) LED’s which feature high brightness and stability. Please carefully unpack it when you receive the fixture and check if it was damaged during the transportation. -
Page 3: Operation Instructions
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. - Page 4 - The fixture’s warranty will be voided if there are any malfunctions from not following the user manual or any illegal operation (shock short circuit, electronic shock, lamp broke, etc.) - This unit has a total of 9 operating modes: Static Colour Select, 4 Colour Change, 15 Colour Change, 4 Colour Fade, 15 Colour Fade, Auto, Sound Active, Slave &...
-
Page 5: Mounting And Installation
Regardless of the rigging option you choose for your MICROH LEDPRO64RGBW wash fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. -
Page 6: Dmx-512 Control Connections
3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LEDPRO64RGBW. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below. -
Page 7: Photometric Data
6. PHOTOMETRIC DATA 7. DMX CHANNELS CH NO. VALUE FUNCTION 000~189 Brightness Adjust (dim→bright) 190~250 Strobe (slow→fast) 251~255 No function 000~255 Red (dim→bright) 000~255 Green (dim→bright) 000~255 Blue (dim→bright) 000~255 Cool white (dim→bright) 6 ... -
Page 8: Key Features
- Double Bracket for Truss and Floor Mounting - Built-in microphone - 3-Button LED Digital Display (MODE, UP, DOWN) 9. TECHNICAL SPECIFICATIONS MODEL: LEDPRO64RGBW LAMP: 36 x 3W LEDs (9 Red, 9 Green, 9 Blue, 9 White) OPERATING TEMPERATURE: -25°C to 45°C VOLTAGE: 120VAC 60Hz 1.1A 132W FUSE: 120VAC 2A DIMENSIONS: 12"... -
Page 9: Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this manual can be improved please contact info@microhpro.com.
