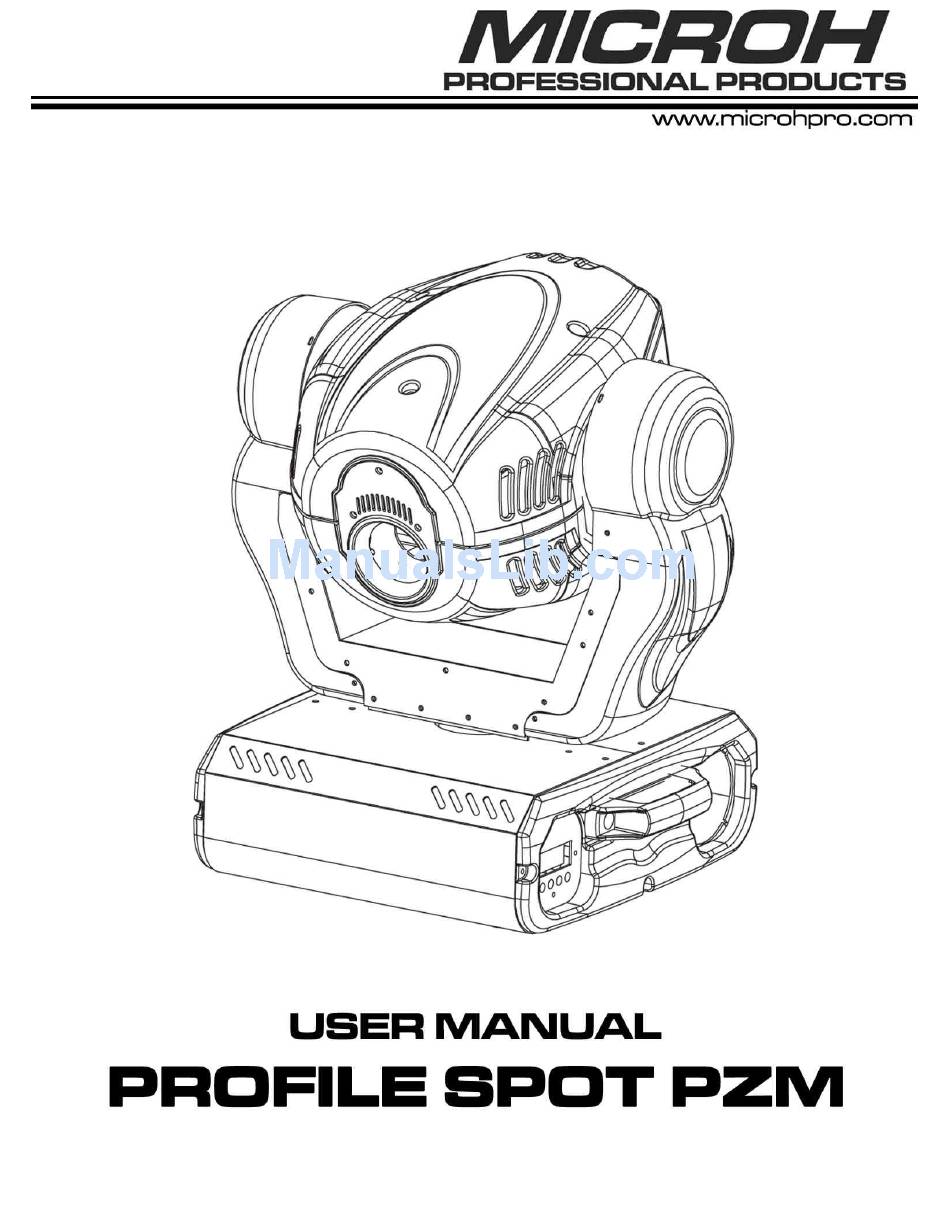

Microh Profile Spot PZM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profile Spot PZM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microh Profile Spot PZM

Summary of Contents for Microh Profile Spot PZM

  • Page 2: Table Of Contents

    Open the box and checking Page 1 Safety instructions Page 1 Operating determinations Page 2 Description of the device Page 3 5) Installation Page 4 Control Board Operation Page 8 DMX512 Channel Function Page 9 Technical specifications Page 18 9) Beampath Page 19 10)Maintenance and cleaning Page 20...

  • Page 3: Open The Box And Checking

    1.Open the box and checking Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Please according to this manual's relative speaking when using this equipment.

  • Page 4: Operating Determinations

    Ø by the plug. Never pull out the plug by tugging the power-cord. Ø This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. Ø The electric connection, repairs and servicing must be carried out by a qualified employee.

  • Page 5: Description Of The Device

    4.Description of the device 1 - Moving head 2 - Y oke 3 - Carry handles 4 - Base Rear panel: 5 - Power switch 6 - DMX output 7 - DMX input LAMP:MSD 250/2 MSD 250 8 - Power cord SERIAL DATA LINK 9 - Fuse holder 1=GND...
  • Page 7 5.2 Lamp adjust The lamp holder is aligned at the factory. Due to differences between lamps , fine adjustment may improve light performance. Strike the lamp, open the shutter and the iris, set the dimmer intensity onto 100% and focus the light on a flat surface (wall). As the optimum distance of the lamp from lens was adjusted during the installing or changing the lamp (by turning the screw "A"), it is necessary to adjust only the second position by turning the screw "B", in order to center the hot-spot (the brightest part of the beam).

  • Page 8: Installation

    Colour/Static gobo-wheel: Gently bend out the gobo holder to release it from the fixative holes and eject it from the pressing snap. Press the ends of the fixation-ring together with an appropriate tool and remove it. Remove the gobo and insert the new gobo. Press the ends of the fixation-ring together and insert it in the front of the gobo.

  • Page 9: Connection To The Mains

    Ø The projector can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics. Ø For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture.

  • Page 10: Control Board Operation

    Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. Occupation of the XLR-connection: DMX-input DMX-OUTPUT XLR mounting-socket: XLR mounting-plug: 1- Ground 1 - Ground 2 - Signal (-) 2 - Signal (-) 3 - Signal (+)

  • Page 11: Dmx512 Channel Function

    Control board operation way: MODE MODE ENTER ENTER DOWN DOWN 1.Select working mode by pressing MODE. 2.Press ENTER to confirm the selection. 3.Press UP and DOWN to select working condition. 4.Press ENTER to confirm the selection. DMX512 Channel Function CHANNEL FUNCTION TILT PAN FINE(proportional)
  • Page 12 CHANNEL 1: PAN Effect Value Clockwise rotate CHANNEL 2: TILT Value Effect Anti-clockwise rotate...
  • Page 13 CHANNEL 3: PAN FINE (proportional) • • Value Effect Fine control of tilt movement CHANNEL 4: TILT FINE (proportional) Value Effect Fine control of tilt movement...
  • Page 14 CHANNEL 5: Speed of PAN/TILT movement Value Effect Slow Slow Fast fast CHANNEL 6: Lamp on/off & reset • Value Effect No function 240-255 95-100 Lamp off after 3 230-239 91-94 seconds No function 140-229 55-90 Lamp on after 3 128-139 50-54 seconds,Reset...
  • Page 15 CHANNEL 7: Color1 Value Effect Forwards rainbow 128-255 50-100 effect from slow to fast Pink 112-127 44-49 Blue 96-111 37-43 Orange 80-95 31-36 64-79 Green 25-30 48-63 19-24 Magenta 32-47 12-18 Yellow 16-31 6-11 0-15 Open/white CHANNEL 8: Static gobo /color2 Value Effect Light Blue...
  • Page 16 CHANNEL 9: Prism Value Effect 128-255 3-facet prism 0-127 No function CHANNEL 10: 3-facet prism rotation Value Effect 133-255 53-100 Backwards rotation from slow to fast 128-132 No rotation 51-52 Forwards rotation 5-127 3-50 from fast to slow No rotation...
  • Page 17 CHANNEL 11: Rotating gobos Effect Value 224-255 Rotate gobo wheel 88-100 continue rotation from slow to fast Rotate gobo 5 160-223 63-87 Rotate gobo 4 128-159 50-62 96-127 Rotate gobo 3 37-49 Rotate gobo 2 64-95 25-36 Rotate gobo 1 32-63 12-24 Open/hole...
  • Page 18 CHANNEL 13: Zoom,frost,UV filter Effect Value 93-100 240-255 UV-filter 87-92 224-239 Frost 82-86 208-223 Zoom 26 75-81 192-207 Zoom 24 68-74 176-191 Zoom21 62-67 160-175 Zoom 18 50-61 128-159 Zoom 15 112-127 43-49 UV-filter 96-111 37-42 Frost 80-95 31-36 Zoom 26 64-79 24-30 Zoom 24...
  • Page 19 CHANNEL 15:Shutter, strobe Value Effect 87-100 224-255 Shutter Open 75-86 192-223 Random strobe- effect from slow to fast 62-74 160-191 Shutter Open 128-159 50-61 Pulse-effect in sequences from slow to fast 96-127 37-49 Shutter Open 25-36 64-95 Strobe-effect from slow to fast (max 10flashes/s) 32-63 12-24...

  • Page 20: Technical Specifications

    8. Technical specifications US-model: Voltage......AC100/110/120V , 50/60Hz Fuse........ T 6.3 A@120V EU-model:Voltage......AC220/230/240V ,50/60Hz Fuse ........T3.15 A @230V Rated Power 350W DMX512 Channel 16CHS Luminous 18000 LM Lamp: Philips MSD250/2 or MSD 250 GY 9,5 Optical System: Focus: Linear electric focus Zoom: Motorized multi-step-zoom with five different apertures (15 , 21 24 , 26 )

  • Page 21: Beampath

    9. Beampath 24 radiation angle 15 radiation angle 23 Foot-candles 11 Foot-candles 3970 250 LUX 1940 120 LUX 20 Distance(m) 5,27 Diameter(m) 1,30 2,63 3,95 18 radiation angle 18 Foot-candles 190 LUX 3020 20 Distance(m) 8,50 Diameter(m) 2,13 4,25 6,38 26 radiation angle 9 Foot-candles 1580...

  • Page 22: Maintenance And Cleaning

    10. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning willnot only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!

  • Page 23: Structure Of The Fixture

    Structure of the fixture Light shield board Top cover Lamp light head Fan Color wheel Lamp holder Rotathng gobo wheel Reflector Stathc gobo wheel Tilt motor Belt Driver Board L Driver Board S Display Board Transformer Capacitance Bottom Fan Ballast DMX512socket Seat cover Pan Motor...

  • Page 24: Electrical Diagram

    12. Electrical diagram DISPLAY PCB DISPLAY PCB DMX IN DMX OUT DISPLAY CPU BLUE BOTTOM 12VDC FAN 11VAC Ic11 Transmission line RELAY Ic12 Horae 3C PCB FOCUS MAIN PCB MAIN PCB TILT Horge TILT Ic10 Sensor 24VAC Sensor MOTOR4 MOTOR5 MOTOR1 MOTOR3 MOTOR2...

  • Page 25: Common Faulty Maintain

    COMMEN FAULTY MAINTAIN 13. Commen faulty maintain FAULTY PHONMENON FAULTY ANALYSIS FAULTY PART PART No. PLUG CABLE 27-00-0010-04 POWER PLUG LOOSE WHOLE LIGHT CANN'T WORK FUSE 09-00-3151-00 POWER SWITCH F AULITY POWER SWITCH 08-05-0400-03 REACH THE LIFESPAN OR BED HTI 300W/DX MSD 250/2 07-07-0250-02 QUALITY OF BULB...

  • Page 26: Component Antitheses

    MOTOR FOR GOBO WHEEL FAULTY 42BYGH026-1MOTOR 15-00-0033-00 ROTATION GOBO WHEEL CAN NOT CHANGE GOBO DAMP POLE MOTOR OF DAMP POLE 34-01-RD2105_03-00 MOTOR FOR ROTATION GOGO 16HY0002MOTOR 15-00-0007-00 BOAR FAULTY GOBO CAN NOT ROTATION FAULT 34-01-RD2107_38-00 ROTATION WHEEL FAULTY ROTATION GOBO WHEEL COLOR WHEEL CAN MOTOR FOR COLOR WHEEL 42BYGH026-1MOTOR...
  • Page 27 IC13 TO IC16 ON 2107L PCB 00-7528-01 D/A CONVERSION CHIP IC17 TO IC20 ON 2107L PCB 00-6219-01 DRIVER CHIP CPU ON 2107L PCB 00-89S52-00 SOFTWARE CHIP IC21 TO IC23 ON 2107S PCB 00-77E58-00 SOFTWARE CHIP IC24 TO IC26 ON 2107S PCB 00-6219-01 DRIVER CHIP CPU ON 2107S PCB...

  • Page 28: Main Pcb

    15. MAIN PCB...

  • Page 29: Display Pcb

    16. DISPLAY PCB...

  • Page 30: Driver(L) Pcb

    17. DRIVER(L) PCB...

  • Page 31: Driver(S) Pcb

    18.DRIVER(S) PCB...
