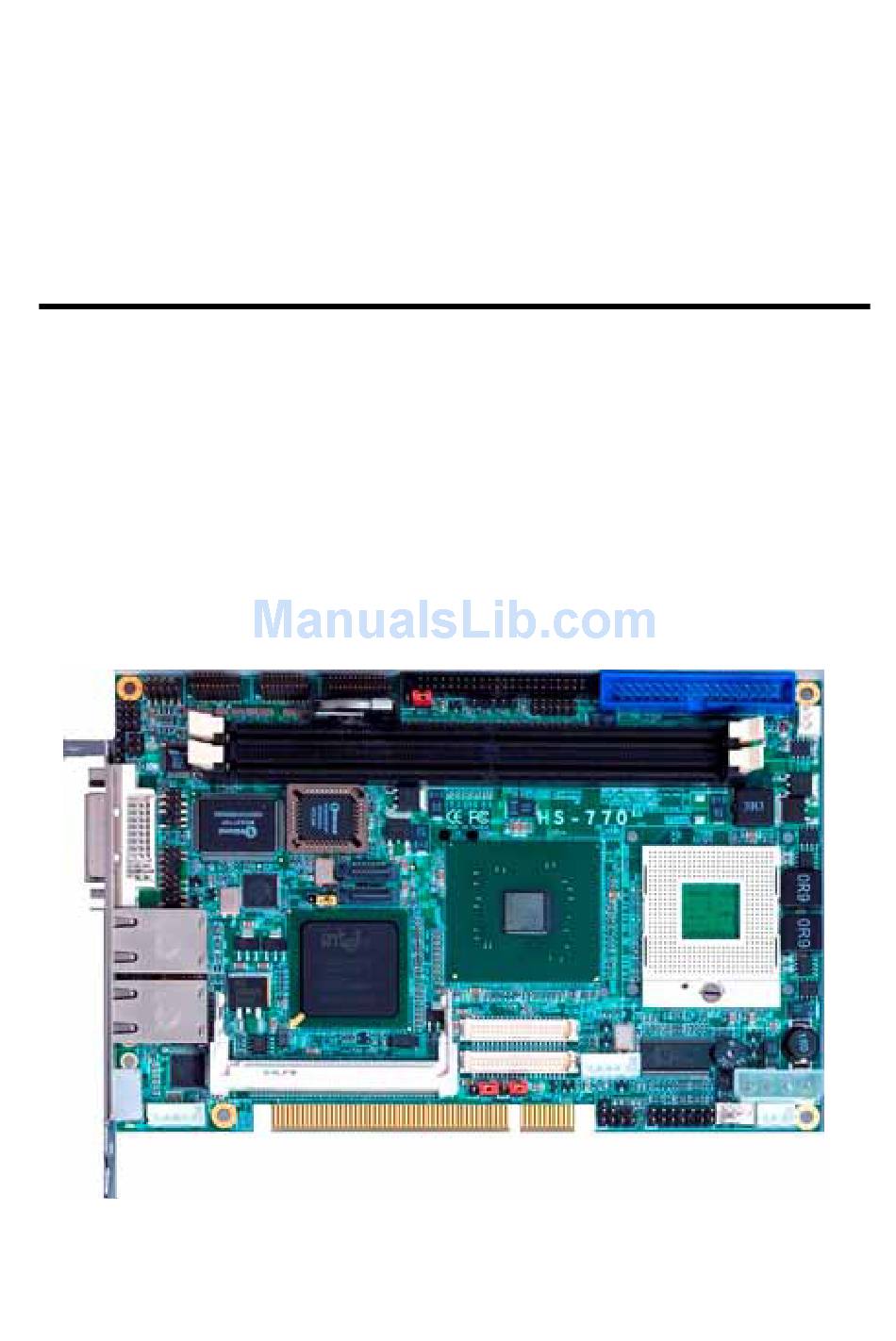

- Page 1 HS-770(E) Serial Half-Size PCI CPU Card User’s Manual Edition 1.1 2009/02/03...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
-
Page 3: Packing List
HS-770(E) User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HS-770(E) motherboard x 1 Cable Kit: 44-pin 40-pin 44-pin Floppy Cable x 1 ATA33 IDE Cable x1 SATA Cable x 2 PS/2 Keybroad & Mouse cable x 1 CPU Cooler x 1 SDTV Cable x 1 (Only HS-770) -
Page 4: Table Of Contents
HS-770(E) User’s Manual Index Index Chapter 1 <Introduction> ............... 7 1.1 <Product Overview>................7 1.2 <Product Specification> ..............8 1.3 <Mechanical Drawing>..............10 1.4 <Block Diagram>................12 Chapter 2 <Hardware Setup> ............ 14 2.1 <Connector Location>............... 14 2.2 <Jumper Location & Reference> ............16 2.3 <Connector Reference>.............. - Page 5 HS-770(E) User’s Manual Index Chapter 3 <System Setup> ............35 3.1 <Video Memory Setup> ..............35 Chapter 4 <BIOS Setup> .............. 37 Appendix A <I/O Port Pin Assignment> ......39 A.1 <IDE Port> ..................39 A.2 <Serial ATA Port>................40 A.3 <Floppy Port>...
- Page 6 HS-770(E) User’s Manual (This Page is Left for Blank)
-
Page 7: Chapter 1

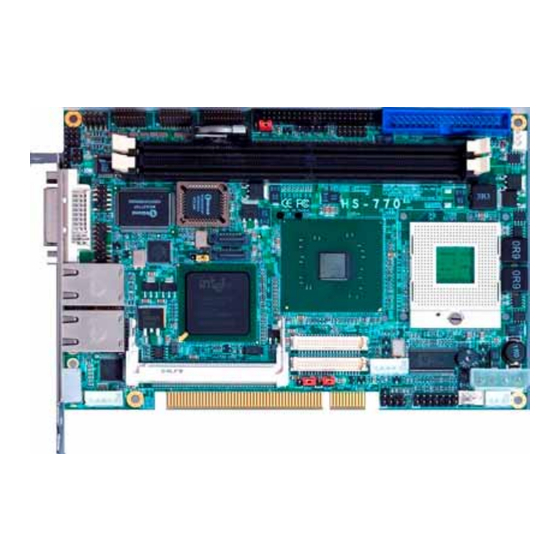

HS-770(E) User’s Manual Introduction Chapter 1 <Introduction> 1.1 <Product Overview> HS-770(E) is the new generation of the Half-size PCI CPU card, with supporting last Intel Pentium M processors for 533MHz front side bus, Intel 915GM(E) and ICH6-M chipset, integrated GMA900 graphics, DDR2 memory, REALTEK AC97 Audio, Serial ATA, mini PCI and dual Gigabit LAN. -
Page 8: Product Specification
HS-770(E) User’s Manual Product Specification 1.2 <Product Specification> General Specification Half-size PCI CPU card Form Factor Intel® Pentium M / Celeron M processors Package type: FC-PGA478 L2 Cache: 512KB/1MB/2MB Front side bus: 400/533MHz ( The Intel® Celeron® M Processor 4xx series have been designed to work with the Mobile Intel®... - Page 9 Intel Pentium M Mini-ITX motherboard with onboard VGA, Dual Gigabit LAN, SATA,4 x USB 2.0 Ports, Audio, 4 x RS232 serial port, LVDS, HDTV, Mini-PCI The specifications may be different as the actual production. For further product information please visit the website at T U h ttp://www.commell.com.twU T...
-
Page 10: Mechanical Drawing
HS-770(E) User’s Manual Mechanical Drawing 1.3 <Mechanical Drawing>... - Page 11 HS-770(E) User’s Manual (This Page is Left for Blank)
-
Page 12: Block Diagram
HS-770(E) User’s Manual Block Diagram 1.4 <Block Diagram> Intel Pentium M/Celeron M Processors Intel GMA900 Graphics LVDS 2 x 240-pin DDR2 SDVO 400/533MHz up to 915GM(E) HDTV CompactFlash 2 x Serial ATA ports UltraDMA33/66/100 IDE ICH6-M 4 x USB2.0 ports PCIE PICMG Marvell E8053... - Page 13 HS-770(E) User’s Manual (This Page is Left for Blank)
-
Page 14: Chapter 2
HS-770(E) User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> Floppy CN_USB1/2 COM12 COM34 CN_ LPT CN IR CN_DIO SYSFAN JCSEL1 JCSEL2 CN_AUDIO CN_VGA CN_ATKB JCFSEL SATA JVLCD2 CN_INV CN_TV CPUFAN CN_PWR CN_LVDS2 JFRNT CN_PS... - Page 15 HS-770(E) User’s Manual Hardware Setup...
-
Page 16: Jumper Location & Reference
HS-770(E) User’s Manual Jumper Location & Reference 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JCFSEL CF with IDE mode selection JVLCD2 Panel Voltage Setting JCSEL1 Choose RS232/485/422 JCSEL2 Choose RS232/485/422 JRTC JCFSEL JVLCD2 JCSEL1 JCSEL2 RS232 RS485 RS422... -
Page 17: Connector Reference
HS-770(E) User’s Manual Connector Reference 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket479 for CPU Standard DDRIIA/B 240 -pin DDR2 SDRAM DIMM socket Standard 44-pin IDE connector Silm 34-pin slim type floppy connector Standard SATA1/2 7-pin Serial ATA connector Standard CN_AUDIO 5 x 2-pin audio connector... -
Page 18: Cpu And Memory Setup
HS-770(E) User’s Manual CPU and Memory Setup 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket479 for Intel Pentium M/Celeron M processors, it supports new generation of Intel Pentium M processors with 533MHz of front side bus and 2MB L2 cache. -
Page 19: Memory Setup
HS-770(E) User’s Manual Memory Setup 2.4.2 <Memory Setup> The board provides two 240-pin DDR2 DIMMs to support DDR2 400/533 memory modules up to 2GB of capacity. Non-ECC, unbuffered memory is supported only. While applying two same modules, dual channel technology is enabled automatically for higher performance. -
Page 20: Cmos Setup
HS-770(E) User’s Manual CMOS Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 21: Enhanced Ide Interface
HS-770(E) User’s Manual Enhanced IDE Interface 2.6 <Enhanced IDE Interface> The board has one UltraDMA33 IDE interface to support up to 2 ATAPI devices, and one CompactFlash Type II socket on the solder side, with jumper JCFSEL for IDE master/slave mode selection. Jumper: JCFSEL Type: onboard 3-pin header JCFSEL... -
Page 22: Floppy Port
HS-770(E) User’s Manual Floppy Port 2.8 <Floppy Port> The board provides one standard type floppy port. -
Page 23: Ethernet Interface
HS-770(E) User’s Manual Ethernet Interface 2.9 <Ethernet Interface> The board integrates with two Marvell 88E8053 PCI Express Gigabit Ethernet controllers, as the PCI Express 1x can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Marvell 88E8053 supports triple speed of 10/100/100Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 24: Onboard Display Interface
HS-770(E) User’s Manual Onboard Display Interface 2.10 <Onboard Display Interface> Based on Intel 915GM(E) chipset with built-in GMA (Graphic Media Accelerator) 900 graphics, the board provides one DVI connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT,DVI,LCD and TV 2.10.1 <Digital Visual Interface Display>... -
Page 25: Digital Display
HS-770(E) User’s Manual Digital Display 2.10.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) and 1920 x 1200 (WUXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV JVLCD2 CN_LVDS2... - Page 26 HS-770(E) User’s Manual Digital Display Connector: CN_INV Connector: JVLCD2 Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Description Description +12V LCDVCC VCC3 ENABKL Connector: CN_LVDS2 Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Signal Signal LCDVCC LCDVCC ATX0-...
- Page 27 HS-770(E) User’s Manual Digital Display To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
- Page 28 HS-770(E) User’s Manual Digital Display After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: HS-770(E) BIOS LCD Type selection form Single channel 18bit (VER:1.0S18A) Dual channel 18bit (VER:1.0D18A) Output format Output format 640 x 480...
-
Page 29: Hdtv Interface> Hs-770(E) Not Supports Tv Out Function
HS-770(E) User’s Manual HDTV Interface 2.10.3 <HDTV Interface> HS-770(E) not supports TV out function. The board provides output types with Composite, S-Video and Component (YPbPr) Composite and S-Video up to 1024 x 768 for NTSC/PAL Component support 480p/720p/1080i/1080p mode Connector: CN_TV Connector type: 8-pin header TV-out connector (pitch = 2.54mm) Pin Number Assignment... -
Page 30: Integrated Audio Interface
HS-770(E) User’s Manual Integrated Audio Interface 2.11 <Integrated Audio Interface> HS-770(E) provides a stereo audio interface with Realtek ALC201A AC97 Codec. The CN_AUDIO provides the interface to use attached audio cable. CN_AUDIO... - Page 31 HS-770(E) User’s Manual Integrated Audio Interface Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54-pitch header Description Description Line – Right Ground Line – Left Ground Line Out – Left Line Out – Right Ground Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD –...
-
Page 32: Gpio Interface
HS-770(E) User’s Manual GPIO Interface 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 2.0mm x 2.0mm-pitch header Description Description Ground... -
Page 33: Power Supply
HS-770(E) User’s Manual Power supply 2.13 <Power Supply> 2.13.1 <Power Input> The board requires DC 12V/5V input with onboard 4-pin connector, for the input current, please take a reference of the power consumption report on appendix. Connector: CN_PWR Type: 4-pin standard power connector Description Description +12V... -
Page 34: Switch And Indicator
HS-770(E) User’s Manual Switch and Indicator 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header Function Signal... -
Page 35: Chapter 3
HS-770(E) User’s Manual System Setup Chapter 3 <System Setup> 3.1 <Video Memory Setup> Based on Intel® 915GM(E) chipset with GMA (Graphic Media Accelerator) 900, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 128MB. To support DVMT, you need to install the Intel GMA 900 Driver with supported OS. - Page 36 HS-770(E) User’s Manual System Setup Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting. On-Chip Fixed DVMT...
-
Page 37: Chapter 4
HS-770(E) User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 38 HS-770(E) User’s Manual (This Page is Left for Blank)
-
Page 39: Appendix A
HS-770(E) User’s Manual I/O Port Pin Assignment Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ IDE32 P66DET -CS1... -
Page 40: Serial Ata Port
HS-770(E) User’s Manual SATA & Floppy Port A.2 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.3 <Floppy Port> Connector: FDD Type: 34-pin connector Description Description FD DRVDEN FD INDEX FD MOA- FD DSA- FD DIR- FD STEP-... -
Page 41: Irda Port
HS-770(E) User’s Manual IrDA Port A.4 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX... -
Page 42: Serial Port
HS-770(E) User’s Manual Serial Port A.5 <Serial Port> Connector: CN_COM12/CN_COM34 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header Description Description... -
Page 43: Vga Port
HS-770(E) User’s Manual VGA Port A.6 <VGA Port> Connector: DVI Type: DVI-I female connector on bracket Description Description Description TDC2- VGAGND TDC2+ VGAGND VGAGND TLC+ TLC- VGAGND VGA R VGACLK THPDET VGA G VGADAT TDC0- VGA B VGA VS TDC0+ VGA HS TDC1- VGAGND... -
Page 44: Appendix B
The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. - Page 45 HS-770(E) User’s Manual GPIO Programming The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87 -o 4E 29 -o 4E 40 ;enale GPIO function -o 4E 07...
-
Page 46: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
