Summary of Contents for Commell HS-770

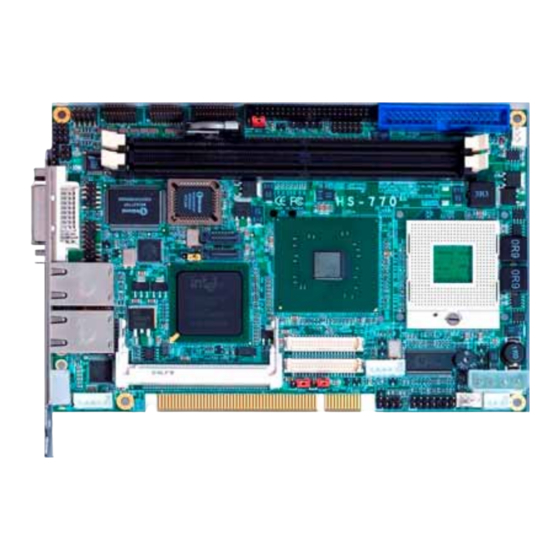

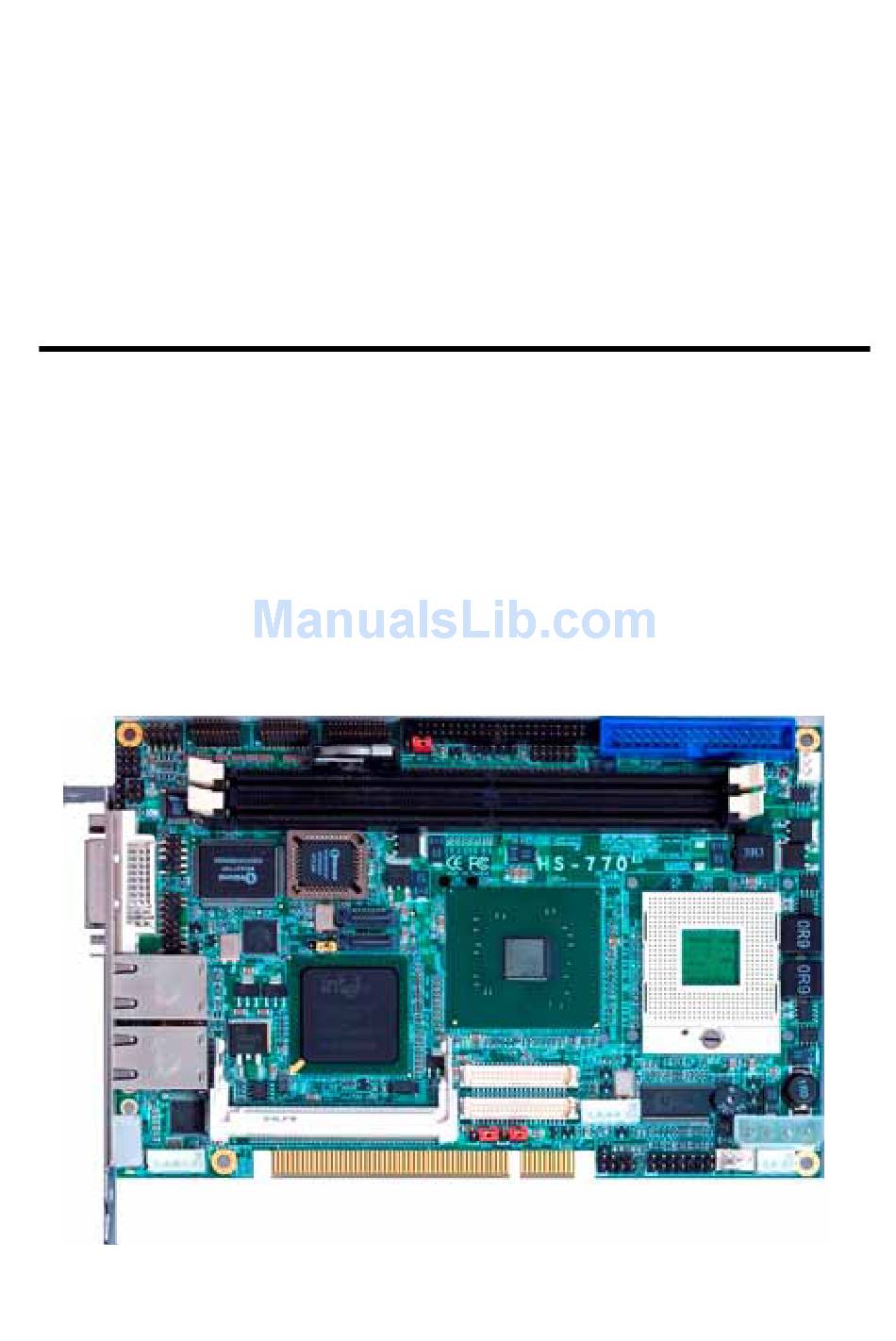

- Page 1 HS-770 Half-Size PCI CPU Card User’s Manual Edition 1.0 2005/4/18 A Version...
- Page 2 HS-770 User’s Manual Copyright Copyright 2005, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
HS-770 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HS-770 motherboard x 1 Cable Kit: 44-pin 40-pin 44-pin ATA33 IDE Cable x1 Floppy Cable x 1 SATA Cable x 2 SDTV Cable x 1... - Page 4 HS-770 User’s Manual Index Chapter 1 <Introduction> ................7 1.1 <Product Overview>................7 1.2 <Product Specification> ..............8 1.3 <Mechanical Drawing>..............10 1.4 <Block Diagram>................12 Chapter 2 <Hardware Setup>................ 14 2.1 <Connector Location>............... 14 2.2 <Jumper Location & Reference> ............16 2.3 <Connector Reference>..............
- Page 5 HS-770 User’s Manual 3.1 <Video Memory Setup> ..............35 Chapter 4 <BIOS Setup> ................37 Appendix A <I/O Port Pin Assignment>............39 A.1 <IDE Port> ..................39 A.2 <Serial ATA Port>................40 A.3 <Floppy Port> ................... 40 A.4 <IrDA Port> ..................41 A.5 <Serial Port>..................
- Page 6 HS-770 User’s Manual (This Page is Left for Blank)
-
Page 7: Chapter 1
Chapter 1 <Introduction> 1.1 <Product Overview> HS-770 is the new generation of the Half-size PCI CPU card, with supporting last Intel Pentium M processors for 533MHz front side bus, Intel 915GM and ICH6-M chipset, integrated GMA900 graphics, DDR2 memory, REALTEK AC97 Audio, Serial ATA, mini PCI and dual Gigabit LAN. -
Page 8: Product Specification
HS-770 User’s Manual Introduction 1.2 <Product Specification> General Specification Half-size PCI CPU card Form Factor Intel® Pentium M / Celeron M processors Package type: FC-PGA478 L2 Cache: 512KB/1MB/2MB Front side bus: 400/533MHz Memory 2 x 240-pin DDR2 400/533MHz SDRAM up to 2GB... - Page 9 HS-770 User’s Manual Introduction Ethernet Interface Controller Marvell 88E8053 PCI Express Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Dual External RJ45 connectors with LED on rear I/O panel Audio Interface Chipset Intel® ICH6M with Realtek® ALC201A codec...
-
Page 10: Mechanical Drawing
HS-770 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing... - Page 11 HS-770 User’s Manual Introduction Product Specification...
-
Page 12: Block Diagram
HS-770 User’s Manual Introduction 1.4 <Block Diagram> Intel Pentium M/Celeron M Processors Intel GMA900 Graphics LVDS 2 x 240-pin DDR2 SDVO 400/533MHz up to 915GM HDTV CompactFlash 2 x Serial ATA ports UltraDMA33/66/100 IDE ICH6-M 4 x USB2.0 ports PCIE... - Page 13 HS-770 User’s Manual Introduction (This Page is Left for Blank) Block Diagram...
-
Page 14: Chapter 2
HS-770 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> Floppy CN_USB1/2 COM12 COM34 CN_ LPT CN IR CN_DIO SYSFAN CPUFAN JCSEL1 JCSEL2 _AUDIO _VGA RJ45_A RJ45_B CN_ATKB JCFSEL SATA JVLCD2 CN_INV CN_TV CPUFAN CN_PWR CN_LVDS2 JFRNT CN_PS... - Page 15 HS-770 User’s Manual Hardware Setup Connector Location...
-
Page 16: Jumper Location & Reference
HS-770 User’s Manual Hardware Setup 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JCFSEL CF with IDE mode selection JVLCD2 Panel Voltage Setting JCSEL1 Choose RS232/485/422 JCSEL2 Choose RS232/485/422 JRTC JCFSEL JVLCD2 JCSEL1 JCSEL2 RS232 RS485 RS422... -
Page 17: Connector Reference
HS-770 User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket479 for CPU Standard DDRIIA/B 240 -pin DDR2 SDRAM DIMM socket Standard 44-pin IDE connector Silm 34-pin slim type floppy connector Standard SATA1/2 7-pin Serial ATA connector... -
Page 18: Cpu And Memory Setup
HS-770 User’s Manual Hardware Setup 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket479 for Intel Pentium M/Celeron M processors, it supports new generation of Intel Pentium M processors with 533MHz of front side bus and 2MB L2 cache. -
Page 19: Memory Setup
HS-770 User’s Manual Hardware Setup 2.4.2 <Memory Setup> The board provides two 240-pin DDR2 DIMMs to support DDR2 400/533 memory modules up to 2GB of capacity. Non-ECC, unbuffered memory is supported only. While applying two same modules, dual channel technology is enabled automatically for higher performance. -
Page 20: Cmos Setup
HS-770 User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 21: Enhanced Ide Interface
HS-770 User’s Manual Hardware Setup 2.6 <Enhanced IDE Interface> The board has one UltraDMA33 IDE interface to support up to 2 ATAPI devices, and one CompactFlash Type II socket on the solder side, with jumper JCFSEL for IDE master/slave mode selection. -
Page 22: Floppy Port
HS-770 User’s Manual Hardware Setup 2.8 <Floppy Port> The board provides one standard type floppy port. Ethernet Interface... -
Page 23: Ethernet Interface
HS-770 User’s Manual Hardware Setup 2.9 <Ethernet Interface> The board integrates with two Marvell 88E8053 PCI Express Gigabit Ethernet controllers, as the PCI Express 1x can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Marvell 88E8053 supports triple speed of 10/100/100Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 24: Onboard Display Interface
HS-770 User’s Manual Hardware Setup 2.10 <Onboard Display Interface> Based on Intel 915GM chipset with built-in GMA (Graphic Media Accelerator) 900 graphics, the board provides one DVI connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides... -
Page 25: Digital Display
HS-770 User’s Manual Hardware Setup 2.10.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) and 1920 x 1200 (WUXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. - Page 26 HS-770 User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD2 Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Description Description +12V LCDVCC VCC3 ENABKL Connector: CN_LVDS2 Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Signal Signal...
- Page 27 LCD Installation Guide: Preparing the HS-770, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD2 to +5V or +3.3V.
- Page 28 Hardware Setup After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: HS-770 BIOS LCD Type selection form Single channel 18bit (VER:1.0S18A) Dual channel 18bit (VER:1.0D18A) Output format...
-
Page 29: Hdtv Interface
HS-770 User’s Manual Hardware Setup 2.10.3 <HDTV Interface> The board provides output types with Composite, S-Video and Component (YPbPr) Composite and S-Video up to 1024 x 768 for NTSC/PAL Component support 480p/720p/1080i/1080p mode Connector: CN_TV Connector type: 8-pin header TV-out connector (pitch = 2.54mm) -
Page 30: Integrated Audio Interface
HS-770 User’s Manual Hardware Setup 2.11 <Integrated Audio Interface> HS-770 provides a stereo audio interface with Realtek ALC201A AC97 Codec. The CN_AUDIO provides the interface to use attached audio cable. CN_AUDIO Integrated Audio Interface... - Page 31 HS-770 User’s Manual Hardware Setup Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54-pitch header Description Description Line – Right Ground Line – Left Ground Line Out – Left Line Out – Right Ground Interface...
-
Page 32: Gpio Interface
HS-770 User’s Manual Hardware Setup 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 2.0mm x 2.0mm-pitch header... -
Page 33: Power Supply
HS-770 User’s Manual Hardware Setup 2.13 <Power Supply> 2.13.1 <Power Input> The board requires DC 12V/5V input with onboard 4-pin connector, for the input current, please take a reference of the power consumption report on appendix. Connector: CN_PWR Type: 4-pin standard power connector... -
Page 34: Switch And Indicator
HS-770 User’s Manual Hardware Setup 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 35: Chapter 3
HS-770 User’s Manual System Setup Chapter 3 <System Setup> 3.1 <Video Memory Setup> Based on Intel® 915GM chipset with GMA (Graphic Media Accelerator) 900, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 128MB. - Page 36 HS-770 User’s Manual System Setup Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting.
-
Page 37: Chapter 4
HS-770 User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 38 HS-770 User’s Manual (This Page is Left for Blank) IDE Port...
-
Page 39: Appendix A
HS-770 User’s Manual I/O Port Pin Assignment Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ... -
Page 40: A.2
HS-770 User’s Manual I/O Port Pin Assignment A.2 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.3 <Floppy Port> Connector: FDD Type: 34-pin connector Description Description FD DRVDEN FD INDEX FD MOA-... -
Page 41: A.4
HS-770 User’s Manual I/O Port Pin Assignment A.4 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX SATA & Floppy Port... -
Page 42: A.5
HS-770 User’s Manual I/O Port Pin Assignment A.5 <Serial Port> Connector: CN_COM12/CN_COM34 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header Description Description IrDA Port... -
Page 43: A.6
HS-770 User’s Manual I/O Port Pin Assignment A.6 <VGA Port> Connector: DVI Type: DVI-I female connector on bracket Description Description Description TDC2- VGAGND TDC2+ VGAGND VGAGND TLC+ TLC- VGAGND VGA R VGACLK THPDET VGA G VGADAT TDC0- VGA B VGA VS... -
Page 44: Appendix B
HS-770 User’s Manual I/O Port Pin Assignment Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/... - Page 45 HS-770 User’s Manual Flash BIOS The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87 -o 4E 29 -o 4E 40 ;enale GPIO function...
-
Page 46: Contact Information
Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division Contact Information...
