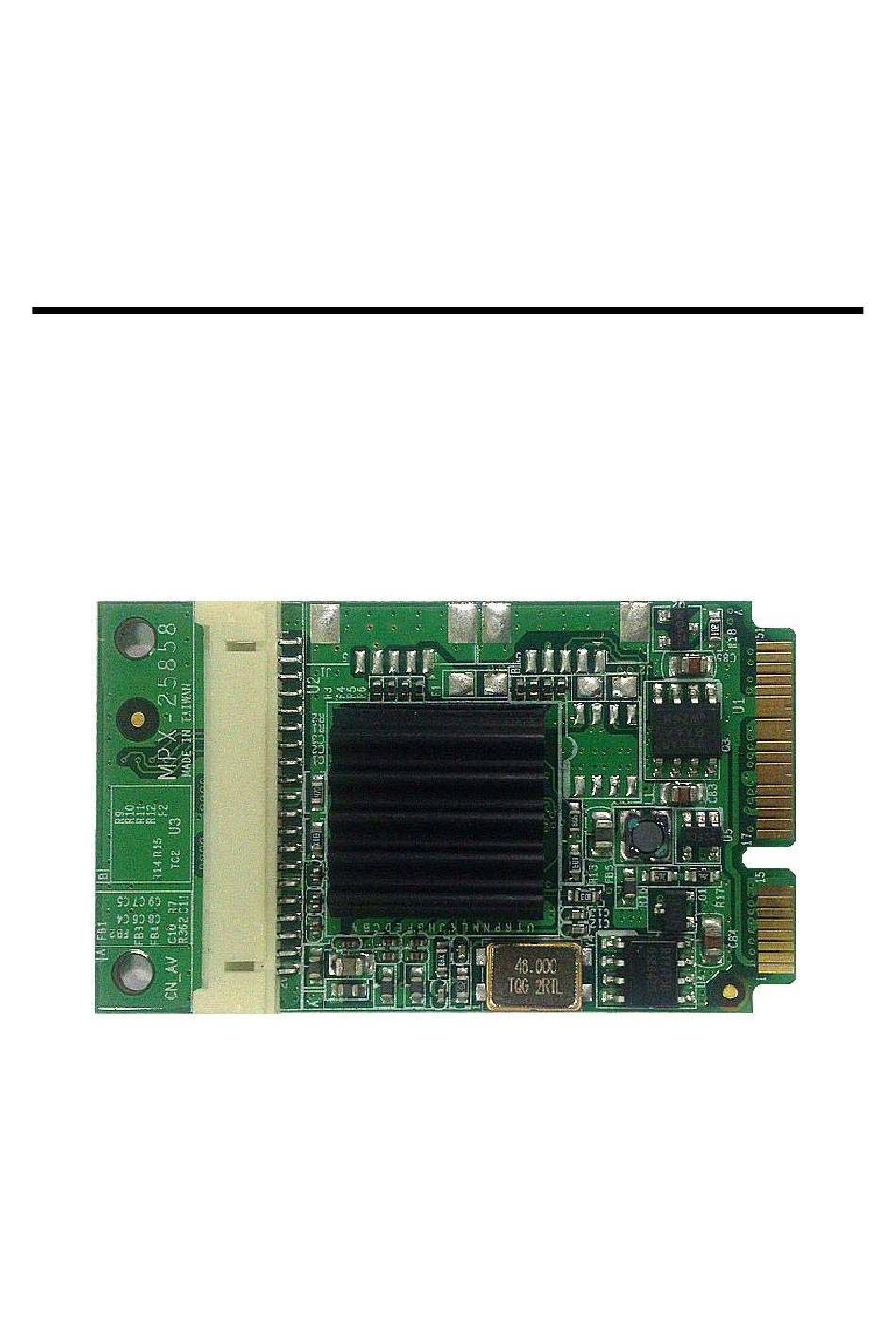

- Page 1 MPX-25858 User’s Manual Edition 1.0 2013/03/18...
- Page 2 MPX-25858 User’s Manual Copyright Copyright 2011 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List

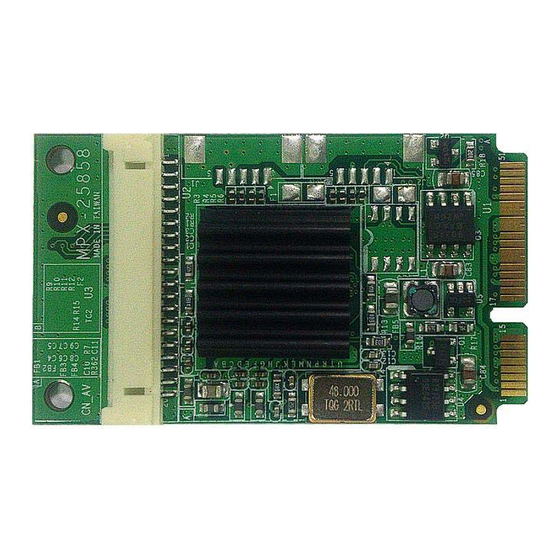

MPX-25858 User’s Manual Packing List: Hardware: MPX-25858 Mini PCI Express Capture Card x1 Cable kit: Cable: 1 x DF14 to dual D-sub 9 Cable (OAL2DB9-H20) 1 x 8-ch BNC Video input Cable (OALBNCE8-3) 1 x 8-ch RCA Audio input Cable... -
Page 4: General Specification
MPX-25858 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI Express mini card Controller One CX-25858 chip Accessories 1 x 20-pin DF14 to 2 x D-sub 9 Cable 1 x 8-ch BNC Video input Cable 1 x 8-ch RCA Audio input Cable... - Page 5 MPX-25858 User’s Manual 1.2 <Mechanical Drawing>...
- Page 6 MPX-25858 User’s manual 1.3 <Connector Reference> Connector: CN_AV Type: DF14 20-pin pitch=1.25mm Description Video1 Video2 Video3 Video4 Video5 Video6 Video7 Video8 Audio1 Audio2 Audio3 Audio4 Audio5 Audio6 Audio7 Audio8...
- Page 7 MPX-25858 User’s Manual 1.4 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please select file location C:\MPX-25858\driver...
- Page 8 MPX-25858 User’s manual 3. Please choose Setup...
- Page 9 MPX-25858 User’s Manual 4. Please click “OK”...
- Page 10 MPX-25858 User’s manual 5. Please click “Continue Anyway”, when you see the following message two times.
- Page 11 MPX-25858 User’s Manual 6. Please click “OK” to complete the installation.
- Page 12 MPX-25858 User’s manual 1.5 <Sample Program> 1. After driver install, please choose SDK. C:\MPX-25858\sdk...
- Page 13 MPX-25858 User’s Manual 2. Please choose “COMMELLDVCApp”.
- Page 14 MPX-25858 User’s manual 3. Please choose “Preview”.
- Page 15 MPX-25858 User’s Manual 4. When you click “START”, you can watch the video.
- Page 16 MPX-25858 User’s manual Explanation of Sample program function Device ID: It is mean CX23885 Chipset. Channel ID: Support Video input per device. FPS: It is mean real times FPS on working channel. Snapshot: Catch the image on working channel. Audio:...
- Page 17 MPX-25858 User’s Manual 1.6 <Video Motion> Please choose “Video Motion”, then you can see program interface as following. Enable: If user “check” this box, it will enable video motion detection. Indicator: If this box is checked, it will show red spots as a motion indication, when the video motion is been detected.
-
Page 18: Contact Information
Taiwan Commate Computer Inc. Address 19F., .94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan (R.O.C.) +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
