Summary of Contents for Commell MPX-24794G2

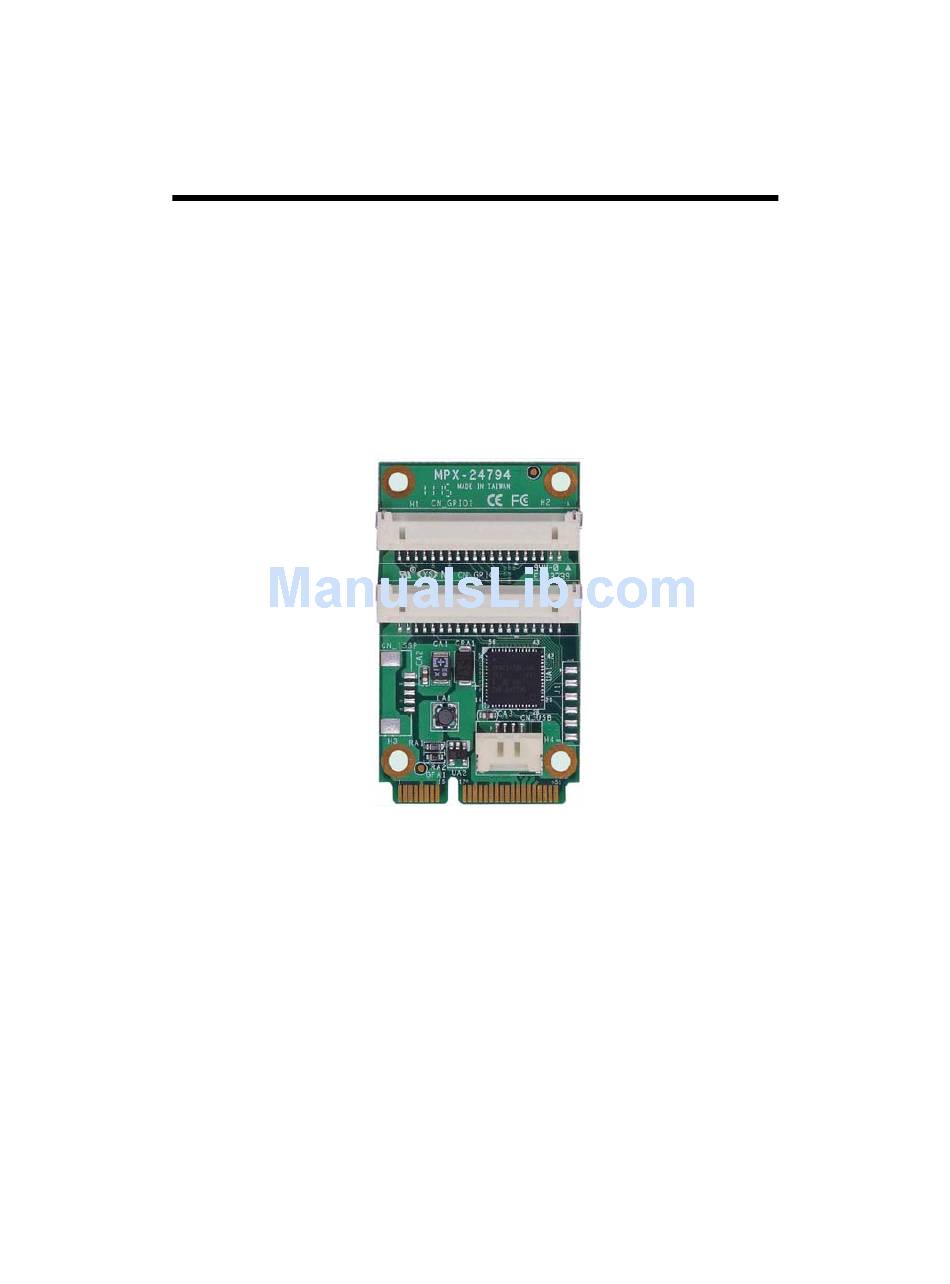

- Page 1 MPX-24794G2 User’s Manual Edition 1.1 06/25/2012...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...
-
Page 3: Packing List
MPX-24794G User’s Manual Packing List: Hardware: MPX-24794G2 Mini PCI Express USB-GPIO Card x1 Optional Cables 1x20 DF14 P=1.25mm to 20x1 DF14 P=2.54mm; 28 AWG * OAL-24794S-CN1 * CN_GPIO1 1x20 DF14 P=1.25mm to 18x1 DF14 P=2.54mm; 28 AWG * OAL-24794S-CN2 * CN_GPIO2... - Page 4 MPX-24794G User’s Manual 1x20 to 20x1 P=2.54mm test pins; 1x18 to 2x header; 28 AWG * OAL-24794S-ADP * CN_GPIO1 * CN_GPIO2 * ADP-GPIO isolation cards 1 x 4 DF14 to 1 x 4 P=2.54 HSG * OALUSB-H4 * CN_USB 1 x 4 DF14 to USB * LUSB-H4-1 * CN_USB Please refer to the cable mechanic drawing files for detail cable...
- Page 5 MPX-24794G User’s Manual drawing information. CD Content: * This User’s Manual * Device Drivers for Windows 2000, Windows XP (32-/64-bit), Windows Vista (32-/64-bit), Windows 7 (32-/64-bit) * Software Programmer’s Manual * OAL-USB-H4.PDF – Mechanical drawing file * OAL-USB-H4-1.PDF – Mechanical drawing file * OAL-24794S-CN1.PDF –...
- Page 6 MPX-24794G User’s Manual 1.1 <Component Placement> CN_GPIO1 CN_GPIO2 CN_USB...
- Page 7 MPX-24794G User’s Manual 1.2 <Mechanical Drawing>...
- Page 8 MPX-24794G User’s manual 1.3 <Connector Reference> Connector: CN_GPIO1 Type: DF14 20-pin pitch=1.25mm Description Description GPIO0 P0[0] GPIO1 P0[1] GPIO2 P0[2] GPIO3 P0[3] GPIO4 P0[4] GPIO5 P0[5] GPIO6 P0[6] GPIO7 P0[7] GPIO8 P2[0] GPIO9 P2[1] GPIO10 P2[2] GPIO11 P2[3] GPIO12 P2[4] GPIO13 P2[5] GPIO14...
- Page 9 MPX-24794G User’s Manual 1.4 <Driver Setting> 1. Driver folders and insert your MPX24794G2 card 2. Please choose NO，not this time press next...
- Page 10 MPX-24794G User’s manual 3. Please choose Install from a list on specific Location press next 4. Please select file location ..\mpx24794g2.driver.v347\bin\wxp\x86 then press next (for example)
- Page 11 MPX-24794G User’s Manual 5. Continue Anyway...
-
Page 12: Device Manager Shows
MPX-24794G User’s manual 6. Finish 7. Device Manager shows... - Page 13 MPX-24794G User’s Manual 6. Two MPX24794G2 cards Repeat the above steps if you have more than one MPX24794G2 card. Each MPX24794G2 card has its own item shown in the Device Manager.
- Page 14 MPX-24794G User’s manual...
-
Page 15: Contact Information
Taiwan Commate Computer Inc. Address 19F., .94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan (R.O.C.) +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
