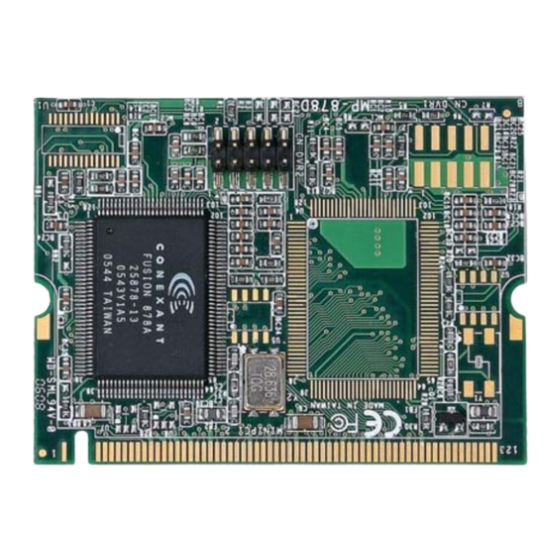

MP-878D Series
Mini-PCI Video Capture Card
User's Manual
Edition
1.0
1.1
1.2
1.3
Release Date
2007/01/25
2008/06/10
2008/09/22
2009/06/29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-878D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Commell MP-878D Series

Summary of Contents for Commell MP-878D Series

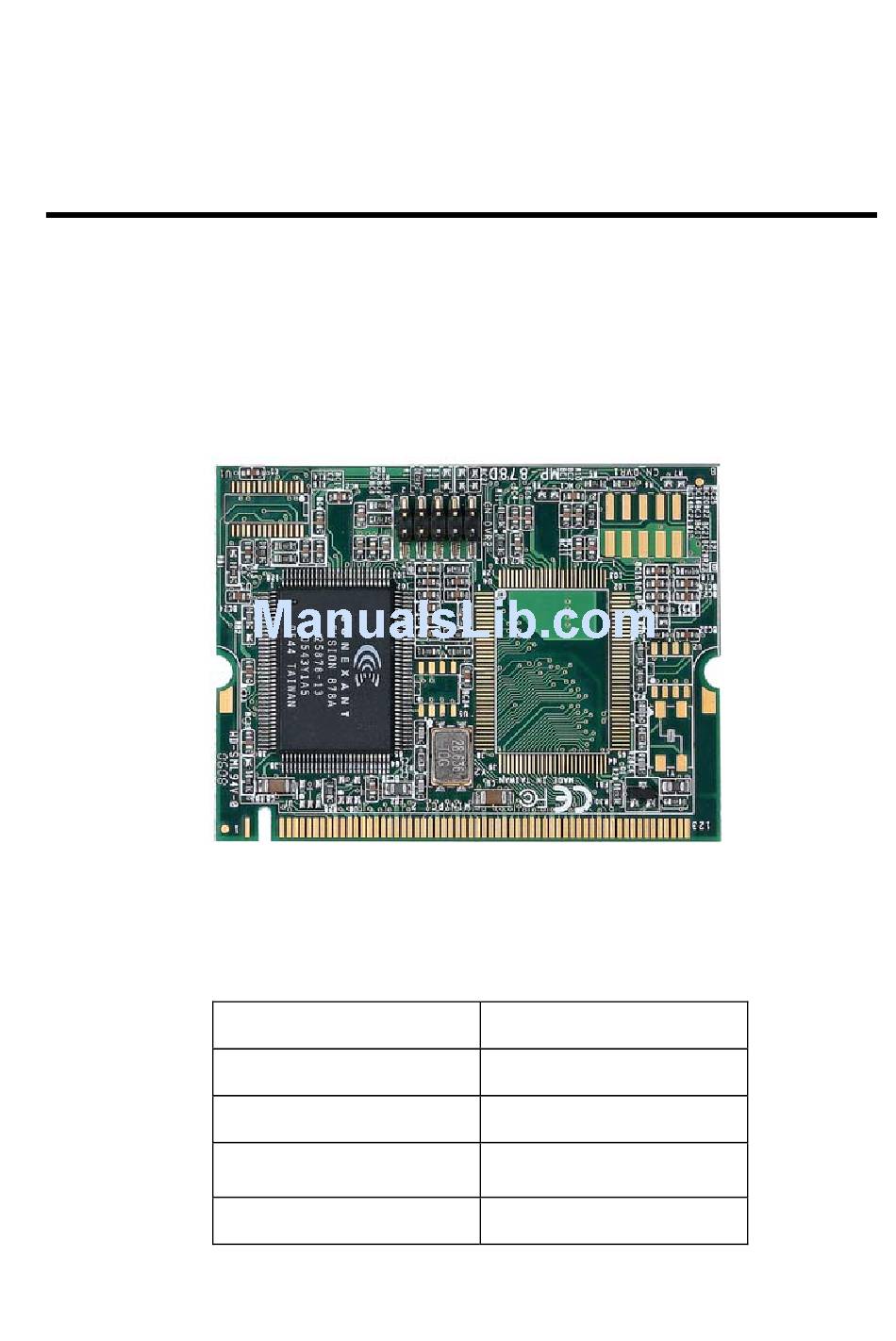

  • Page 1 MP-878D Series Mini-PCI Video Capture Card User’s Manual Edition Release Date 2007/01/25 2008/06/10 2008/09/22 2009/06/29...
  • Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...

  • Page 3: Packing List

    MP-878D User’s Manual Packing List: Please check the package content before you starting using the board. Cable Kits: Dual D-SUB 9 Cable x 1 (MP-878D8 only) D-SUB 9 Cable x 1 (MP-878D4 only) 4 BNC Cable x 2 (MP-878D8 only) Composite and S-video Cable x1 (MP-878D only) 4 BNC Cable x 1 (MP-878D4 only)

  • Page 4: Table Of Contents

    MP-878D User’s Manual Index Chapter 1 <Introduction> ............... 6 1.1 <Product Overview>................6 1.2 <Hardware requirement> ..............6 1.3 <Software requirement>..............6 1.4 <Dimensions> ..................7 1.5 <Hardware Interface > ................ 8 1.6 <Hardware installation > ..............8 1.7 <Software installation > ............... 9 1.8 <Sample Program>...
  • Page 5 MP-878D User’s Manual (This Page is left for Blank)

  • Page 6: Chapter 1

    Chapter 1 <Introduction> 1.1 <Product Overview> COMMELL MP-878D series is a Video input Video Capture Card. That supports up to D1 resolution at 30/25 fps (one Chip). Also MP-878D/D4 series supports NTSC/PAL signals.(MP-878D2/D8 is allow 2 Cards which installed in one PC system. If user wants...

  • Page 7: Dimensions

    MP-878D User’s Manual 1.4 <Dimensions> 44.6 x 59.5 mm ( Mini-PCI Type-III B ) Figure 1.2...

  • Page 8: Hardware Interface

    3. Touch the metal part on the surface of your computer to neutralize 915GM Any static electricity that might be on your body. 4. Place the MP-878D series into the Motherboard’s Mini-PCI slot and connect Corresponding accessories to the MP-878D series. 5. Replace the cover of your computer chassis 6.

  • Page 9: Software Installation

    MP-878D User’s Manual 1.7 <Software installation > When you completed the Hardware installation, the system will auto –detect And a message pops up as following: Please all select “Cancel”...
  • Page 10 MP-878D User’s Manual Then, Insert the driver CD into your system’s CD-ROM to Set up MP-878D series. Run Setup.exe (E:/Media/SINGLE.EXE_IMAGE/Disk Image/Disk/Setup.exe) Please select “Next” to continue.
  • Page 11 MP-878D User’s Manual Please read the following License Agreement. Press the Page Down key to see the rest of agreement and click “Yes” to continue the installation.
  • Page 12 MP-878D User’s Manual Please fill in your User Name & Company Name. Then, click “Next “. Contact Information...
  • Page 13 MP-878D User’s Manual Please select Install in this page.
  • Page 14 MP-878D User’s Manual Click “Continue Anyway “when you see the following message. Contact Information...
  • Page 15 MP-878D User’s Manual Click “Continue Anyway” when you see the following message.
  • Page 16 MP-878D User’s Manual Click “Continue Anyway” when you see the following message. Contact Information...
  • Page 17 MP-878D User’s Manual Click “Continue Anyway” when you see the following message.
  • Page 18 MP-878D User’s Manual Click “Continue Anyway” when you see the following message. Contact Information...
  • Page 19 MP-878D User’s Manual When the following message appears, click “Finish” to complete the installation and restart Windows or your computer.

  • Page 20: Sample Program

    MP-878D User’s Manual 1.8 <Sample Program> When you completed hardware & software installation, you can use COMMELL “TCCVDCApp” sample program to test. You can find TCCDVCApp.exe on desktop. Please double –click “ TCCDVCApp.exep , It’ll pops up as following. Then Please Push “Preview” on the left-upper Menu.
  • Page 21 MP-878D User’s Manual You‘ll get the program interface as following.
  • Page 22 MP-878D User’s Manual Explanation of Sample program function Device ID: It is mean BT878l Chipset. Channel ID: Support Video input per device. Snapshot: Catch the image on working channel. Callback Test: Catch the series image on working channel Note: Every channel is work separately, when you want to change any setting, please stop all channels which working.
  • Page 23 MP-878D User’s Manual <Video Motion> Please choose “Video Motion”, then you can see program interface as following. Enable: If user “check” this box, it will enable video motion detection. Action On Motion: If this box is checked, the registered call back function will be executed, when video motion is been detected.
  • Page 24 MP-878D User’s Manual <Recording Dialog> RESERVE!! No Function at the moment Video Compressor: Enable video compressor link, the list box window will list all video compressor components in the system. The user can select its own video compressor from the list, if user has installed own video compressor. Audio Capture Devices: Enable audio capture device link, the list box window will list all audio capture device in the system.

  • Page 25: How To Get The Video> (Based On Mp-878D /D2 /D4 /D8)

    MP-878D User’s Manual 1.9 <How to Get the video> (Based on MP-878D /D2 /D4 /D8)： For example to get 1 video input (MP-878D) 4 video input ( MP-878D4) 1. Set Video input channel / per chip : Device : Select 0 (Mean 1st BT878 chip ID) Ch : Select 1 ( Mean 1 x Video input for MP-878D ) Ch : Select 4 ( Mean 4 x Video input for MP-878D4 ) 2.
  • Page 26 MP-878D User’s Manual 3. Video Control setting Device ID：0 (Mean first BT878 chip) Channel ：0 ( First channel - video input for MP-878D MP-878D4 Channel ：1 ( 2nd channel - video input for MP-878D4 Channel ：2 ( 3rd channel - video input for MP-878D4 Channel ：3 ( 4th channel - video input for MP-878D4...
  • Page 27 MP-878D User’s Manual For example to get 2 video input (MP-878D2) 8 video input ( MP-878D8) 1. Set Video input channel / per chip : Device : Select 0 (Mean 1st BT878 chip ID) Ch : Select 1 ( Mean 1 x Video input for MP-878D2 ) Ch : Select 4 ( Mean 4 x Video input for MP-878D8 ) Device : Select 1 (Mean 2nd BT878 chip ID) Ch : Select 1 ( Mean 1 x Video input for MP-878D2 )
  • Page 28 MP-878D User’s Manual 3. Video Control setting Device ID：0 (Mean 1st BT878 chip) Channel ：0 ( First channel - video input for MP-878D2 MP-878D8 Channel ：1 ( 2nd channel - video input for MP-878D8 Channel ：2 ( 3rd channel - video input for MP-878D8 Channel ：3 ( 4th channel - video input for MP-878D8...
  • Page 29 MP-878D User’s Manual 4. Push Start，then you’ll get the video . Note : You’ll need to push “Start“ for each channel after Video Control setting...

  • Page 30: Contact Information

    Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division Contact Information...

This manual is also suitable for:

Mp-878d8Mp-878d4Mp-878d2
