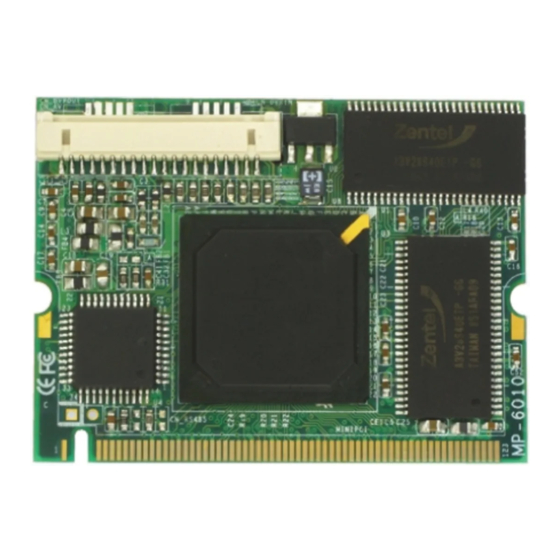

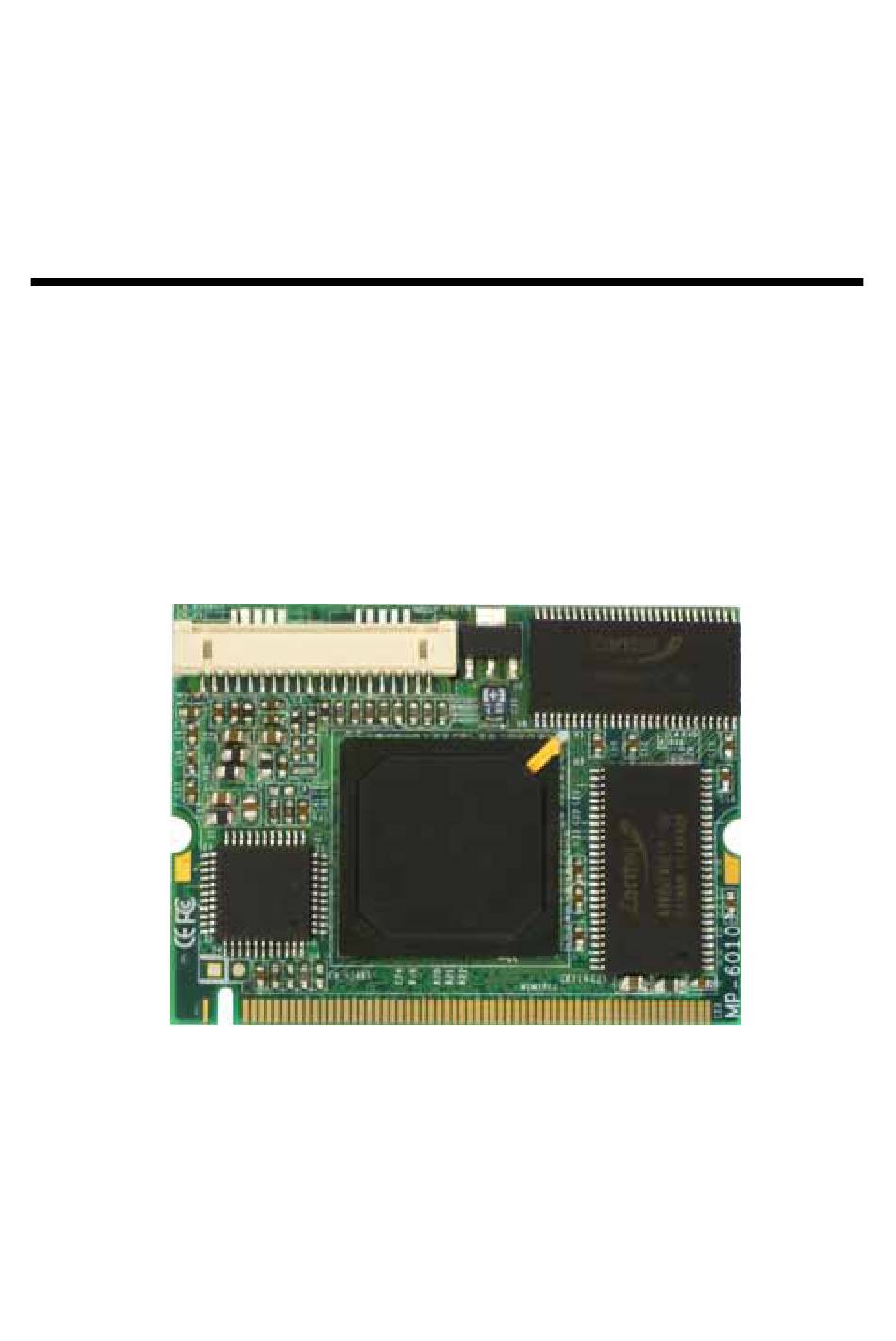

- Page 1 MP-60102 User’s Manual Edition 1.0 2010/03/23...
- Page 2 MP-60102 User’ s Manual Copyright Copyright 2010 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
MP-60102 User’ s Manual Packing List: Hardware: MP-60102 Mini-PCI Capture Card x1 Cable kit: DF14 to dual D-SUB 9 Cable x 1 (OAL2DB9-H20) Input Output 4 Channel video and audio input Cable x 1 (OALDB9-BR4) - Page 4 MP-60102 User’ s Manual Video and Audio output Cable x 1 (OALAVE) CD Content: Drivers & User’s Manual...
- Page 5 MP-60102 User’ s Manual 1.0 <Product Specification> General Specification Form Factor Mini-PCI Type III B with 124-pin interface Video Decode Chipset Softlogic solo6110-4 Accessories 1 x DF14 to dual D-SUB 9 Cable 1 x 4 Channel video and audio input Cable...
- Page 6 MP-60102 User’ s Manual 1.2 <Mechanical Drawing>...
- Page 7 MP-60102 User’ s Manual 1.3 <Connector Reference> CN_AV Output Input Description Description P_VI_CH1 OUTGND P_VI_CH2 CVBS_OUTB P_VI_CH3 OUTGND P_VI_CH4 Y_OUTB INGND OUTGND P_AI_CH1 C_OUTB P_AI_CH2 OUTGND P_AI_CH3 AUDIOL_OUT P_AI_CH4 AUDIOR_OUT INGND OUTGND Connector: CN_ AV Type: DF14 20PIN / Male (Pitch=1.25mm)
- Page 8 MP-60102 User’ s Manual 1.4 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please choose Device Manager And then you can see other devices...
- Page 9 MP-60102 User’ s Manual 3. Please choose Multimedia Controller and press advanced...
- Page 10 MP-60102 User’ s Manual 4. Please select file location D:\MP-60102\WindowXP\Driver 5. Please press continue anyway 6. Press Finish...
- Page 11 MP-60102 User’ s Manual 7. Driver install succeed...
- Page 12 MP-60102 User’ s Manual 1.5 <Application Setting & Functions> 1. Please select SDK location D:\MP-60102\WindowXP\SDK Then press SOLO6110App...
- Page 13 MP-60102 User’ s Manual 2.Press General Setting Live Display Mode select 5. Memory to Overlay , 60 field/sec or 6. Memory to Overlay , 30 frame/sec VGA Card select Intel Onboard VGA...
- Page 14 MP-60102 User’ s Manual 3.Main Function A. Live & HW player The live display and hardware player can be tested using this function Load file video RH2_xxx.slf audio RG7_xxx.slf...
- Page 15 MP-60102 User’ s Manual B. SW player The recorded H.264 file can be played back using this function Select audio channel The audio played back only one channel...
- Page 16 MP-60102 User’ s Manual Record setting 60 FOR test Video channel audio channel...
-
Page 17: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
