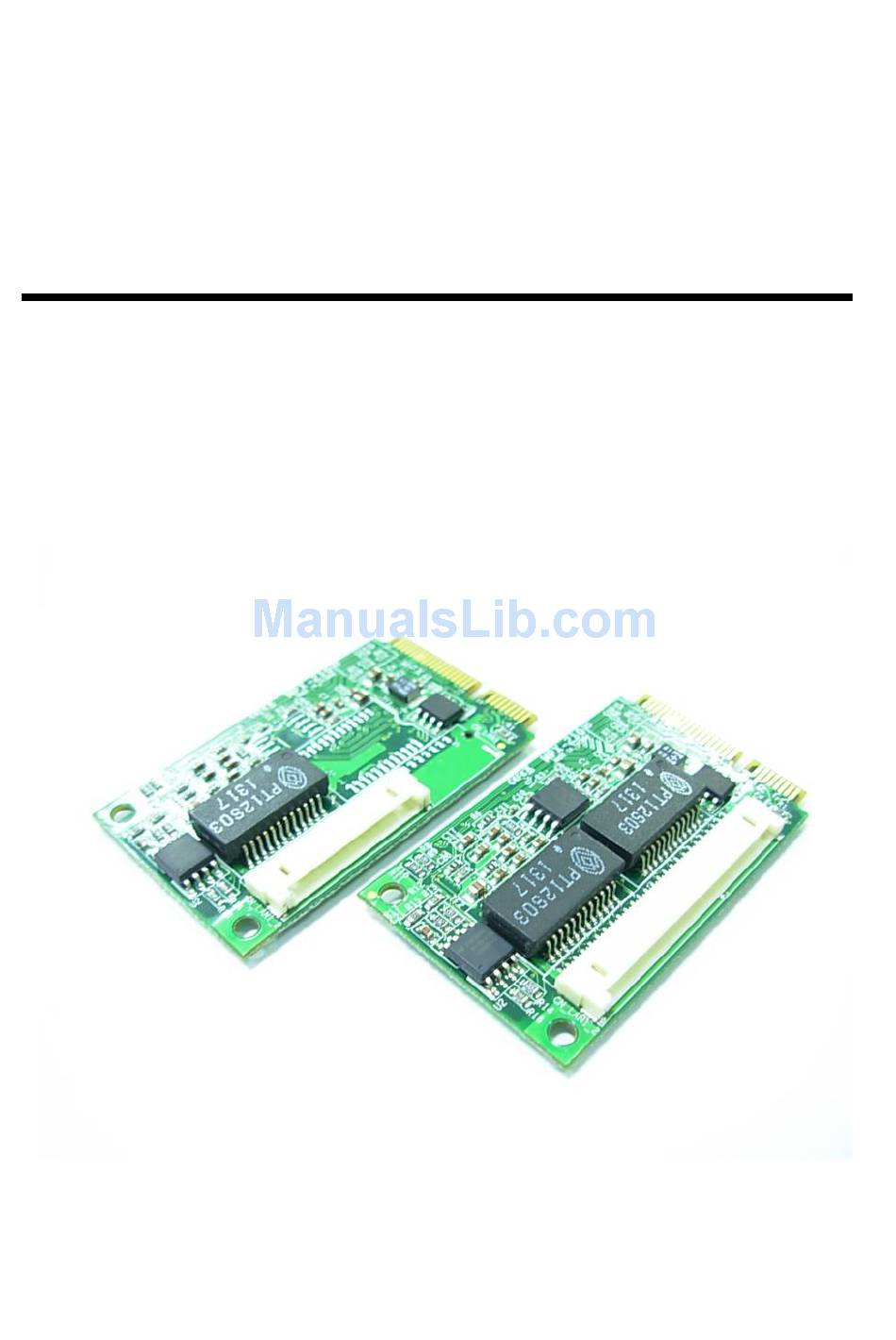

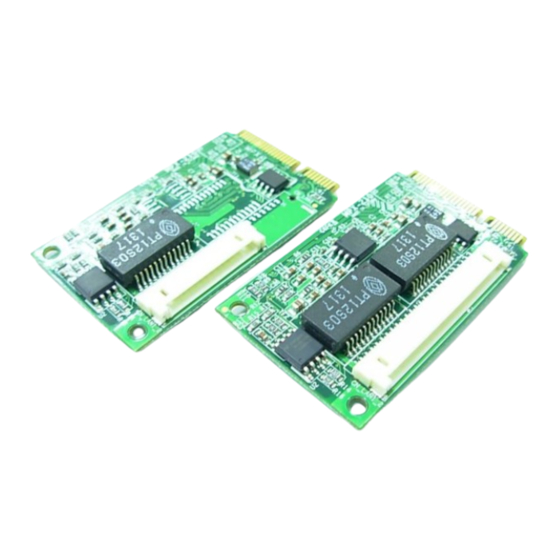

- Page 1 MPX-210 User’s Manual Edition 1.0 2013/11/21...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
-
Page 3: Packing List
Transfer Rate 1000 Mb/s, 100 Mb/s, or 10 Mb/s Dimensions (W x D) 30.00mm x 50.95mm Support OS Win7x86, Win7x64, Win8x86, Winx64, Win2012, Win8.1x86, Win8.1x64 Cable kit: MPX-210D: 1 PCS (OALGLAN-DF14-1) 1 PCS (BADPGLAND_A) MPX-210D2: 2 PCS (OALGLAN-DF14-2) 1 PCS (BADPGLAND2_A) -
Page 4: Mechanical Drawing
MPX-210 User’s Manual Mechanical Drawing MPX-210: LAN Adapter:... - Page 5 MPX-210 Use’s Manual Component Placement MPX-210D: CN_LAN1_2 RJ45_1 (Include Bracket) MPX-210D2: CN_LAN1 CN_LAN1_2 15 1 RJ45_2 RJ45_1 (Include Bracket)
-
Page 6: Connector Reference
RTD13- RLINK1G1- RLINK1H1- RACTLED1- RLINK1 RTD20+ RTD20- RTD21+ RTD21- RTD22+ RTD22- RTD23+ RTD23- RLINK1G2- RLINK1H2- RACTLED2- RLINK2 Connector: CN_LAN1 (MPX-210D) Connector Type: 15-pin pitch-1.25mm SYRS12515AR003 connector Description Description RTD10+ RTD10- RTD11+ RTD11- RTD12+ RTD12- RTD13+ RTD13- RLINK1G1- RLINK1H1- RACTLED1- RLINK1... - Page 7 MPX-210 Use’s Manual LAN Connector: RJ45_1/2 Connector Type: 16-pin (8 x 2) 2.0 x 2.0 mm header RJ45 10/100/1000Mbps connector (MPX-210) Description MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3-...
- Page 8 Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
