- Page 1 HS-771 Half-size PCI CPU Card User’s Manual Edition 1.1 2009/7/15...
- Page 2 HS-771 User’s Manual Copyright Copyright 2009, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Sata Cable X
HS-771 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HS-771 Half-size PCI CPU Card x 1 Cable Kit: 4-pin to 3-pin ATX cable x 1 SATA Cable x 2 PS2 Keyboard / Mouse Y-cable x 1... - Page 4 HS-771 User’s Manual Index Chapter 1 <Introduction> ....................6 1.1 <Product Overview>..................6 1.2 <Product Specification>..................7 1.3 <Mechanical Drawing>..................8 1.4 <Block Diagram>....................9 Chapter 2 <Hardware Setup>..................10 2.1 <Connector Location> ..................10 2.2 <Jumper Location & Reference>..............11 2.2.1 <CMOS Setup> .................12 2.2.2 <JAT Setup> ..................12 2.3 <Connector Reference>...
- Page 5 HS-771 User’s Manual 2.13 <USB Ports> ....................31 2.14 <Keyboard & Mouse Port>................32 2.14.1 <PS2 Port>..................32 2.14.2 <ATKB Port> ................... 32 2.15 <PCI Express Mini Card>................33 2.16 <Mini PCI Interface> ..................33 Chapter 3 <System Setup> ..................34 3.1 <Audio Configuration>...
- Page 6 HS-771 User’s Manual (This page is left for blank)
-
Page 7: Chapter 1

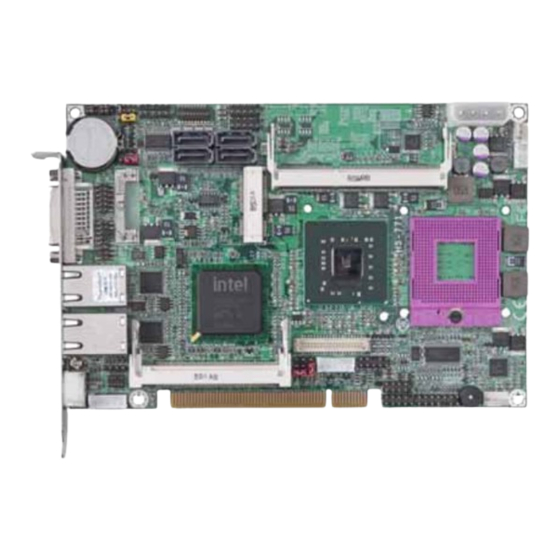

Chapter 1 <Introduction> 1.1 <Product Overview> HS-771, the new generation of the Half-size PCI CPU Card, supports Intel Penryn Processor for 667/800/1066 MHz front side bus and features Intel GM45 and ICH9M chipset, integrated GMA 4500MHD graphics up to 1024MB shared with system memory, DDR3 memory, REALTEK High Definition Audio, Serial ATA and two Intel Gigabit LAN. -
Page 8: Product Specification
HS-771 User’s Manual 1.2 <Product Specification> General Specification Form Factor Half-size PCI Bus CPU Card Support Intel Penryn Processor (Socket-P) Package type: Micro-FCPGA478 Front side bus: 667/800/1066 MHz Memory 2 x DDRIII SO-DIMM 800/1066 up to 8GB Chipset Intel GM45 & ICH9M... -
Page 9: Mechanical Drawing
HS-771 User’s Manual 1.3 <Mechanical Drawing>... -
Page 10: Block Diagram
HS-771 User’s Manual 1.4 <Block Diagram> Intel Penryn Processor VGA Interface Intel GMA 4500MHD 1 x LVDS & HDTV & DVI 2 x 204-pin DDR3 SO-DIMM 800/1066 GM45 MHz up to 8GB 1 x Mini-PCI 4 x Serial ATA 1 x PCI Express mini card... -
Page 11: Chapter 2
HS-771 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA1/2/3/4 MINI_CARD CN_SMBUS SO-DIMMA CN_IR DC_IN CN_USB2 CN_COM CN_USB1 SYSFAN CN_PS CN_DIO CN_VGA RJ45_1 RJ45_2 CN_AUDIO MINI-PCI CN_LVDS CD_IN JFRNT CPUFAN CN_INV CN_ATKB CN_HDTV CN_USB4 CN_USB3 SO-DIMM PCIA... -
Page 12: Jumper Location & Reference
HS-771 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting AT/ATX Mode Setting JVLCD Panel Voltage Setting Inverter Voltage Setting JVINV Com2 RS-232/RS-422/RS-485/IR Setting JCSEL1 Com2 RS-232/RS-422/RS-485/IR Setting JCSEL2 JCSEL2 JCSEL1 JRTC JVLCD JVINV... -
Page 13: Cmos Setup
HS-771 User’s Manual 2.2.1 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Connector Reference
HS-771 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket478 for socket-P CPU SO-DIMMA/B 204 -pin DDR3 SO-DIMM socket SATA1/2/3/4 7-pin Serial ATA connector DC_IN 4-pin power supply connector CN_AUDIO 5 x 2-pin audio connector CD_IN 4-pin CD-ROM audio input connector... -
Page 15: Cpu And Memory Setup
HS-771 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket478 for Intel Penryn socket-P Processor 667/800/1066 MHz of front side bus and 6MB L2 cache. Please follow the instruction to install the CPU properly. -
Page 16: Memory Setup
HS-771 User’s Manual 2.4.2 <Memory Setup> HS-771 has two 204-pin DDR3 SO-DIMM supports up to 8GB of memory capacity. The memory frequency supports 800/1066MHz. Only Non-ECC memory is supported. Dual-Channel technology is supported while applying two same modules on one of each group. -
Page 17: Serial Ata Interface
HS-771 User’s Manual 2.5 <Serial ATA Interface> Based on Intel ICH9M, the board provides four Serial ATAII interfaces with up to 300MB/s of transfer rate. SATA2 SATA4 SATA1 SATA3 Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND SATA_TXP0 SATA_TXN0 GND SATA_RXN0 SATA_RXP0 GND... -
Page 18: Ethernet Interface
HS-771 User’s Manual 2.6 <Ethernet Interface> The board integrates with two Intel PCI Express Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 19: Onboard Display Interface
HS-771 User’s Manual 2.7 <Onboard Display Interface> Based on Intel GM45 chipset with built-in GMA (Graphic Media Accelerator) 4500MHD graphics up to 1024MB shared with system memory, the board provides one DB15 on DVI-I real external DVI VGA cable, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and one DVI-I on bracket. -
Page 20: Digital Display
HS-771 User’s Manual 2.7.2 <Digital Display> The board provides DVI external connector and one 40-pin LVDS connector for 18/24-bit dual channel panels, supports up to 1920 x 1200 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. - Page 21 HS-771 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 22 LCD Installation Guide: Preparing the HS-771, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 23 HS-771 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) 18-bit Single channel 24-bit Dual channel Output format...
-
Page 24: Hdtv Interface
HS-771 User’s Manual 2.7.2 <HDTV Interface> The board provides an HDTV interface with Intel GM45, support PAL and NTSC of TV system, and display (clone or extended desktop) function with VGA, DVI and LVDS. Connector: CN_HDTV Connector type: 10-pin header HDTV connector pitch 2.54mm (Optional cable) - Page 25 HS-771 User’s Manual YPbPr Cable (Optional cable) SDTV Cable (Optional cable)
-
Page 26: Integrated Audio Interface
HS-771 User’s Manual 2.8 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more sound and other advantages than former HD audio compliance. -
Page 27: Gpio Interface
HS-771 User’s Manual 2.9 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 28: Power Supply
HS-771 User’s Manual 2.10 <Power Supply> 2.10.1 <Power Input> The board requires onboard 4-pin DC 5V/12V power required, optional 5VSB for ATX. Connector: DC_IN Type: 4-pin DC power connector Description +12V Ground Ground Connector: CN_PS Type 3-pin ATX function connector... -
Page 29: Switch And Indicator
HS-771 User’s Manual 2.11 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) header pitch = 2.54mm... -
Page 30: Serial Port
HS-771 User’s Manual 2.12 <Serial Port> The board supports one RS232 serial port and one jumper selectable RS232/ 422/485 serial ports. The jumper JCSEL1 and JCSEL2 can let you configure the communicating modes for COM2. Connector: CN_COM Type: 20-pin (2 x 10) header pitch = 2.54x1.27mm... - Page 31 HS-771 User’s Manual Setting RS-232/RS-422/RS-485/IrDA: JCSEL1 JCSEL2 Function JCSEL1 JCSEL2 IrDA RS-422 RS-485 RS-232 Default: RS-232...
-
Page 32: Usb Ports
HS-771 User’s Manual 2.13 <USB Ports> Based on ICH9M, the board provides eight USB2.0 ports with provides up to 480Mbps of transferring rate. Interface USB2.0 Controller ICH9M Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB2 CN_USB1 CN_USB4 CN_USB3 Connector: CN_USB1/2/3/4 Type: 10-pin 5 x 2 header for dual USB Ports pitch = 2.54mm... -
Page 33: Keyboard & Mouse Port
HS-771 User’s Manual 2.14 <Keyboard & Mouse Port> 2.14.1 <PS2 Port> The PS/2 connector supports standard PS/2 keyboard directly or both PS/2 keyboard and mouse through for PS/2 Y-cable. Connector: PS2 Female Type: 6-pin Mini-DIN connector on bracket Description KBCLK MSCLK Ground KBDATA MSDATA 2.14.2 <ATKB Port>... -
Page 34: Pci Express Mini Card
HS-771 User’s Manual 2.15 <PCI Express Mini Card> The PCI Express Mini Cards are 30 x 56 mm. There is a 52 pin edge connector. Connector: MINI_CARD Type: 52-pin edge connector 2.16 <Mini PCI Interface> The system connector for Type III consists of a 124-pin card edge type connector. -
Page 35: Chapter 3
HS-771 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® ICH9M with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 36: Display Properties Setting
HS-771 User’s Manual 3.2 <Display Properties Setting> Based on Intel GM45 GMCH with GMA 4500MHD (Graphic Media Accelerator) up to , the board supports two DACs for display device as 1024MB shared with system memory different resolution and color bit. - Page 37 HS-771 User’s Manual 3. This setup options can let you define each device settings. Select Intel(R) Dual Display Clone for Colors, Resolution and Refresh Rate Select Dual Display Clone setup the dual display mode as same screen Select Extended Desktop...
-
Page 38: Chapter 4
HS-771 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 39 HS-771 User’s Manual (This page is left for blank)
-
Page 40: Appendix A
HS-771 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <SMBUS Port> Connector: CN_SMBUS Type: 5-pin header for SMBUS Port Description SMBDATA SMBCLK Ground A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground JCSEL1 must jump to “SIR”... -
Page 41: Appendix B
HS-771 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the... -
Page 42: Appendix C
HS-771 User’s Manual Appendix C <System Resources> C.1 <Direct memory access (DMA)> C.2 <Input/Output (IO)>... - Page 43 HS-771 User’s Manual...
-
Page 44: C.3
HS-771 User’s Manual C.3 <Interrupt request (IRQ)>... -
Page 45: C.4
HS-771 User’s Manual C.4 <Memory>... -
Page 46: Appendix D
HS-771 User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;Enter configuration -o 2E 87... -
Page 47: Appendix E
HS-771 User’s Manual Appendix E <Programming Watchdog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255... -
Page 48: Contact Information
Taiwan Commate Computer Inc. Address 19F No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate Computer Inc.
