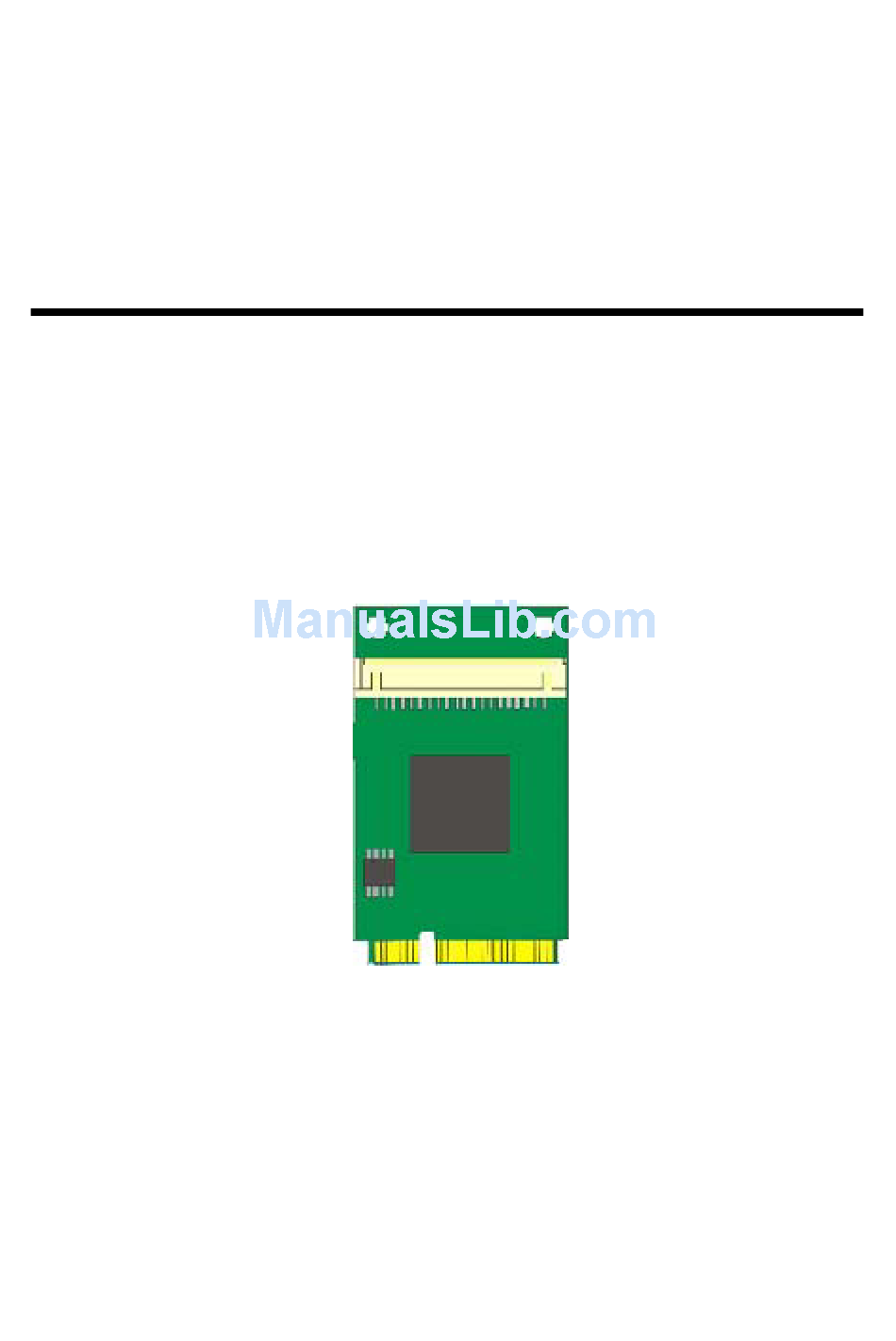

- Page 1 MPX-750 User’s Manual Edition 1.0 2012/02/06...
- Page 2 MPX-750 User’s Manual Copyright Copyright 2012 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
MPX-750 User’s Manual Packing List: Hardware: MPX-750 Mini PCI-E Graphics Card x1 Cable kit: Cable: One 10-pin DF14 Cable with DVI Module (OALDVI-DF14 + BADPDVIP) DVI VGA Cable x 1 (Option) (OALDVIVGA) CD Content: Drivers & User’s Manual... -
Page 4: General Specification
MPX-750 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI Express mini card Silicon Motion SM750 Controller chip Accessories One 10-pin DF14 to 26 pin-header Cable with DVI Module One DVI to DVI-I (VGA & DVI) Cable (Option) Resolution... - Page 5 MPX-750 User’s Manual 1.2 <Connector Reference> Connector: CN_DVI Type: DF14 10-pin pitch=1.25mm Description Description TDC_1+ TDC_1- TDC_+ TDC_- TDC_0+ TDC_0- TDC_2+ TDC_2- PVDD (+5V) DVI_DHP (Hot Plug) DDCDAT DDCCLK CRT_R CRT_G CRT_B CRT_HSYNC CRT_VSYNC...
- Page 6 MPX-750 User’s manual 1.4 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please select file location D:\MPX-750\V6_13_1_32, Please choose Setup.exe 3. Please click “Next”.
- Page 7 MPX-750 User’s Manual 4. Please click “Next”. 5. Please click “Next”.
- Page 8 MPX-750 User’s manual 6. Please click “Install”. 7. Please click “Continue Anyway”.
- Page 9 MPX-750 User’s Manual 8. Please click “Finish”. 9. Finish.
-
Page 10: Contact Information
Taiwan Commate Computer Inc. Address 19F., .94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan (R.O.C.) +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
