- Page 1 MPX-4232 USB Mini_PCIe Card User’s Manual Edition 1.0 2017/04/10...
- Page 2 MPX-4232 User’s Manual Packing List: Please check the package content before you starting using the card. Hardware: 1 X MPX-4232 Cable Kit: 1 x 4 DF14 to 1 x 4 P=2.54 HSG (OALUSB-H4)(1040431) Optional CD Content: Driver & User’s Manual...
-
Page 3: Table Of Contents
MPX-4232 User’s Manual Index 1 <Product Overview>...............3 2 <Features>................3 3 <Block Diagram>..............4 4 <Product Specifications>............5 5 <Pin-out Definition>..............6 6 <Component Placement> ............8 6.1 < Connector Reference > ..............8 6.2 < Cable connection >..............10 7 <Installation instructions>.............12 7.1 < Connect to USB Host via Mini_PCIe Slot > ....... 12 7.2 <... -
Page 4:

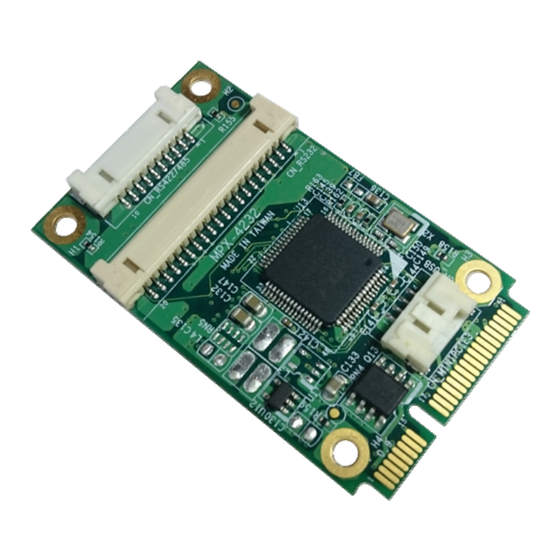

MPX-4232 User’s Manual 1 <Product Overview> MPX-4232 base on FT4232H controller which is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. MPX-4232 has four independent configurable interfaces. Two of these interfaces configured as RS-232, Two of interfaces configured as RS-422/485,. -
Page 5:
MPX-4232 User’s Manual 3 <Block Diagram> Mini_PCIe Interface or CN_USB Connector 3.3V from mini_PCIe USB signal 5V from external cable FT4232H 2 x RS-422 2 x RS-232 /RS-485... -
Page 6:
MPX-4232 User’s Manual 4 <Product Specifications> Product Description Host Interface Mini PCI-Express Controller FT4232H USB 2.0 Full Speed • Via USB interface within Mini-PCIe slot or • Via USB host pin header Internal Port 2 x RS232 , 2 x RS422/RS485 Dimension 30.00mm x 50.95mm... -
Page 7:
MPX-4232 User’s Manual 5 <Pin-out Definition> Pin No. Definition Basic Description Type Floating Pin, No connect to anything. 3.3V/3.3VAUX 3.3V/3.3AUX power supply Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything. 1.5V 1.5V power supply Floating Pin, No connect to anything. - Page 8 MPX-4232 User’s Manual Ground. Ground. Input/ USB_D- Data- Output Ground. Input/ USB_D+ Data+ Output 3.3VAUX 3.3AUX power supply. Ground. 3.3VAUX 3.3AUX power supply. Floating Pin, No connect to anything. Ground. Floating Pin, No connect to anything. Floating Pin, No connect to anything.
-
Page 9:
MPX-4232 User’s Manual 6 <Component Placement> 6.1 < Connector Reference > MPX-4232: CN_RS232 CN_RS422/485 CN_USB RS232 RS232 2 x RS422/RS485 Connector: CN_RS232 Type: H14H-20PIN Description Description -mDCD1 mRXD1 mTXD1 -mDTR1 -mDSR1 -mRTS1 -mCTS1 -mRl1 -mDCD2 mRXD2 mTXD2 -mDTR2 -mDSR2 -mRTS2... - Page 10 MPX-4232 User’s Manual Connector: CN_RS422/485 Type: H14H-10PIN (RS-422) Description Description -m422RXD3 +m422RXD3 +m422TXD3 -m422TXD3 -m422RXD4 +m422RXD4 +m422TXD4 -m422TXD4 (RS-485) Com3 RTX- Data- : short Pin1& Pin4 Com3 RTX+ Data+ : short Pin2& Pin3 Com4 RTX- Data- : short Pin6& Pin9 Com4 RTX+ Data+ : short Pin7&...
-
Page 11: Cable Connection
MPX-4232 User’s Manual 6.2 < Cable connection > OALES-BKU3-H14 -10-... - Page 12 MPX-4232 User’s Manual OALUSB-H4 -11-...
-
Page 13:
7 <Installation instructions> 7.1 < Connect to USB Host via Mini_PCIe Slot > One of the two ways to connect to a USB host is inserting the MPX-4232 card into a Mini_PCIe slot. You simply insert the MPX-4232 card golden finger portion into an industrial standard Mini_PCIe slot makes this MPX-4232 card connecting to a USB host. -
Page 14: Connect To Usb Host Via Cable
MPX-4232 User’s Manual 7.2 < Connect to USB Host via cable > You can connect the MPX-4232 card to a USB host by using OALUSB-H4 cable alternatively if a Mini-PCIe slot is not available your motherboard (like most Commell motherboards) that has USB Host pin header. -
Page 15:
MPX-4232 User’s Manual 8 <Mechanical Drawing> MPX-4232: (Units:mm /inch) -14-... -
Page 16:
MPX-4232 User’s Manual 9 <Driver Setting > 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please choose “Device Manager” -15-... - Page 17 MPX-4232 User’s Manual 3. You can see other devices ”Quad RS232-HS” -16-...
- Page 18 MPX-4232 User’s Manual 4. Right click on the other device to bring up a menu as shown below and select “Update Driver Software…” -17-...
- Page 19 MPX-4232 User’s Manual 5. Select the second option to browse manually -18-...
- Page 20 MPX-4232 User’s Manual 6. Please choose “Search for the driver software in this location” Check “Include this subfolders” then press “C:\Driver\MPX-4232“ -19-...
- Page 21 MPX-4232 User’s Manual 7. Completing the ’’USB Serial Converter C” updated -20-...
- Page 22 MPX-4232 User’s Manual 8. Right click on the other device to bring up a menu as shown below and select “Update Driver Software…” -21-...
- Page 23 MPX-4232 User’s Manual 9. Select the second option to browse manually -22-...
- Page 24 MPX-4232 User’s Manual 10. Please choose “Search for the driver software in this location” Check “Include this subfolders” then press “C:\Driver\MPX-4232“ -23-...
- Page 25 MPX-4232 User’s Manual 11. Completing the ’’USB Serial Port” updated -24-...
- Page 26 MPX-4232 User’s Manual 12. Please click “Scan for hardware changes” to finish updated -25-...
- Page 27 MPX-4232 User’s Manual 13. The device is now ready to use -26-...
-
Page 28: Contact Information
MPX-4232 User’s Manual Contact information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business.
