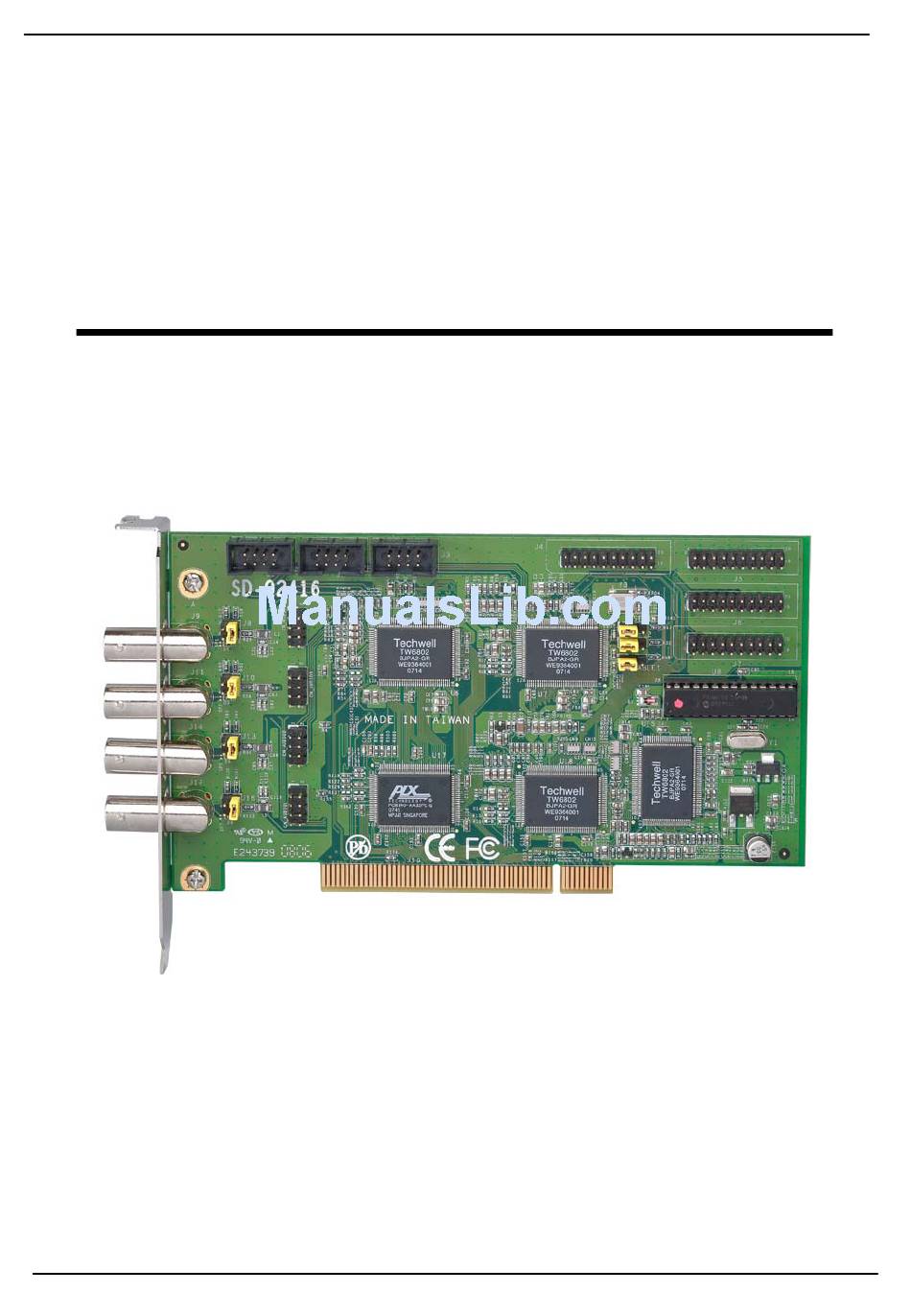

- Page 1 SD-02416 User’s Manual SD-02416 User’s Manual Edition 1.0 2008/03/21...
- Page 2 SD-02416 User’s Manual Copyright The trademarks mentioned in the manual are legally registered to their respective companies. Disclaimer Notice The written content provided with this product in the property of Taiwan Commate. No part of this manual may be reproduced, copied, transmitted in any form or by any means without prior written permission of Taiwan Commate.
-
Page 3: Packing List

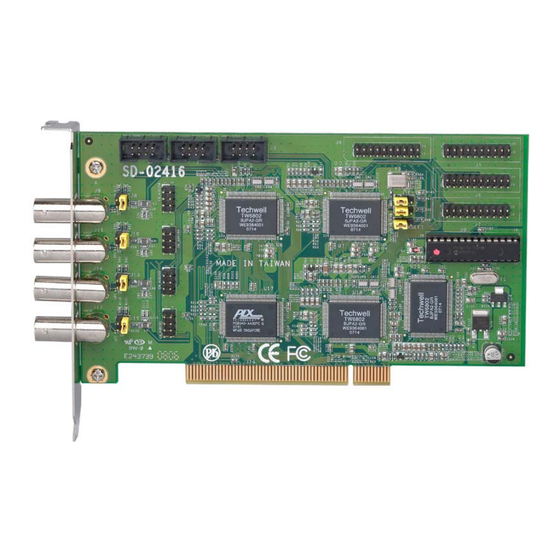

SD-02416 User’s Manual Packing List: Hardware: SD-02416 PCI Capture Card x1 Cable kit: D-SUB 9 Cable x 1 4 BNC Cable x 3 CD Content: Drivers (Including User’s Manual) -
Page 4: General Specification
SD-02416 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI with 124-pin interface Controller TW6802 Accessories 1 x (3 x 8pin) D-SUB 9 Cable 1 to 8 BNC Cable x 1 1 to 4 BNC Cable x 1 Features... - Page 5 SD-02416 User’s Manual 1.1 <Mechanical Drawing>...
- Page 6 SD-02416 User’s Manual 2.1 <Connector Location> JSEL1 GPIO 1- 4 JSEL2 JSENABLE Microchip TW6805 Reserve CN_Audio 1- 4 Video input...
-
Page 7: Default Setting
SD-02416 User’s Manual 2.2 <Jumper Reference> Card ID Selection: Description JSEL1 JSEL1 Select ID Card JSEL2 JSEL2 Select ID Card JSENABLE1 JSENABLE1 Reserve JSEL1 JSEL2 Card 0 Card 1 Card 2 Card 3 Default setting... - Page 8 SD-02416 User’s Manual 2.3 <Connector Reference> 2.3.1 <GPIO Interface> Connector: J4 , J5 , J6 , J7 Type: 20-pin (10x2) Header Device 1 Device 2 Device 3 Device 4 J4 Pin 4 J4 Pin 6 J4 Pin 8 J4 Pin 10...
- Page 9 Default setting ( 1 ) Standard video input: J9, J11, J14, J17 J9/J11/J14/J17 is the standard video input of SD-02416. Video resolution and real time frame rate can be available through this connector. ( 2 ) 16 channels input by shared frame: J1, J2, J3 With share frame technology, SD-02416 can receive up to 16 channel composite inputs through J1, J2, J3.
- Page 10 SD-02416 User’s Manual 3.1 <Driver Setting> 1. When you completed the Hardware installation, Please select file location ‘’L:\Driver\SD-02416\SD02416\SETUP’’. 2. Please choose ‘’Next’’. -10-...
- Page 11 SD-02416 User’s Manual 3. Please choose ‘’I accept the terms of the license agreement’’ the press ‘’Next’’. 4. Please fill in ‘’User Name’’、’’Company Name’’ the press ‘’Next’’.
- Page 12 SD-02416 User’s Manual 5. Please choose ‘’complete’’ the press ‘’Next’’. 6. Please press ‘’Install’’. -12-...
- Page 13 SD-02416 User’s Manual 7. Please TCC2401 Capture and TCC2401A Audio Capture both choose ‘’Continue Anyway’’.
- Page 14 SD-02416 User’s Manual 8. Please choose ‘’Finish’’. 9. After driver install, please enter Device Manager , Driver Install OK!! -14-...
- Page 15 SD-02416 User’s Manual 3.2 <Sample Program> 1. You can use COMMELL “TCCVDCApp” sample program to test and you can appliance TCCDVCApp.exe on desktop. 2. Please choose ‘’Preview’’. 3. Then you can see program interface as following.
- Page 16 SD-02416 User’s Manual Explanation of Sample program function Device ID: It is mean Techwell Chipset. One SD-02416 have 4 chipset, so, you can select 0/1/2/3. Channel ID: Per chip can support 4 Video input, So, You can select 0/1/2/3 for Video input.
- Page 17 SD-02416 User’s Manual 3.3 <Device ID & Channel ID sample> 1. If you Setting 4 Device as 4 Channels. The program show will be as following. 2. If you Setting 4 Device as 16 Channels. The program show will be as following:...
-
Page 18: Contact Information
Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC. -18-...
