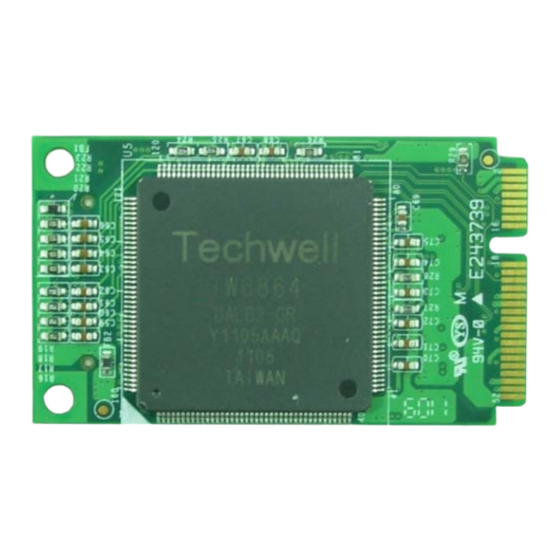

Commell MPX-6864 User Manual

Mini pci express capture card
Hide thumbs

Advertisement

Quick Links

Download this manual

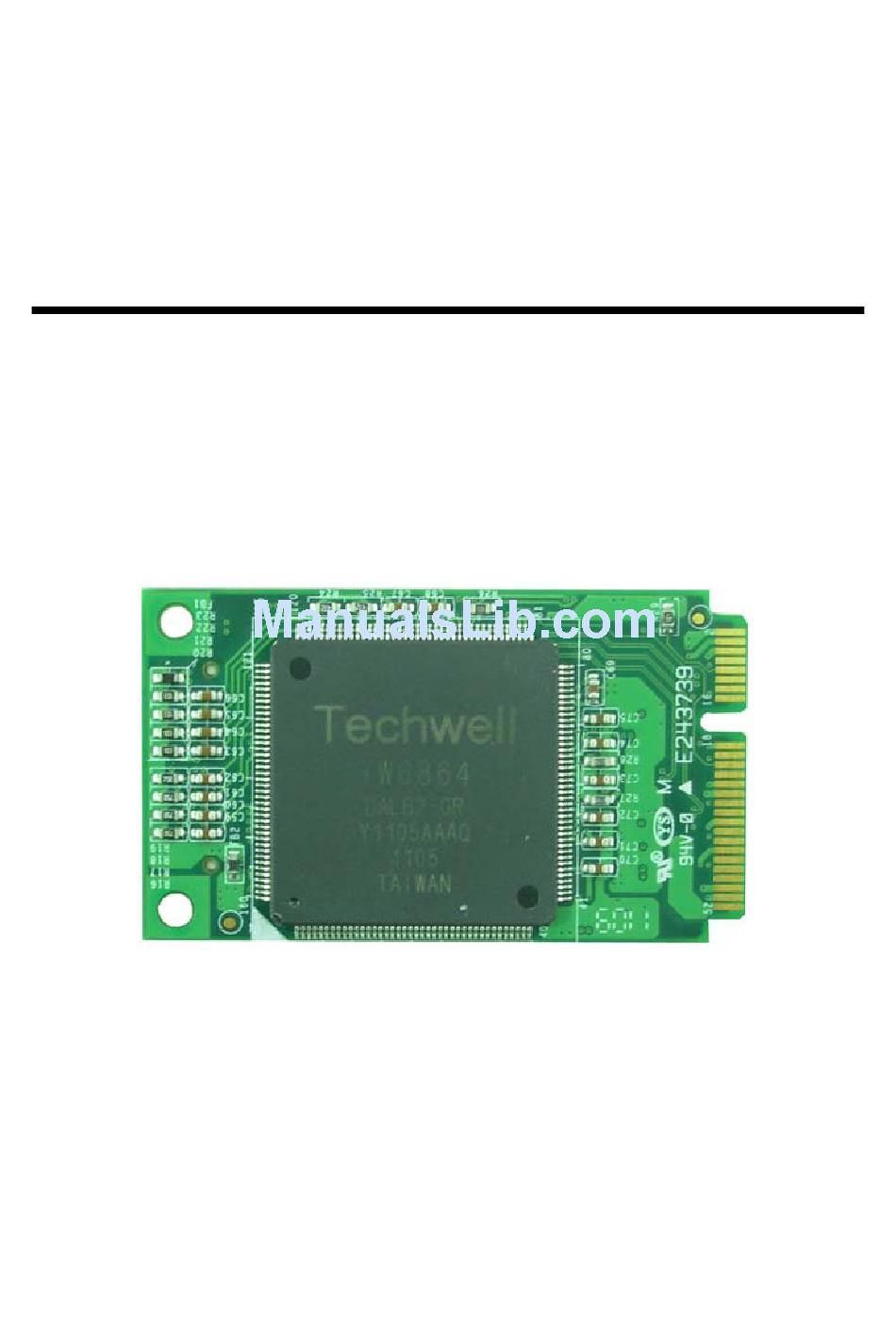

MPX-6864
User's Manual
Edition 1.0
2010/04/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the MPX-6864 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell MPX-6864

Summary of Contents for Commell MPX-6864

  • Page 1 MPX-6864 User’s Manual Edition 1.0 2010/04/19...
  • Page 2 MPX-6864 User’s Manual Copyright Copyright 2011 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    MPX-6864 User’s Manual Packing List: Hardware: MPX-6864 Mini PCI Express Capture Card x1 Cable kit: Cable: 1 x 10-pin DF14 to D-sub 9 Cable OALES-BKU1-H14 1 x 4-ch BNC Video input & 4-ch RCA Audio input Cable OALDB9-BR4 CD Content:...

  • Page 4: General Specification

    MPX-6864 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI Express mini card Controller One TW6864 chip Accessories 1 x 10-pin DF14 to 1 x D-sub 9 Cable 1 x 4-ch BNC Video input & 4-ch RCA Audio input Cable...
  • Page 5 MPX-6864 User’s Manual 1.2 <Mechanical Drawing>...
  • Page 6 MPX-6864 User’s manual 1.3 <Connector Reference> Connector: CN_AV Type: DF14 10-pin pitch=1.25mm Description Description Video1 Video2 Video3 Video4 Ground Audio1 Audio2 Audio3 Audio4 Ground...
  • Page 7 MPX-6864 User’s Manual 1.4 <Driver Setting> 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please select file location C:\TW68xx SDK\drv\x86\Driverinstall 3. Please choose Install...
  • Page 8 MPX-6864 User’s manual 4. Please click “OK” to complete the installation.
  • Page 9 MPX-6864 User’s Manual 1.5 <Sample Program> 1. Please select file location C:\TW68xx SDK\bin\vcc9\x86\Tw68xx...
  • Page 10 MPX-6864 User’s manual 2. Please refer to the usage instructions. C:\TW68xx SDK\doc \TW68XX SDK Demo Program Instructions.doc...

  • Page 11: Contact Information

    19F., .94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan (R.O.C.) +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is the trademark of Taiwan Commate Computer INC.
