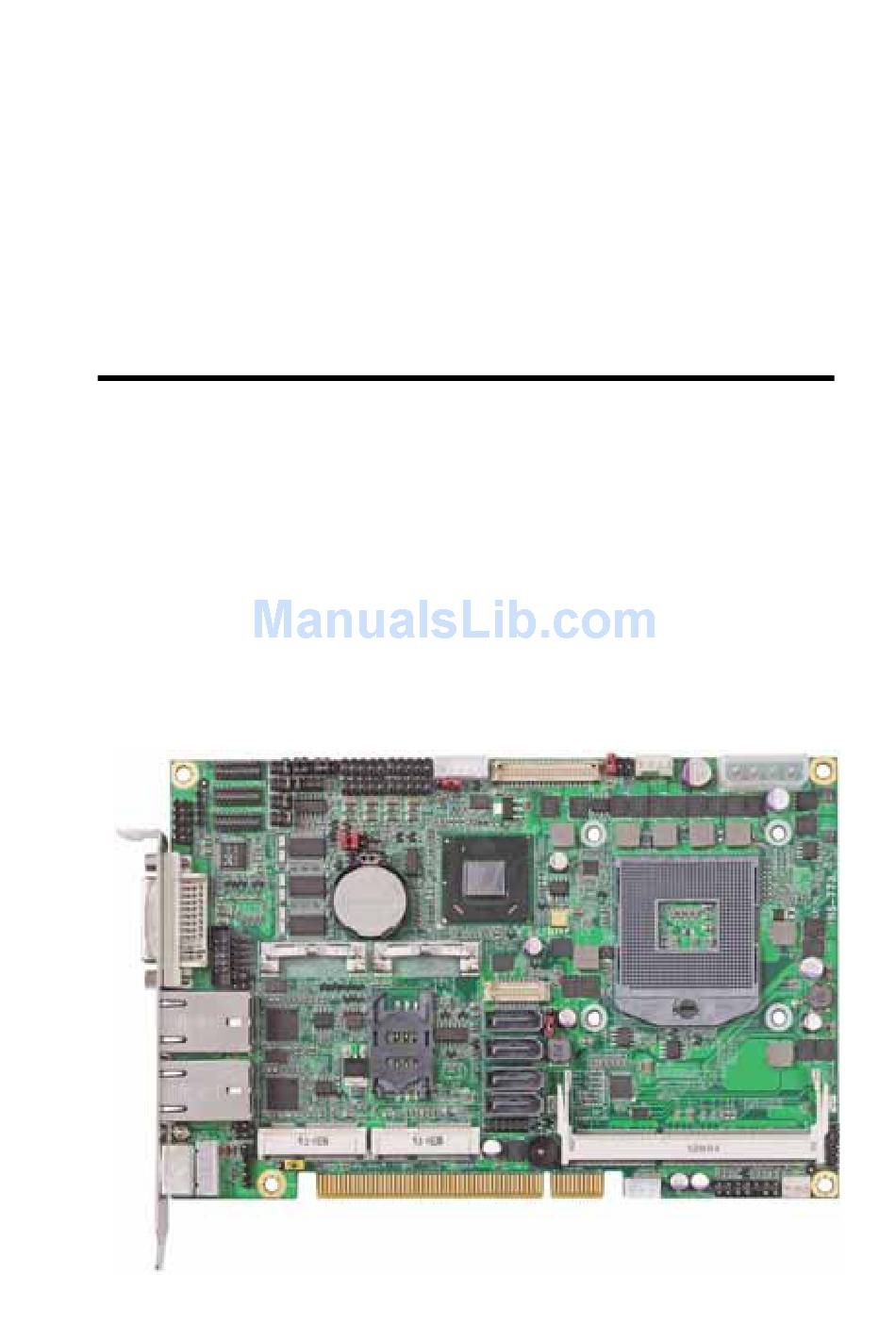

- Page 1 HS-773 Half-size PCI Bus CPU Card User’s Manual Edition 1.3 2013/10/09...
- Page 2 HS-773 User’s Manual Copyright Copyright 2011, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Sata Cable X
HS-773 User’s Manual Packing List: Please check the package contents before you starting using the board. Hardware: HS-773 PCI-bus SBC x 1 Cable Kit: SATA Cable x 2 4-pin to 3-pin ATX cable x 1 (1040529) (1040184) PS/2 Keyboard & Mouse Cable x 1... -
Page 4: Table Of Contents
HS-773 User’s Manual Index Chapter 1 <Introduction> .............6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 8 1.4 <Block Diagram>..................9 Chapter 2 <Hardware Setup> ..........10 2.1 <Connector Location> ................10 2.2 <Jumper Location & Reference>..............11 2.3 <Connector Reference>... - Page 5 HS-773 User’s Manual Chapter 3 <System Setup> ............37 3.1 <Audio Configuration> ................37 3.2 <Display Properties Setting> ..............38 3.3 <SATA configuration> .................40 3.4 <SATA RAID Configuration> ...............41 Chapter 4 <BIOS Setup> .............43 Appendix A <I/O Port Pin Assignment> ......45 A.1 <Serial ATA Port> ..................45 A.2 <IrDA Port>....................45...
- Page 6 HS-773 User’s Manual (This page is left for blank)
-
Page 7: Chapter 1

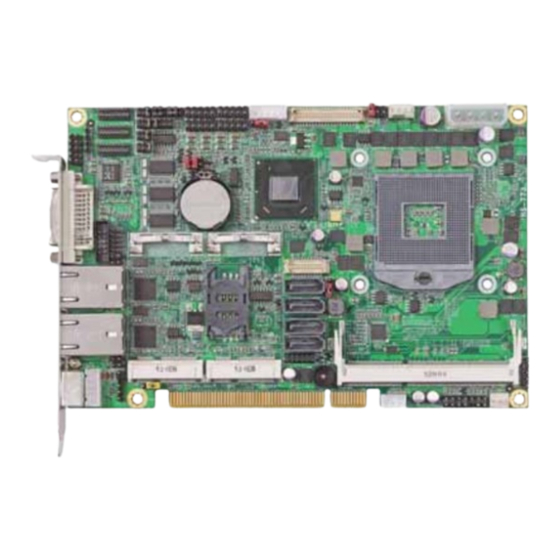

HS-773 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> HS-773 the 2 Generation Intel of PCI-bus SBC, supports 2 Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features Intel QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN. -
Page 8: Product Specification
HS-773 User’s Manual 1.2 <Product Specification> General Specification Form Factor Half-size PCI Bus CPU Card Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB... -
Page 9: Mechanical Drawing
HS-773 User’s Manual 1.3 <Mechanical Drawing>... -
Page 10: Block Diagram
HS-773 User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x LVDS 2 x PCI Express mini card QM67 1 x DVI-I 8 x USB 2.0... -
Page 11: Chapter 2
HS-773 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> COM 1 / 2 CN_USB 2 / 3 CN_INV COM 3 / 4 CN_USB 1 / 4 COM 5 / 6 CN_LVDS CPUFAN DC_IN CD_IN CN_AUDIO CN_LPC CN_CRT SATA1 SATA2... -
Page 12: Jumper Location & Reference
HS-773 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select COM1 Voltage Setting (For Pin 9) COM2 Voltage Setting (For Pin 9) COM3 Voltage Setting (For Pin 9) COM4 Voltage Setting (For Pin 9) -
Page 13: Connector Reference
HS-773 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4 7-pin Serial ATAII connector DC_IN 4-pin power supply connector... -
Page 14: Cpu And Memory Setup
HS-773 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel Sandy Bridge Processor, Please follow the instructions to install the CPU properly. Unlock way Socket CPU Check point 1. Use a slotted screwdrive to 2. -
Page 15: Memory Setup
HS-773 User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. Support Non-ECC, unbuffered memory only SO-DIMM1 SO-DIMM2... -
Page 16: Cmos & Atx Setup
HS-773 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be set in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 17: Serial Ata Interface
HS-773 User’s Manual 2.6 <Serial ATA Interface> LV-67H has Two Serial ATA II (SATA Port3/4) & Two Serial ATA III (SATA Port1/2) interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/... -
Page 18: Ethernet Interface
HS-773 User’s Manual 2.7 <Ethernet Interface> The board integrates with two Intel PCI Express Gigabit Ethernet controllers, as the PCI Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 19: Onboard Display Interface
HS-773 User’s Manual 2.8 <Onboard Display Interface> Based on Intel Sandy Bridge CPU with built-in HD Graphic, the board provides one DB15 on DVI-I real external DVI VGA cable, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and one DVI-I on bracket inverter connector and one DVI-I on bracket. -
Page 20: Digital Display
HS-773 User’s Manual 2.8.2 <Digital Display> The board provides DVI external connector and one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. - Page 21 HS-773 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 22 LCD Installation Guide: Prepare the HS-773, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 23 HS-773 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is listed below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
- Page 24 HS-773 User’s Manual...
-
Page 25: Integrated Audio Interface
HS-773 User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 26 HS-773 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 27: Usb Interface
HS-773 User’s Manual 2.10 <USB Interface> HS-773 integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel® QM67 Controller Transfer Rate Up to 480Mb/s Voltage CN_USB 2 / CN_USB3 CN_USB 1 / CN_USB4 JVUSB Connector: CN_USB1/2/3/4 Type: 10-pin (2 x 5) header (pitch = 2.54mm) - Page 28 HS-773 User’s Manual Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 & 4-6 Default: 1-3 & 2-4 Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 Warning: Others will cause damages.
-
Page 29: Serial Port
HS-773 User’s Manual 2.11 <Serial Port> The board supports five RS232 serial port and one jumper selectable RS232/ 422/ 485 serial ports. The jumper JCSEL1 and JCSEL2 can let you configure the communicating modes for COM2. Connector: COM1/2, 3/4, 5/6 Type: 20-pin (2 x 10) header pitch = 2.54x1.27mm... - Page 30 HS-773 User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 31: Pcie Mini Card And Sim Interface
MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. - Page 32 HS-773 User’s Manual MINI_CARD1 MINI_CARD2 SIMM Connector: SIMM Type: 6-pin SIM socket Description Description SIMVCC SIMRST SIMCLK SIMVPP SIMDATA...
-
Page 33: Sim Setup
HS-773 User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction, see red arrow. Step 2. Make sure the cap is now at the OPEN position. Step 3. Flip the cap up and insert a SIM card into... - Page 34 HS-773 User’s Manual Step 4. Insert a SIM card as shown in the photo. Make sure the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 35: Gpio And Smbus Interface
HS-773 User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 36: Power Supply And Fan Interface
HS-773 User’s Manual 2.14 <Power Supply and Fan Interface > The board requires onboard 4-pin DC 5V/12V power required, optional 5VSB for ATX. 2.14.1 <Power Input> Connector: DC_IN Type: 4-pin header Description Description +12V Ground Ground Connector: CN_PS Type: 3-pin connector... -
Page 37: Switch And Indicator
HS-773 User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 38: Chapter 3
HS-773 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM67 with REALTEK® ALC888 code. It can support 2-channel sound under system configuration. Please follow the steps below to set up your sound system. Install REALTEK HD Audio driver. -
Page 39: Display Properties Setting
HS-773 User’s Manual 3.2 <Display Properties Setting> Based on Intel QM67 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you start to set up display devices. - Page 40 HS-773 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to set up the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to set up the dual display mode as same screen...
-
Page 41: Sata Configuration
HS-773 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -
Page 42: Sata Raid Configuration
HS-773 User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM67 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 43 HS-773 User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology.
-
Page 44: Chapter 4
HS-773 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 45 HS-773 User’s Manual (This page is left for blank)
-
Page 46: Appendix A
HS-773 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 47: Lan Led Port
HS-773 User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 48: Appendix B
HS-773 User’s Manual l Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm... -
Page 49: Appendix C
HS-773 User’s Manual l Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 50 HS-773 User’s Manual l...
-
Page 51: Memory Address Map
HS-773 User’s Manual l C.2 <Memory Address Map>... -
Page 52: System Dma & Irq Resources
HS-773 User’s Manual l C.3 <System DMA & IRQ Resources> DMA: IRQ:... -
Page 53: Appendix D
HS-773 User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87... -
Page 54: Appendix E
HS-773 User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 55: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate Computer Inc.
