5.5 Using the calf plate (optional)

You have the possibility to place an elevating legrest on your wheelchair in stead of a standard legrest. On an
elevating legrest you have a calf plate. In this section you can read how to use a calf plate.
Swing away the calf plate
Go to the front of the wheelchair;
-
Get a hold of the middle of calf plate and swing it away by moving the calf plate upwards and sideward's, see
-
figure 15.
Setting angle of the calf plate
Hold the calf plate at the top and bottom and by moving it up and down, find the correct angle, see figure 16;
-
When the calf plate moves to easily you can tighten it by using the supplied wrench (No. 6), figure 17.
-
Setting the height of the calf plate
In order to set the height of the calf plate, you have to use the number 4 supplied wrench.
Use the wrench to loosen the two screws, see figure 18;
-
Move the calf plate to the desired height and retighten the screws;
-
Make sure the calf plate in place.
-

5.6 Using an amputee support (Optional)

You have the possibility to place an amputee support on your wheelchair in stead of a standard legrest.. In this
section you can read how to use an amputee support.

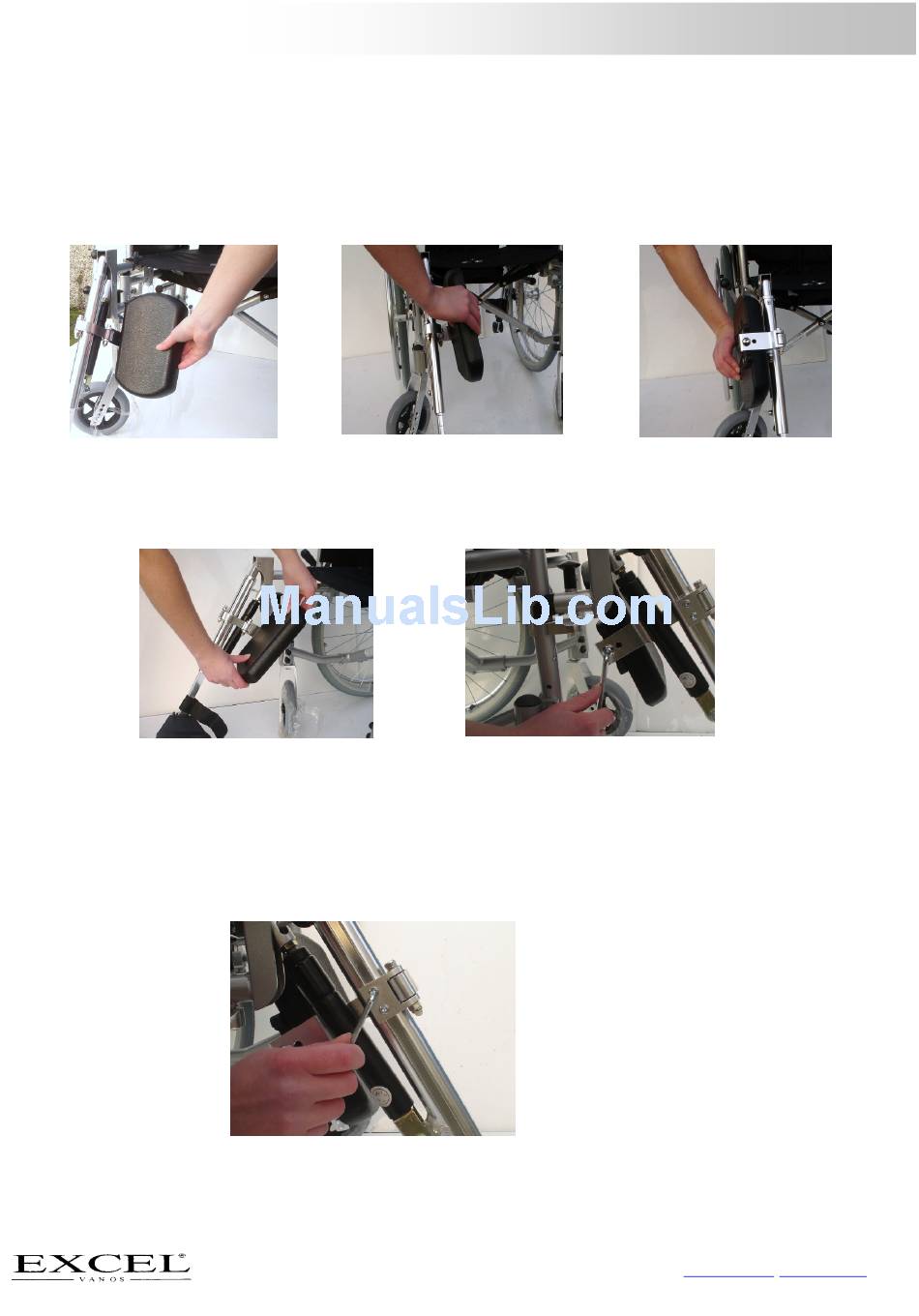

Figure 16
~ 16 ~
Figure 15
Figure 17
Figure 18
