2. GENERAL EXPLANATION CONCERNING YOUR WHEELCHAIR

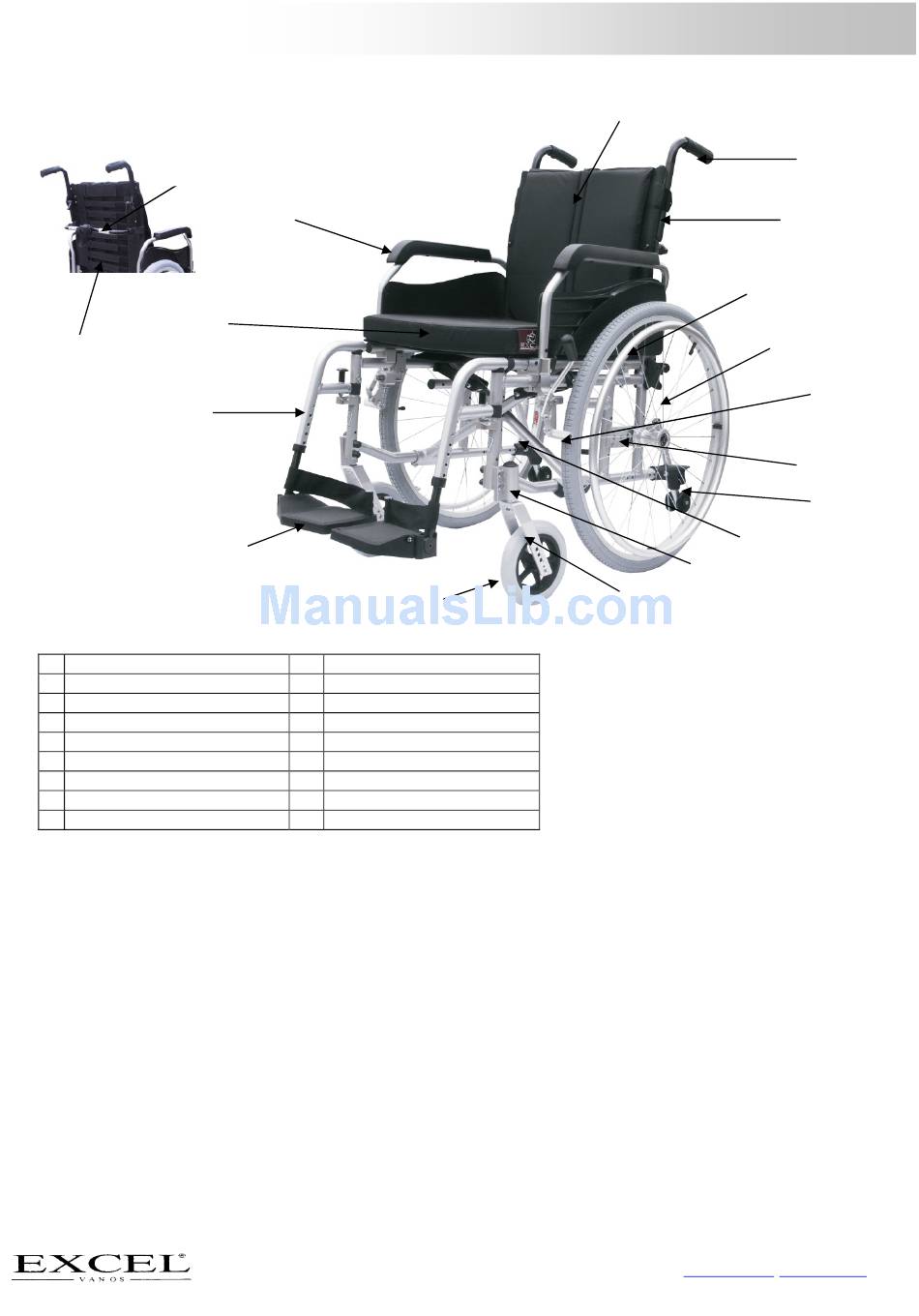

2.1 Components of the wheelchair

17
17
18
14
1 Back coating
2 Push handle
3 Backrest
4 Hand rim
5 Rear wheel
6 Parking brake
7 Axle bracket
8 Anti-tip wheels
9 Frame
Your wheelchair is equipped with a number of elements and parts. You should know these before continue reading
this manual. Your wheelchair can be equipped with options and accessories not pictured. You will see this yourself
whilst reading this manual. Designs and specifications may change without prior notice.

2.2 General explanation of the function and possibilities of your wheelchair

Your wheelchair is a foldable one, which is designed to be easy to transport in a car. Mainly, we divide the
wheelchairs into two categories: self propel version with large rear wheels, and the transit version with small rear
wheels. You can look at the rear wheel to see which type of wheelchair you have. If you wheelchair has big 24"
rear wheels and you can move it yourself it is a self propel version. If you wheelchair has small 12" rear wheels and
you need a supervisor to push the wheelchair it is a transit version.
Your wheelchair is a product falling into the medical equipment and is not a standard consumer product. You must
follow this manual completely to ensure good, optimal and safe use of your wheelchair.
16
15
13
10 Ball head
11 Front fork
12 Front wheel (swing castor)
13 Foot plate
14 Foot rest
15 Seat
16 Armrest
17 Tension bar
18 Tension straps back
