Summary of Contents for Excel G5

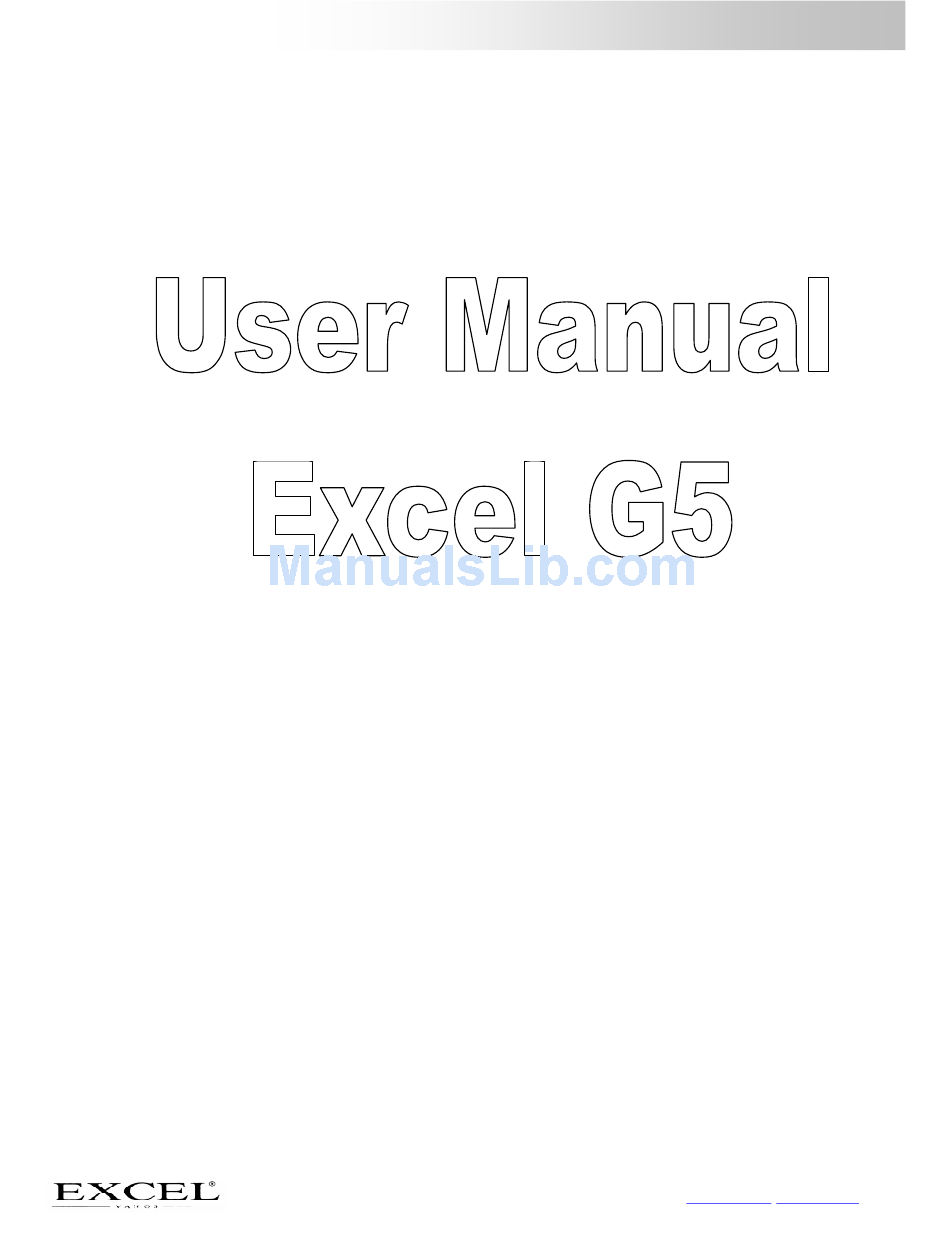

- Page 1 Excel G5 user manual © 2008 VAN OS MEDICAL UK LTD., Corunna House Business Centre, 42-44 Ousegate, Selby, North Yorkshire, YO8 4NH Tel. +44(0)1757 701177, Fax +44(0)1757 706011, E-mail: sales@vanosmedical.com, www.vanosmedical.com ~ 1 ~...
- Page 2 You have just bought a Van Os Medical UK Ltd wheelchair and we want to thank you for the confidence in our EXCEL ® products. The EXCEL ® wheelchair is a quality product. It is adjustable in many different ways and can also be easily upgraded.
-
Page 3: Table Of Contents
Excel G5 user manual Contents IDENTIFICATION ................................ 4 GENERAL EXPLANATION CONCERNING YOUR WHEELCHAIR ................5 ..........................5 OMPONENTS OF THE WHEELCHAIR ............5 ENERAL EXPLANATION OF THE FUNCTION AND POSSIBILITIES OF YOUR WHEELCHAIR SAFETY REGULATIONS .............................. 6 ............................6 ENERAL SAFETY REGULATIONS .............................. -
Page 4: Identification
5. Model Name The model name of your wheelchair starts Excel with the mark name. The mark name Excel, followed by three figures and an additional model description forms the model name of your wheelchair. -
Page 5: General Explanation Concerning Your Wheelchair
The type you own is stated on the frame label; after the numbers behind brand name EXCEL, there is a capital S (stating a self propel) or the capitals ST (stating a transit wheelchair). Your wheelchair is a product falling into the medical equipment and is not a standard consumer product. -
Page 6: Safety Regulations
VAN OS MEDICAL UK Ltd specifically disclaims responsibility for any body injury or property damage which may occur during any use which does not comply with laws or ordinances. If used correctly, the Excel wheelchair is an utmost safe and stable product, if the instructions for use as described in this manual are followed. However, it is possible when the Excel wheelchair is not used correctly, dangerous situations may occur. - Page 7 Excel G5 user manual A ‘wheelie’ is extremely dangerous to the user and will cause serious damage to the wheelchair Never connect anything to the wheels, this may cause damage to the chair and also effect the balance of the chair and may injure the user;...
-
Page 8: Instructions For Use
Excel G5 user manual 4. INSTRUCTIONS FOR USE You will have to learn the characteristics of your wheelchair. It is most important to learn the safest methods to develop the daily activities in accordance to your life style. Consult your medical advisor or therapist for assistance by developing safe and effective techniques for your daily activities and your physical possibilities. -
Page 9: Taking Pavements And Unequal Surfaces
Excel G5 user manual Reaching / bending sideward Manoeuvre the chair as close as possible to the object you want to reach; Ensure that the front wheels are fully turned to the front. If not, go forwards and then backwards to turn the wheels fully to the front;... -
Page 10: Going Up And Down Ramps
Excel G5 user manual If you alone on the pavement wish to go up, you should move your weight as far forward as possible by bending forward. Then you must provide a so-called 'Wheelie', to get the front wheels on to the curb, to allow you to climb the curb (see Figure 3, under the heading "Warnings for safe use). - Page 11 Do not use the wheel brakes during the descent. The wheel brakes are designed for static braking of the rear wheels whilst stationary. Avoid changing direction as you descend. Despite that your EXCEL ® wheelchair is designed for balance and control, a change of direction on the slope and change the balance will cause instability.
-
Page 12: Going Up And Down Stairs
Excel G5 user manual Going up and down stairs Stairs are one of the largest obstacles for wheelchair users. However, with a little help from others it is possible to climb up and downstairs when a wheelchair lift is not available. You must be aware of the rather heavy weight to be placed. -
Page 13: Instructions For Use And Opportunities In Your Wheelchair

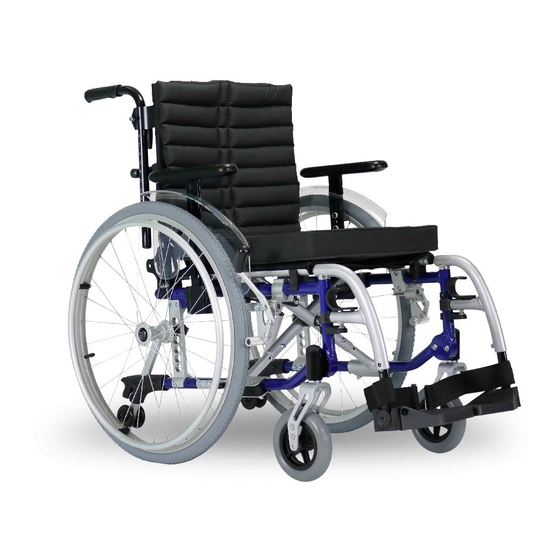

In this chapter we will explore all the possibilities that you have with your wheelchair. All options will be discussed, but all use instructions such as the removal of the footrest. Your wheelchair is an Excel G5 ® 200. The Excel ® 200 G5 consists in the following versions: Excel ® 200 G5 'Budget' Excel ®... -
Page 14: Opening And Closing The Wheelchair
Excel G5 user manual Transport Weight 8.4 kg Maximum User Weight 130 kg (150 kg in seat width 50cm and 55cm) Opening and closing the wheelchair Opening the wheelchair From the folded position stand to the side of the wheelchair. - Page 15 Excel G5 user manual Pull the black control lever to release the footrest, see Figure 5 You can now move the complete footrest inwards or outwards without removing it Removing the footrests from your wheelchair Fold the footplate away (see earlier in this chapter) Pull the black control lever, as shown in Figure 5.
-
Page 16: Using The Elevating Leg Support (Optional)
Excel G5 user manual Using the elevating leg support (optional) Swinging the elevating legrest(s) away Pull the black button upwards, see Figure 10 You can now swing your elevating legrest(s) inwards and outwards Removing the elevating legrest(s) from your wheelchair Pull the black button upwards, see Figure 10. -
Page 17: Using The Calf Plate
Excel G5 user manual Using the calf plate Folding the calf plate back Get a hold of the calf plate and put it into the position shown on the first picture of figure 14. rotate around the legrest as shown on the last two pictures of figure 14. -
Page 18: Using An Amputee Support
Excel G5 user manual Using an amputee support Swinging the amputee support away Pull the black control lever, see figure 18 You can now swing the amputee support inwards and outwards Removing the amputee support from your wheelchair Pull the black control lever, see figure 18. You can now swing the amputee support inwards and outwards Swing the amputee support 90 ˚... -
Page 19: Using The Wheelchair Brake
Excel G5 user manual Setting the length of the amputation support In order to set the length of the amputation support, you require the supplied wrench number 5 Remove the four screws with the wrench, see figure 22. You can now move the black tube around the silver... -
Page 20: Using The Armrest
Excel G5 user manual Using the armrest Flipping the armrest backwards If you are in the wheelchair Where the front of the armrest meets the frame you will find a black lever. Pull the black lever to the frame, see figure 27... -
Page 21: Potential Uses And Functions Of The Back Of The Wheelchair
Excel G5 user manual Adjusting the armrest height (optional armrest) To adjust the height of this armrest, you have to use the supplied wrench number 4 Loosen the screw with the supplied wrench, see figure 30 Move the armrest to the correct height and tighten the screw back down... -
Page 22: Using The Rear Wheel And Anti-Tip Wheels
Backrest angle setting (optional models) On your wheelchair you have the opportunity to adjust the angle of the back. We advise that this procedure is conducted by an authorized @ Excel dealer. 5.10 Using the rear wheel and anti-tip wheels... -
Page 23: Using Accessories And Other Options On Your Wheelchair
Excel G5 user manual Using the anti-tip wheels Go stand to the back of the wheelchair; When you get down to your knees you will see the operating system of the anti-tip wheels, see figure 35; Retracting the silver round (figure 36) Will cause the anti-tip wheel to slide;... -
Page 24: Use Of The Headrest (Optional Item)
Excel G5 user manual items before transporting your wheelchair in a car or on a mini bus. We advise you to make contact with the carrier, your supplier and/or an approved manufacturer of taxi fixation systems for advice on an adequate system if... - Page 25 Excel G5 user manual Turn the lever back until they are tight and possibly do the same with the other levers (if an adjustment is required) Make sure the head is secure in place and that the three levers are not obstacles...
-
Page 26: Transport And Transit In Car
6. TRANSPORT AND TRANSIT IN CAR Your Excel wheelchair is designed to be easily transported by car. Your wheelchair is foldable so the total width is limited to an average measure of 20 cm. Further your wheelchair is equipped with swing away detachable footrests. -
Page 27: Tyres
Excel G5 user manual Tyres Examine tyres periodically for wear and replace them as needed. Pneumatic tyres should be checked weekly for correct tyre pressure, which is recommended on the tyre, with a standard car or bicycle tyre pressure gauge. If tyres do not have equal pressure, the chair will seem to pull to the side of the tyre with less pressure. -
Page 28: Upholstery
Van Os Medical UK Ltd direct. 8. PROBLEM ANALYSIS AND SOLUTIONS Your Excel 200 ‘G5 Basic’ wheelchair is inspected and adjusted so that you can use it immediately. Continual use necessitates maintenance, especially if the factory set adjustments have been altered. - Page 29 Excel G5 user manual dealer, or Van Os Medical UK Ltd. © 2008 VAN OS MEDICAL UK LTD., Corunna House Business Centre, 42-44 Ousegate, Selby, North Yorkshire, YO8 4NH Tel. +44(0)1757 701177, Fax +44(0)1757 706011, E-mail: sales@vanosmedical.com, www.vanosmedical.com ~ 29 ~...
-
Page 30: Warranty
This warranty is only granted to the consumer and is not intended to be used commercially (like hiring or institutional use) and could not be changed in any way. The warranty is limited to defects to materials and possible hidden shortages. VAN OS MEDICAL UK Ltd guarantees the following components on your EXCEL® wheelchair: COMPONENT... - Page 31 Excel G5 user manual In normal circumstances no responsibility is accepted when the wheelchair needs replacement or repair as a direct result from: Not maintaining the wheelchair and parts according to the recommendations of the manufacturer, or not using the specific original parts.
-
Page 32: Service And Maintenance
Excel G5 user manual SERVICE AND MAINTENANCE 10.1 General Maintenance instructions Your wheelchair needs periodical maintenance. This is necessary for a long lifetime and an optimal use comfort of your wheelchair. A badly maintained wheelchair will give more technical problems, turn less flexible and fall out the warranty terms. -
Page 33: Service Checklist
Excel G5 user manual 10.2 Service checklist For optimal life your wheelchair should be periodically maintained by an authorized dealer. Service Schedule Service interval: ........ Service number Wheels: for example: play, wear bearings, adjust quick-release Tyres Hand rims: for example: wear and burrs...
