- Page 1 User manual Excel G-Modular...
-
Page 2: Table Of Contents
6.3 The armrests 6.4 The backrest 6.5 The brakes 6.6 The leg rests © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... - Page 3 9. Problem analysis and solutions 10. Warranty 10.1 Warranty application 10.2 Warranty conditions © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com...
-
Page 4: General Introduction
General introduction Before you are going to use your new Excel G-Modular, you and your attendant must fully read and understand this user manual. Also, as you have this user manual, you agree to the conditions mentioned in this user manual. - Page 5 …………………………………………………………………………………………………………………………………… Phone number: …………………………………………………………………………………………………………………………………… Fax number: …………………………………………………………………………………………………………………………………… E-mail address: …………………………………………………………………………………………………………………………………… Website: …………………………………………………………………………………………………………………………………… © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com...
-
Page 6: Identification
You need the model name if you have any technical questions or if you want to order any parts for the wheelchair, in this case the Excel G-Modular. 6. Description The intended use of your wheelchair is described here. -
Page 7: General Information

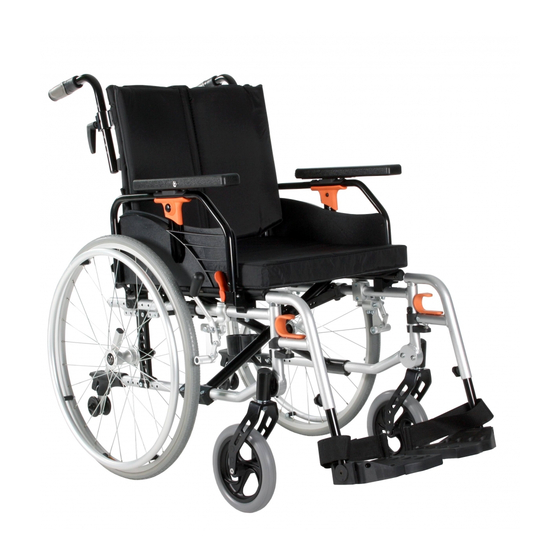

General explanation about your wheelchair Your new Excel G-Modular wheelchair is a lightweight wheelchair. The wheelchair is equipped with ergonomic handles so that your attendant can push the wheelchair properly. In addition, the handles are easily adjusted (Euro spec chair only). Also, the armrests of the wheelchair can be folded backwards. The footrests can swing away and are removable. -
Page 8: Safety Regulations
The Excel G-Modular is a very safe and stable product when used correctly, it is possible if you use wheelchair incorrectly that dangerous situations may occur. - Page 9 Warning The implementation of changes to the Excel G-Modular wheelchair, which are structural changes, is at all times at the expense of the warranty. © 2015 Excel, part of Van Os Medical B.V.
-
Page 10: User Instructions
You can now move towards the target, with caution to keep the wheelchair from falling. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 11: Bending And/Or Reaching To The Side
Your attendant should not lower the wheelchair until the castors are on the curb or threshold. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 12: Going Down A Curb Or Threshold
Always be careful when getting up and down an incline. An incline steeper than 5° is already dangerous to go up or down with your wheelchair. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 13: Going Down An Incline
If you go up a stairway with your wheelchair, you should take a maximum of one step at a time. This prevents the risk of falling down the stairs in your wheelchair. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 14: Going Down A Flight Of Stairs
Please be aware; the footrests are not built for lifting, carrying the wheelchair with, they are removable and an accident will occur. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 15: Specifications
User Manual | Excel G-Modular Specifications Below, you will find the specifications of the Excel G-Modular. Technical specifications of the Excel G-Modular Total length 101 cm (incl. footrests) Total width 63 cm Total height 93 ↔ 101 cm Total weight... -
Page 16: Components Of The Excel G-Modular
Components of the Excel G-Modular In this chapter the different components of the Excel G-Modular are described. On the wheelchair are a number of components present which are adjustable. If you want to add or remove any of its components, make any adjustments of replace components, you should always follow the instructions described in this user manual. -
Page 17: Unfolding The Wheelchair
8 is very important. The push handles The push handles of your Excel G-Modular are ergonomically designed (photo 11). This is to enable you to have an excellent grip on the push handles. This means, for the attendant, a more comfortable experience. -
Page 18: The Armrests
User Manual | Excel G-Modular The armrests The armrests of the Excel G-Modular are foldable backwards for side transfer. To flip back the armrests, you must follow the steps below. • On photo 12 you can see the armrests of the Excel G-Modular wheelchair;... -
Page 19: The Backrest
The brakes You can put your Excel G-Modular on the brakes. This is recommended when going in and / or going out of the wheelchair, but also when you left parked, you can put the wheelchair on the brake. If you want to put the brakes on the wheelchair, please follow the following steps. -
Page 20: The Leg Rests
User Manual | Excel G-Modular The leg rests The legrests of the Excel G-Modular are both swing away and removable. To remove or swing away the legrests, follow the following steps: • In photo 23 you can see the footrests of the wheelchair;... -
Page 21: The Footrests
It is also possible to adjust the width of the foot plates (photo 32). At the back of the footplate there is an Allen bolt. Loosen, remove, set the footplate to the desired width and re-tighten. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 22: The Frame
The stepper The Excel G-Modular is equipped with two steppers (photo 34). These can be used by the attendant to put extra force when an increase in height needs to be undertaken. However, you should be careful with the steppers when you use them. -
Page 23: The Wheels
The seat (photo 39) of the wheelchair is equipped with nylon, wipe able material. EXCEL G-MODULAR | PHOTO 39 © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 24: Transport Of Your Wheelchair
Transport of the wheelchair Your Excel G-Modular wheelchair is designed to be easily transported by car. Your wheelchair is foldable so the total width is, on average 33 cm. Further to that your wheelchair is equipped with swing away and removable footrests. -
Page 25: Unfolding The Wheelchair
EXCEL G-MODULAR | PHOTO 50 EXCEL G-MODULAR | PHOTO 51 EXCEL G-MODULAR | PHOTO 52 © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 26: Maintenance
Van Os Medical dealer at least once a year. This dealer will replace where necessary only Excel parts. These annual inspections will make sure your wheelchair will function correctly for years. There are a lot of things you can do yourself to keep your wheelchair in optimum condition. If you regularly check the wheelchair and perform (small) maintenance tasks, this will extend the lifetime of your chair and increase the ease of use. -
Page 27: The Crossframe
Make sure the nut is securely fastened through the castor to the fork. You can check this by spinning the castor. The castor must stop slowly. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 28: The Upholstery
• Check all spokes for tension; • Check tyre tread for wear. © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 29: Service Checklist
Teflon treatment for all moving parts. Seat cushion Checked by (paraph) Inspection date © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com... -
Page 30: Problem Analysis And Solutions
Problems may arise when using your Excel wheelchair. The potential problems that may occur are described below in the table. You will also find the solutions. If you have problems with your Excel wheelchair that cannot be found in the table below, we recommend you to contact an authorised Van Os Medical dealer. -
Page 31: Warranty
This warranty is only granted to you as the consumer. It is not intended to be used commercially (like hiring or institutional use). The warranty is limited to defects to materials and possible hidden shortages. Van Os Medical guarantees the following components on your Excel G-Modular wheelchair: •... - Page 32 Van Os Medical dealer to discuss the problem. The warranty is only valid during the indicated period. If adjustments are made to the Excel G-Modular wheelchair, which have structural impact on the product, the warranty will expire completely.
- Page 33 Signature of EU Representative EU Representative: Wijnand van Os Function: Director Place: Steenbergen Date: 01-01-2016 © 2015 Excel, part of Van Os Medical B.V. Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com...
- Page 34 For UK customers: For International customers: Van Os Medical UK Ltd. Van Os Medical B.V. Excel House Koperslagerij 3 Ashbrooke Park 4651 SK, Steenbergen (NB) Sherburn in Elmet The Netherlands North Yorkshire, LS25 6PJ T: +31 (0) 167 57 30 20 Tel.: +44 (0) 1977 681400...
