Swinging the amputee support away
Go to the front of the wheelchair;
-
Pull the black control lever up, see figure 19;
-
You can now swing the amputee support inwards and outwards.
-
Removing the amputee support from the wheelchair
Go to the front of the wheelchair;
-
Pull the black control lever up, see figure 19. You can now swing the amputee support inwards and outwards;
-
Swing the amputee support 90˚ away from the wheelchair and pull it straight up from the receiving tube.
-
Replacing the amputee support back on your wheelchair
Attach your amputee support back to the frame at an angle of 90° swung outwards, figure 20;
-
Turn the amputee support so that it is parallel with your frame;
-
You should hear a click. This click confirmed that the amputee support is in position.
-
Setting the angle of the amputee support
Hold the amputee support at the top and bottom and by moving up and down, find the correct angle, see
-
figure 21;
When the amputee support moves to easily you can tighten it by using the supplied wrench (No. 6), figure 22.
-
Setting the height of the amputee support
In order to set the height of the amputee support, you have to use the number 4 supplied wrench.
Use the wrench to loosen the two screws, see figure 23;
-
Move the amputee support to the desired height and position and retighten the screws;
-
Make sure the amputee support in place.
-

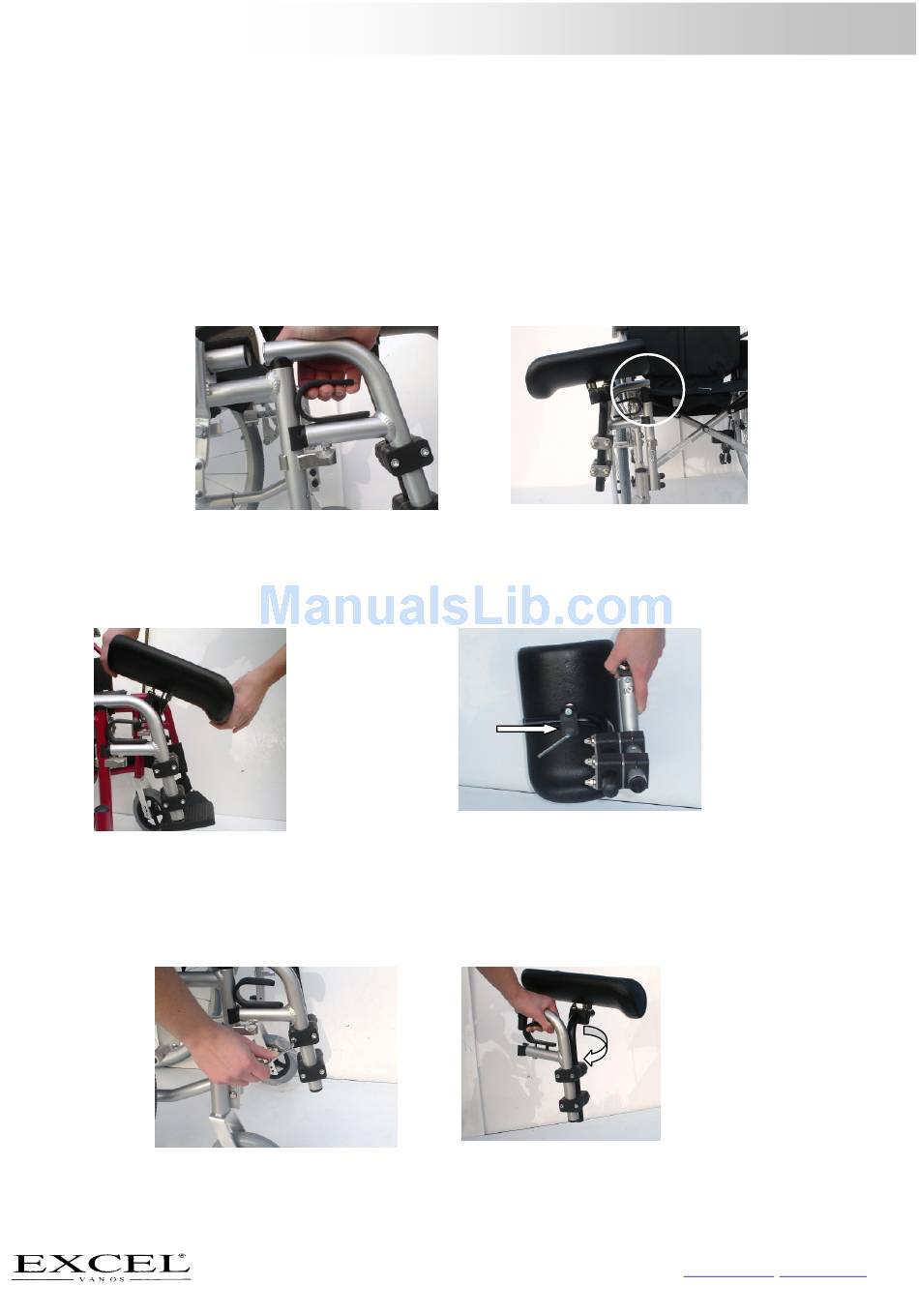

Figure 19
Figure 21
Figure 23
~ 17 ~
Figure 20
Figure 24
