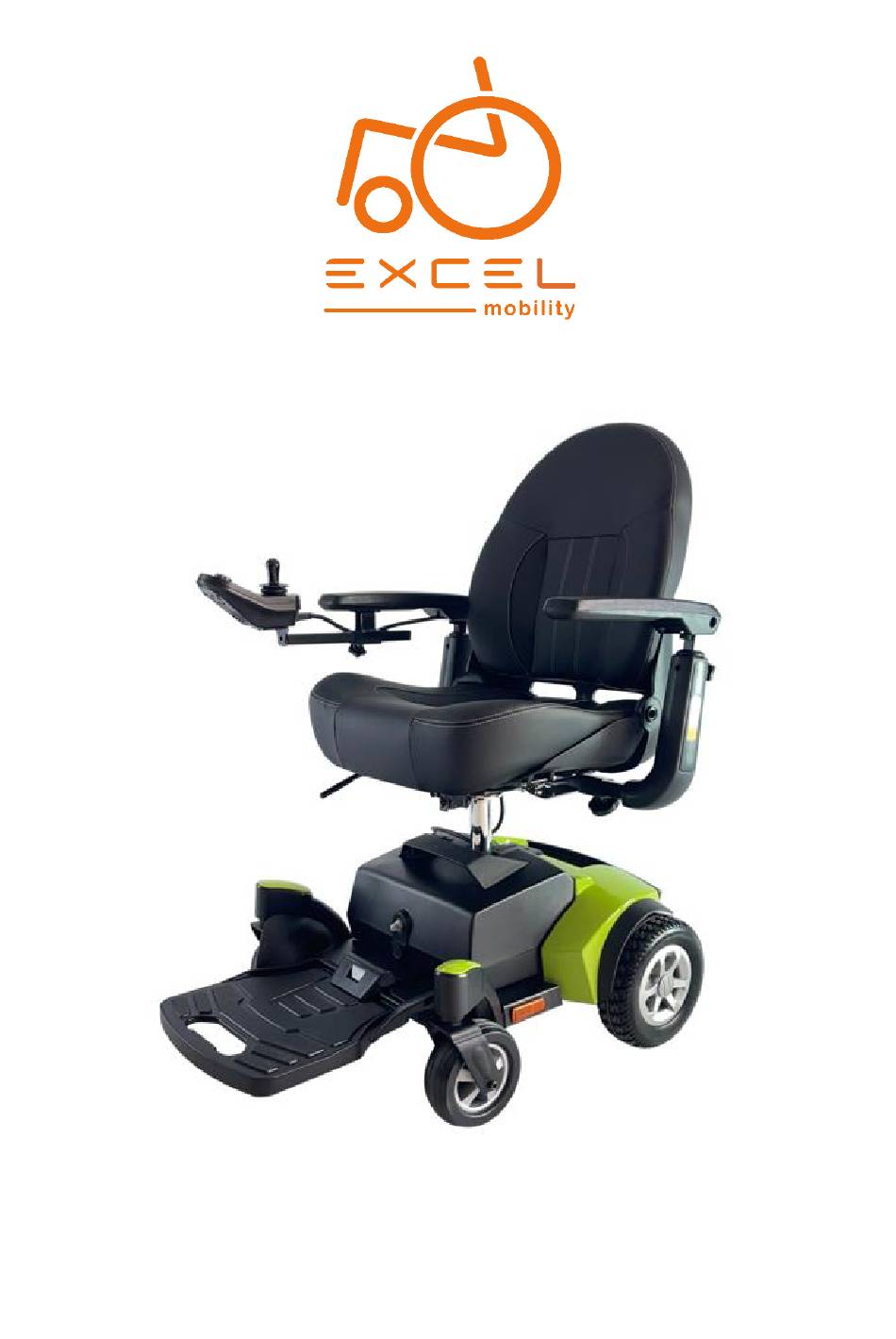

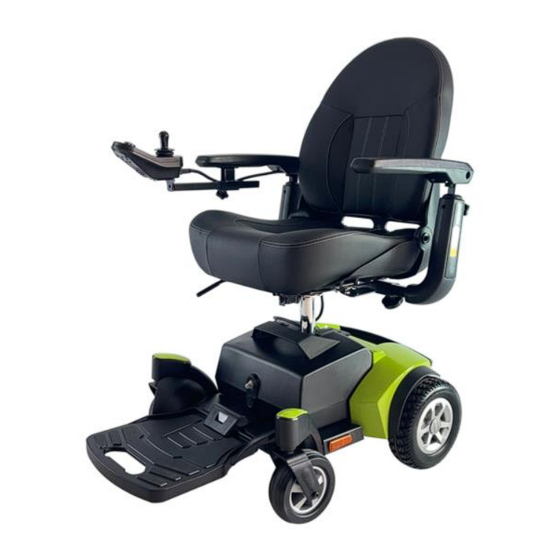

- Page 1 Owner’s Manual Excel Quest Power Chair...
-
Page 2: Table Of Contents
EXCEL QUEST | USER MANUAL Contents 1. Introduction Page 3 1.1 Dealer Information Page 4 2. Product Information Page 5 3. Operating Instructions and Safety Warnings Page 6 4. Assembly Page 10 5. Disassembly Page 14 6. Comfort Settings Page 16 7. -
Page 3: Introduction
1. Introduction Before you use your new Excel Quest, you must fully read and understand this user manual. Once you have read this user manual, you agree to the conditions mentioned in this user manual. We want to thank you for the confidence in our Excel ®... -
Page 4: Dealer Information
EXCEL QUEST | USER MANUAL 1.1 Enter Your Authorised Dealer Information Company Name: ....................Dealer Address: ....................Telephone Number: ....................Email Address: ....................Website Address: .................... -
Page 5: Product Information
EXCEL QUEST | USER MANUAL 2. Product Identification Your powerchair is equipped with a frame label, which is located on the frame of your power chair. The frame label contains information about your power chair, for example the product name, manufacturer name, the name of the authorised representative(s), Unique Device Identifier (UDI) and technical data of your power chair. -
Page 6: Operating Instructions And Safety Warnings
Check to be certain that your Excel Quest is not in the freewheel mode. Flip up the armrests. Flip up the footrest. Never stand on the footrest when getting on or off your Excel Quest. This action can result in a loss of balance and/or an injury. Getting ON your Excel Quest Carefully seat yourself comfortably and securely on the seat. - Page 7 If, while you are driving down a slope, your power chair starts to move faster than you feel is safe, release the joystick lever and allow your Excel Quest to come to a stop. When you feel that you again have control of your power chair, push the joystick lever forward and continue safely down the remainder of the slope.
- Page 8 Always cross streets at intersections and use the most direct route, making sure that your path is clear and that you are visible to motor traffic. • It is not recommended to drive your Excel Quest, up or down a step or curb that is higher than 5cm. •...
- Page 9 Should you encounter a problem with the operation of your Excel Quest such as a mechanical or electrical problem immediately stop using the product. Disconnect the batteries then contact your dealer from whom you purchased your Excel Quest for evaluation of the problem and repair if needed.
-
Page 10: Assembly
Never use your Excel Quest’s wheels or arm assemblies as a handle. The wheels may rotate and/or the arms may pull out of the seat, which can cause an injury and/or damage to the... - Page 11 EXCEL QUEST | USER MANUAL Line up the frame and the drivetrain. See figure 1. WARNING! WATCH FINGER PLACEMENT! BE CAREFUL NOT TO PINCH YOUR FINGERS! Lower the frame onto the drivetrain until the drivetrain release lever engages. You should hear an audible click.
- Page 12 EXCEL QUEST | USER MANUAL Seat Installation Fold the seat backrest down. Grasp the seat firmly on each side, lift the seat and align the seat pin with the hole in the seat post receiver. See figure 4. Refer to the “Technical Specifications” section in this manual for the seat weight.
- Page 13 EXCEL QUEST | USER MANUAL Arm Installation 1. Loosen the arm width adjustment screw from the arm receiver tube at the bottom rear of the seat frame. See figure 5. 2. Insert the arm into the arm receiver tube, so that the arm pad faces toward the front of the unit.
-
Page 14: Disassembly
Never use your Excel Quest’s wheels or arm assemblies as a handle. The wheels may rotate and/or the arms may pull out of the seat, which can cause an injury and/or damage to the power chair. - Page 15 EXCEL QUEST | USER MANUAL Disassembly 1. Disconnect the joystick cable from the power module cable. Note: The joystick can be removed to reduce weight. 2. Fold the seat back down. Note: Seat arms can be removed to reduce weight.
-
Page 16: Comfort Settings
EXCEL QUEST | USER MANUAL 6. Comfort Settings You may be spending a great deal of time on your Excel Quest. To provide you with the maximum seating comfort, we have designed this power chair to incorporate the following adjustments for... - Page 17 EXCEL QUEST | USER MANUAL Arm Width Adjustment Loosen one of the adjustment screws at the rear of the seat. See figure 9. Slide the arm in or out to the desired width. Tighten the adjustment screw to secure the arm.
- Page 18 EXCEL QUEST | USER MANUAL Footrest Angle Adjustment Fold the footrest upward for easy access to the angle adjustment bolt. See figure 11. Use an Allen wrench to turn the adjustment bolt. Turning the adjustment bolt anti- clockwise will decrease the footrest angle. Turning the adjustment bolt clockwise will increase the footrest angle.
- Page 19 EXCEL QUEST | USER MANUAL Joystick Position right to left side Loosen the joystick adjustment screw. See figure 13. Slide the joystick mount forward and remove the joystick. Reposition the joystick and joystick cable to the opposite side of the power chair.
- Page 20 EXCEL QUEST | USER MANUAL Seat Backrest Angle Adjustment The seat is designed with backrest angle adjustable for 0 degree and 90 to 115 degrees adjustments. 1. The backrest can be folded down to minimise chair height during transport. 2. Lift the lever under the seat on the left-side of the seat to adjust the angle of the seat back.
-
Page 21: Operation
EXCEL QUEST | USER MANUAL 7. Operation Before turning on the power of your Excel Quest, take note of your environment and set your speed control accordingly. (See “The Speed Control Buttons” figure 14). For indoor driving, we recommend that you select the lowest speed setting. For outdoor driving, we recommend that you select a speed setting at which you feel comfortable, safe, and in control of your power chair. - Page 22 EXCEL QUEST | USER MANUAL...
- Page 23 EXCEL QUEST | USER MANUAL...
- Page 24 EXCEL QUEST | USER MANUAL...
-
Page 25: Fault Diagnosis
EXCEL QUEST | USER MANUAL 8. Fault Diagnosis FREEWHEEL MODE ♦ To disengage the brakes and put your power chair in freewheel mode, push the freewheel levers down. See below. ♦ To re-engage the brakes and take your chair out of freewheel mode, pull... - Page 26 THE MAIN CIRCUIT BREAKER ♦ The main circuit breaker is another safety feature incorporated into your Excel Quest. This device monitors the amount of current being drawn from the batteries when the chair is in use. When the motors are heavily strained and too high a current draw is being placed on the batteries, the main circuit breaker will trip and bring your chair to a stop.
-
Page 27: Charging The Batteries
EXCEL QUEST | USER MANUAL 9. Charging the batteries You must use only the charger that is supplied with your Excel Quest. The use of any other charger on this power chair will void the warranty. Using unauthorised chargers may also result in severe damage to the batteries and/or damage to the chair. - Page 28 EXCEL QUEST | USER MANUAL CHARGING THE BATTERIES Your Excel Quest’s charging system is designed for your safety and for your convenience. Follow the steps below to recharge the batteries. Charger Position your Excel Quest close to a standard wall electrical outlet.
-
Page 29: Product Maintenance
Dry with a clean, soft cloth. Buff by hand with a soft cloth. Do not use free-flowing water to clean your Excel Quest. Tyres: Clean the tyres with ordinary kitchen-type cleaners and a damp cloth. Do not use solvents on the tyres. - Page 30 EXCEL QUEST | USER MANUAL Specification Details Type Batteries 2 x 18 AH Colours Red, Blue, Orange, Green, Silver, Yellow Freewheel Mode Electronic Speed Control Electro-Mechanical Brakes Charger Off Board Controller 40 Amp Remote Length 82 cm Width 56 cm...
-
Page 31: Notes
EXCEL QUEST | USER MANUAL Notes: …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………………………………... - Page 32 EXCEL QUEST | USER MANUAL Quality Life Technologies Co. Ltd, No.3 Lao Fu Wu Road, Huang Wu Industrial District, Dongkeng Town, Dongguan, Guangdong, 523447 China Importer for the UK: Van Os Medical UK Limited. Excel House, Ashbrooke Park, Lincoln Way, Sherburn in Elmet,...
