5.5 Using the calf plate (optional)

You have the possibility to place an elevating leg rest on your wheelchair instead of a standard leg rest. The
elevating leg rest is equipped with a calf plate. In this section you can read how to use a calf plate.
Swing away the calf plate
- Go to the front of the wheelchair;
- Get a hold of the middle of the calf plate, picture 12;
- Swing the calf plate away by moving it upwards and sideward's, picture 13.
Setting the angle of the calf plate
Hold the calf plate at the top and bottom and by moving it up and down find the correct angle, picture 14;
Setting the height of the calf plate
In order to set the height of the calf plate, you have to use the number 4 supplied wrench.
- Use the wrench to loosen the two screws, picture 15;
- Move the calf plate to the desired height by pushing it upwards or downwards, picture 16

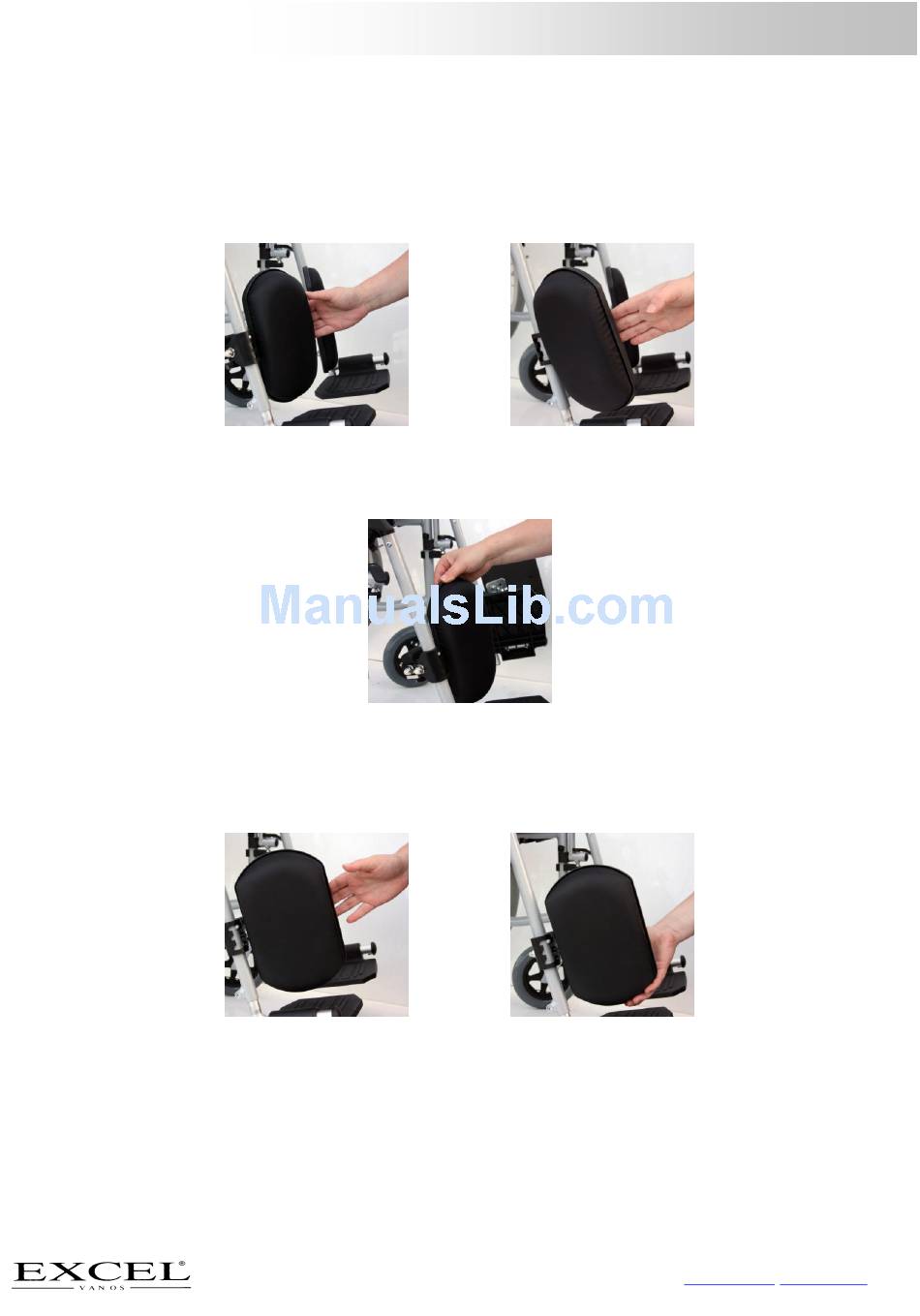

Picture 12
Picture 14
Picture 15
~ 14 ~
Picture 13
Picture 16
