Excel G6 Active User Manual page 24

Seat Belt (optional item)
Your wheelchair is equipped with a seat belt which you can use the following way:

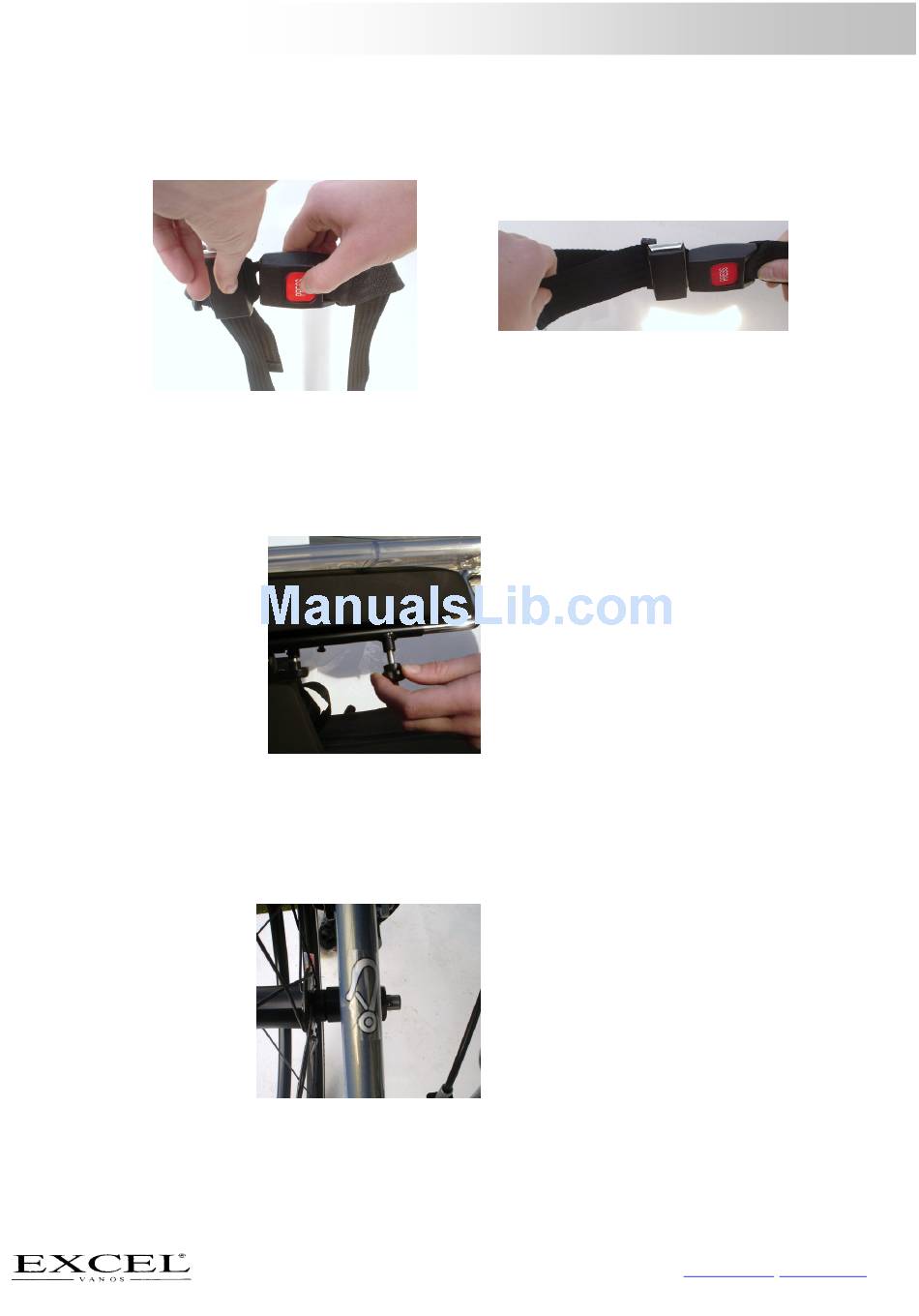

When in the wheelchair, you can fasten the belt by clicking the two loose ends together, see figure 42;
-
If the belt too loose or too tight you can make it more secure or looser, see figure 43;
-
To release the seat belt, you press the red button with 'press' printed on.
-
Work tray removable (optional)
Your wheelchair is equipped with a removable work tray. The work tray is locked in the tubes which you can find
under the armrest. You can remove the work tray by loosening the black button, see figure 44. When you want to
place the work tray back on the wheelchair you will have to do the above steps in reverse order.
Taxi Fixation Points
On your wheelchair, you will find taxi fixation indication points, see figure 45. You should be familiar with these
items before transporting your wheelchair in a car or on a mini bus. We advise you to make contact with the
carrier, your supplier and/or an approved manufacturer of taxi fixation systems for advice on an adequate system if
you want to transport your wheelchair
Figure 42
~ 23 ~
Figure 43
Figure 44
Figure 45
