5.4 Using the elevating legrests (optional)

You have the possibility to place an elevating legrest on your wheelchair in stead of a standard legrest. In this
section you can read how to use an elevating legrest.
Swinging the elevating legrest away
Go to the front of the wheelchair;
-
Pull the black button upwards, see figure 11;
-
You can now swing your elevating legrest inwards and outwards.
-
Removing the elevating legrest from the wheelchair
Go to the front of the wheelchair;
-
Pull the black button upwards, see figure 11;
-
You can now swing your elevating legrest inwards and outwards;
-
Swing the elevating legrest 90 ˚ to the outside of the wheelchair and pull it straight up from the receiving tube.
-
Replacing the elevating legrest back on the wheelchair
Go to the front of the wheelchair;
-
Attach your elevating legrest back to the frame at an angle of 90° swung outwards, figure 12;
-
Turn the legrest so that it is parallel with your frame;
-
You should hear a click. This click confirmed that the legrest is in position.
-
Setting height of the elevating legrest
Turn the black button on the elevating legrest, see figure 13;
-
Select the desired height, make sure the holes in the top two tubes are together and turn the black button
-
down;
Make sure the comfort leg support is in the desired position.
-

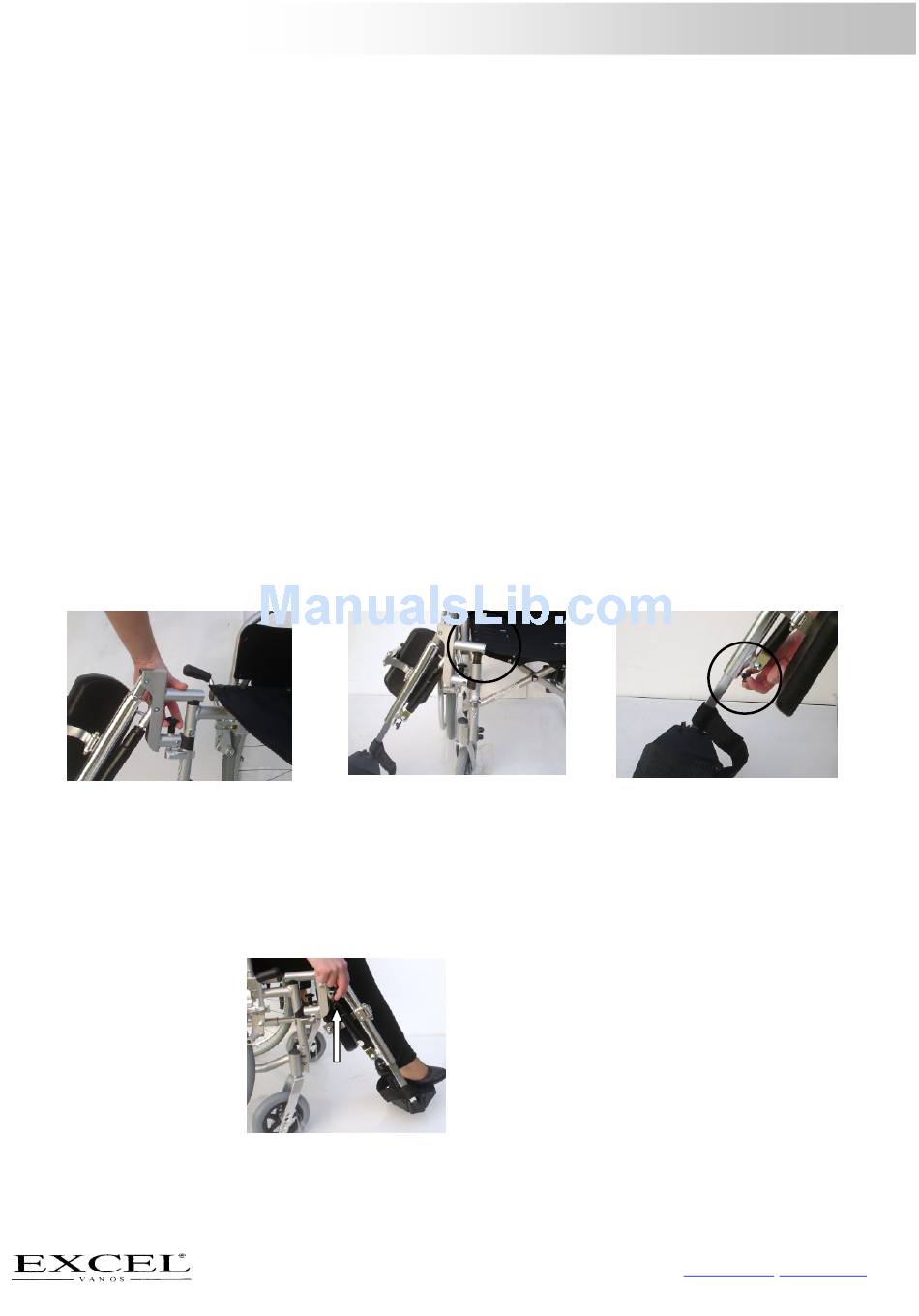

Figure 11
Setting the angle of the elevating legrest
Move the control lever with the black button toward the wheelchair. The gas spring in the comfort legrest
-
moves up automatically, see figure 14;
If you want the comfort legrest to move downwards, you control the lever toward the wheelchair to maintain
-
and support the leg while gently pushing down, see figure 14.
Figure 12
Figure 14
