Using the back tension straps
With eight back straps on the wheelchair, you can fully customize the back of the wheelchair to suit your own
body.
Get behind the wheelchair and first remove the backrest upholstery that is attached to the tension straps
-
with Velcro;

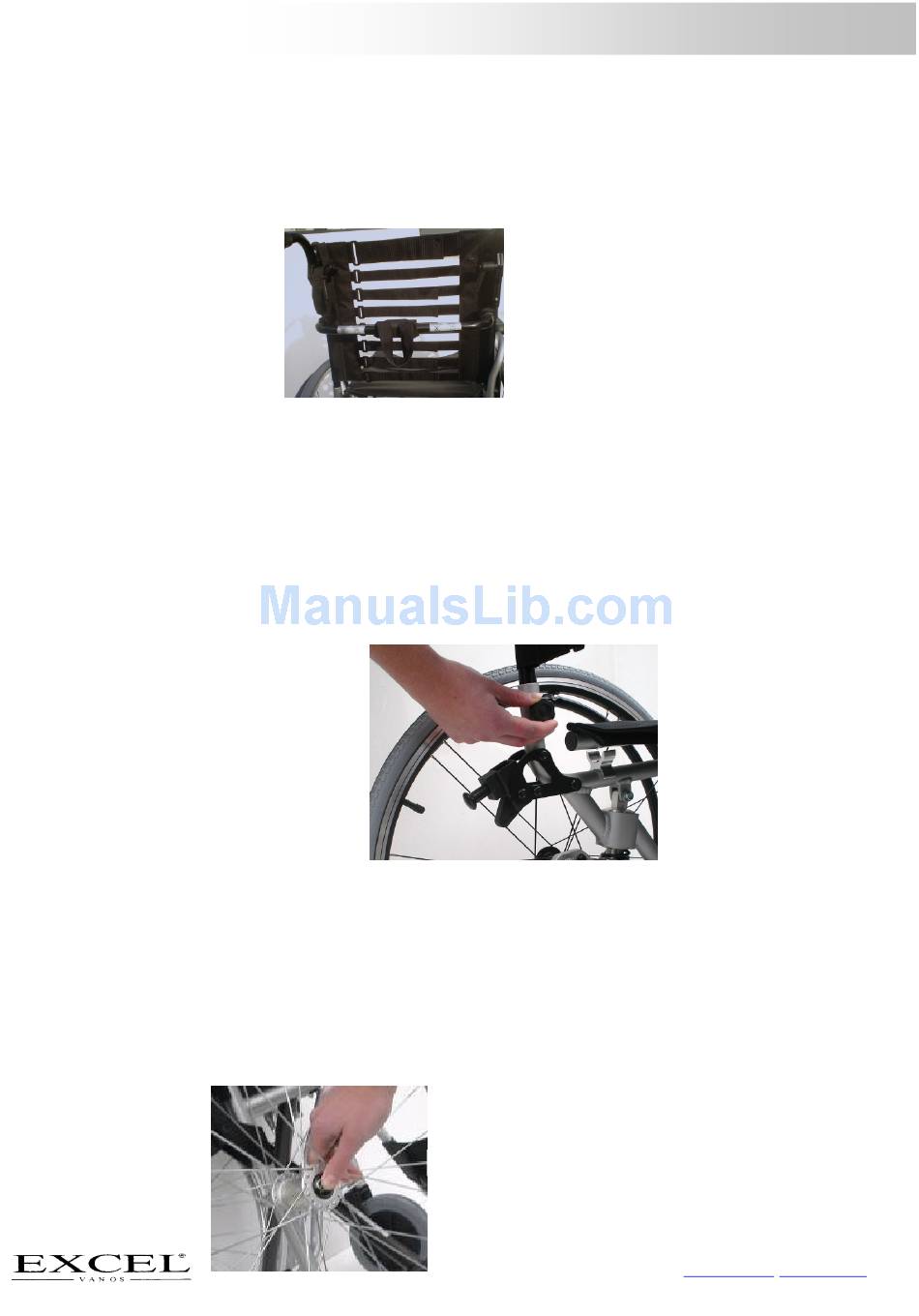

When you have removed the backrest upholstery you will see eight straps (figure 36). Each strap can be
-
adjust individually by simply release the Velcro, put the strap in the desired position and reattach the
Velcro;
When you're finished, place the backrest upholstery back and you can use the wheelchair.
-
Setting the angle of the backrest (explanation of the function)
On your wheelchair you have the opportunity to adjust the angle of the backrest. As you can not do this yourself we
advise you to go to an authorized @ Excel dealer.
Adjusting the height of the backrest
Make sure the armrests are folded away;
-
Turn on both sides a black button or nut that you find on the backrest tube completely independently, see
-
figure 37;
Remove the drumstick on both sides that is still in the backrest tube located;
-
You can now move the backrest up and down;
-
When the backrest is at the desired height, you push the bolts back into the backrest tubes and turn them back
-
on with the black buttons or the two nuts;
Verify that the backrest is in place.
-

5.11 Using the rear wheels (tire table) and anti-tip wheels

Removal of the rear wheel
You can remove the rear wheels using the quick release system in the following way:
Stand next to the wheelchair;
-
Tilt your wheelchair slightly so the wheel you wish to remove is slightly off the ground;
-
Press the black button in the centre of the wheel (figure 38) and remove the axle and wheel from the
-
frame. Make sure the black button is completely pressed in otherwise the ball bearing safety system that
stops the wheel from being removed at the opposite side of the axle will do exactly that;
To put the rear wheel back in place you must reverse the above steps. In order to ensure your safety please make
sure the axle is fully in place and the ball bearing system is engaged so the wheel does not come loose during use.
Figure 37
~ 21 ~
Figure 36
Figure 38
